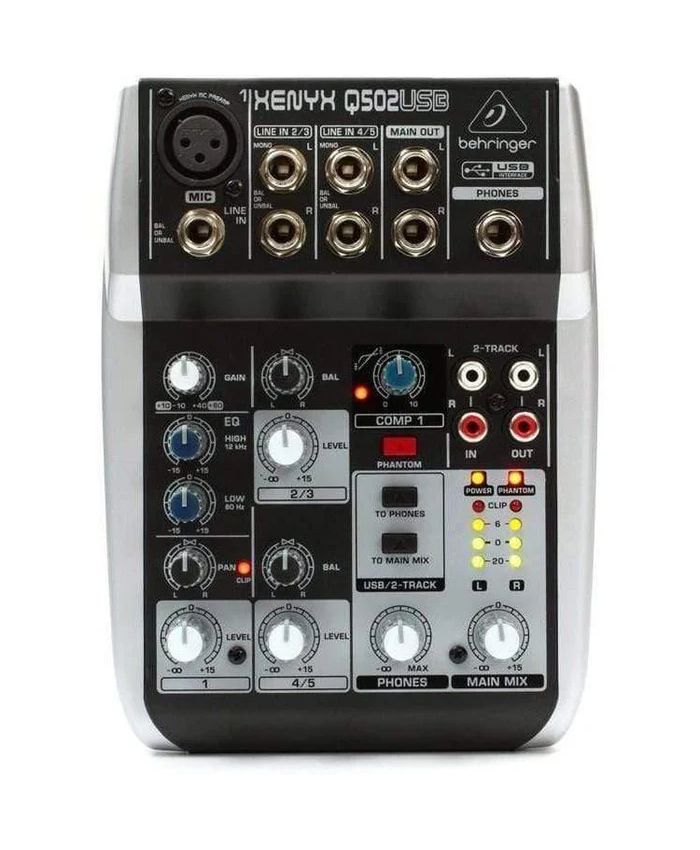

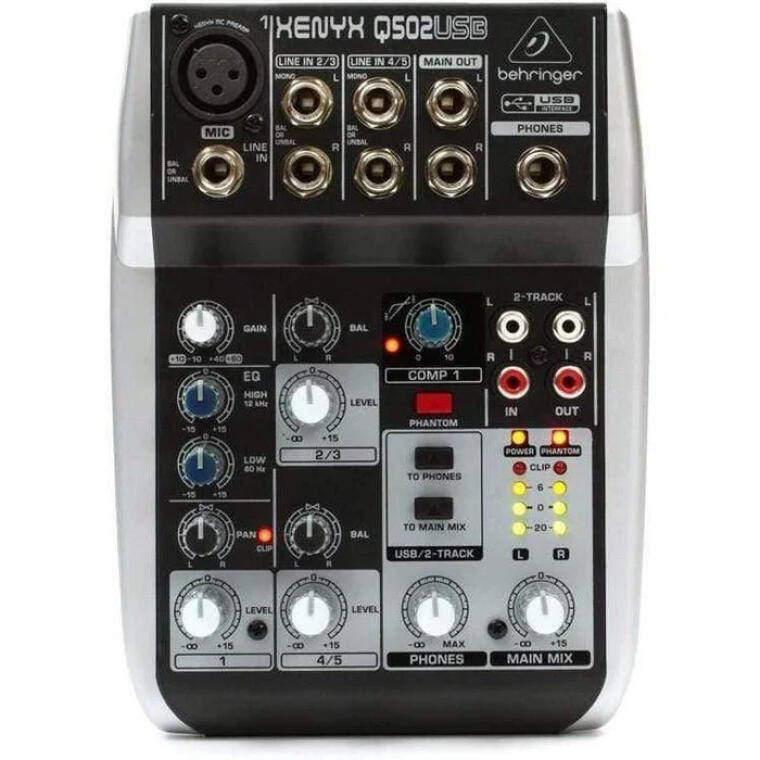

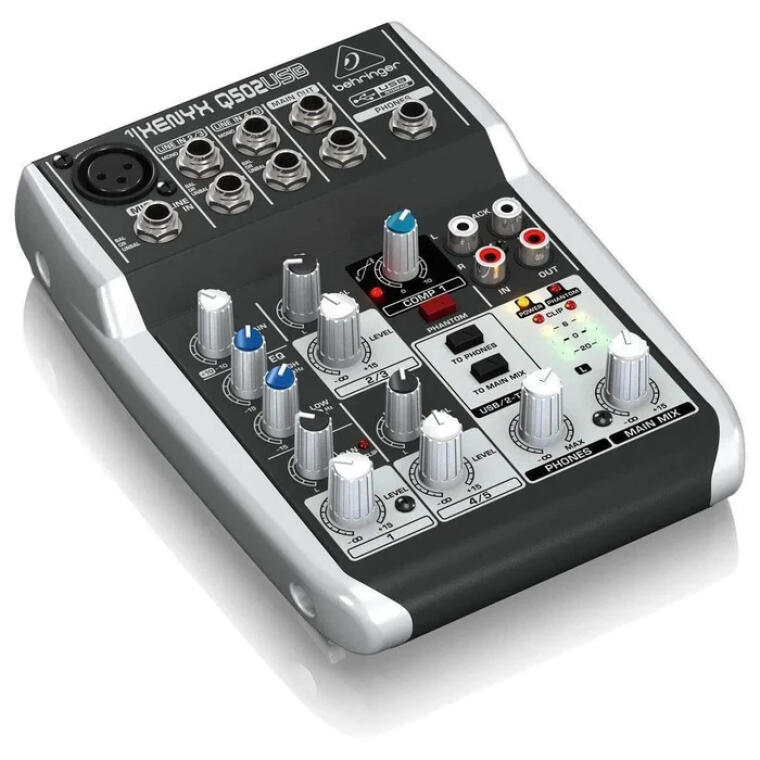

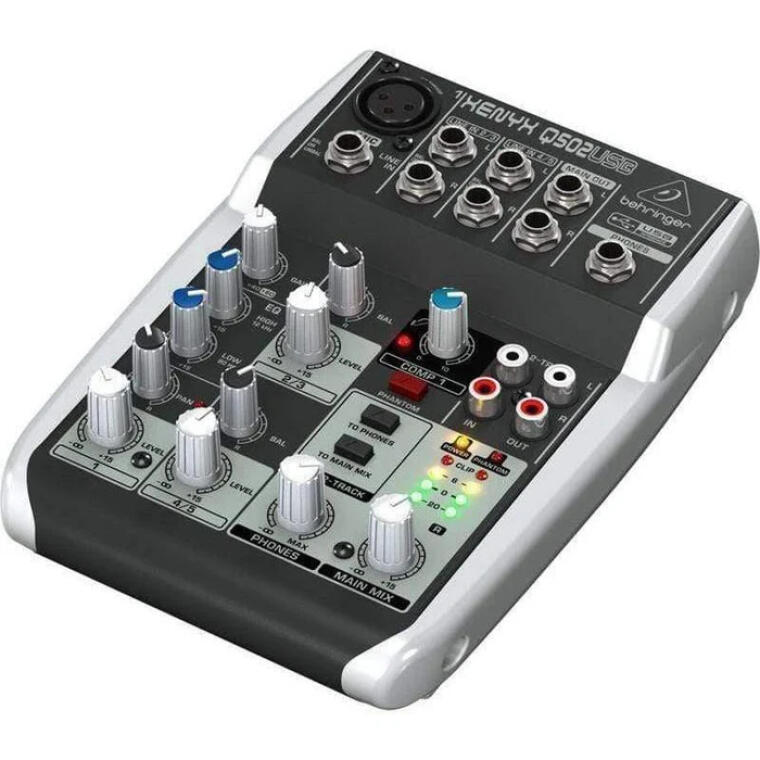

Behringer Q502USB

Price on request
Out of stock
Interested in this product?
Call us

Overview

Behringer Q502USB (ZB730)

The ultra-compact XENYX Q502USB mixer's 5 Inputs (1 mic, 2 stereos) allow you to effortlessly achieve premium-quality sound, thanks to its onboard studio-grade XENYX Mic Preamp and ultra-musical British channel EQ. And our easy-to-use one-knob compressor provides total dynamic control for the ultimate in punch and clarity while respecting all the power and emotion you pack into every note. Add to this, the sweet forgiveness of our British-style EQ and superb ease of use and the Q502USB becomes an incredibly versatile mixer for your live performances. But the XENYX Q502USB isn't just designed to handle your live gigs; it also provides the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with its built-in USB/audio interface, the Q502USB mixer comes with all the recording and editing software needed to turn your computer system into your own personal high-performance home recording studio.

Behringer XENYX Q502USB 5-Input Mixer – Technical Specifications

Power Supply & Consumption

  • Power Supply: 18 V DC, 1.0 A (via included external power adapter)

  • Power Consumption: 13 W

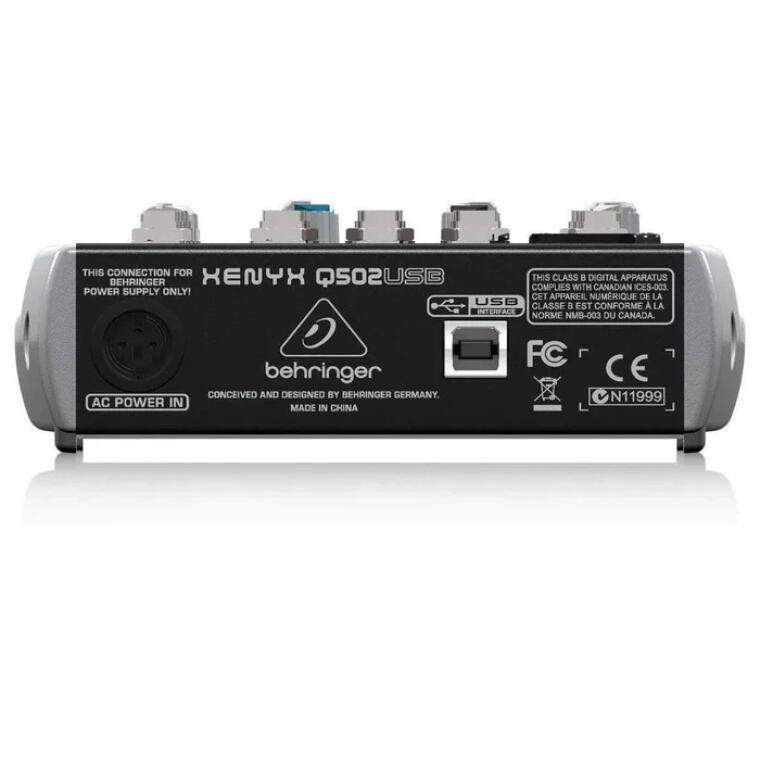

  • Mains Connection: Dedicated multi-pin DC power inlet connector

Audio Performance

  • Frequency Range: 10 – 160,000 Hz (+0 dB / -1 dB)

  • S/N Ratio: 110 dB A-weighted (0 dBu In @ +22 dB gain)

  • THD+N: 0.005% A-weighted

  • Equivalent Input Noise (Mic): -130 dB (150 Ω source)

  • Compressor: Studio-grade "one-knob" compressor on Channel 1 with dedicated LED control

  • Channel Equalizer: 2-band graphic British EQ (80 Hz Low & 12 kHz High, ±15 dB) on Mic channel

  • Phantom Power: +15 V DC phantom power (switchable for condenser mic input)

Connectivity & Media Playback

  • Integrated Audio Interface: Stereo USB audio interface (16-bit, 48 kHz sampling rate) for direct recording/playback with PC or Mac

  • USB Compatibility: Plug-and-play USB 2.0 Type-B connector (class-compliant, no drivers required)

  • Audio Routing: 2-Track / USB inputs assignable to Main Mix or Phones output

Controls & Indicators

  • Control Elements: Mic Gain knob, 1-knob Compressor control, 2-band EQ (Low/High), Pan control, Channel Level controls (Ch 1, Ch 2/3, Ch 4/5), Main Mix Level knob, Phones Level knob, USB/2-Track Assign switches (To Phones / To Main Mix), Phantom Power switch

  • Indicators: Power status LED, Phantom Power LED, Compressor LED, Clip LED on Mic channel, 4-segment LED peak level meter

Inputs & Outputs

  • Inputs:

    • Microphone Input: 1 x 3-pin XLR (balanced with XENYX preamp)

    • Mono Line Input: 1 x 6.35 mm (1/4") TRS jack (balanced)

    • Stereo Line Inputs: 2 x Pairs of 6.35 mm (1/4") TRS jacks (Line 2/3 and Line 4/5, balanced/unbalanced)

    • 2-Track Input: 1 x Stereo RCA pair

  • Outputs:

    • Main Output: 2 x 6.35 mm (1/4") TRS jacks (Main Out L/R, unbal/bal)

    • Headphones Output: 1 x 6.35 mm (1/4") TRS stereo jack

    • 2-Track Output: 1 x Stereo RCA pair

Physical Specifications

  • Housing Design: Compact desktop steel chassis with side bumpers

  • Rack Mounting: N/A (Desktop compact unit)

  • Dimensions (W x D x H): 138 x 184 x 46 mm

  • Weight: 0.60 kg

Accessories Included

  • External Power Supply Adapter, USB Type-A to Type-B Cable, Quick Start Guide
