Omnitronic LH-031

SKU: No. 10355031
€68.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

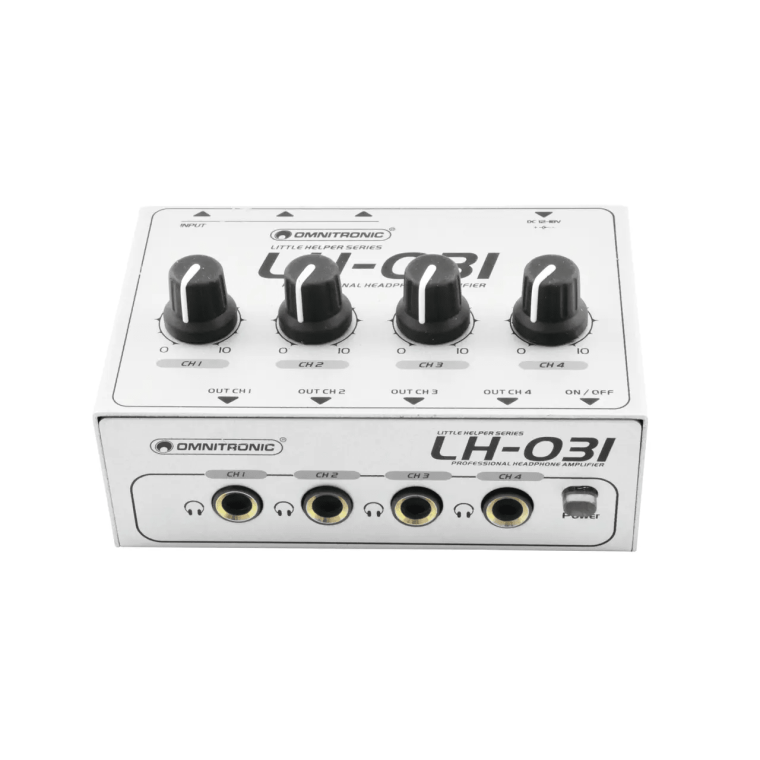

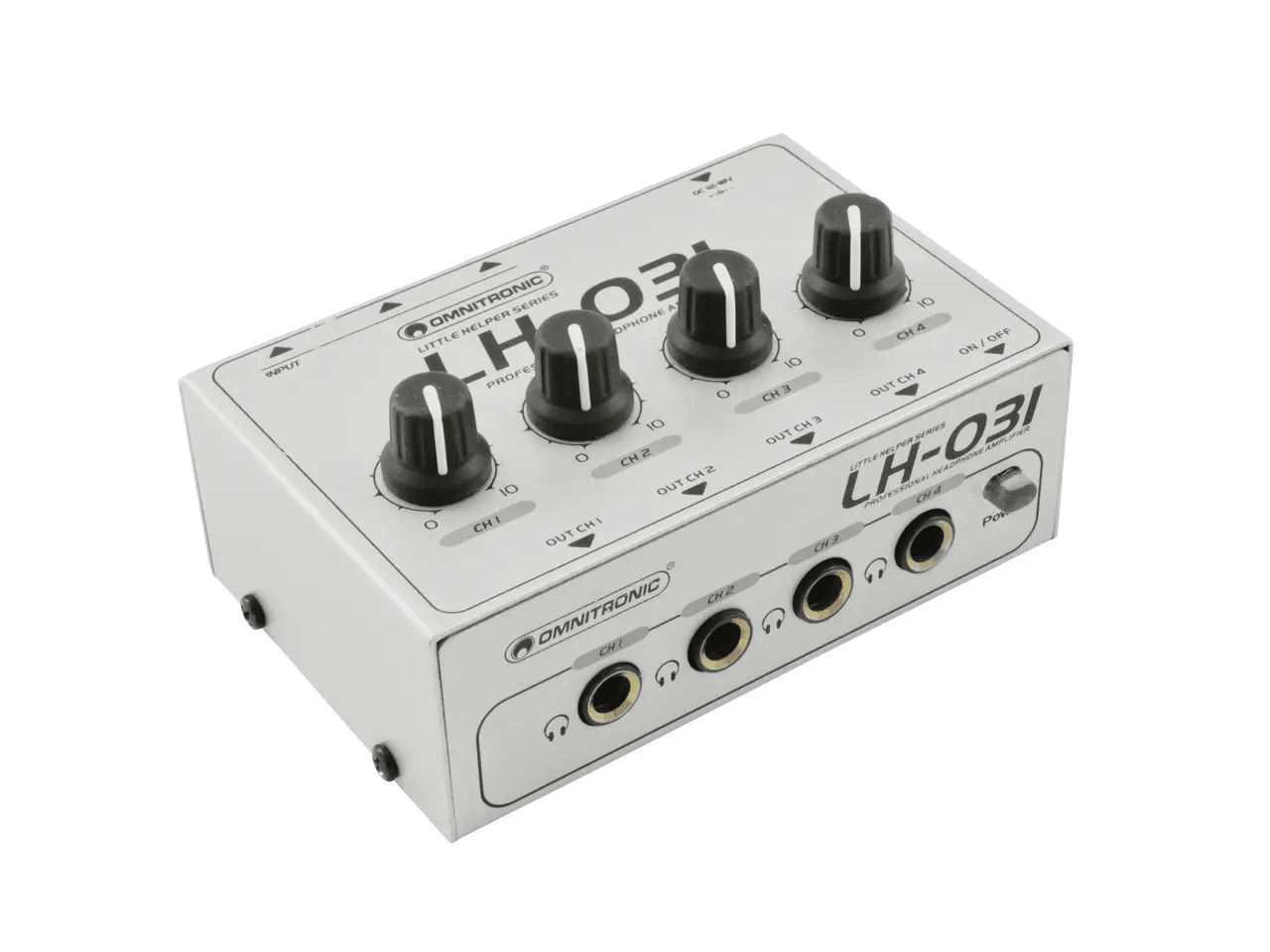

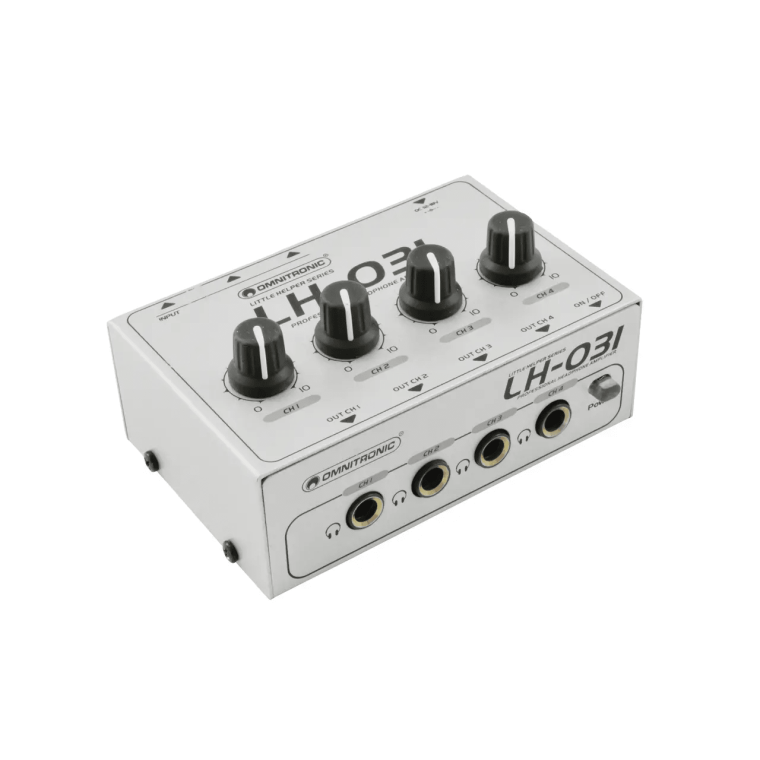

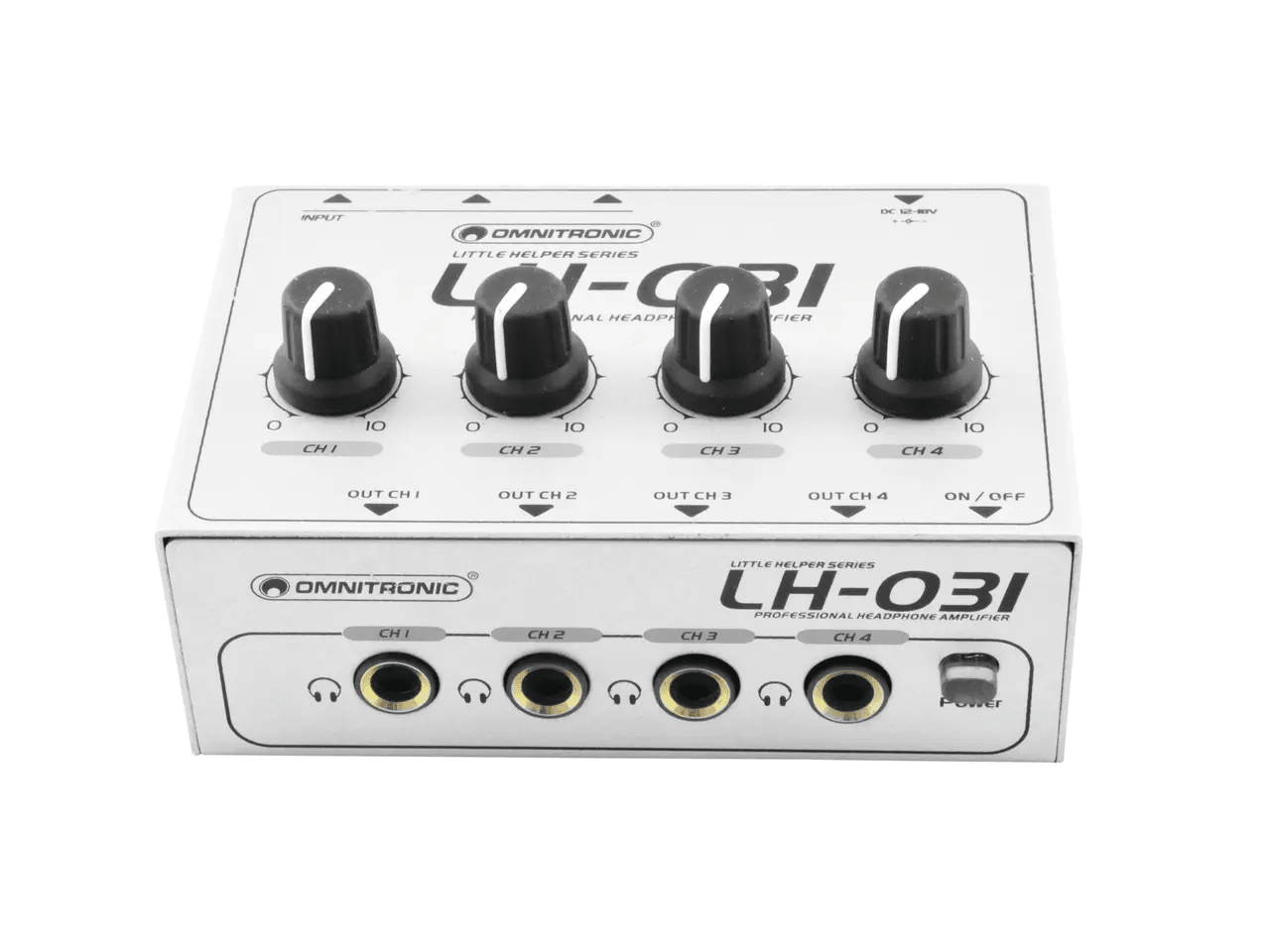

OMNITRONIC LH-031 Headphone Amplifier

4-channel headphone amplifier, RCA and 6.3 mm jack

  • Distributes the signal of 1 audio source to 4 sets of headphones
  • 1 stereo input (switchable to mono) via RCA, 3.5 mm and 6.3 mm jack connectors
  • 4 separately controllable headphone outputs via 6.3 mm jacks
  • For application areas such as: Installation; mobile use; mobile djs / entertainer

Omnitronic LH-031 – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: Passive operation (no battery, power adapter, or external power source required)

  • Power Consumption: 0 W

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >90 dB

  • THD: <0.005% @ 1 kHz

  • Operation Mode: Pure passive resistive mixing circuit (attenuation only)

Connectivity & Signal Routing

  • Audio Channels: 4 Mono line inputs to 1 Mono line output (or usable in reverse as a 1-to-4 splitter)

  • Signal Type: Line-level audio (unbalanced mono)

Controls & Indicators

  • Control Elements: 4 x Channel Level rotary knobs (Volume/Attenuation controls per channel)

  • Indicators: None (fully passive analog design)

Inputs & Outputs

  • Inputs:

    • Line Inputs: 4 x 6.35 mm (1/4") TS jacks (unbalanced mono)

  • Outputs:

    • Master Output: 1 x 6.35 mm (1/4") TS jack (unbalanced mono)

Physical Specifications

  • Housing Design: Compact desktop metal enclosure

  • Dimensions (W x D x H): 115 x 65 x 37 mm (4.5" x 2.6" x 1.5")

  • Weight: 0.32 kg (0.7 lbs)

Accessories Included

  • User Manual
