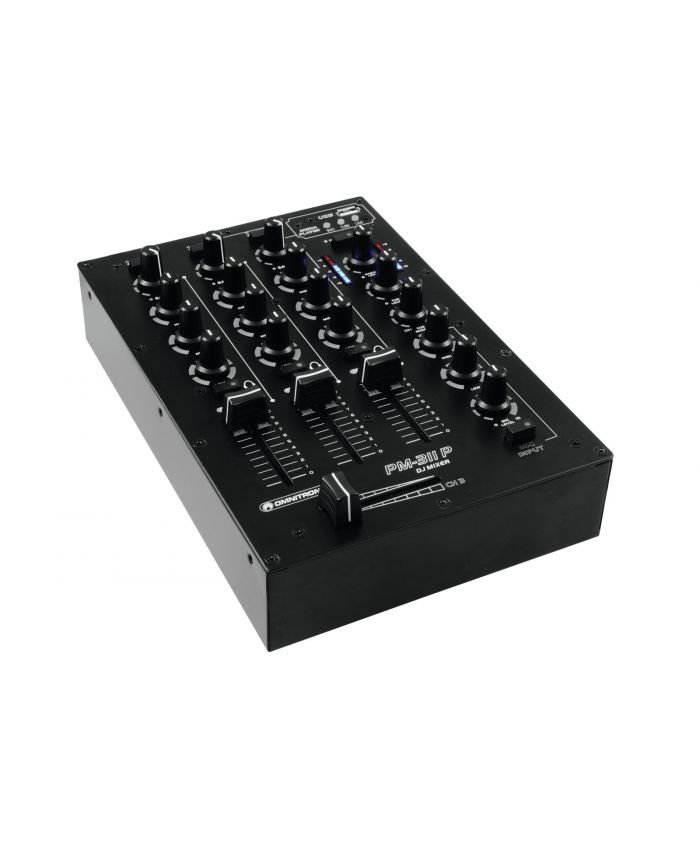

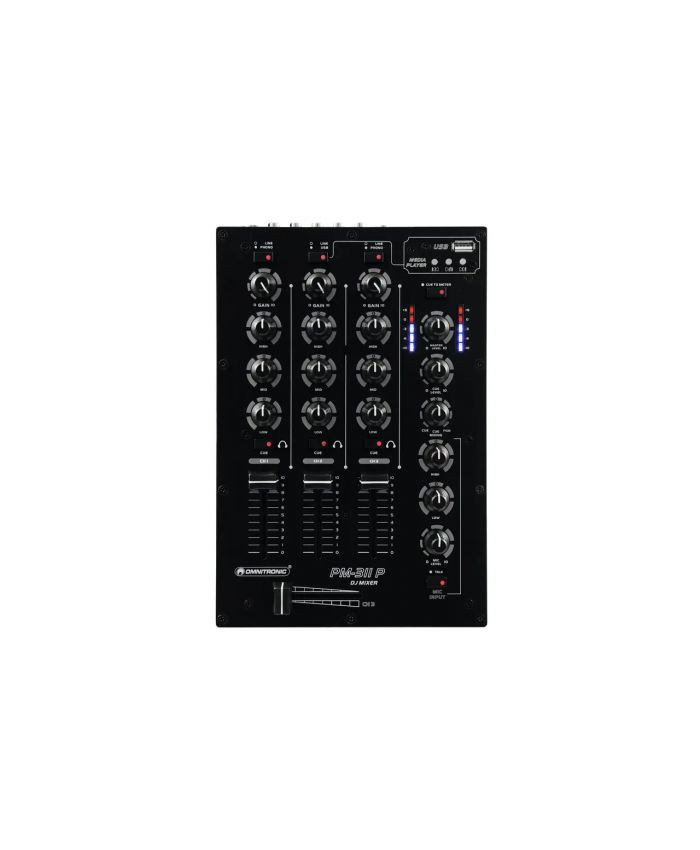

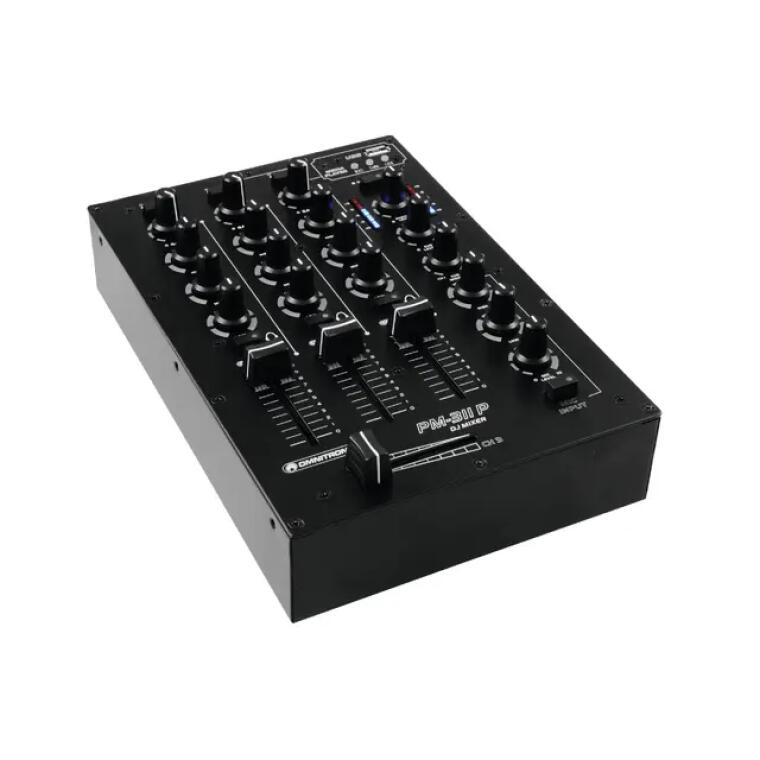

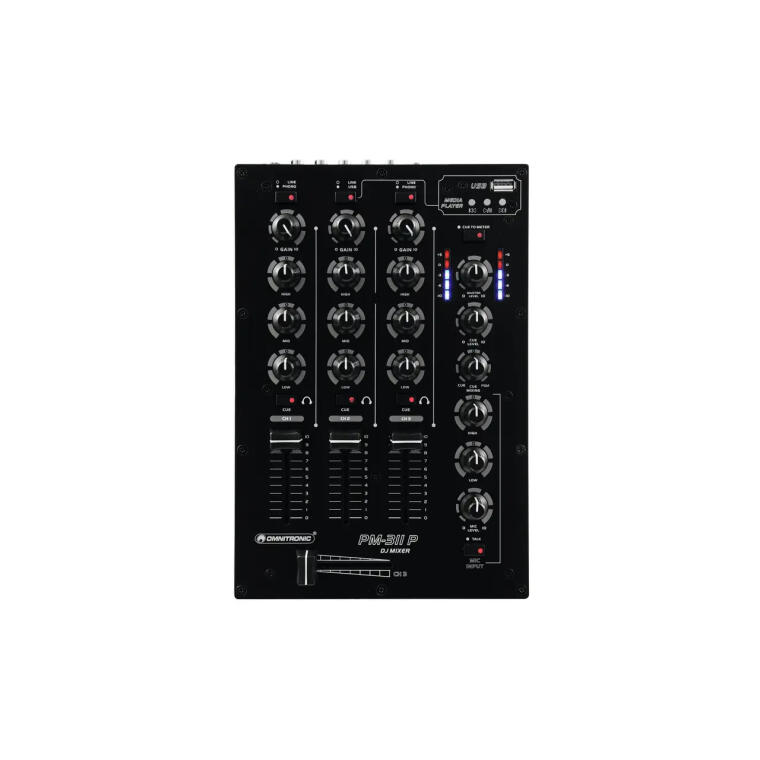

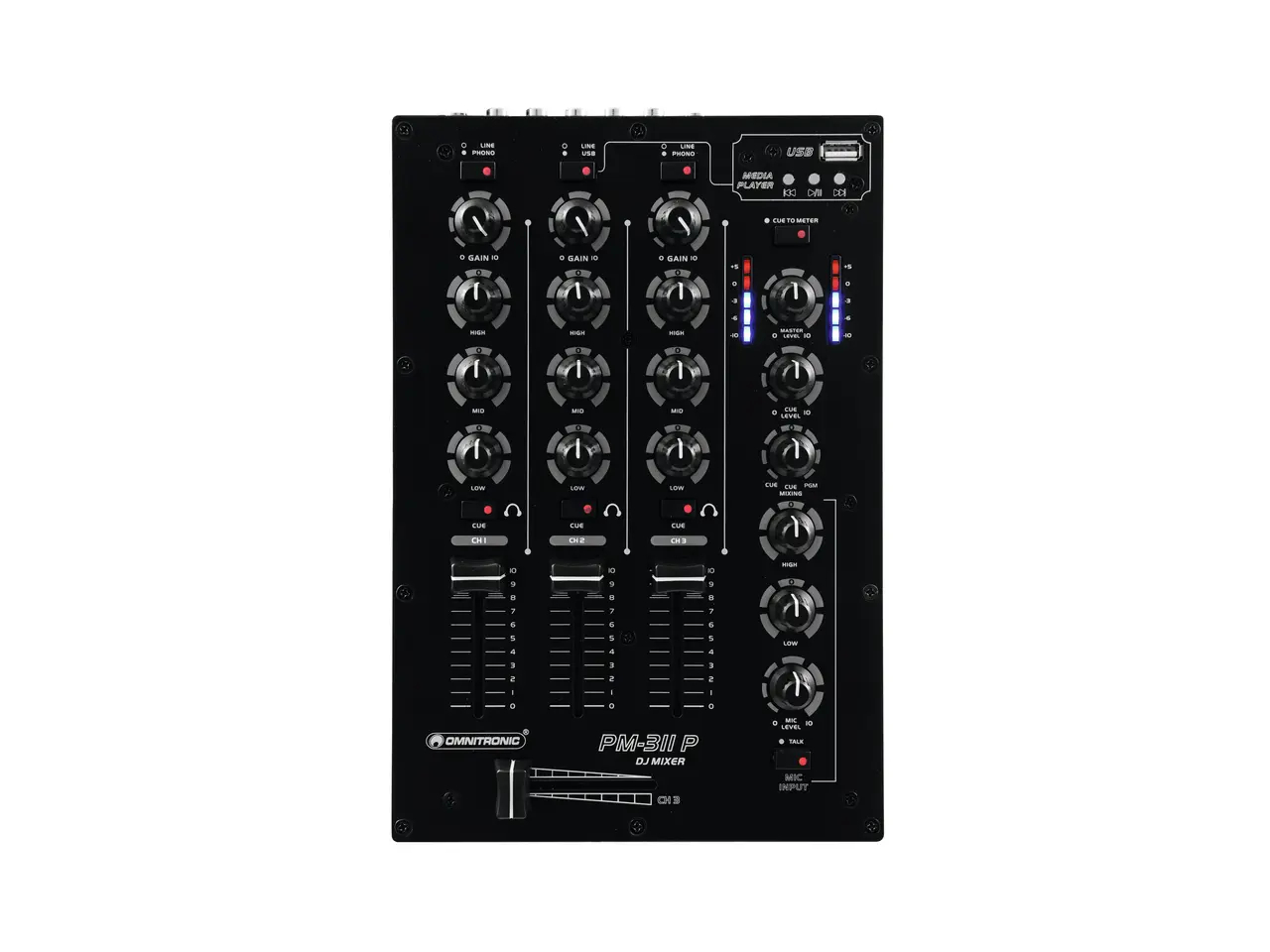

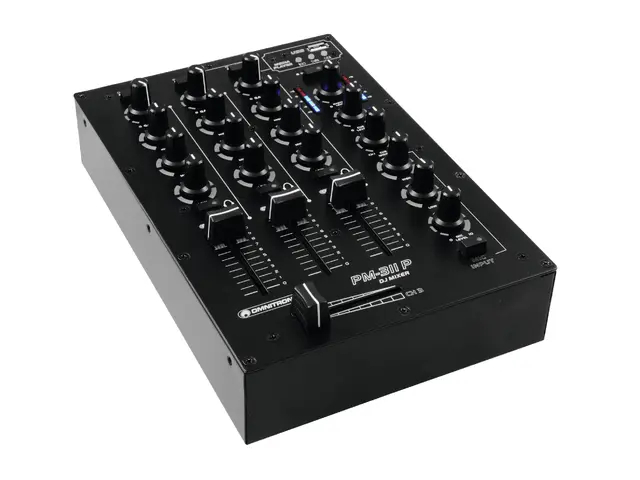

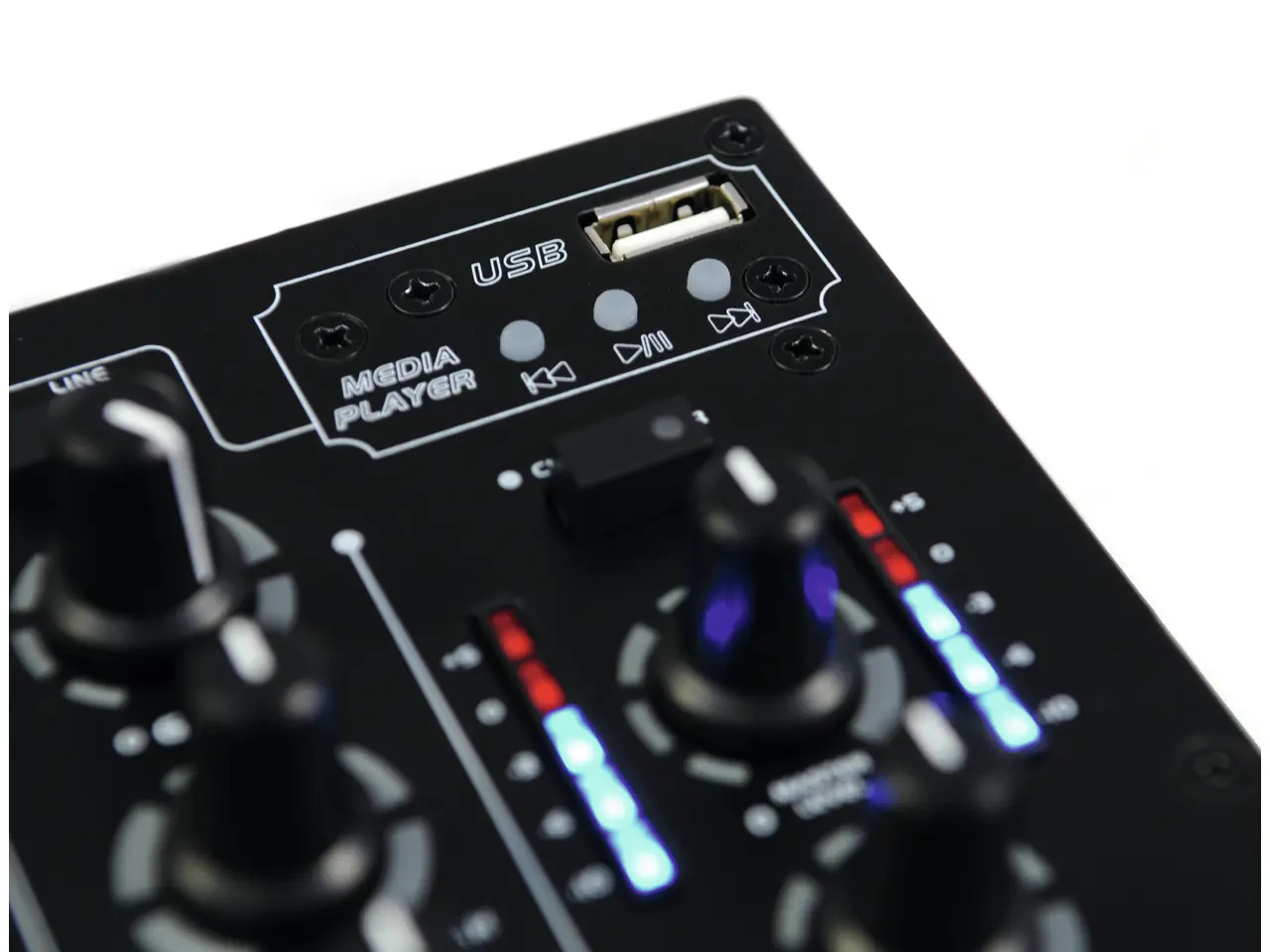

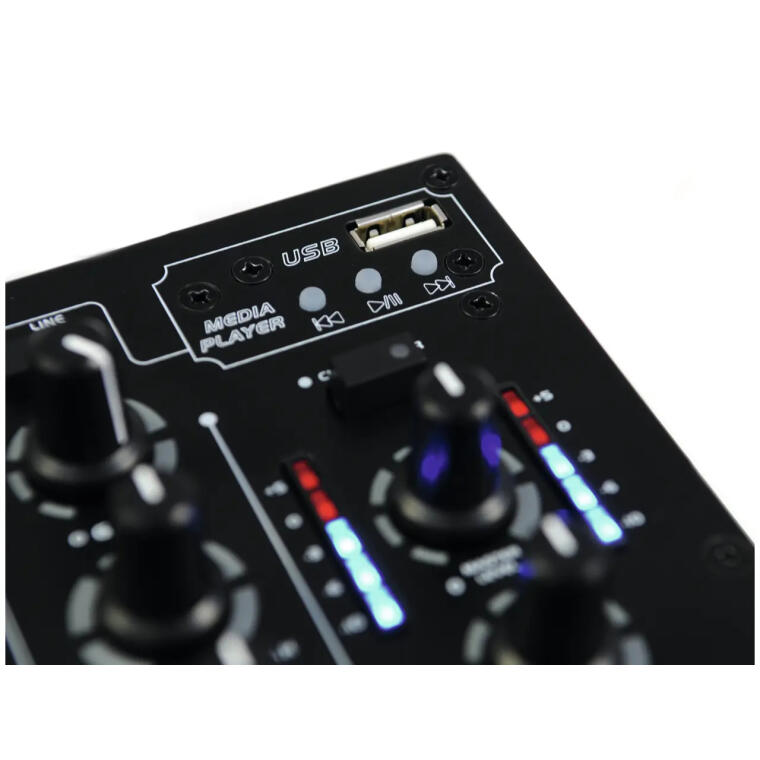

Omnitronic PM-311P

€169.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

Omnitronic PM-311P DJ Mixer with Player

3-channel DJ mixer with integrated MP3 player

  • 3 input channels, switchable 2 x phono/line and 1 x USB/line
  • All input channels with gain control, 3-band equalizer and cue button
  • DJ microphone input with talkover selector, level control and 3-band equalizer
  • Pre-fader listening (CUE) to the input channels and the master output via adjustable headphones output, with cue mix control
  • Crossfader for crossfading between the phono/line channels
  • 5-digit stereo LED level meter, switchable between master and PFL signal
  • Additional recording output
  • Desktop console housing
  • For application areas such as: Party room; mobile djs / entertainer; mobile use

Omnitronic PM-311P 3-Channel DJ Mixer with Bluetooth & MP3 Player – Technical Specifications

Power Supply & Consumption

  • Power Supply: 100–240 V AC, 50/60 Hz (via included 12 V DC, 1 A external power supply unit)

  • Power Consumption: 12 W

  • Protection Class: Class III

  • Power Connection: Coaxial DC power input socket

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >80 dB

  • THD: <0.1% @ 1 kHz

  • Channel Equalizer: 3-band EQ per channel (-26 dB to +12 dB @ Low / Mid / High)

  • Input Sensitivity: 1.5 mV (Mic), 3 mV (Phono), 150 mV (Line)

Connectivity & Media Playback

  • Integrated Media Player: Built-in MP3 player and Bluetooth receiver

  • Supported Media Storage: USB flash drives and SD/MMC cards (max. 32 GB, FAT32)

  • Playback File Formats: MP3, WAV

  • Bluetooth Connectivity: Integrated Bluetooth v4.2 + EDR (operating range up to 10 m)

  • Audio Channels: 3 stereo channels (switchable Line/Phono/Player), 1 mono DJ mic channel

Controls & Indicators

  • Display: Blue backlit LCD display for MP3/Bluetooth track information and navigation

  • Control Elements: Channel gain controls, 3-band EQ knobs per channel, 45 mm channel faders, crossfader with routing switches, Master volume knob, DJ Mic volume & 2-band EQ knobs, Cue level & Cue Mix rotary controls, Talkover selector switch

  • Indicators: Power status LED, 6-digit stereo LED master output level meter

Inputs & Outputs

  • Inputs:

    • Line Inputs: 4 x Stereo RCA (Line 1 to 4)

    • Phono Inputs: 2 x Stereo RCA (Phono 1 & 2) with ground screw terminal

    • Microphone Input: 1 x 6.35 mm (1/4") jack (unbalanced mono)

    • Media Ports: 1 x USB Type-A port, 1 x SD/MMC card slot

  • Outputs:

    • Master Output: 1 x Stereo RCA

    • Record Output: 1 x Stereo RCA (Rec Out)

    • Headphones Output: 1 x 6.35 mm (1/4") stereo jack (min. 32 Ω)

Physical Specifications

  • Housing Design: Desktop console layout (sturdy steel chassis, black finish)

  • Rack Mounting: N/A (Desktop console format)

  • Dimensions (W x D x H): 254 x 260 x 95 mm

  • Weight: 2.25 kg

Accessories Included

  • 12 V DC External Power Adapter, User Manual
