Soundlab G105C
€32.00
incl. VAT
In stock
Interested in this product?
Overview

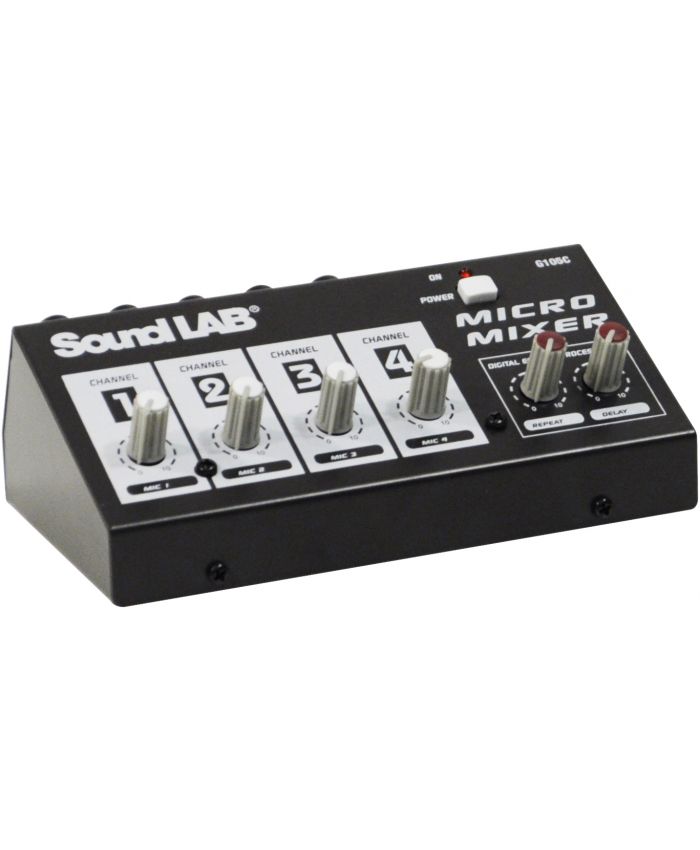

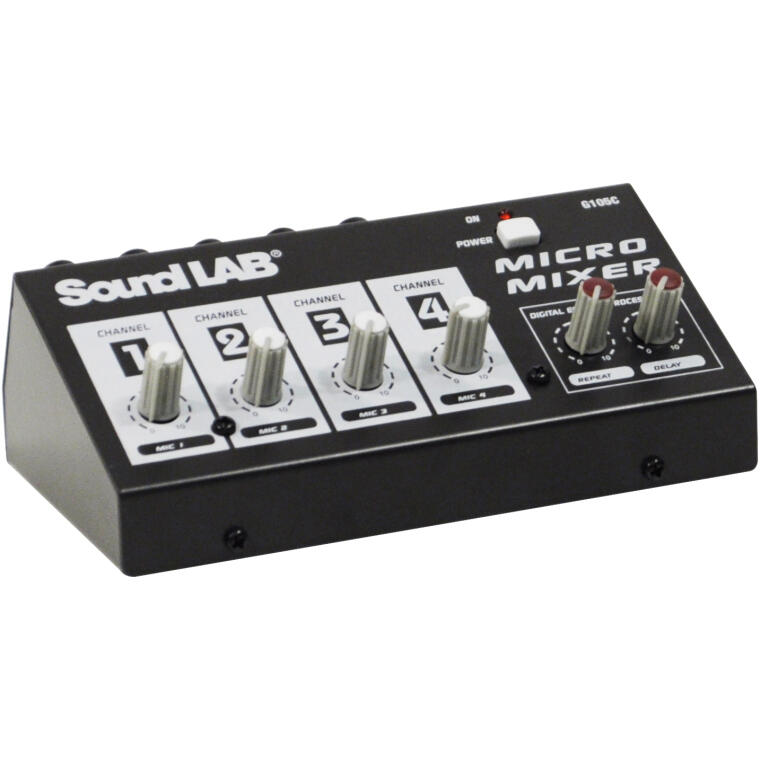

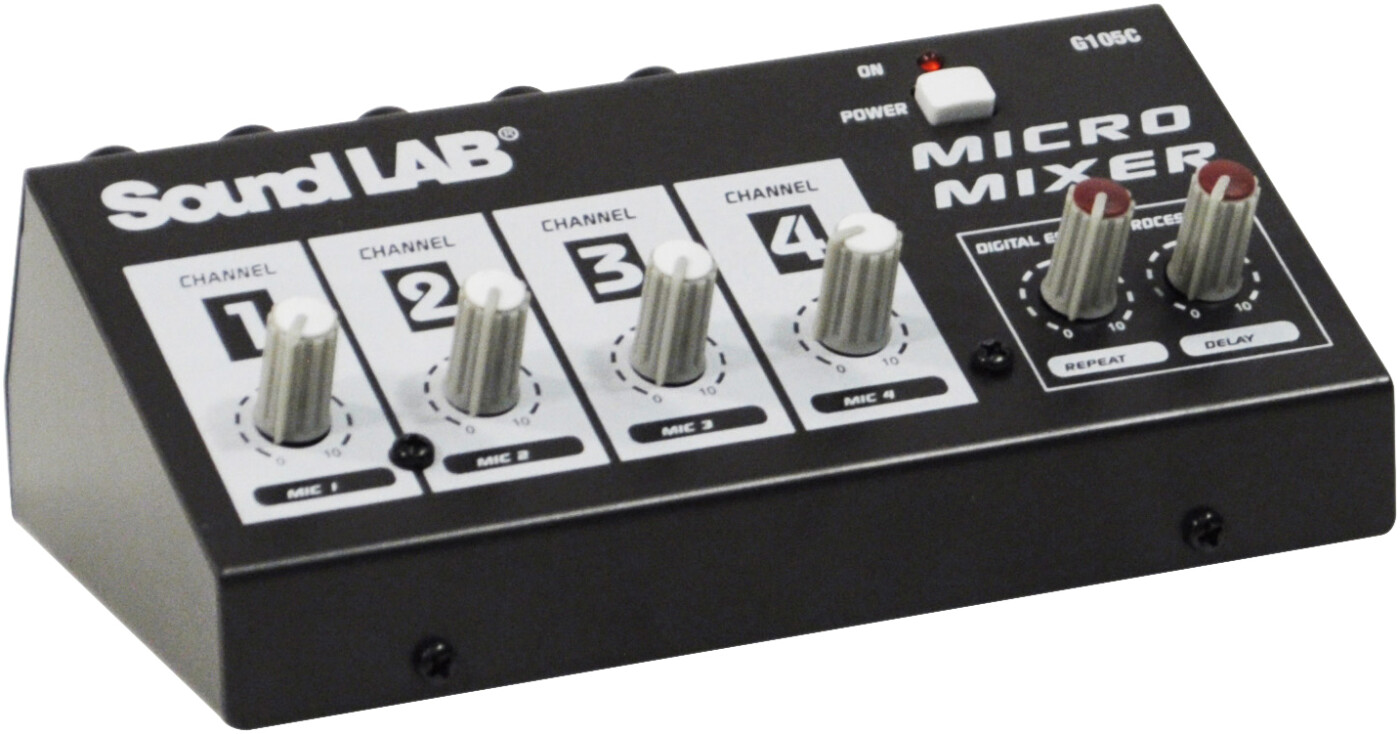

Soundlab 4 Channel Mono Microphone Mixer With Effects
Soundlab G105C
A micro mixer that can expand a single input on a music mixer to take up to 4 microphones. The product features digital echo on the output with delay and volume controls.
Soundlab G105C – Technical Specifications & Setup Guide
Power Supply & Consumption
-
Power Supply: Passive operation (no batteries, power adapter, or external power source required)
-
Power Consumption: 0 W
Audio Performance
-
Frequency Range: 20 – 20,000 Hz
-
S/N Ratio: >90 dB
-
THD: <0.005% @ 1 kHz
-
Operation Mode: Pure passive resistive mixing and attenuation circuit
Connectivity & Signal Routing
-
Audio Channels: 4 Mono inputs to 1 Mono output (unbalanced)
-
Signal Compatibility: High-impedance dynamic microphones, instruments, and line-level sources
Controls & Indicators
-
Control Elements: 4 x Independent Volume/Level rotary controls (1 per input channel)
-
Indicators: None (fully passive analog design)

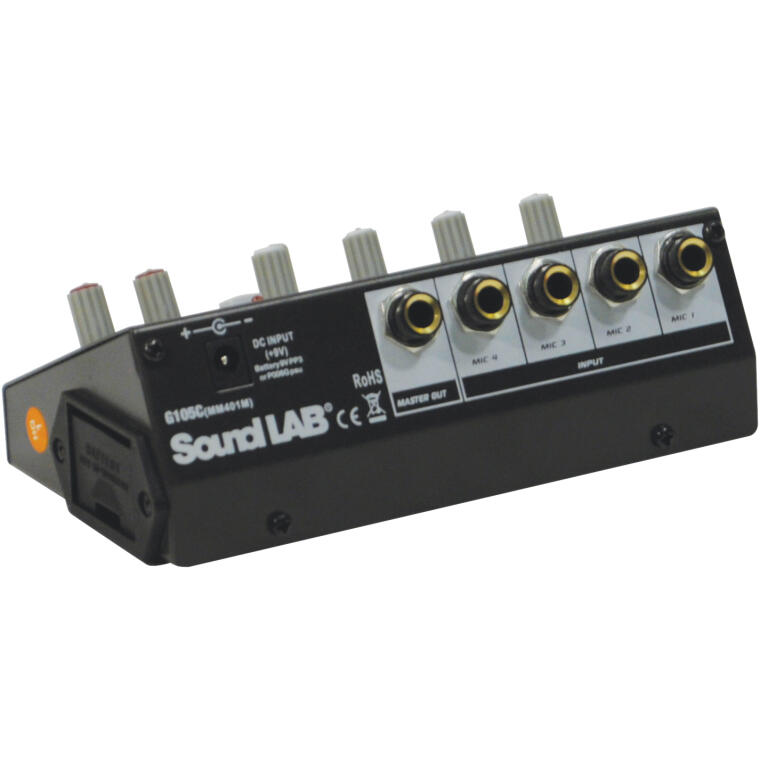

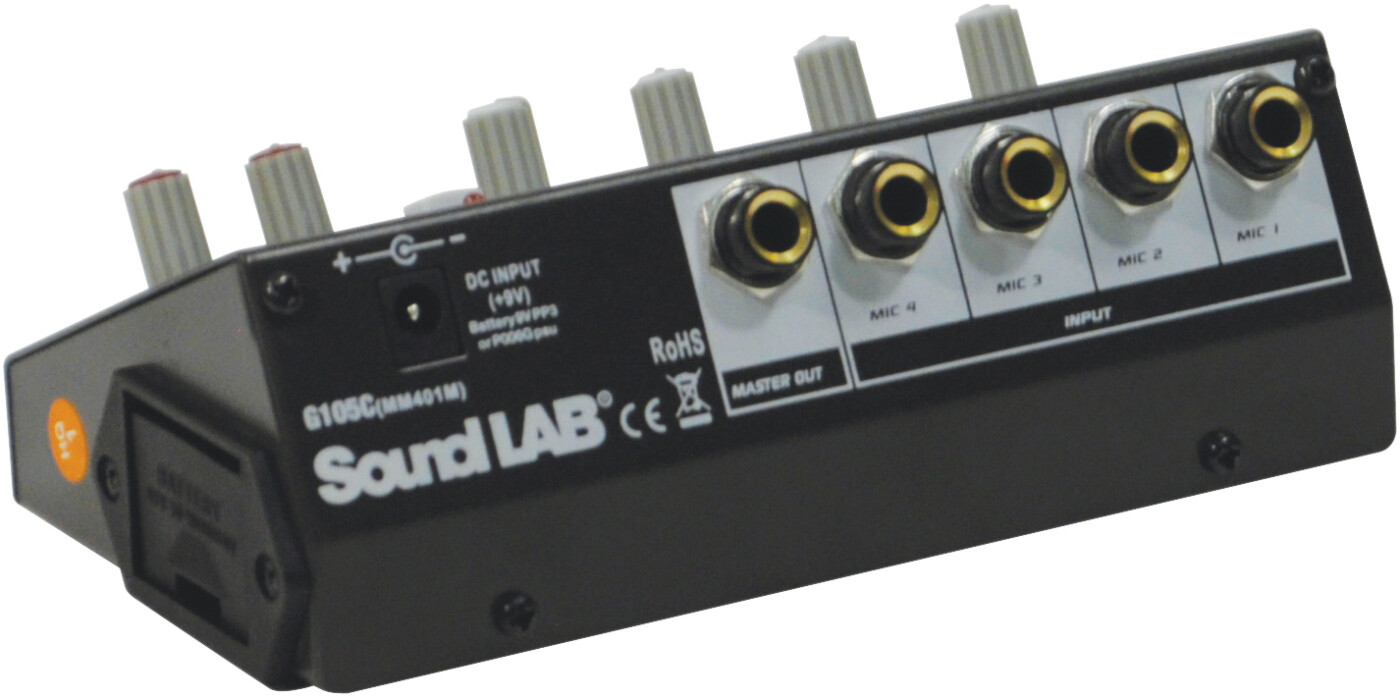

Inputs & Outputs
-
Inputs:
-
Mic/Line Inputs: 4 x 6.35 mm (1/4") TS jacks (unbalanced mono)
-
-
Outputs:
-
Main Output: 1 x 6.35 mm (1/4") TS jack (unbalanced mono)
-
Physical Specifications
-
Housing Design: Compact desktop metal enclosure
-
Dimensions (W x D x H): 110 x 60 x 35 mm (4.3" x 2.4" x 1.4")
-
Weight: 0.30 kg (0.66 lbs)
Accessories Included
-
User Manual
