Omnitronic LMC-2022FX USB

€499.00 incl. VAT

In stock

Interested in this product?

Call us

Overview

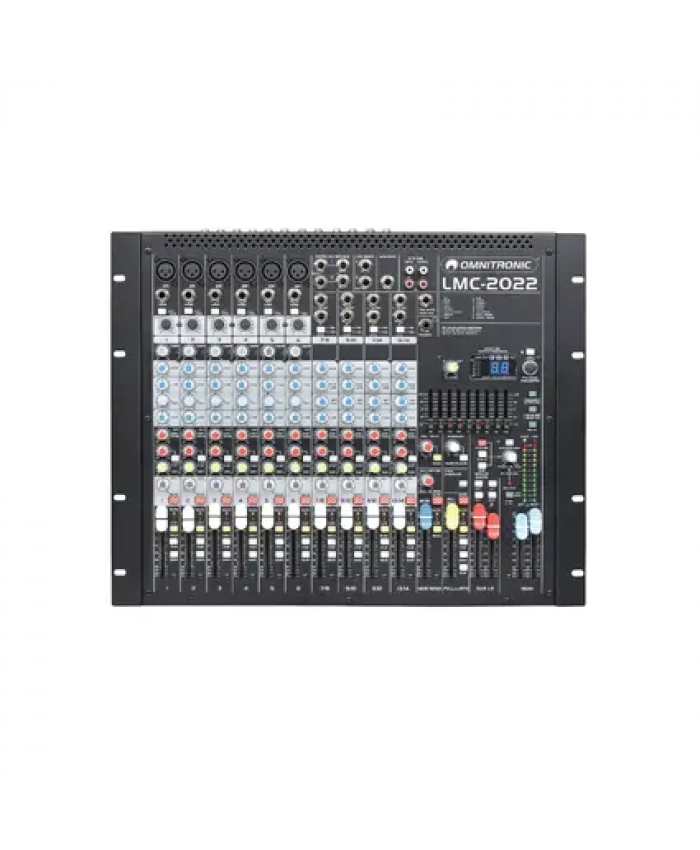

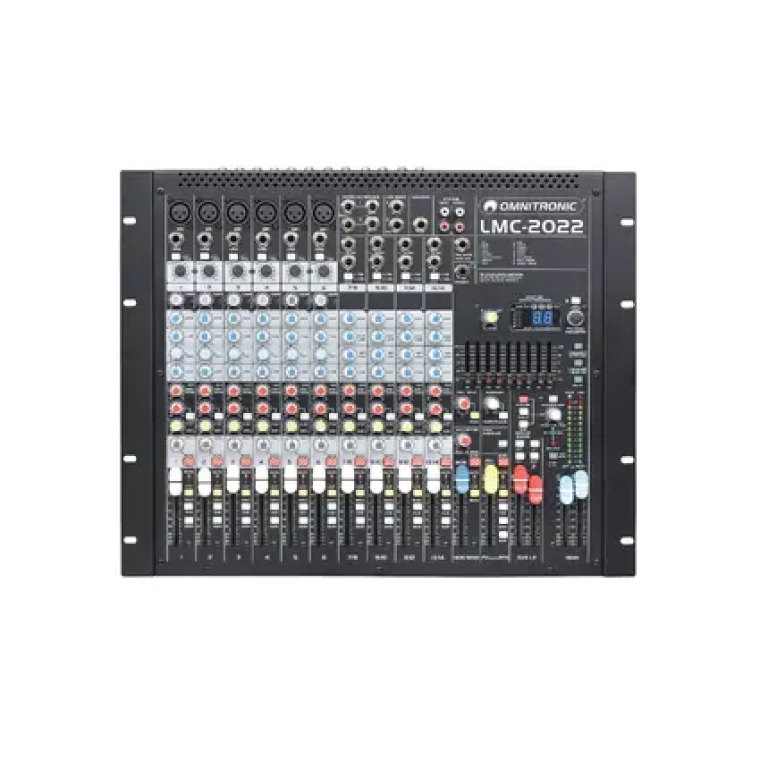

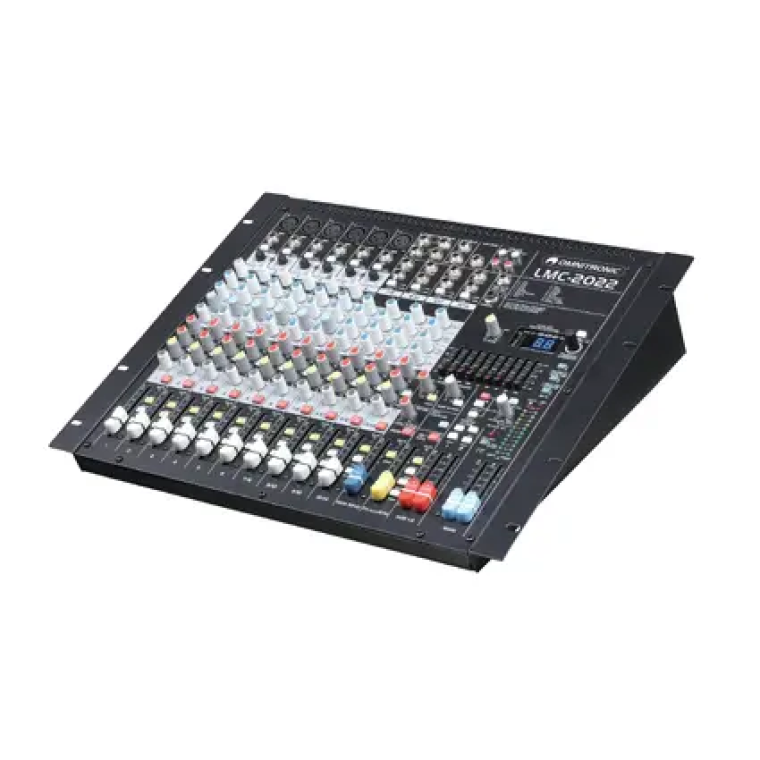

OMNITRONIC LMC-2022FX USB Mixing Console

Professional live mixing consoles with British EQ, FX unit and USB interface
Effortlessly achieve the right sound with the LMC series by OMNITRONIC! The incredibly user-friendly mixing consoles provide a warm, natural sound with outstanding audio parameters, an extensive set of features and maximum reliability - ideal for professional studio recordings, live performances, and fixed PA installations. Especially the 2022FX has several useful features that are unparalleled in this price range: feedback detection system, voice canceller, and 3D stereo surround effect.

All mono channels feature extremely low-noise, top-notch microphone preamps that offer an extraordinary 130 dB of dynamic range, and a bandwidth ranging from below 10 Hz to over 200 kHz for crystal-clear signal reproduction. The incredibly warm and natural equalizers used for all channel strips are based on classic "British EQ" circuitry from mixing consoles of the '60s and '70s.

Additionally, your LMC series mixing console has a studio-grade compressor with easy one-knob functionality on each mono channel plus a 24-bit FX processor with 16 editable effects which can be added to individual channels, busses or the main mix. Utilizing the built-in USB audio interface with up to 48 kHz sample rate, you can link your Windows or Mac computer and record your sessions instantly.

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

6 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
6 inserts for flexible connection of outboard equipment on each mono channel
4 stereo input channels with 4-way EQ, level selection and balance control
State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
Exceptional British EQs for warm and musical sound
Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
Intelligent feedback detection system makes eliminating feedback frequencies easy
Voice canceller filters out vocal portions for karaoke applications
Incredible 3D stereo surround effect for an enhanced listening experience
9-band stereo graphic EQ with illuminated faders allows tuning monitor or main mixes
3 AUX sends per channel: AUX 1 pre-fader for monitoring, AUX 2 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
2 subgroups with separate outputs for added routing flexibility
2 stereo AUX returns with flexible routing
Clip LEDs on all channels
Routing switches for mute, main mix, subgroup and solo/PFL on all channels
Balanced main mix outputs with 6.3 mm jack and gold-plated XLR connectors
Control room/phones outputs with multi-input source matrix
CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
Precise 12-digit LED level meter
BNC lamp socket
FX mute with remote control via footswitch
+48 V phantom power, can be switched centrally
Digital signal processor 24 bit with 16 effects
Monochrome 2 digit 7-segment LED display
The device can be connected via USB to the PC
(19") 48.3 cm rack installation possible
For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Omnitronic LMC-2022FX USB – Technical Specifications & Setup Guide

Power Supply & Consumption

Power Supply: 100–240 V AC, 50/60 Hz (via internal power supply unit)
Power Consumption: 50 W
Power Connection: Standard IEC C14 power inlet with power switch

Audio Performance

Frequency Range: 20 – 20,000 Hz
S/N Ratio: >110 dB
THD: <0.05% @ 1 kHz
Channel Equalizer:
- Mono Channels: 3-band EQ with sweepable mid-range (High: 12 kHz, Mid: 100 Hz–8 kHz, Low: 80 Hz)
- Stereo Channels: 4-band fixed EQ (High: 12 kHz, High-Mid: 3 kHz, Low-Mid: 500 Hz, Low: 80 Hz)
FX Unit: 24-bit DSP multi-effects processor with 16 editable presets

Connectivity & Streaming

USB Interface: USB Type-B Audio Interface (Stereo In/Out, 16-bit / 48 kHz class-compliant)
Audio Channels: 12 Mono mic/line channels, 4 Stereo line channels
Phantom Power: +48V global phantom power switch with LED status indicator

Controls & Indicators

Control Elements: 60 mm smooth logarithmic faders per channel and master, Gain controls with Compressors on Mono channels (Ch 1–8), 3-band/4-band EQs, 4 AUX sends per channel (2 Pre/Post switchable, 2 Post/FX), Pan/Balance, Mute, PFL, and Subgroup routing switches (1-2, 3-4, Main)
Indicators: 12-segment LED peak output level meter, Clip and Mute LEDs per channel, 48V LED, Power LED

Inputs & Outputs

Inputs:
- Mic Inputs: 12 x XLR (balanced)
- Line Inputs: 12 x 6.35 mm (1/4") TRS jacks (Mono) + 4 x Stereo pairs (6.35 mm TRS)
- Channel Inserts: 8 x 6.35 mm (1/4") TRS jacks (Channels 1–8)
- 2-Track / Tape In: 1 x RCA Stereo pair

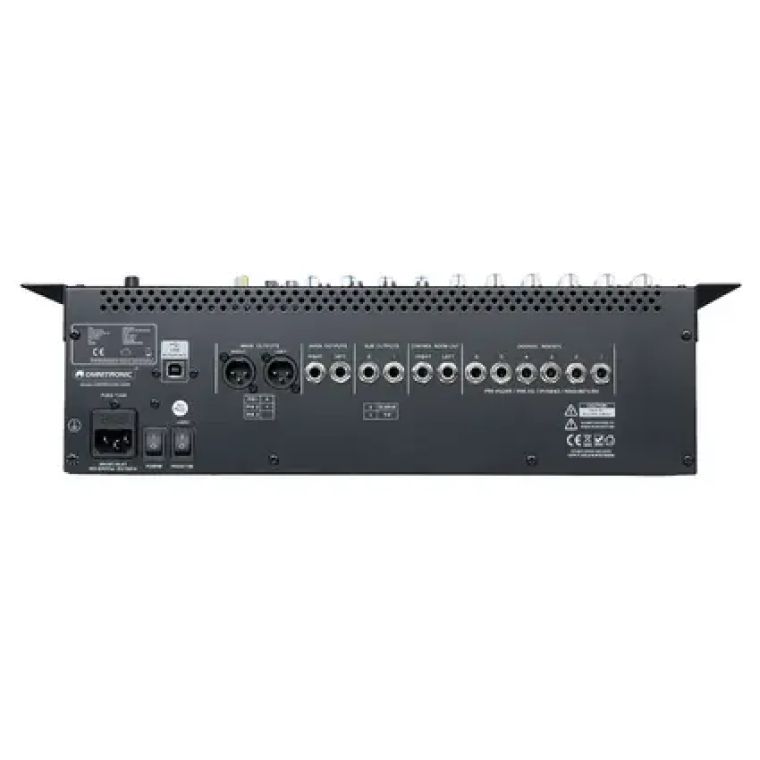

Outputs:
- Main Output: 2 x XLR (balanced) and 2 x 6.35 mm (1/4") TRS jacks
- Control Room Output: 2 x 6.35 mm (1/4") TRS jacks
- Subgroup Outputs: 4 x 6.35 mm (1/4") TRS jacks (Group 1–4)
- AUX Sends: 4 x 6.35 mm (1/4") TRS jacks
- Headphones Output: 1 x 6.35 mm (1/4") TRS stereo jack
- 2-Track / Tape Out: 1 x RCA Stereo pair
