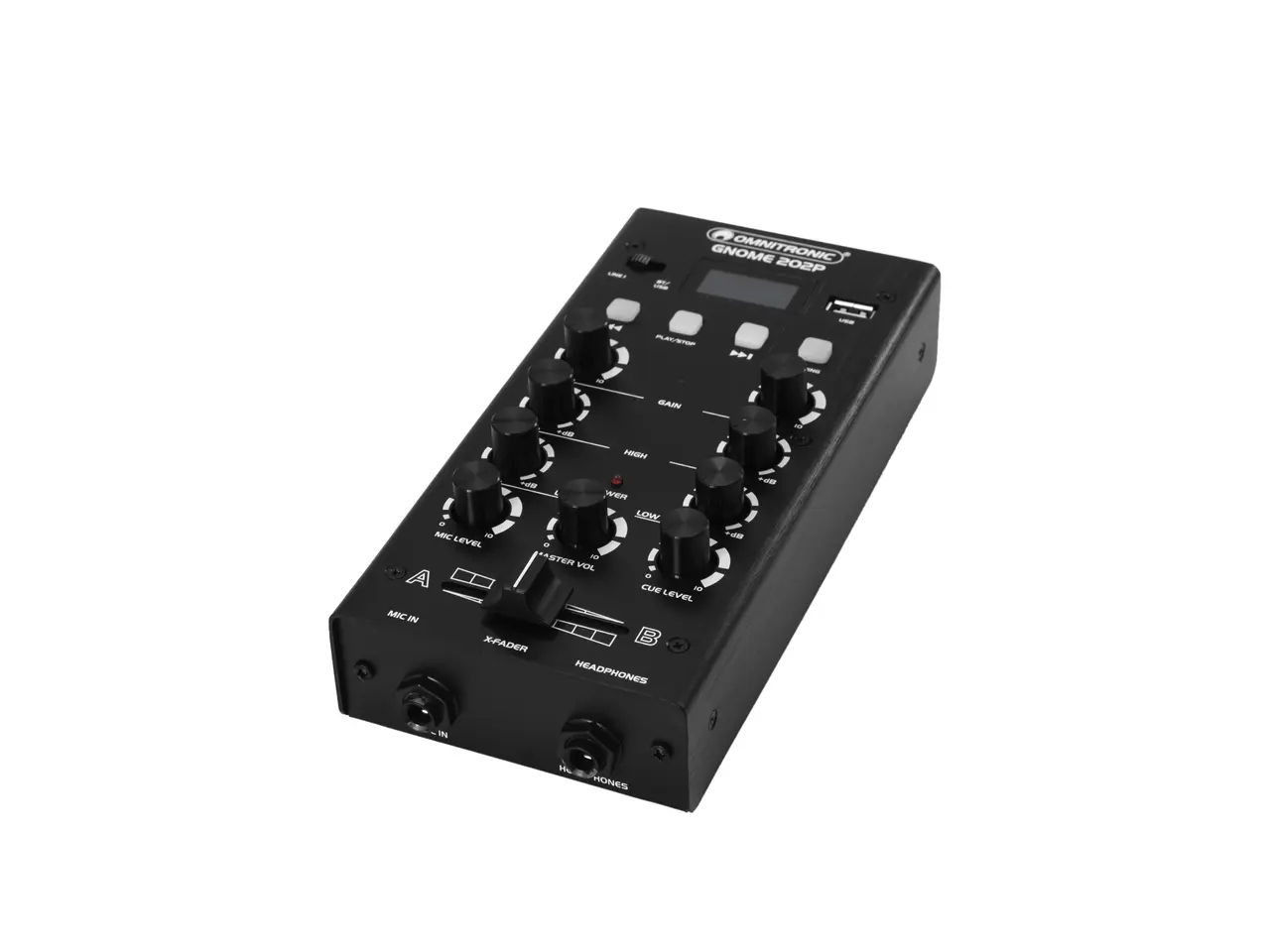

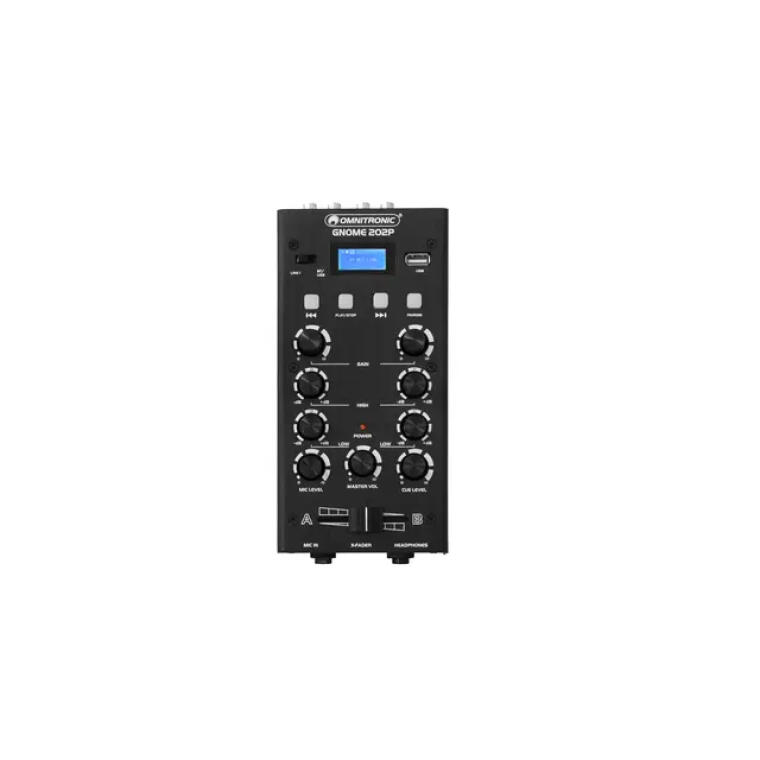

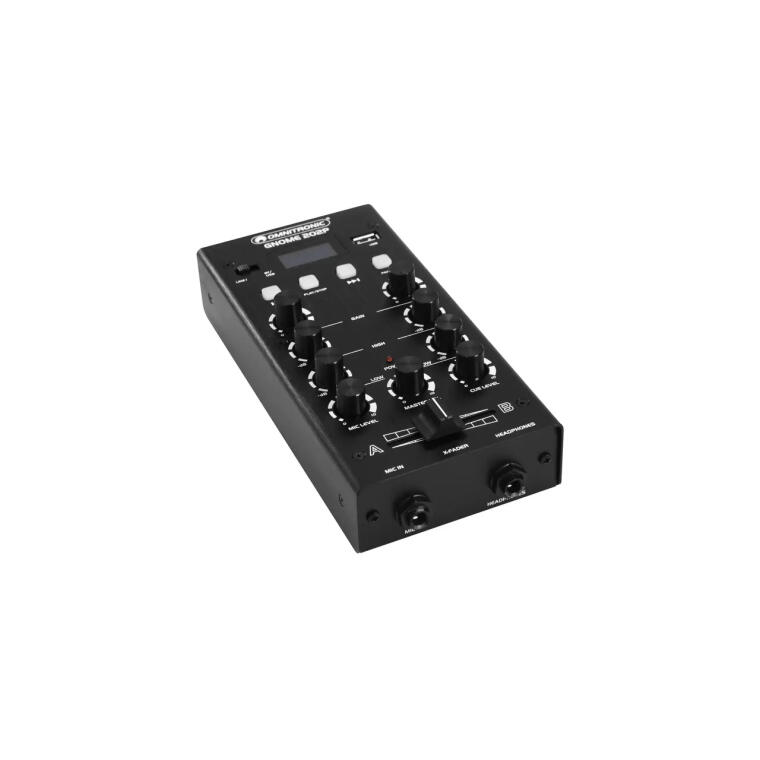

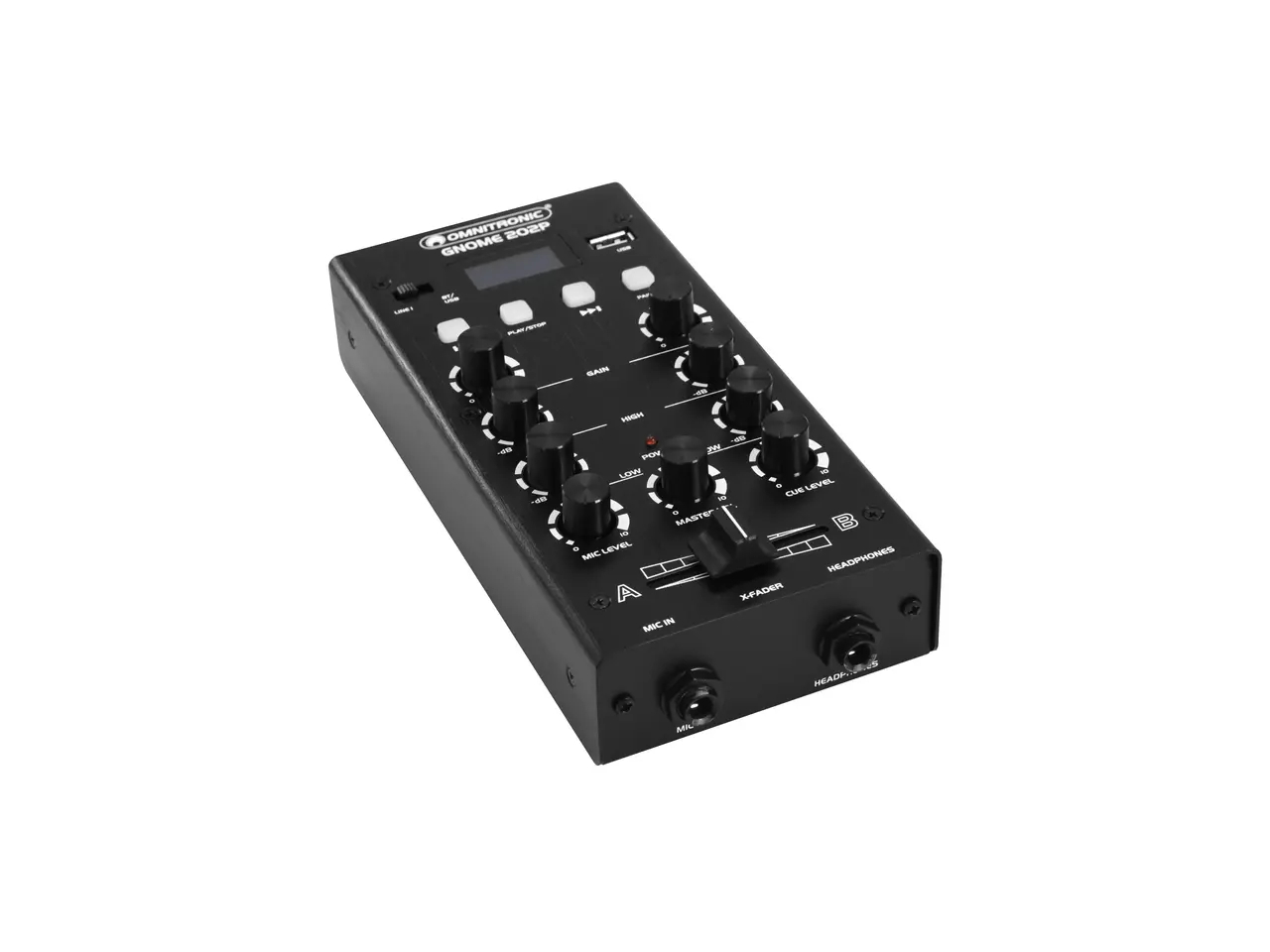

2-channel miniature DJ mixer with Bluetooth and MP3 player
Super portable and lightweight DJ mixer
2 stereo channels with gain control and 2-band EQ, RCA connectors
Adjustable microphone input via 6.3 mm jack
Adjustable headphones output
2 adjustable master outputs via RCA connectors
Anodized metal housing
Available in various colors
Desktop console housing
For application areas such as: Party room; mobile djs / entertainer; mobile use
audio player
Control via Bluetooth
Bluetooth: operating range up to 10m
Monochrome LCD display

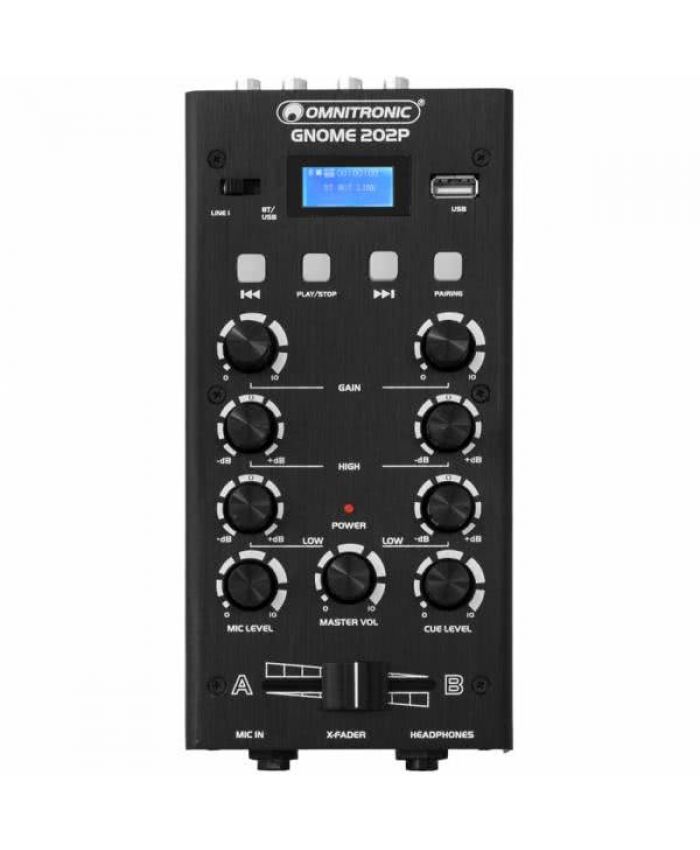

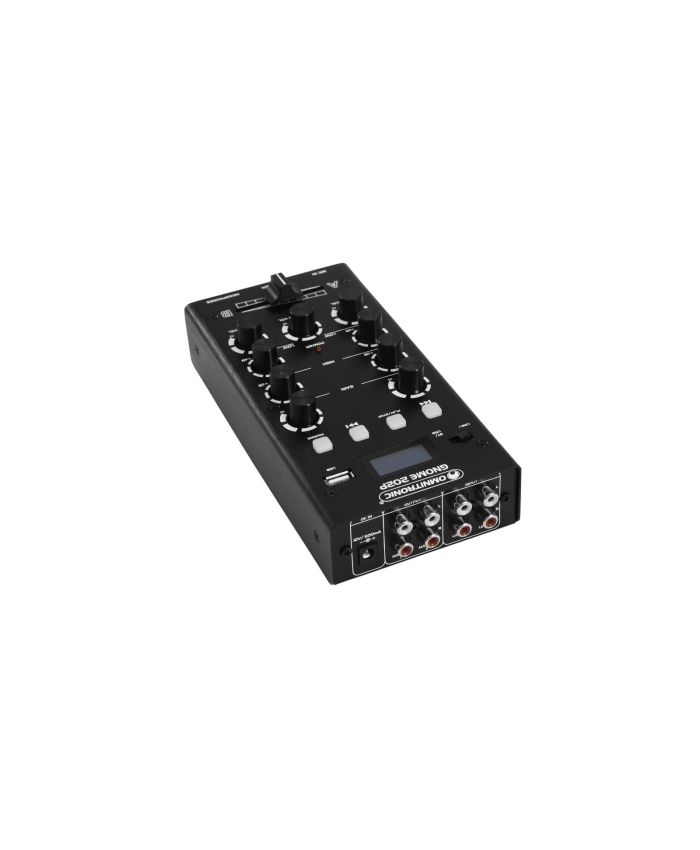

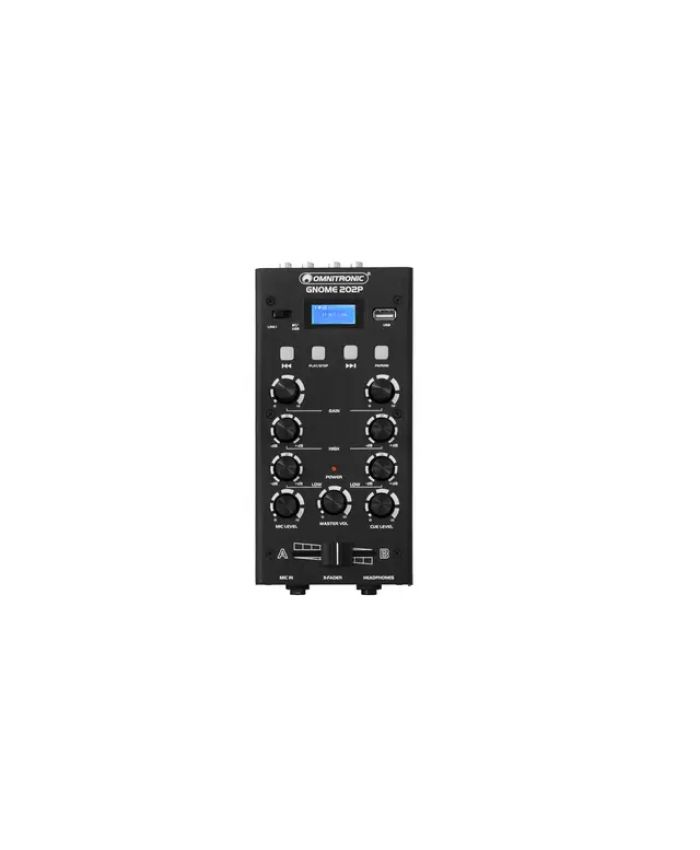

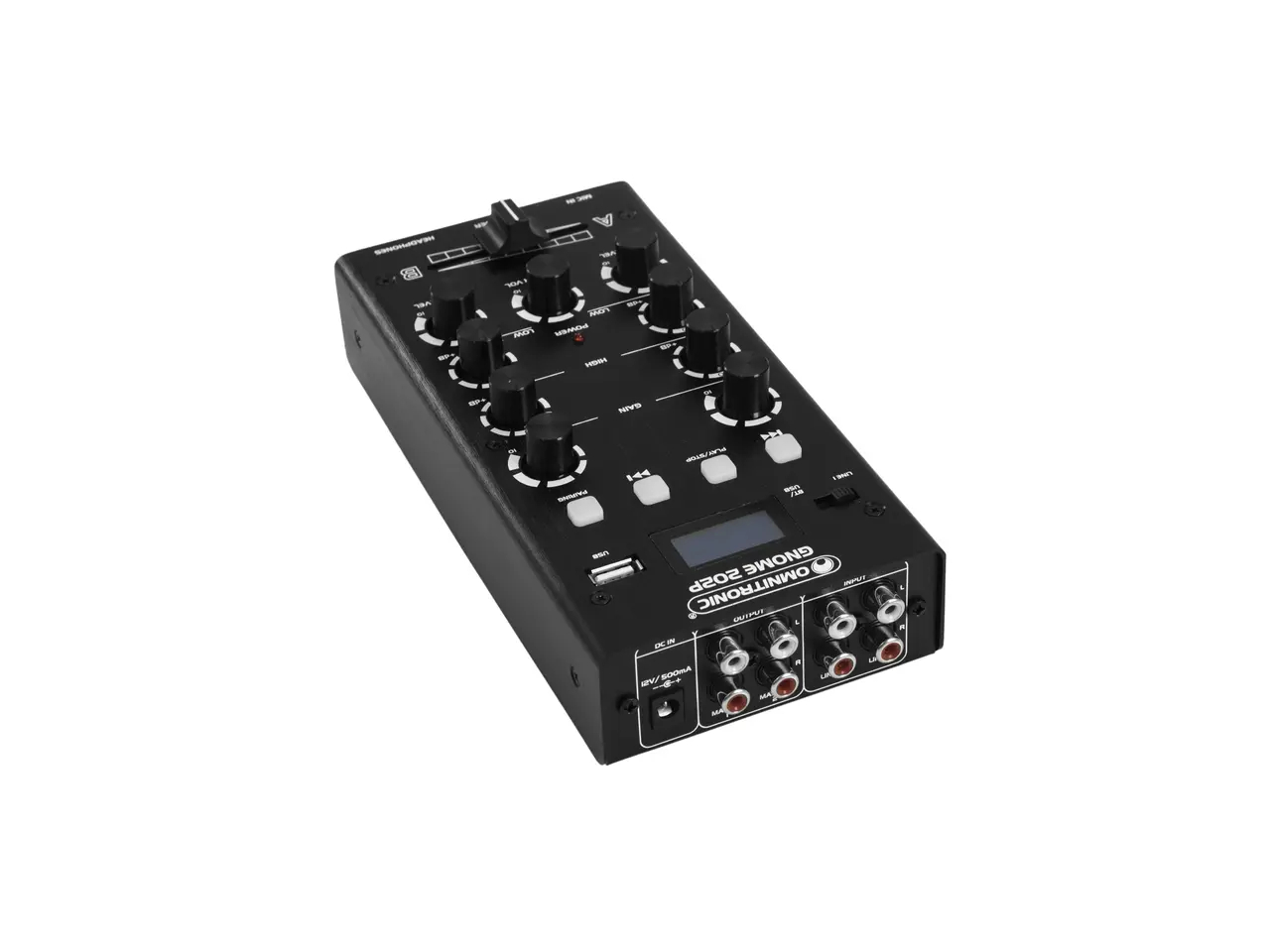

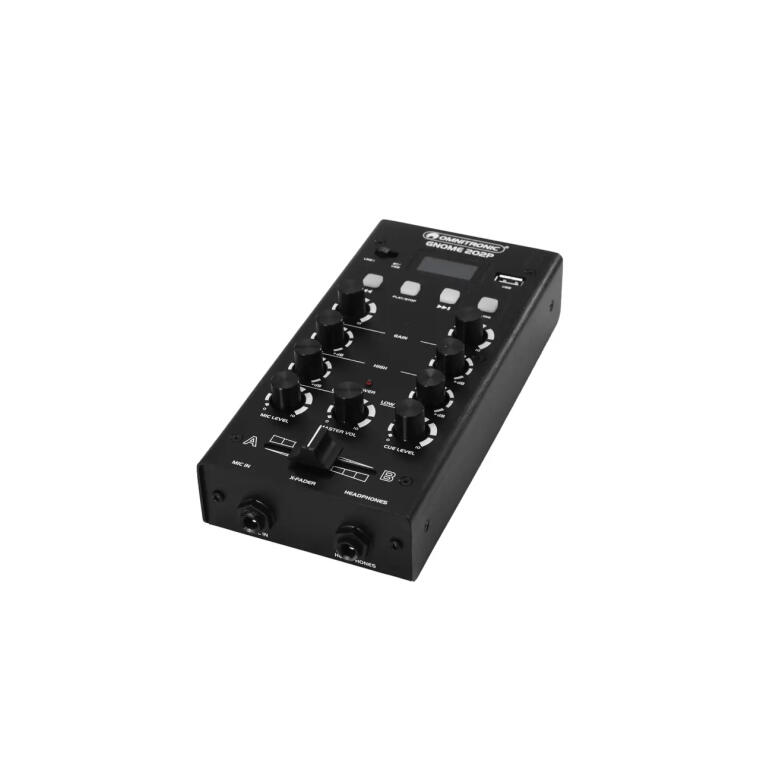

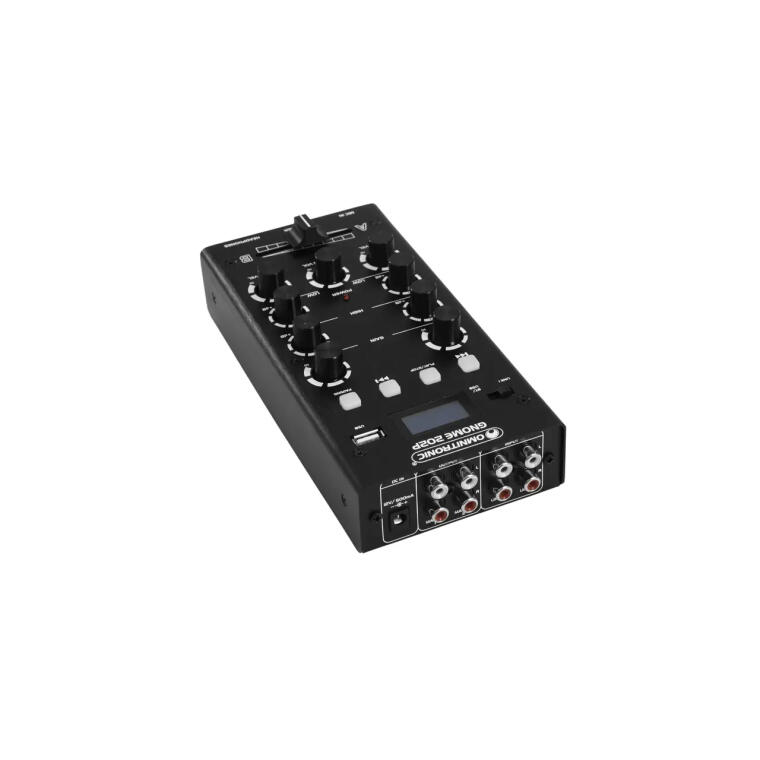

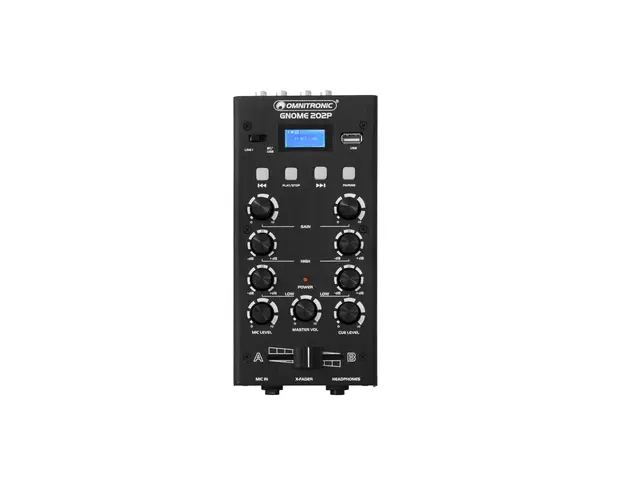

Omnitronic GNOME-202P Miniature 2-Channel DJ Mixer with Bluetooth & MP3 Player – Technical Specifications
Power Supply & Consumption
Power Supply: 100–240 V AC, 50/60 Hz (via included 12 V DC, 500 mA external power supply unit)
Power Consumption: 6 W
Protection Class: Class III
Power Connection: Mains coaxial DC power connector (M)
Audio Performance
Frequency Range: 20 – 20,000 Hz
S/N Ratio: >85 dB
THD: <0.5% @ 1 kHz
Channel Equalizer: 2-band EQ (High & Low tone controls per stereo channel)
Connectivity & Media Playback
Integrated Media Player: Built-in MP3 player and Bluetooth receiver
Supported Media Storage: USB flash drives (FAT32 format, max. 32 GB)
Playback File Formats: MP3, WAV, WMA
Bluetooth Connectivity: Bluetooth v4.1 + EDR (A2DP profile), operating range up to 10 m
Audio Channels: 2 stereo channels (Channel 1 switchable between Line 1 and Media Player / Bluetooth; Channel 2 dedicated Line 2), 1 mono microphone channel
Controls & Indicators
Display: Monochrome blue backlit LCD display for media track and status navigation
Control Elements: Smooth-running crossfader, Channel 1 & 2 gain rotary controls, 2-band EQ knobs per channel, Master 1 & Master 2 volume controls, Line/Player selector switch, Microphone volume control, Headphones CUE volume control
Indicators: Power status LED

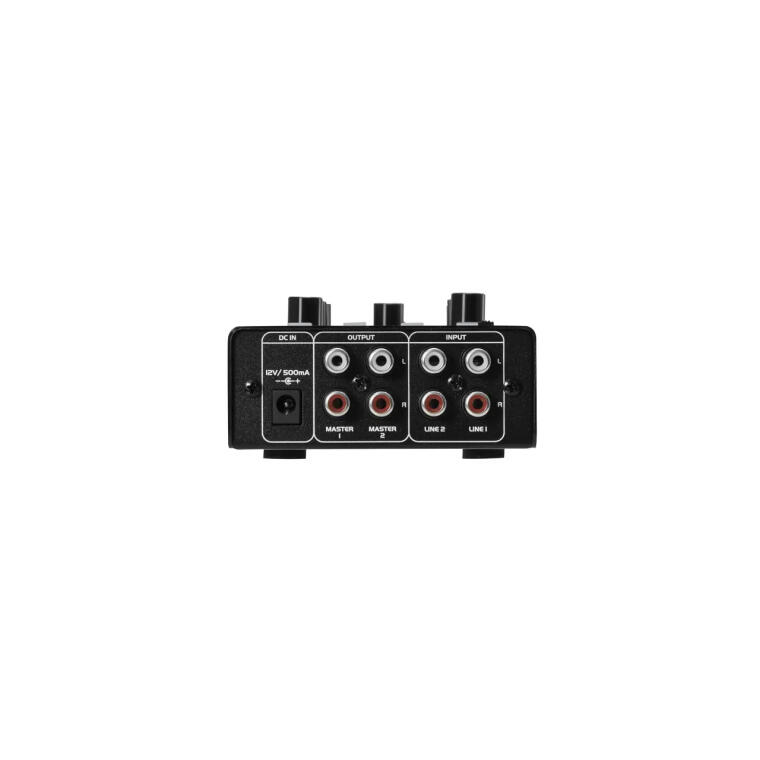

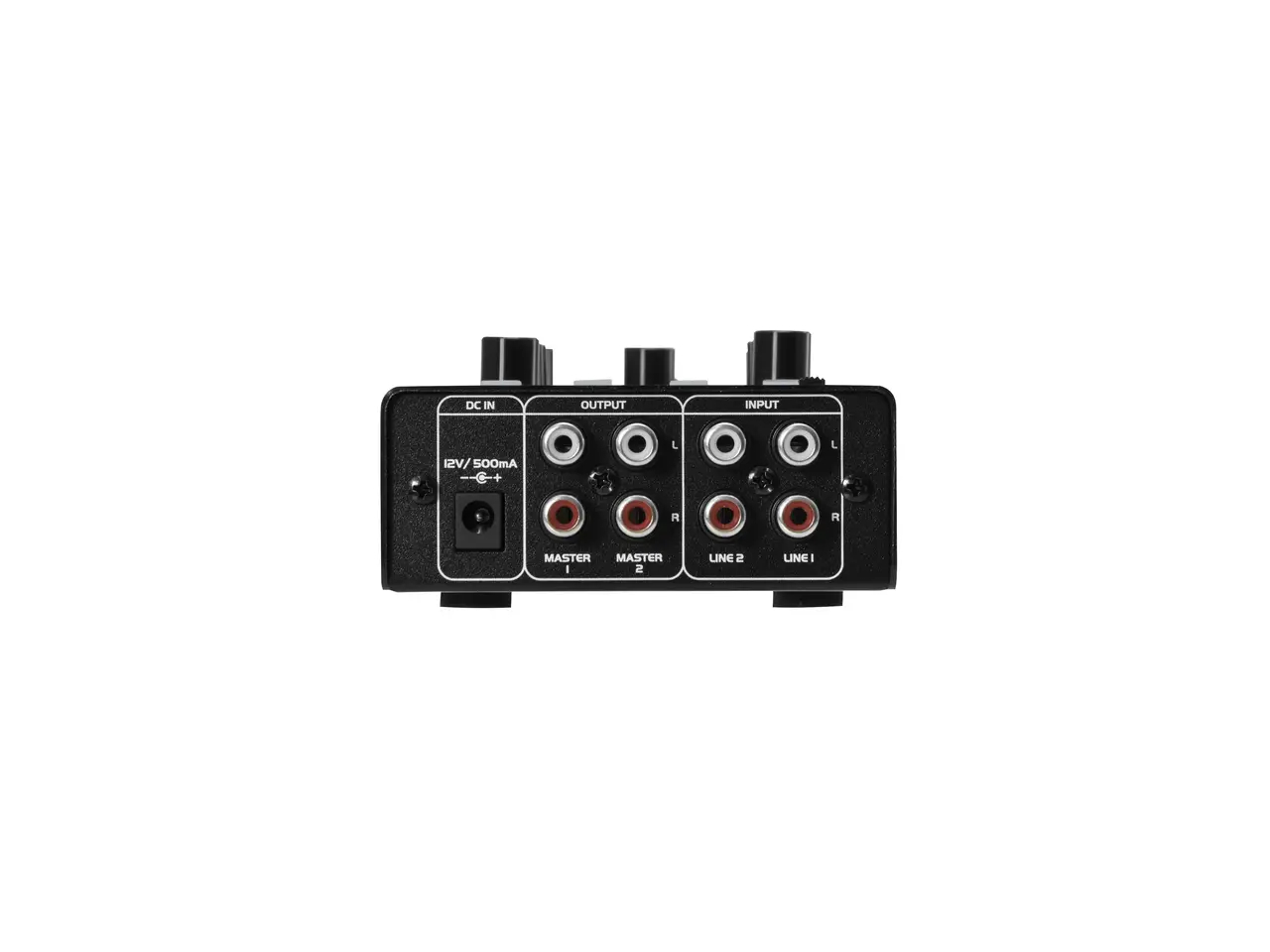

Inputs & Outputs
Inputs:
Line Inputs: 2 x Stereo RCA (Line 1 & Line 2)
Media Input: 1 x USB Type-A port
Microphone Input: 1 x 6.35 mm (1/4") jack (unbalanced mono)
Outputs:
Master Outputs: 2 x Stereo RCA (Master 1 Out & Master 2 / Rec Out)
Headphones Output: 1 x 6.35 mm (1/4") stereo jack (pre-fader CUE listening)
Physical Specifications
Housing Design: Ultra-compact desktop console housing (anodized metal chassis)
Color Options: Available in Black and Gold finishes
