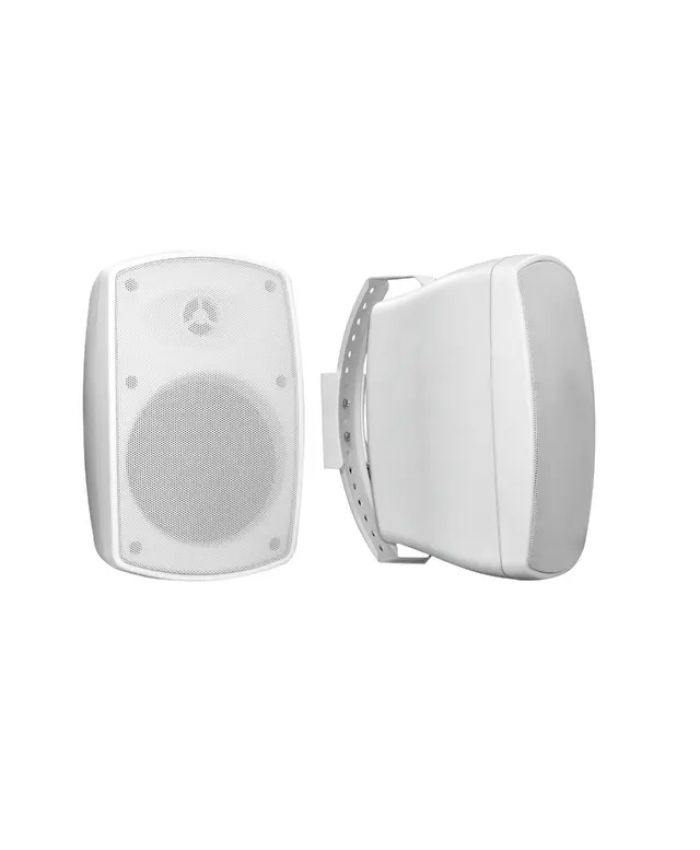

Omnitronic OD-4 Wall Speaker 8Ohms white

Price on request
In stock
Interested in this product?
Call us

Overview

weather-proof speakers with mount, 4" woofer, 0,5" tweeter, 30 W RMS

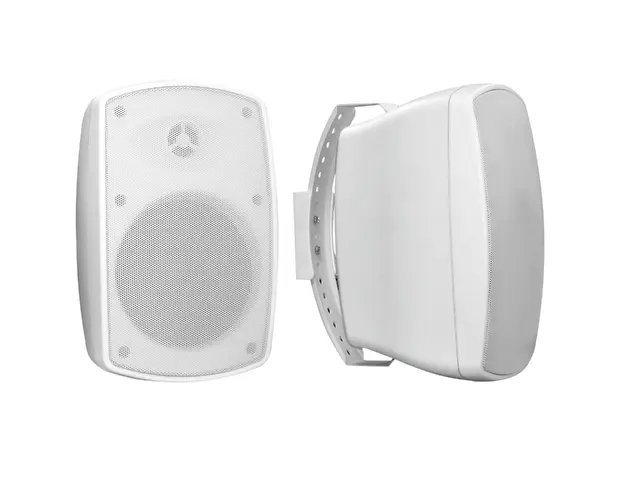

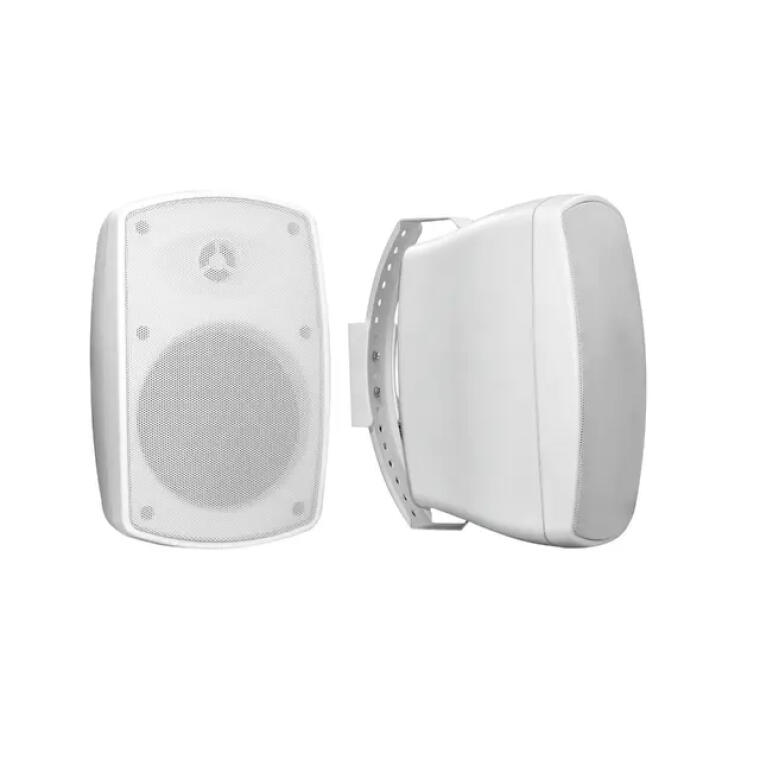

OMNITRONIC OD-4 Wall Speaker 8Ohms white

  • 8-ohm PA speaker system for general applications
  • 2-way system with 10 cm woofer (4") and 1.3 cm tweeter (0.5")

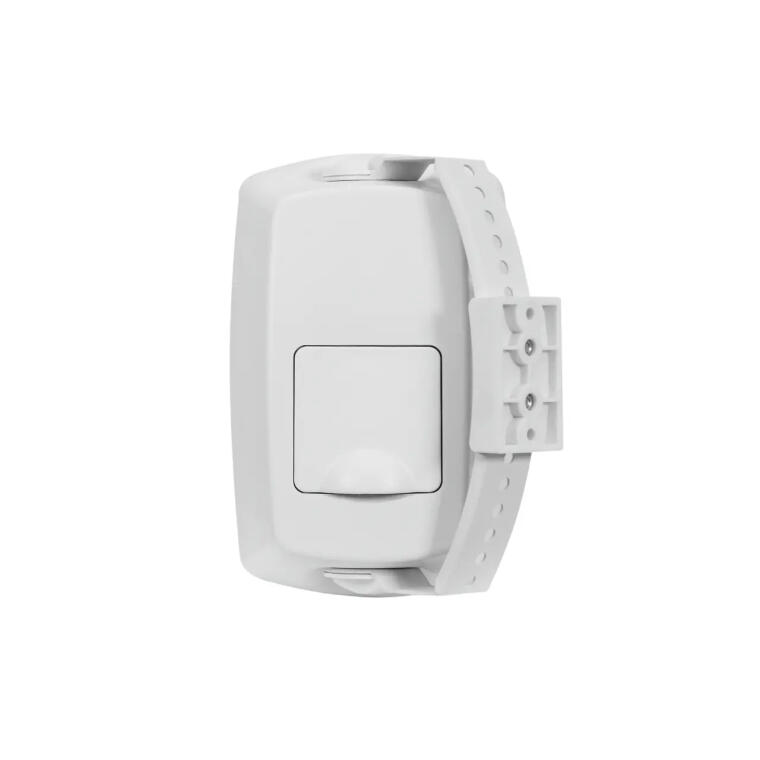

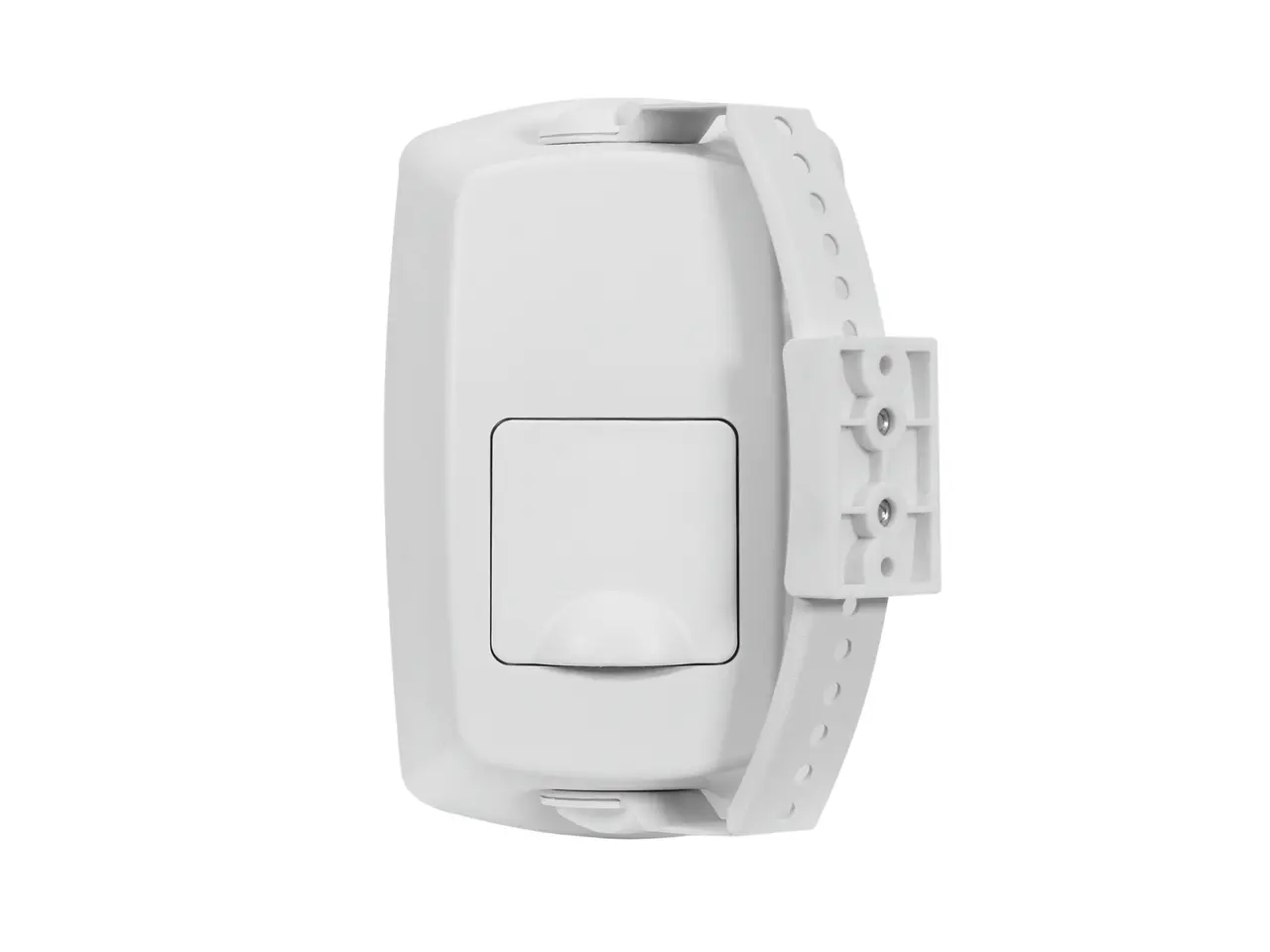

  • Durable plastic cabinet with metal grille and cover for the connectors
  • With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
  • White aluminum grille
  • Suitable for outdoor use IP65
  • For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures

Omnitronic OD-4 Wall Speaker 8Ohms White – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Compact passive 2-way wall-mount installation speaker (Low-Impedance only)

  • Power Rating: 15 W RMS / 30 W Peak

  • Impedance: 8 Ω direct connection

  • Operating Voltage: Low-impedance audio amplifiers (4–8 Ω compatible)

Audio Performance & Transducers

  • Low Frequency Driver: 4" (100 mm) woofer with polypropylene cone and rubber surround

  • High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter

  • Frequency Response: 100 – 20,000 Hz

  • Sensitivity: 87 dB (1W/1m)

  • Max SPL: 98 dB @ 1m

  • Dispersion Angle: 110° x 90° (H x V) broad coverage pattern

Connectivity & Impedance Matching

  • Connection Type: Spring-clamp terminal block for quick raw speaker wire connections

  • Impedance Matching: Fixed 8 Ω low-impedance connection (no 70V/100V line transformer)

Controls & Adjustment

  • Hardware Controls: None (direct 8 Ω low-impedance input)

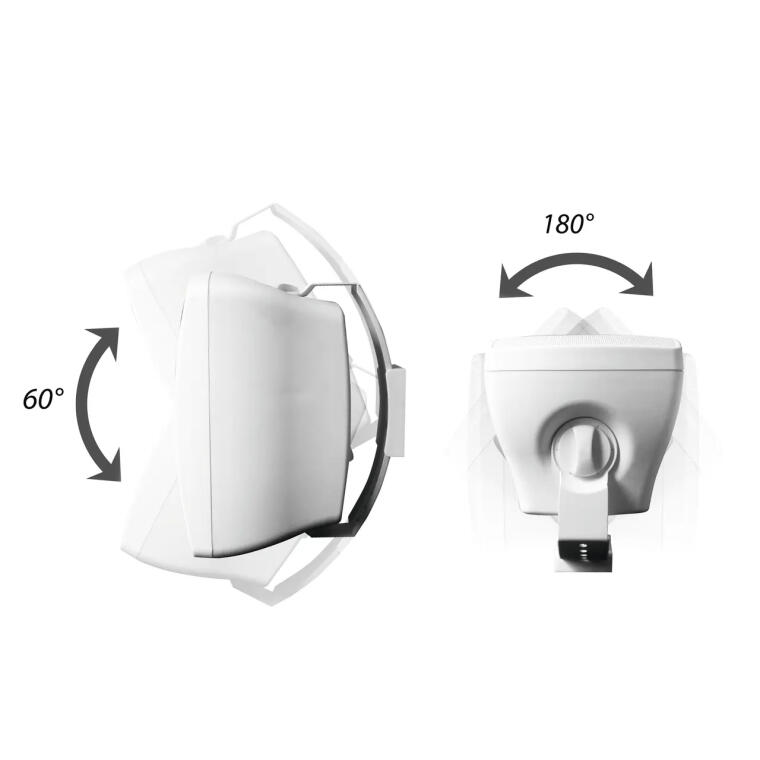

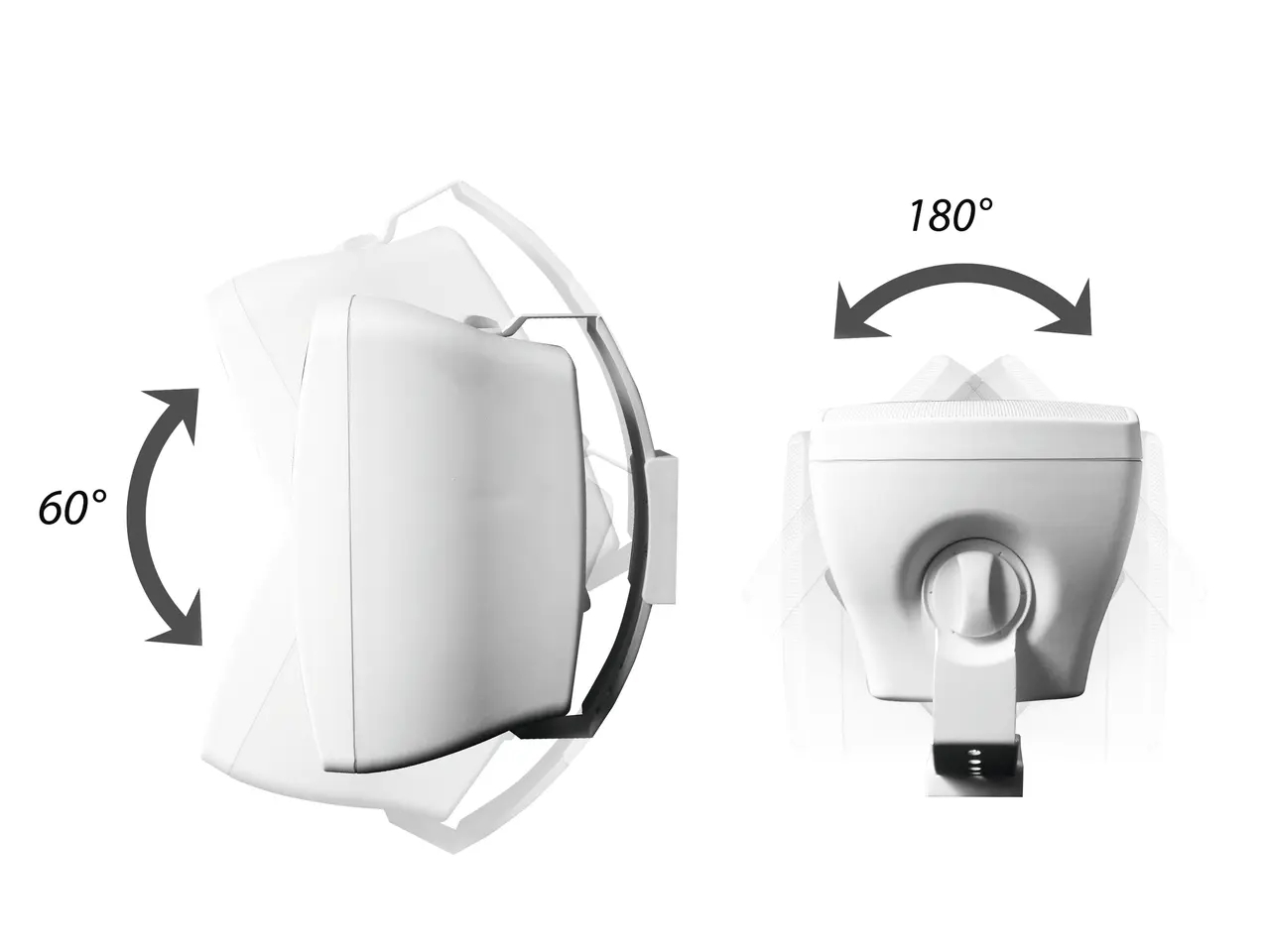

  • Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment

Enclosure & Hardware

  • Cabinet Material: Weather-resistant ABS plastic enclosure (white finish)

  • Front Protection: Perforated steel front grille (white finish)

  • Environmental Protection: IP44 rated for indoor and sheltered outdoor installations

  • Mounting Hardware: Adjustable wall/ceiling mounting bracket included

  • Application Modes: Low-impedance stereo or multi-zone background music systems in cafes, retail shops, boutique spaces, residential patios, and office suites

Physical Specifications

  • Dimensions (H x W x D): 215 x 150 x 130 mm (8.5" x 5.9" x 5.1")

  • Weight: 1.45 kg (3.2 lbs)

Accessories Included

  • Adjustable Wall/Ceiling Mounting Bracket & Hardware

  • Operating Instructions Manual
