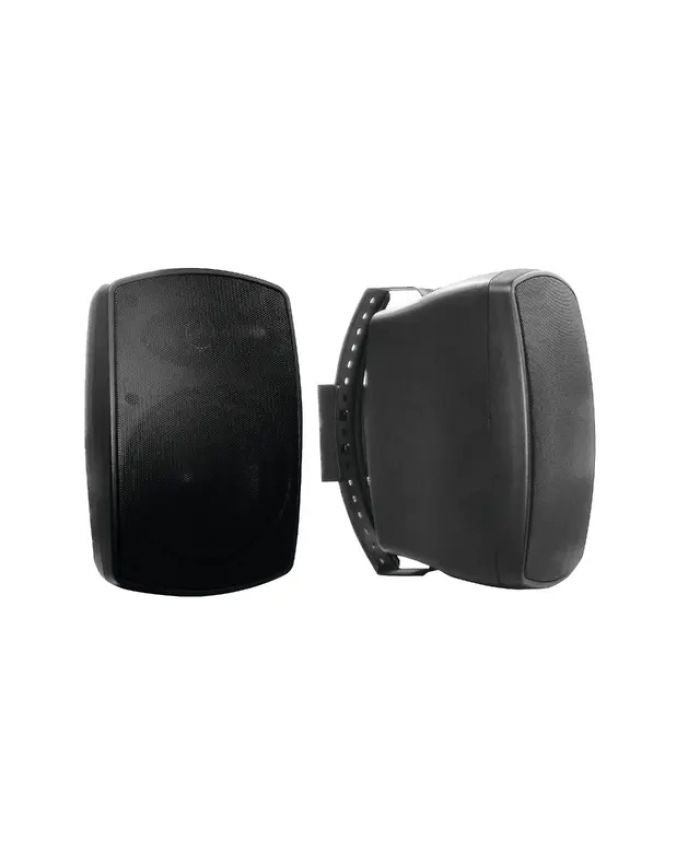

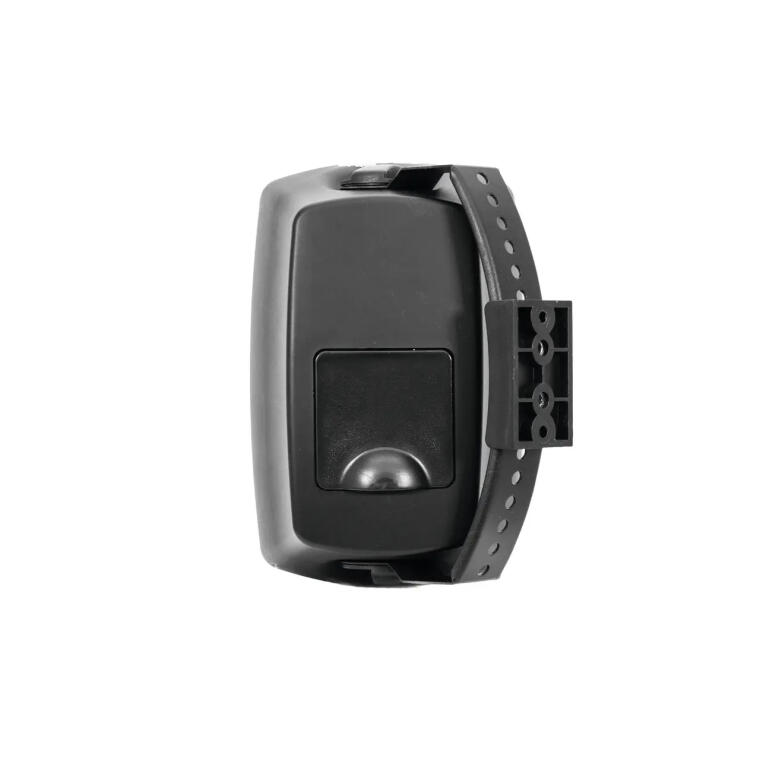

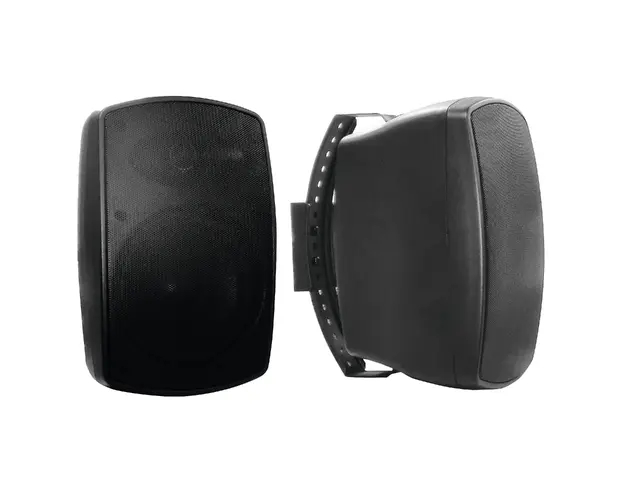

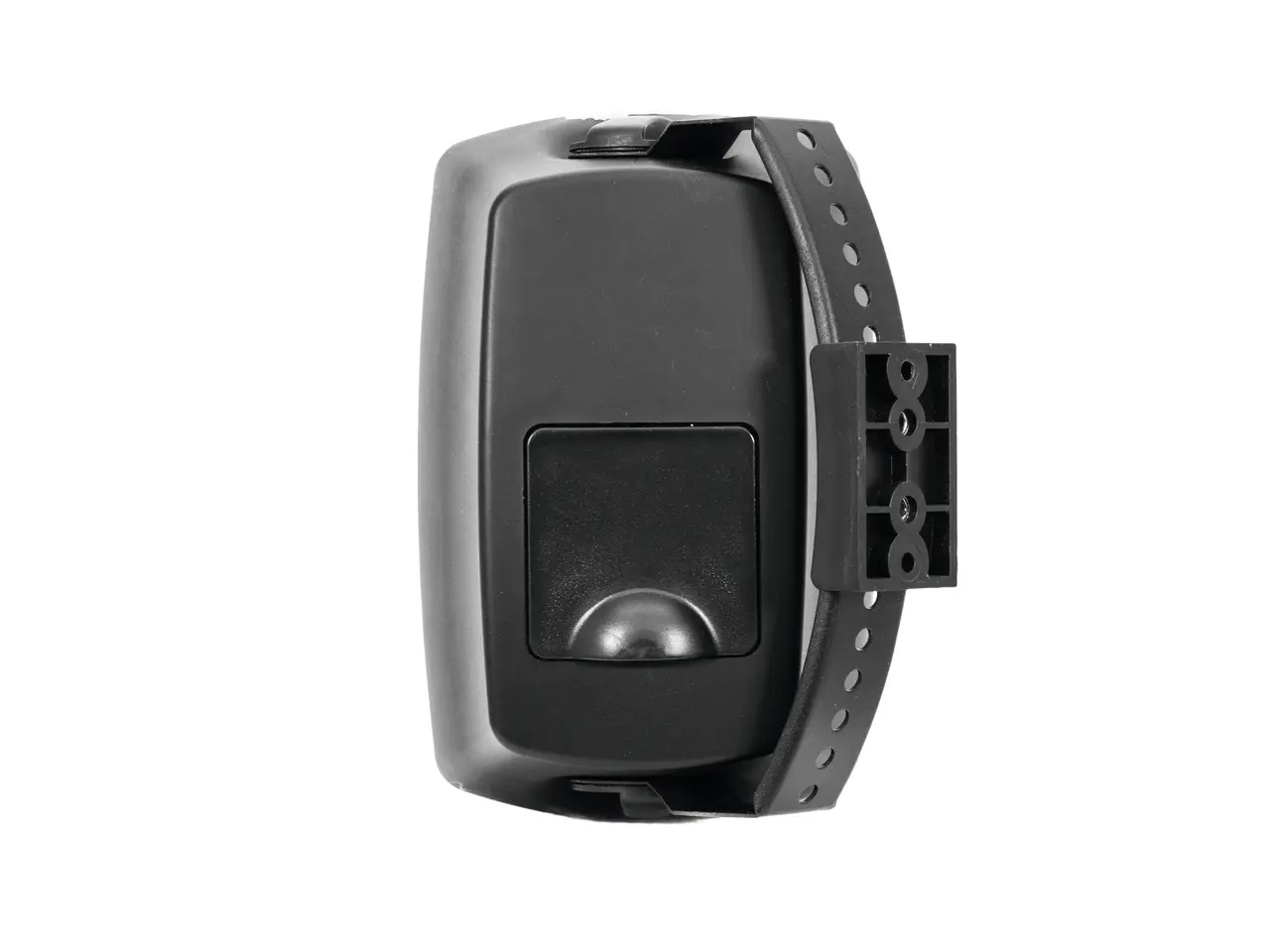

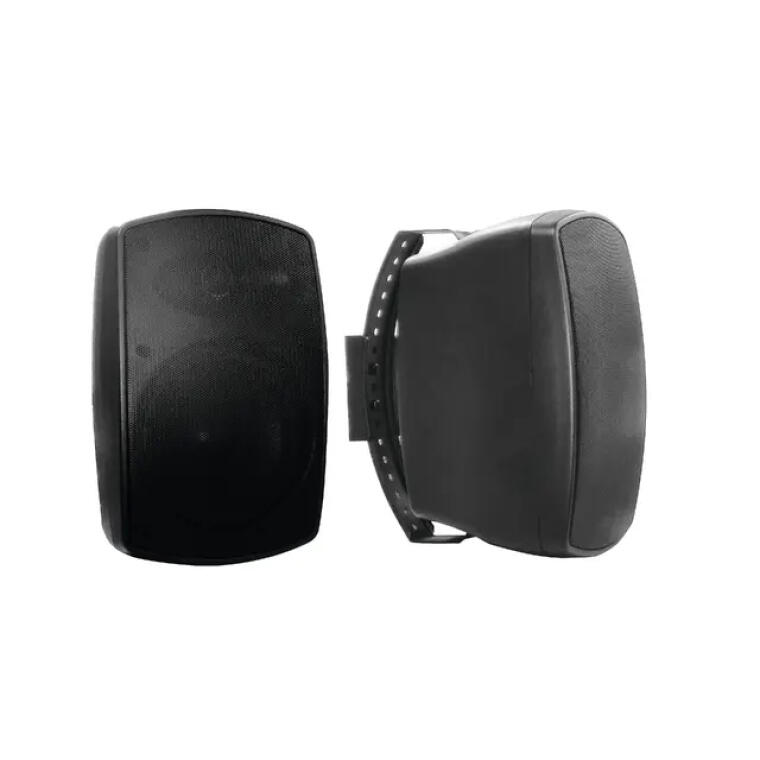

Omnitronic OD-5 Black

Price on request
In stock
Interested in this product?
Call us

Overview

OMNITRONIC OD-5 Wall Speaker 8Ohms white
weather-proof speaker with mount, 5,25" woofer, 0,5" tweeter, 40 W RMS

  • 8-ohm PA speaker system for general applications
  • 2-way system with 13.5 cm woofer (5.25") and 1.3 cm tweeter (0.5")
  • Durable plastic cabinet with metal grille and cover for the connectors
  • With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
  • Suitable for outdoor use IP65
  • For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures

Omnitronic OD-5 Wall Speaker 8Ohms Black – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Passive 2-way wall-mount installation speaker (Low-Impedance only)

  • Power Rating: 30 W RMS / 60 W Peak

  • Impedance: 8 Ω direct connection

  • Operating Voltage: Low-impedance audio amplifiers (4–8 Ω compatible)

Audio Performance & Transducers

  • Low Frequency Driver: 5.25" (133 mm) woofer with polypropylene cone and rubber surround

  • High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter

  • Frequency Response: 85 – 20,000 Hz

  • Sensitivity: 89 dB (1W/1m)

  • Max SPL: 104 dB @ 1m

  • Dispersion Angle: 100° x 80° (H x V) broad coverage pattern

Connectivity & Impedance Matching

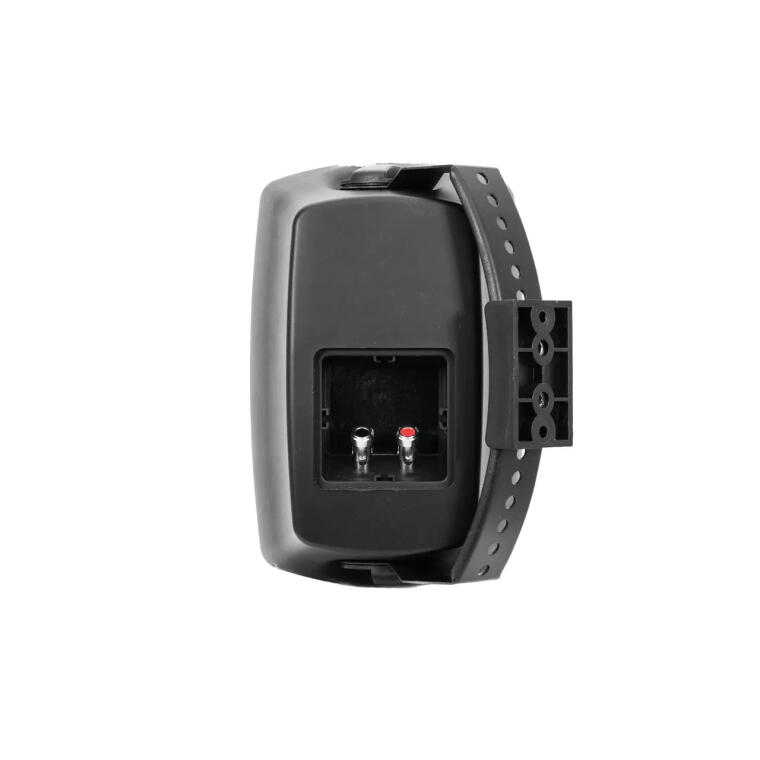

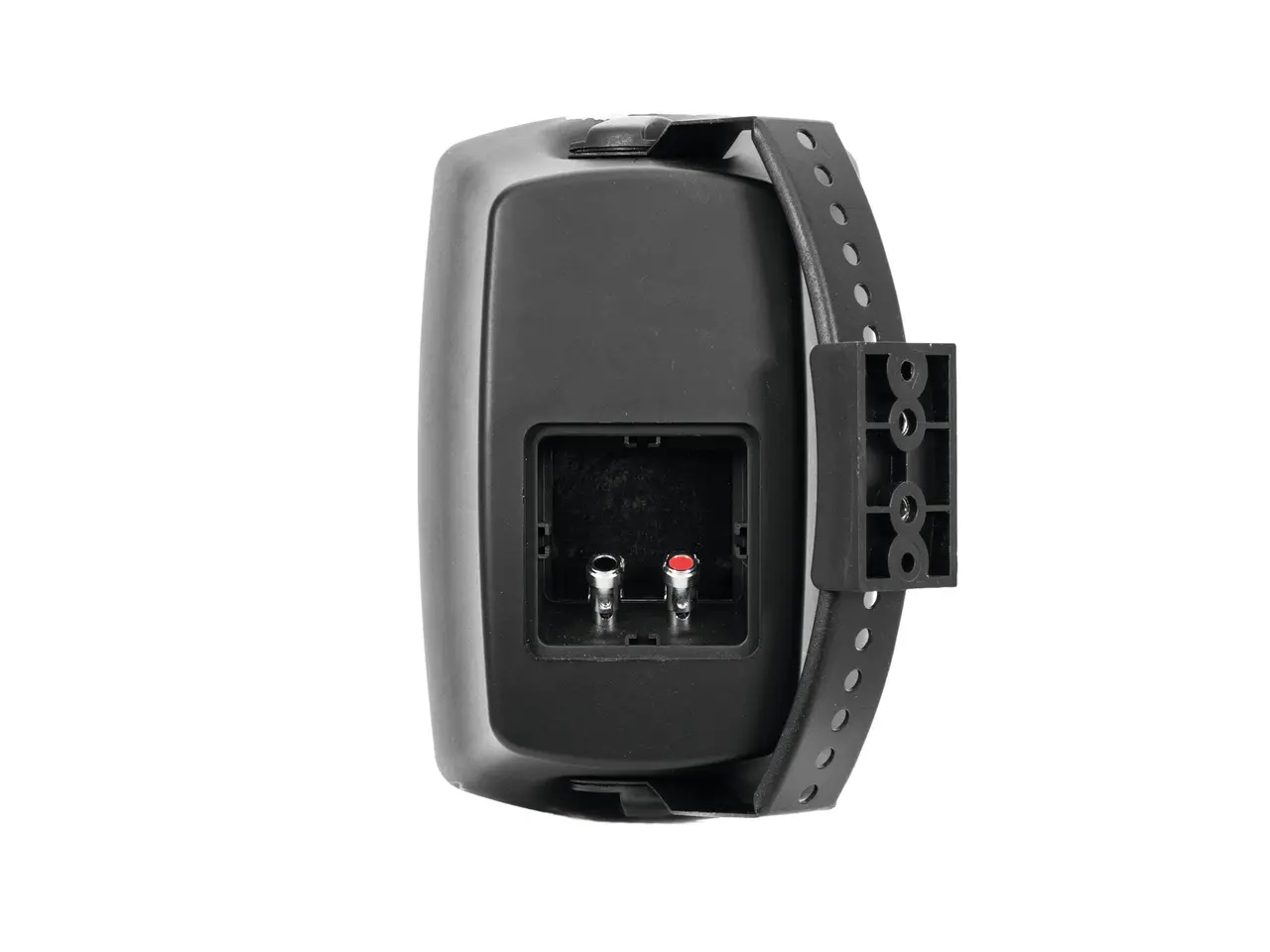

  • Connection Type: Spring-clamp terminal block for quick raw speaker wire connections

  • Impedance Matching: Fixed 8 Ω low-impedance connection (no 70V/100V line transformer)

Controls & Adjustment

  • Hardware Controls: None (direct 8 Ω low-impedance input)

  • Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment

Enclosure & Hardware

  • Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)

  • Front Protection: Perforated steel front grille (black finish)

  • Environmental Protection: IP44 rated for indoor and sheltered outdoor installations

  • Mounting Hardware: Heavy-duty adjustable wall/ceiling mounting bracket included

  • Application Modes: Low-impedance stereo or multi-zone background music systems in bars, lounges, retail stores, fitness studios, home setups, and covered outdoor spaces

Physical Specifications

  • Dimensions (H x W x D): 255 x 180 x 150 mm (10.0" x 7.1" x 5.9")

  • Weight: 1.95 kg (4.3 lbs)

Accessories Included

  • Heavy-Duty Adjustable Wall/Ceiling Mounting Bracket & Hardware

  • Operating Instructions Manual
