OMNITRONIC OD-22T Wall Speaker 100V white

Omnitronic OD-22T Wall Speaker 100V White – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Ultra-compact passive wall-mount installation speaker with integrated 100V line transformer and passive radiator

• Power Rating: 15 W RMS / 30 W Peak

• 100V Power Tappings: 6 W RMS (100V PA line mode)

• Low Impedance Mode: 8 Ω direct connection mode

• Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

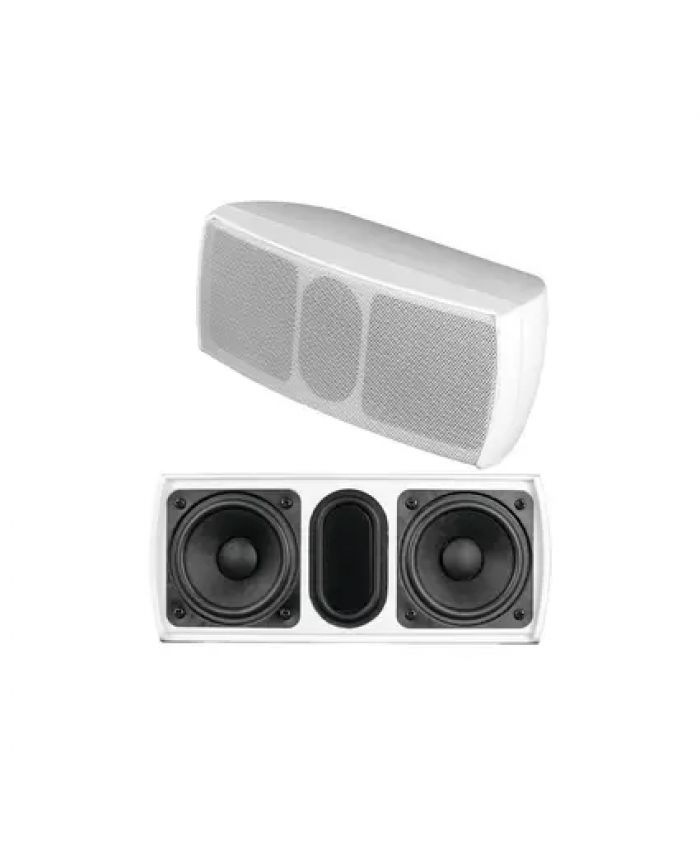

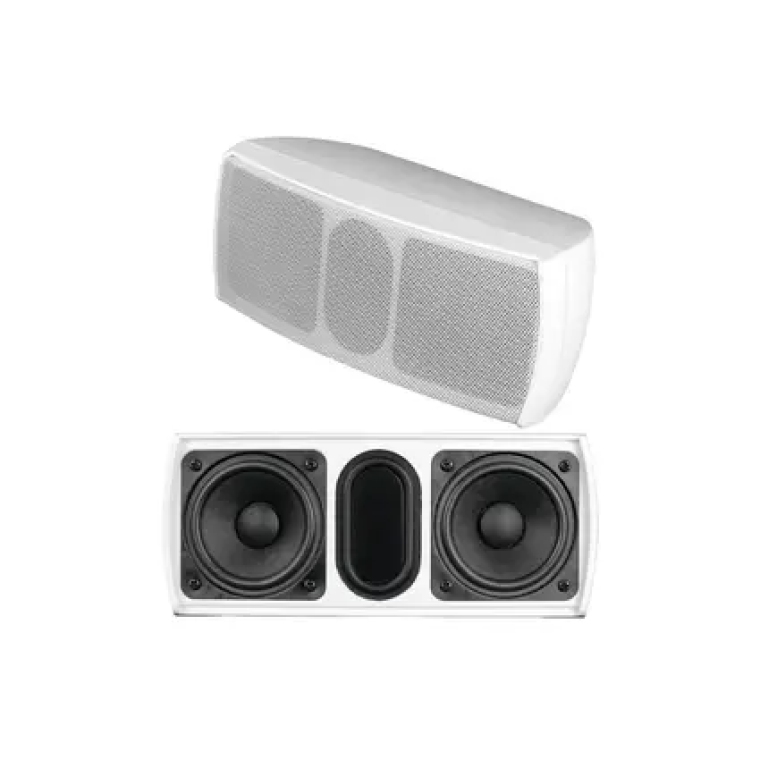

• Full-Range Transducers: 2 x 2.5" (60 mm) full-range drivers with steel basket and paper cone

• Auxiliary Driver: 1 x 3.5 x 6 cm passive radiator membrane for enhanced low-frequency response

• Frequency Response: 120 – 22,000 Hz

• Sensitivity: 88 dB (1W/1m)

• Max SPL: 95 dB @ 1m

• Dispersion Angle: 60° x 60° (H x V) conical coverage pattern

Connectivity & Impedance Matching

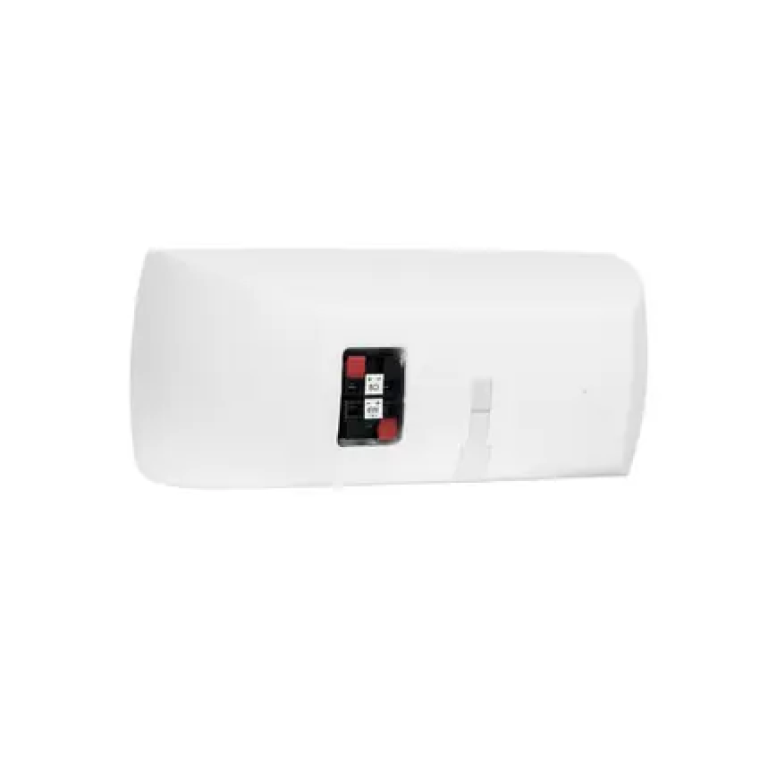

• Connection Type: Spring terminal connectors for fast bare-wire connection

• Tap/Impedance Selection: Internal 100V line transformer matching with 8 Ω bypass option

Controls & Adjustment

• Hardware Controls: Rear input terminal configuration for 100V line operation or 8 Ω bypass

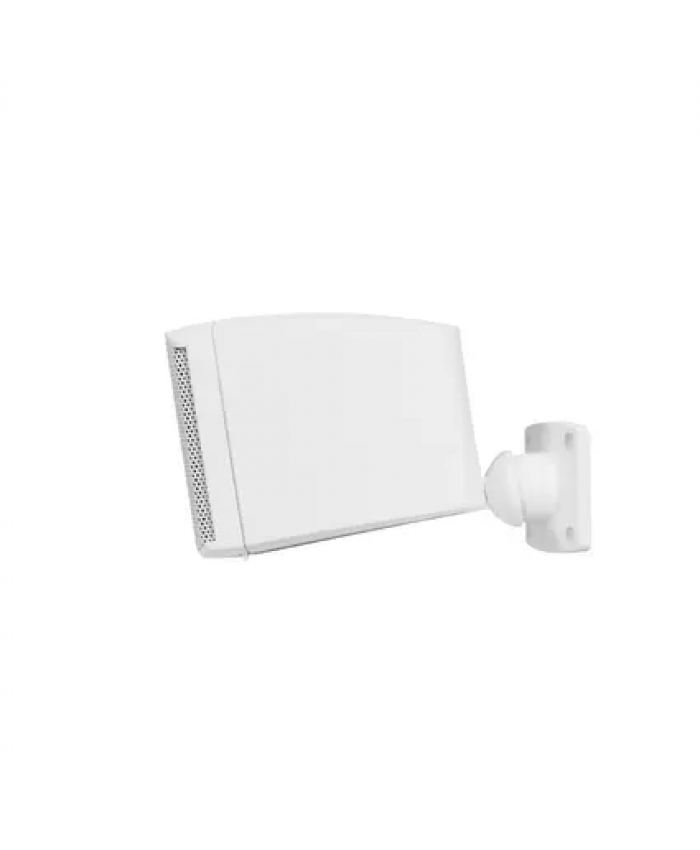

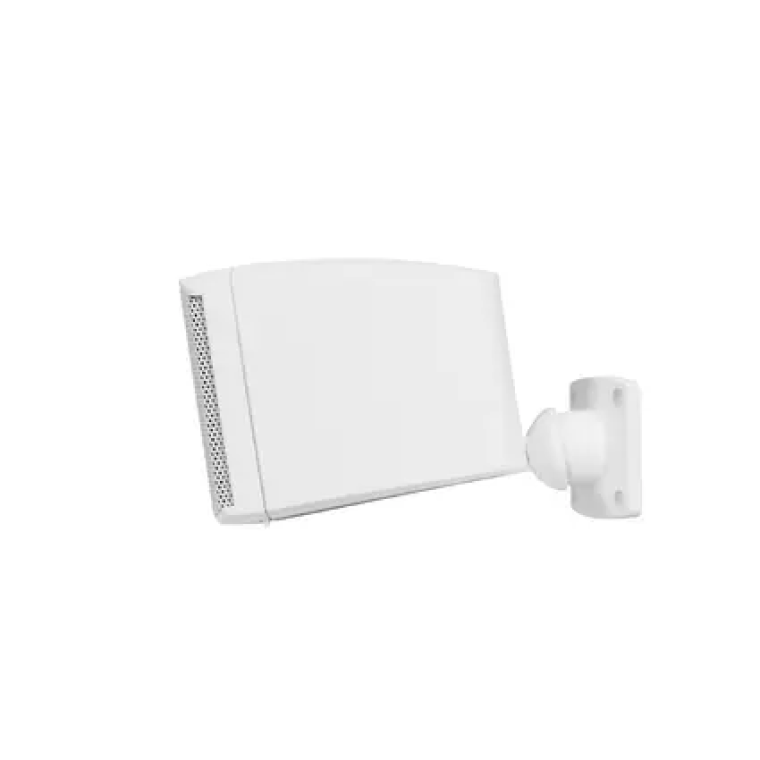

• Mounting Alignment: Ball-and-socket swivel joint mechanism on mounting plate for multi-angle horizontal pan and vertical tilt adjustment

Enclosure & Hardware

• Cabinet Material: Scratch-resistant and impact-proof ABS plastic enclosure (white finish)

• Front Protection: Perforated metal front grille (white finish)

• Environmental Protection: IP44 rated for indoor use and sheltered outdoor applications

• Mounting Hardware: Integrated panning and tilting wall/ceiling mounting plate with ball joint included

• Application Modes: Background music, voice paging, and low-profile sound reinforcement in cafes, boutique retail stores, offices, hotels, trade fairs, and conference rooms

Physical Specifications

• Dimensions (W x D x H): 209 x 109 x 110 mm (8.2" x 4.3" x 4.3")

• Weight: 1.10 kg (2.42 lbs)

Accessories Included

• Multi-Angle Swivel & Tilt Mounting Bracket Assembly

• Operating Instructions Manual
