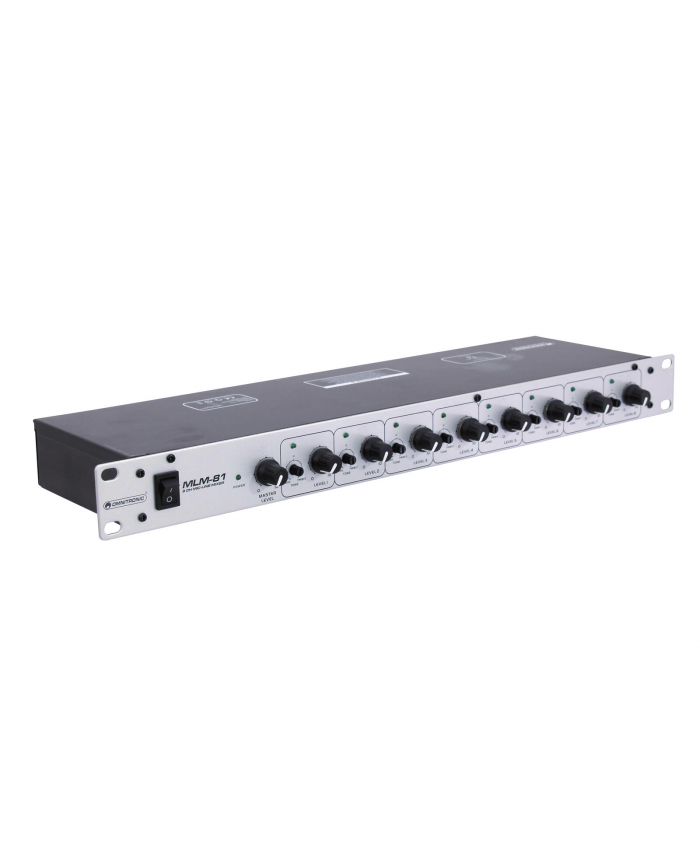

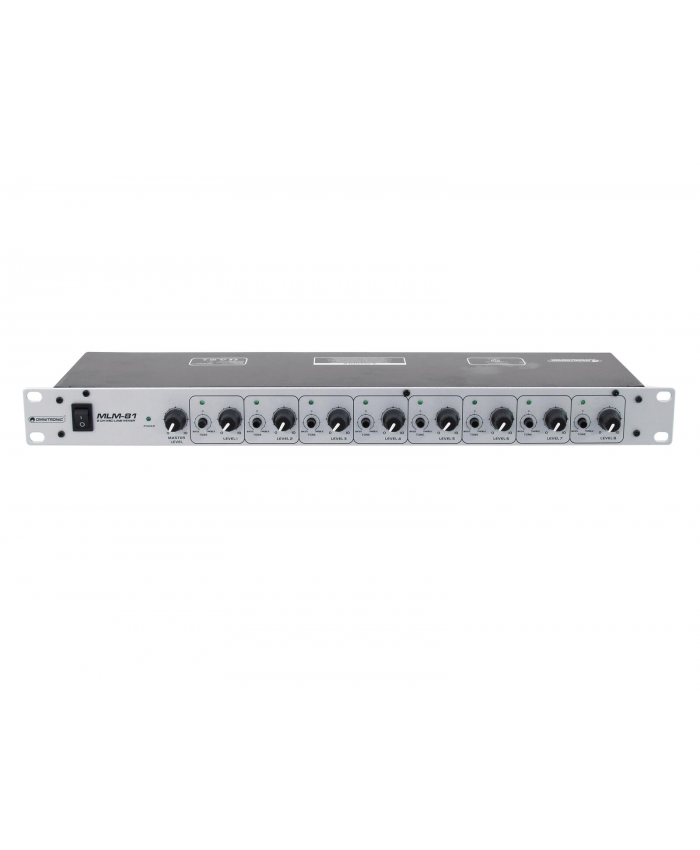

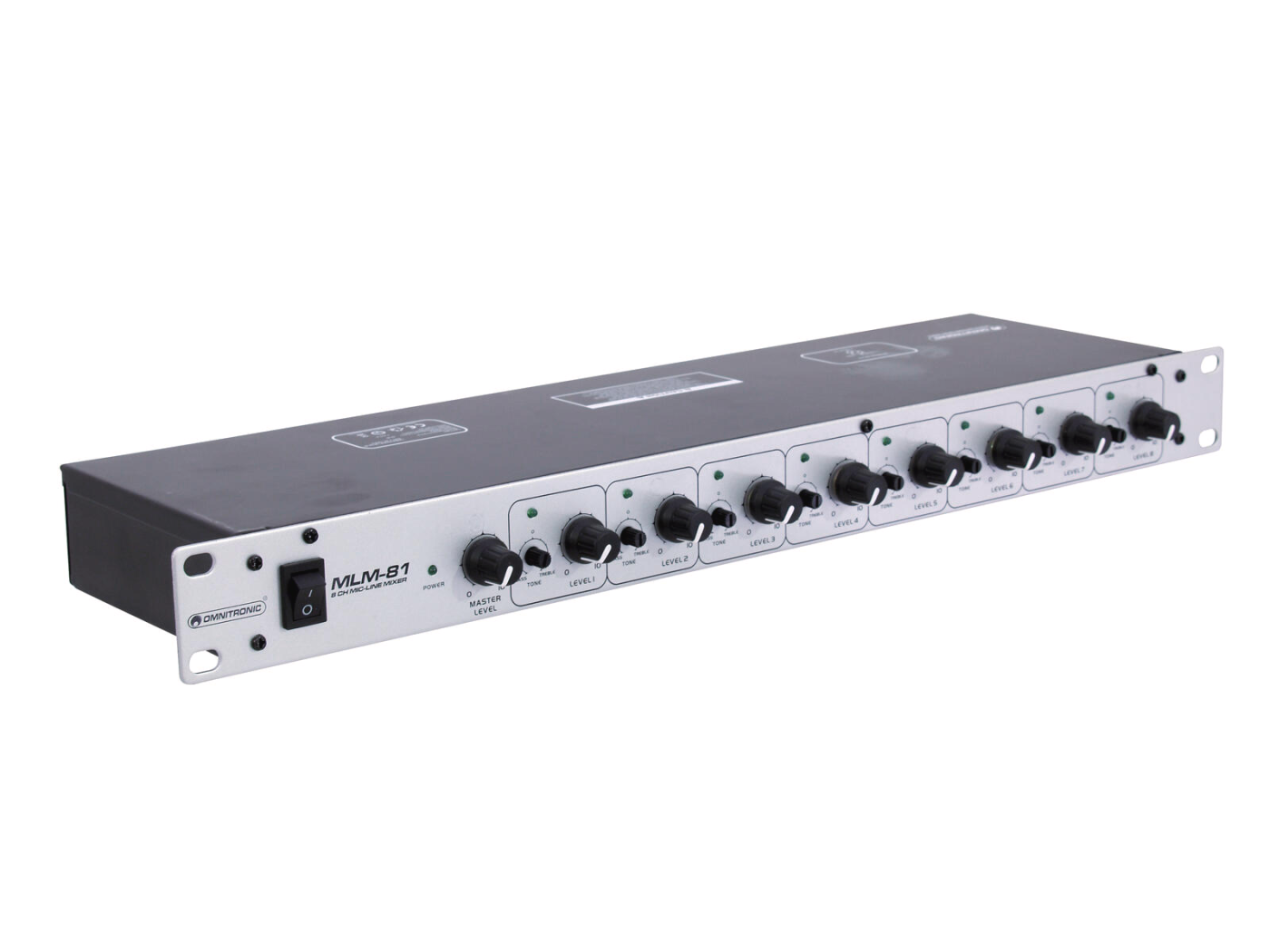

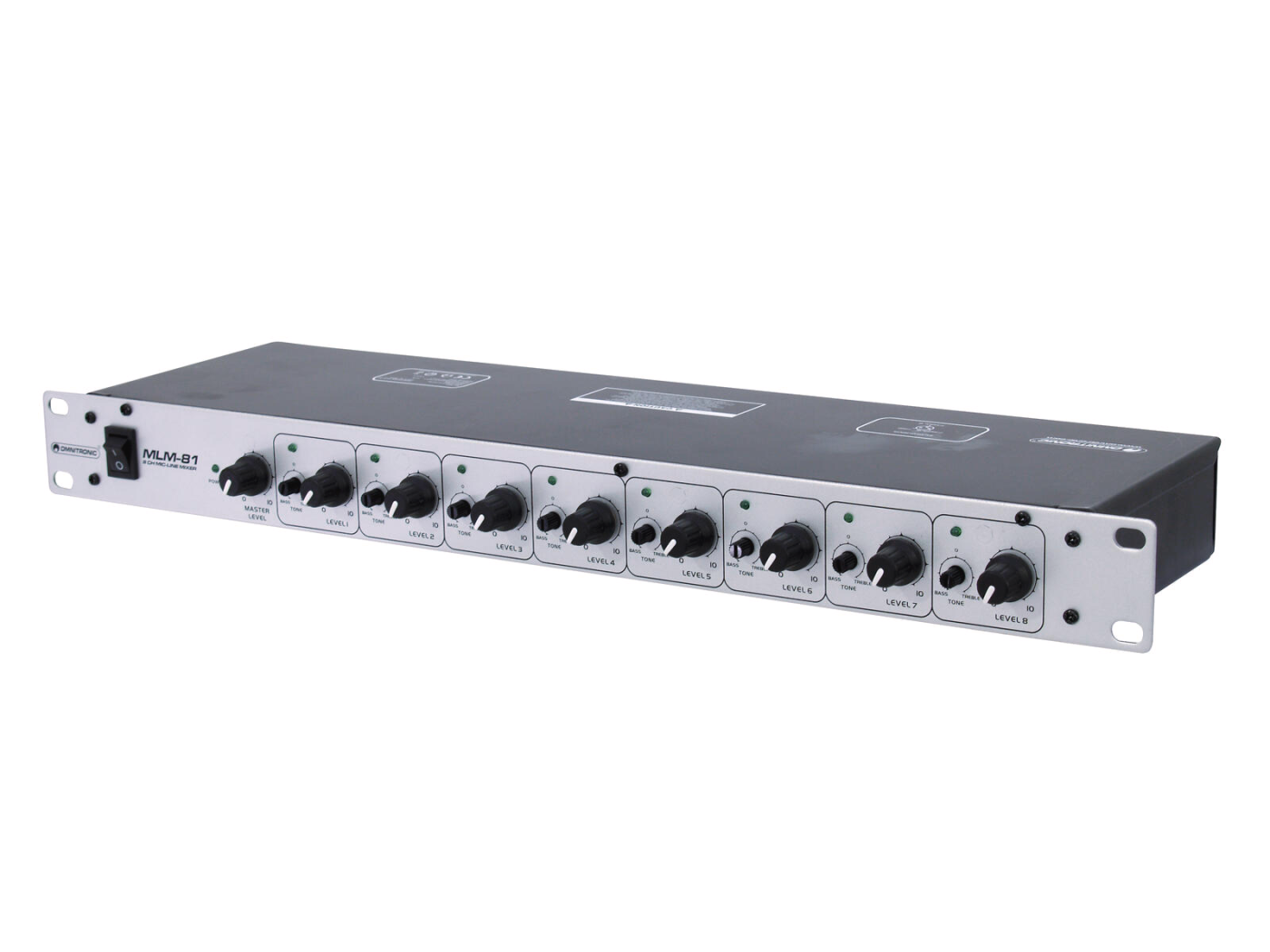

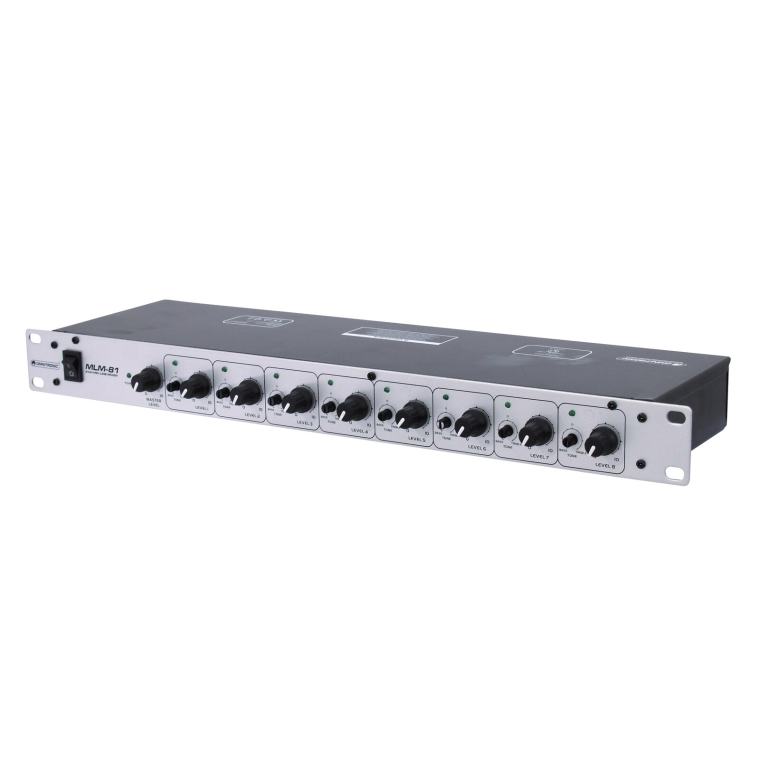

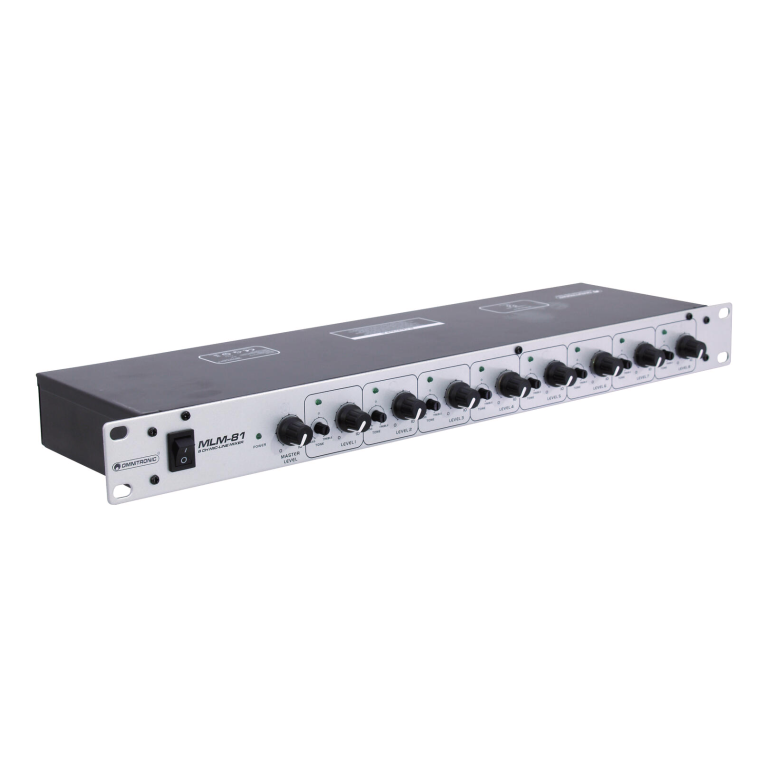

Omnitronic MLM-81 Microphone/Line Mixer

€179.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

Microphone line mixer, 8 channels

  • For mixing up to 8 mono input signals to 1 mono output
  • 8 mic/line channels with separate level and tone controls and signal LEDs
  • Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
  • Each microphone input with optional 12 V phantom power
  • Feed-through output (independent of master control) for connecting a further MLM-81
  • Each 6.3 mm line input can be separately converted to a line output via internal jumpers

Omnitronic MLM-81 – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 230 V AC, 50 Hz (internal power supply unit)

  • Power Consumption: 10 W

  • Power Connection: Standard IEC C14 power inlet with physical power switch on rear panel

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >90 dB

  • THD: <0.05% @ 1 kHz

  • Channel Equalizer: 2-band EQ per channel (High: 10 kHz ±12 dB, Low: 100 Hz ±12 dB)

Connectivity & Signal Routing

  • Operating Modes: 8-Channel Mono Mic/Line Mixer OR 4-Channel Stereo Sub-Mixer

  • Audio Channels: 8 Mono input channels (switchable between Mic and Line level)

  • Phantom Power: +48V phantom power (individually switchable per channel via rear DIP switches)

Controls & Indicators

  • Control Elements:

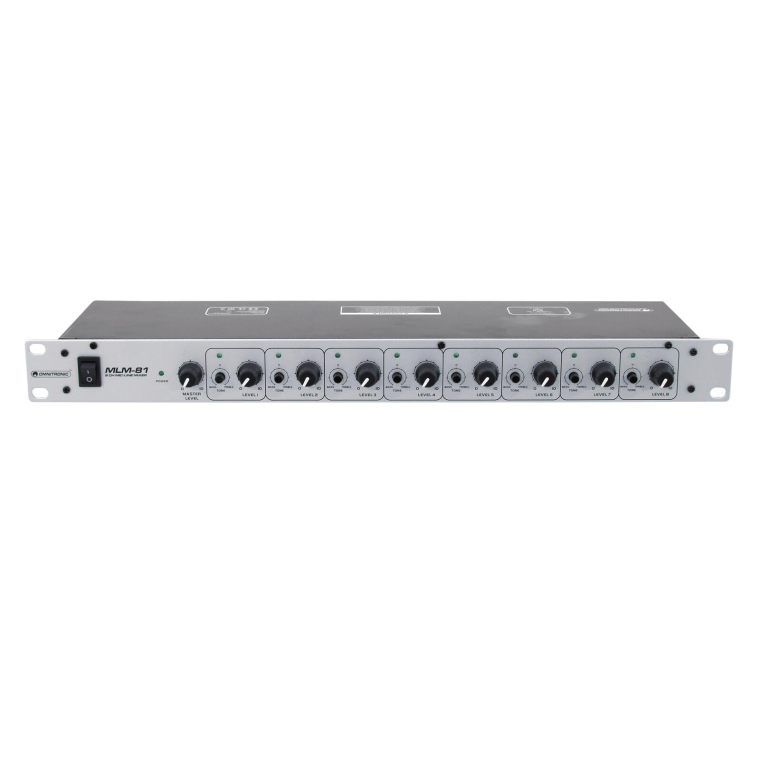

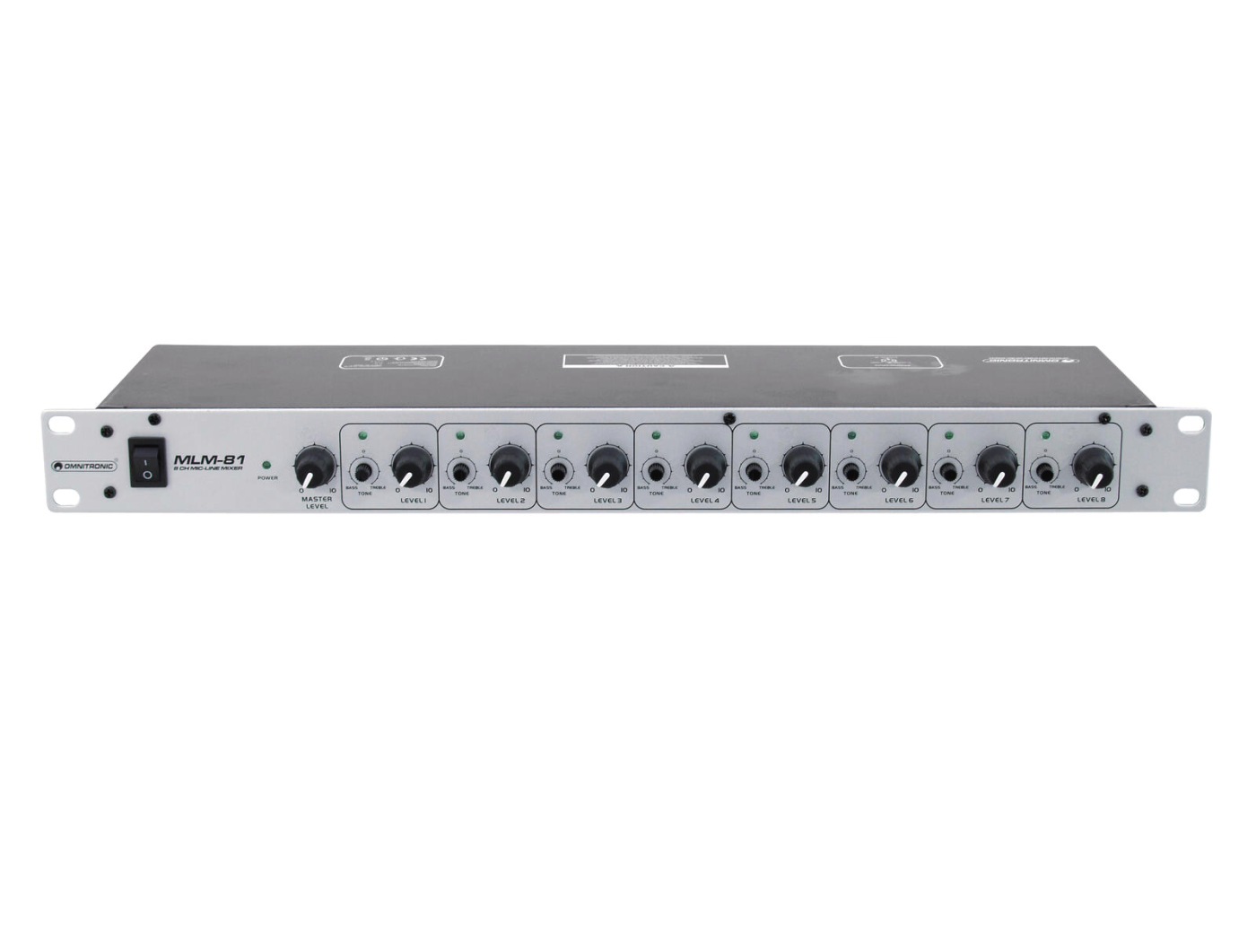

    • Front Panel: Channel Level knobs (1–8), 2-band EQ knobs (High/Low per channel), Master Level control, Master Balance/Pan control, Power switch

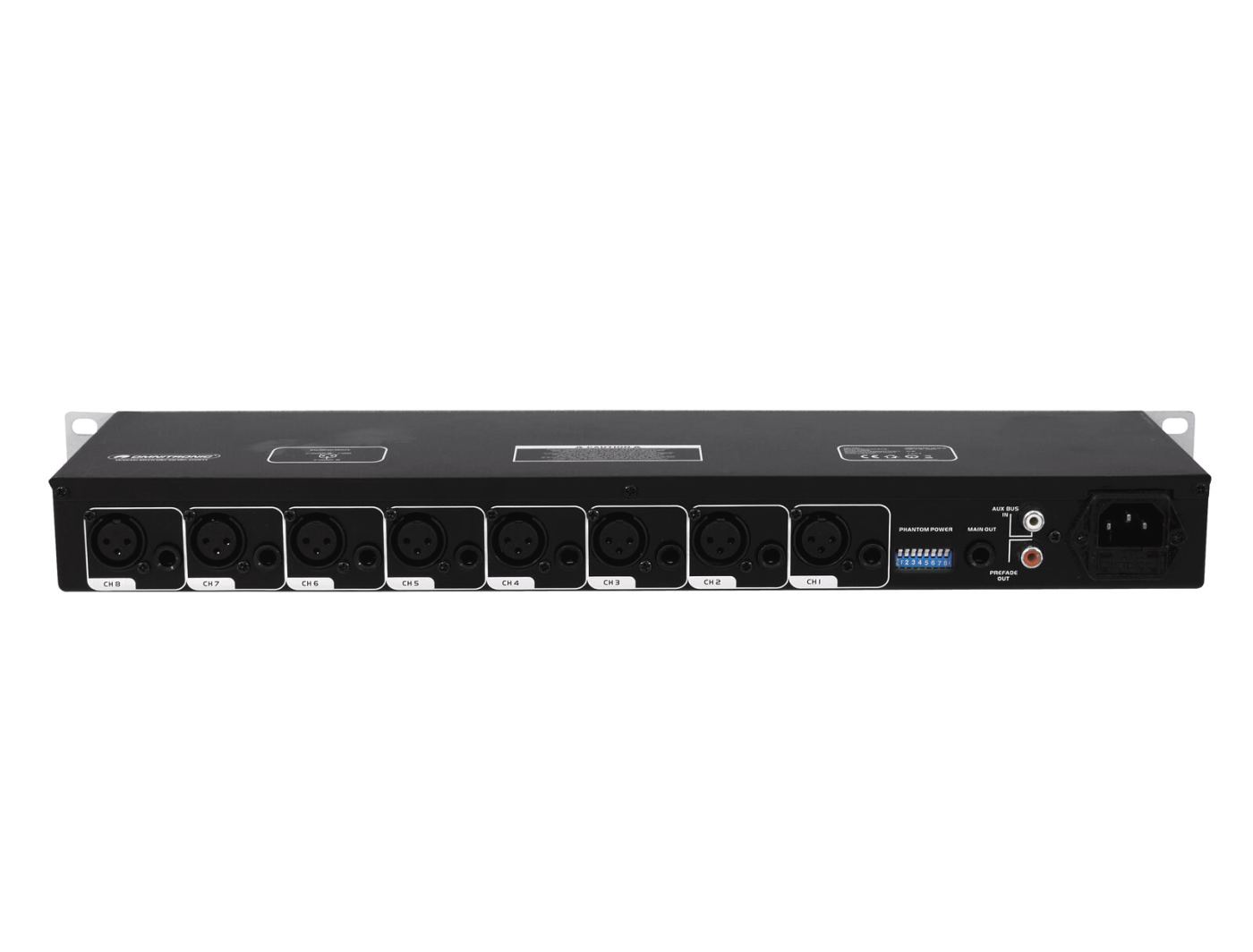

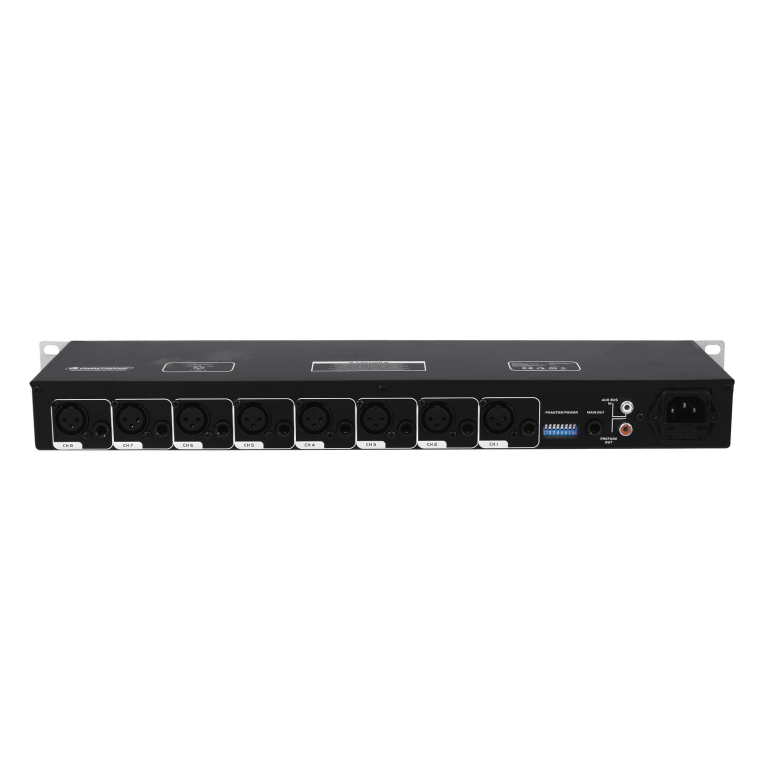

    • Rear Panel: Mic/Line input level selector switches, 48V Phantom power DIP switches per channel

  • Indicators: Power status LED, 4-segment LED master output level meter, Clip LED

Inputs & Outputs

  • Inputs:

    • Mic/Line Inputs: 8 x Combination XLR / 6.35 mm (1/4") TRS jacks (balanced)

  • Outputs:

    • Master Output: 2 x XLR (balanced, L/R) and 2 x 6.35 mm (1/4") TRS jacks (unbalanced)

    • Headphones Output: 1 x 6.35 mm (1/4") TRS stereo jack (front panel with dedicated volume control)

Physical Specifications

  • Housing Design: 19" rack-mountable 1U steel chassis

  • Dimensions (W x D x H): 483 x 126 x 44 mm (19" x 5.0" x 1.75")

  • Weight: 2.2 kg (4.85 lbs)

Accessories Included

  • Power Cable (IEC), User Manual
