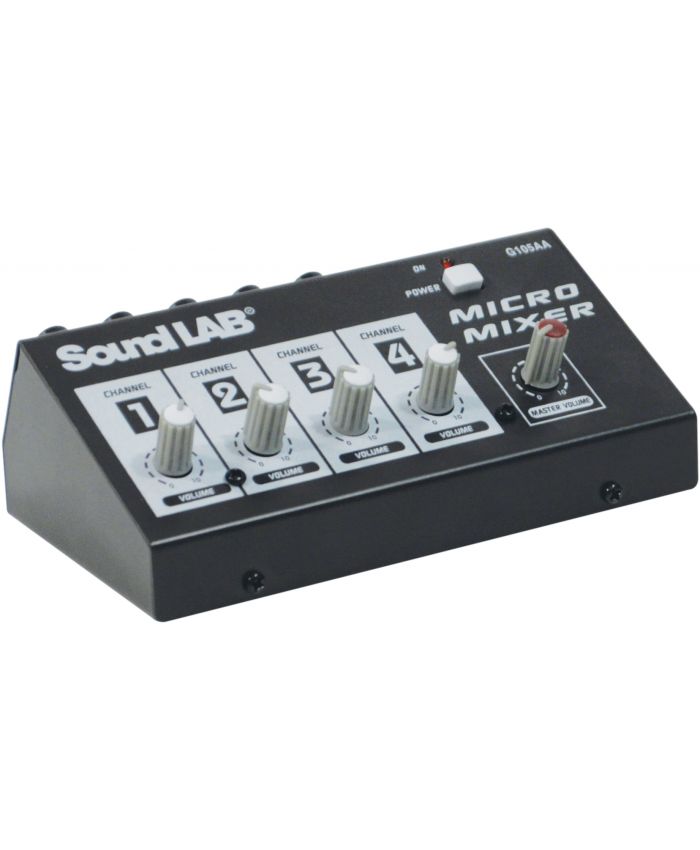

Soundlab G105AA

Soundlab G105AA – Technical Specifications & Setup Guide

Power Supply & Consumption

• Power Supply: Passive operation (no batteries, external power adapter, or AC supply required)

• Power Consumption: 0 W

Audio Performance

• Frequency Range: 20 – 20,000 Hz

• S/N Ratio: >90 dB

• THD: <0.005% @ 1 kHz

• Operation Mode: Pure passive resistive attenuation and signal mixing

Connectivity & Signal Routing

• Audio Channels: 4 Mono line/instrument inputs to 1 Mono output (unbalanced)

• Signal Type: Line-level audio / high-impedance instrument signals

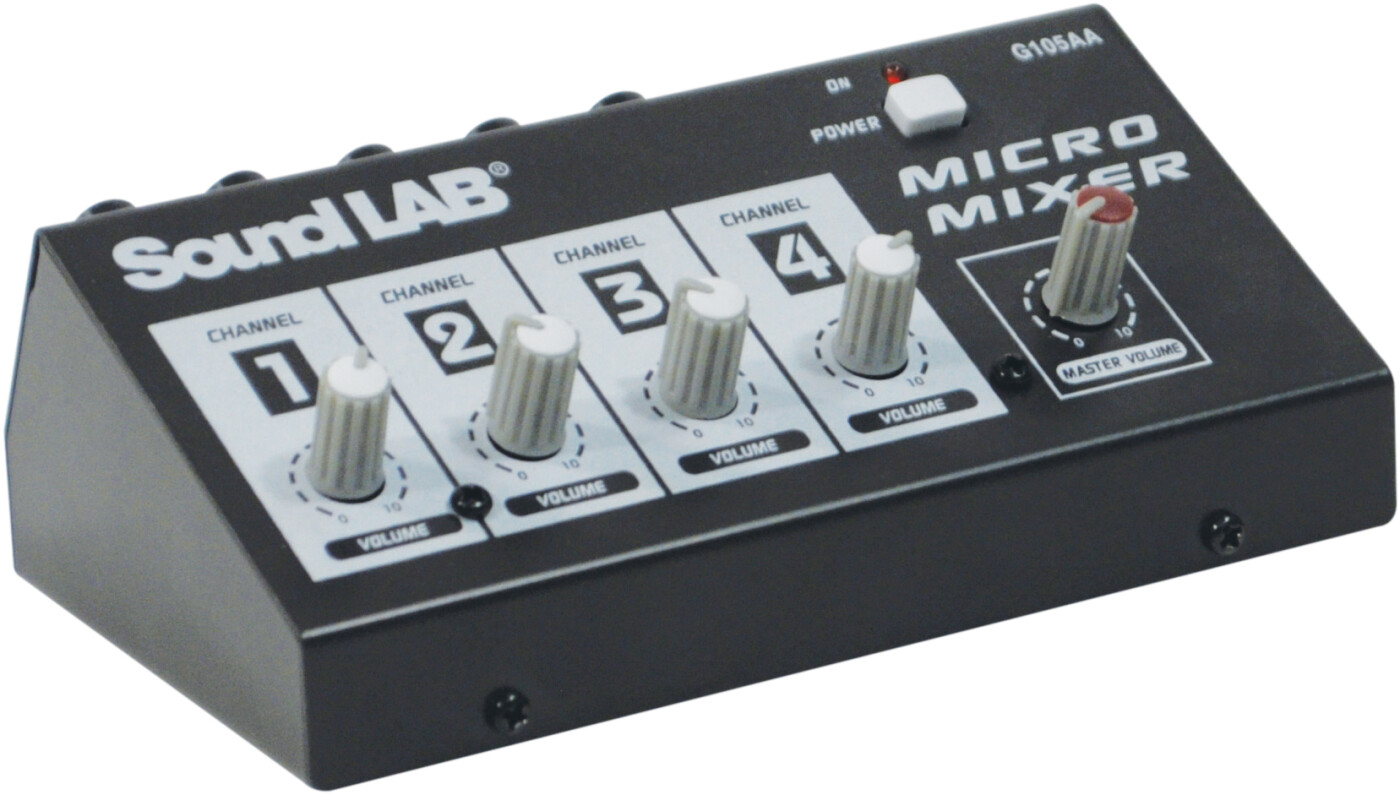

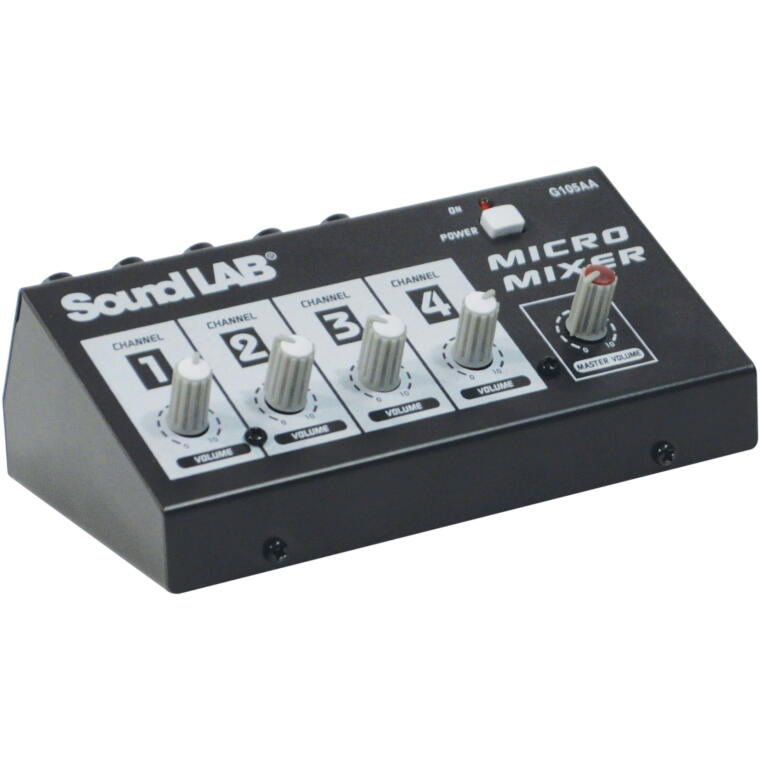

Controls & Indicators

• Control Elements: 4 x Independent Volume/Level rotary controls (1 per input channel)

• Indicators: None (fully passive analog design)

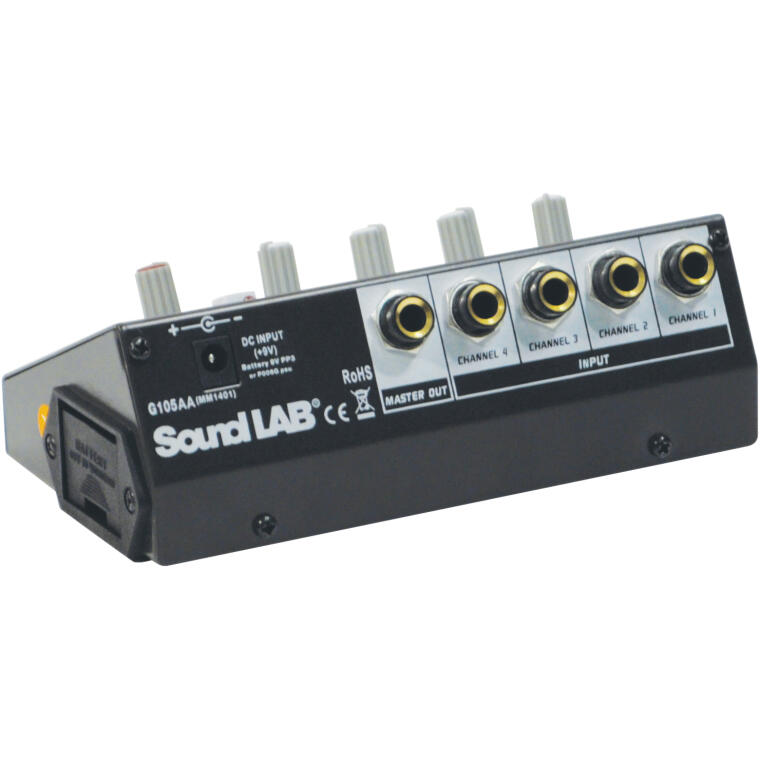

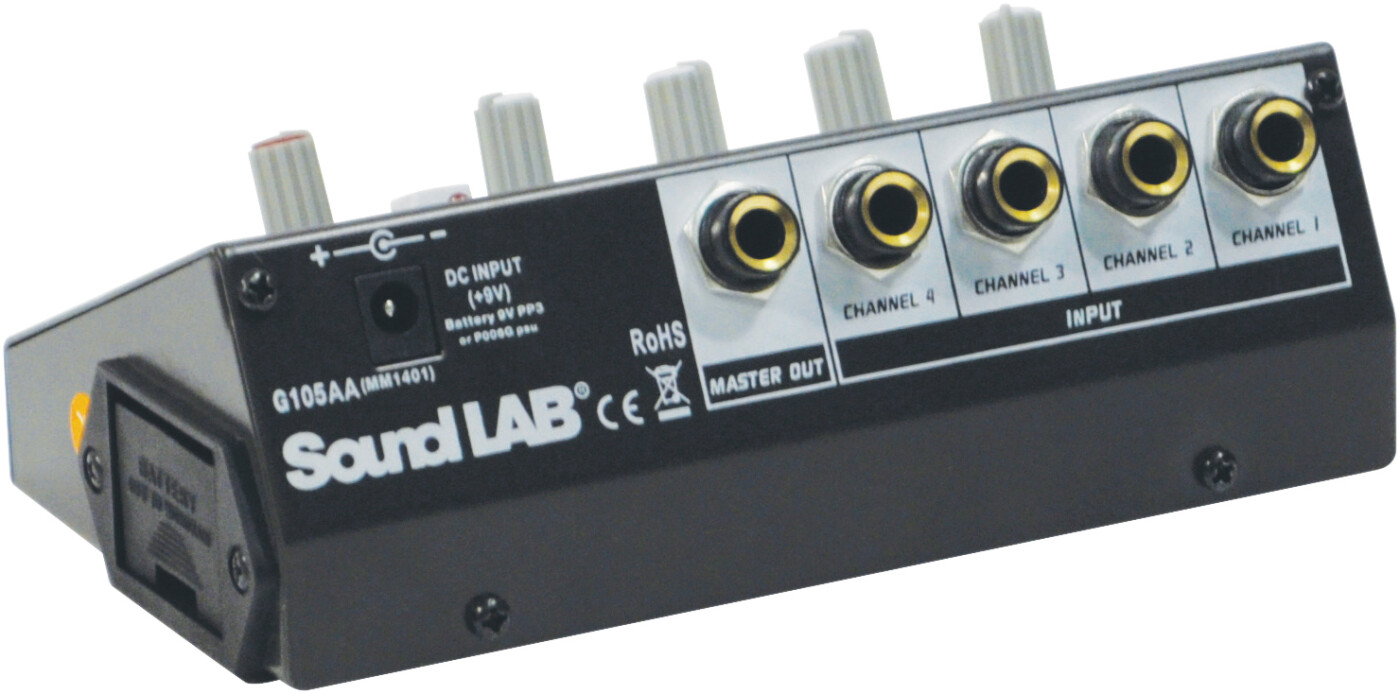

Inputs & Outputs

• Inputs:

  • Line Inputs: 4 x 6.35 mm (1/4") TS jacks (unbalanced mono)

• Outputs:

  • Main Output: 1 x 6.35 mm (1/4") TS jack (unbalanced mono)

Physical Specifications

• Housing Design: Compact desktop metal enclosure

• Dimensions (W x D x H): 110 x 60 x 35 mm (4.3" x 2.4" x 1.4")

• Weight: 0.28 kg (0.62 lbs)

Accessories Included

• User Manual
