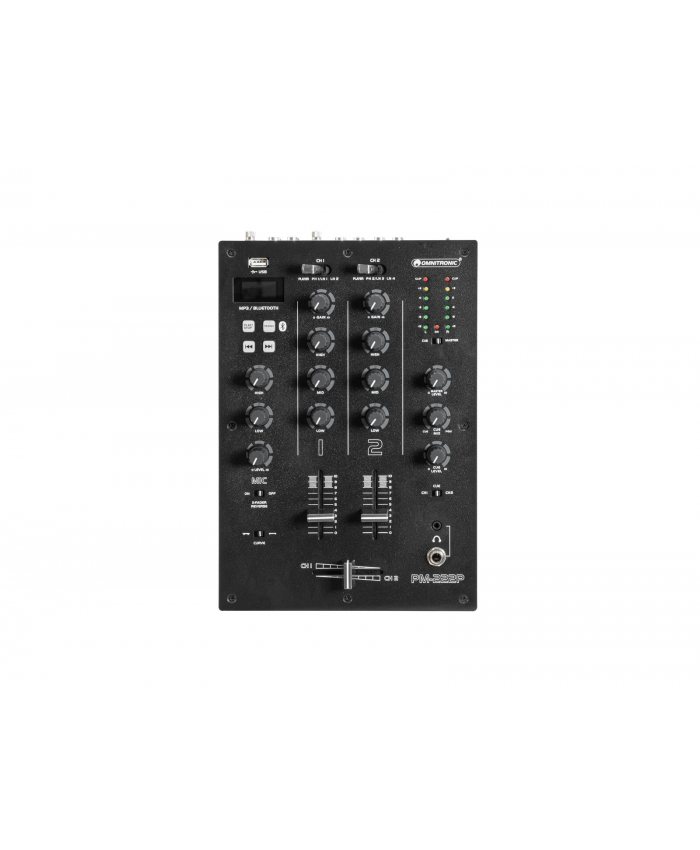

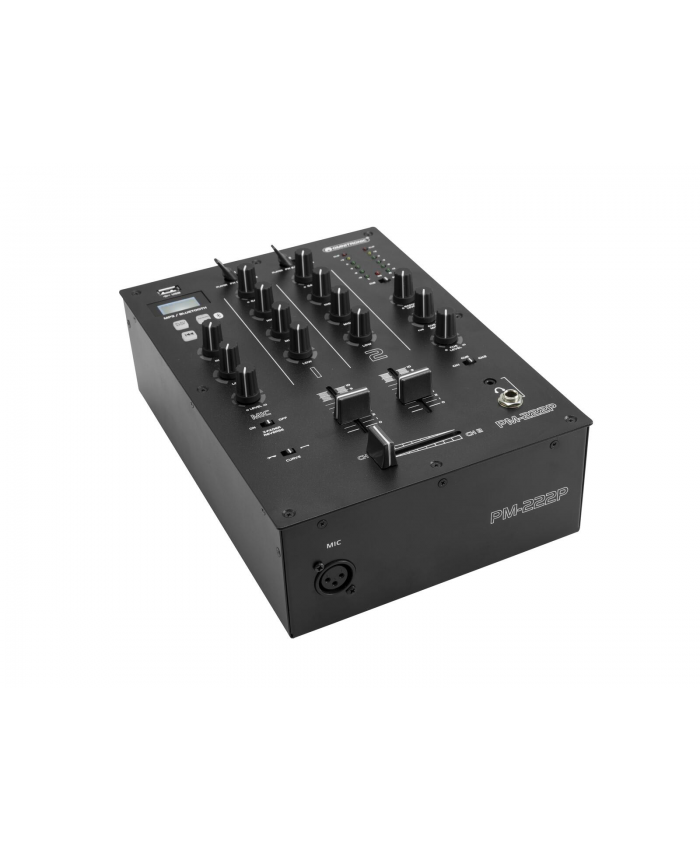

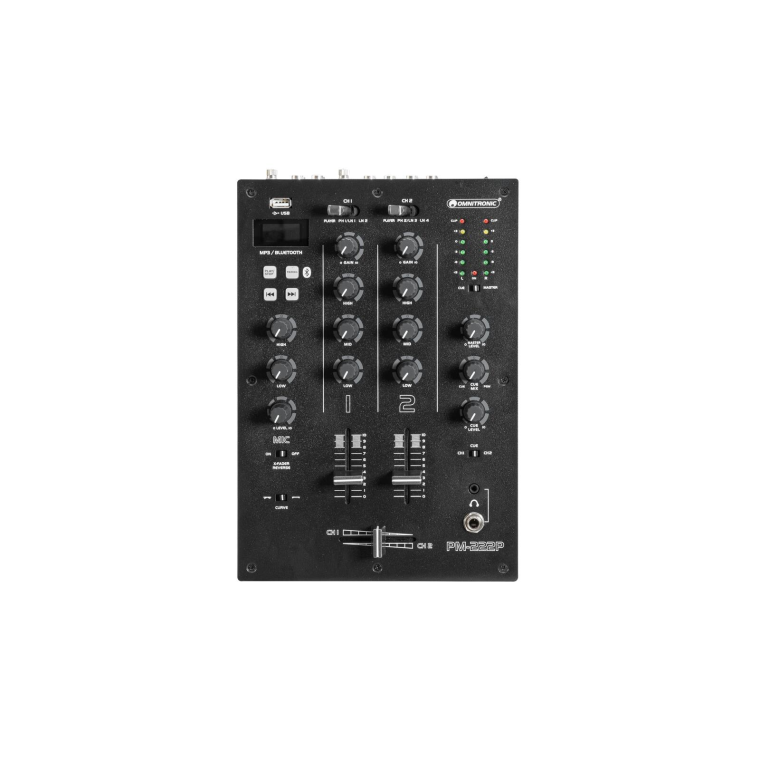

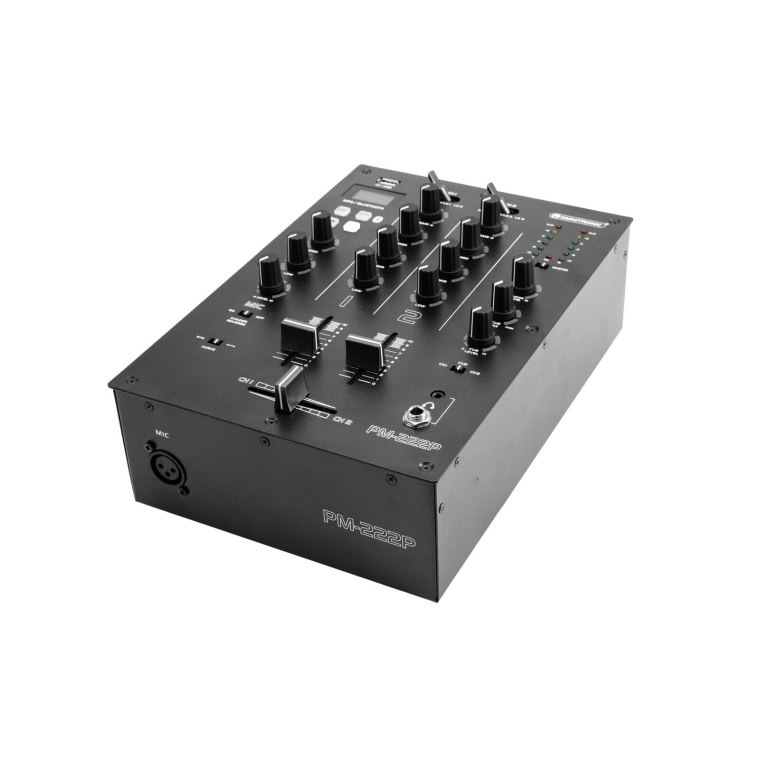

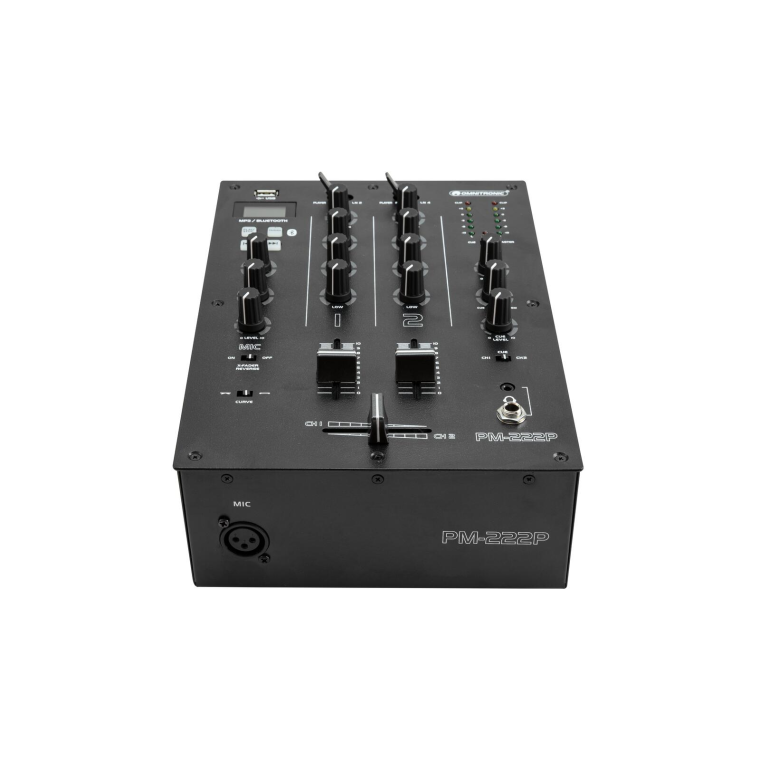

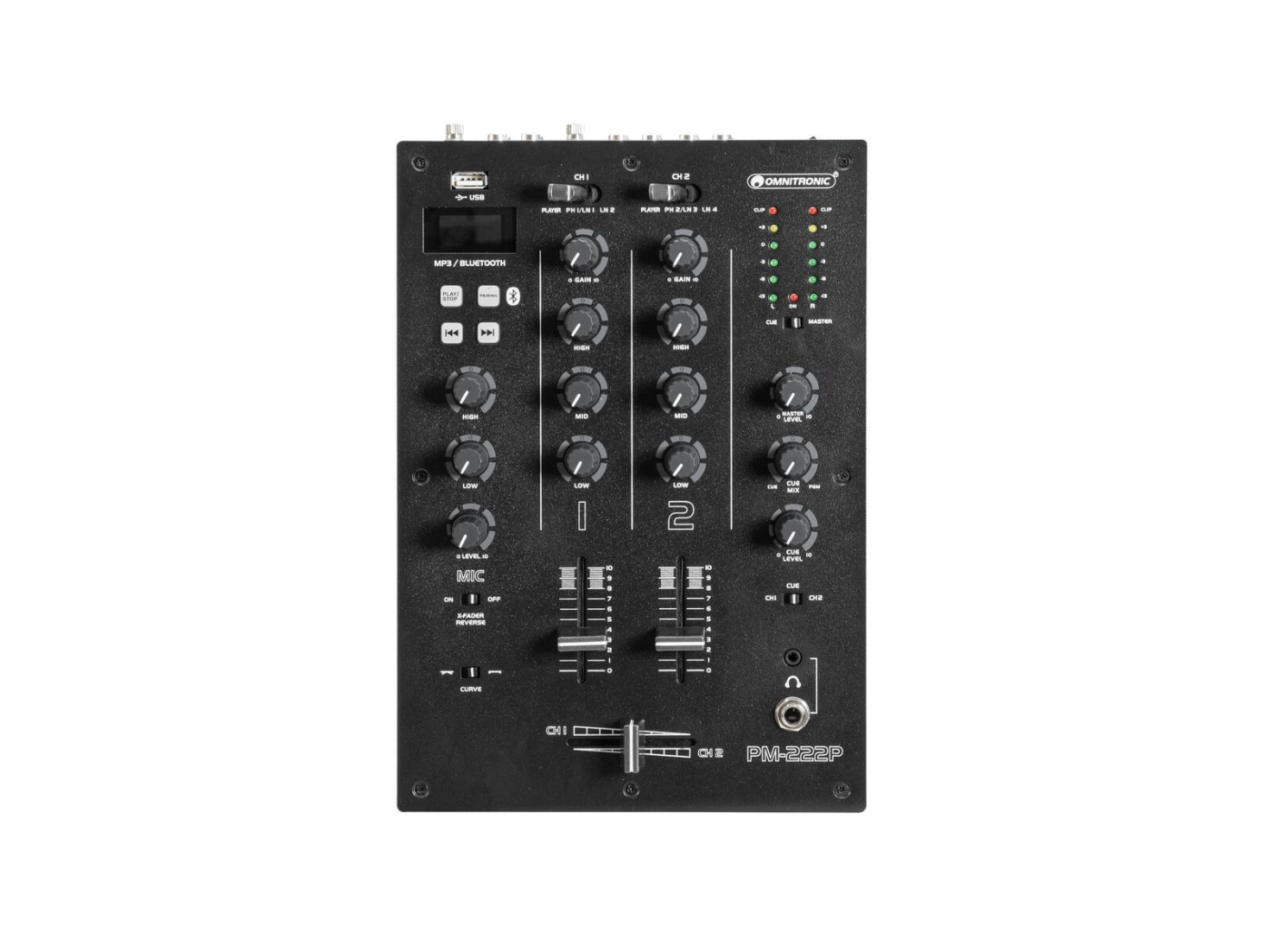

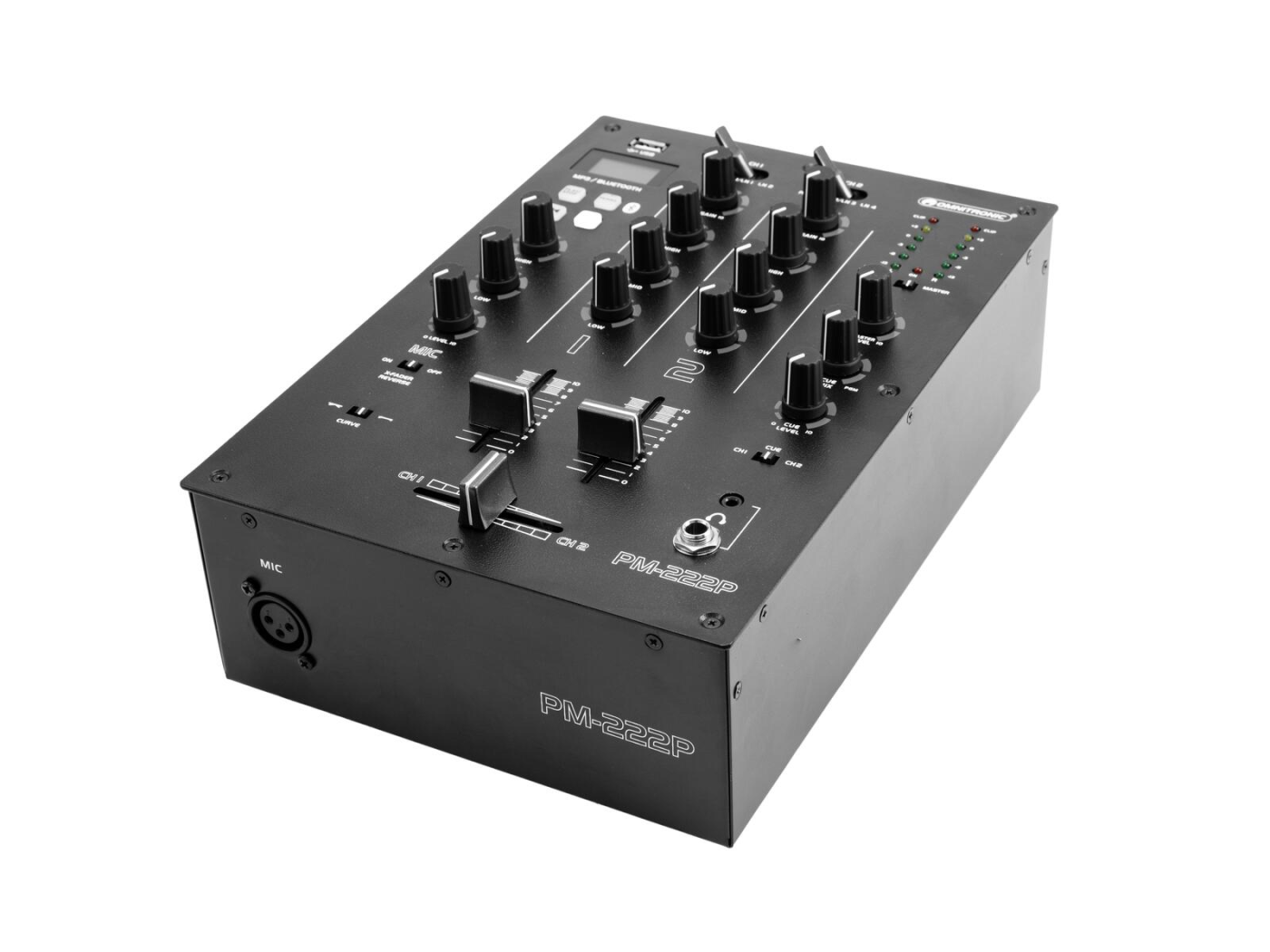

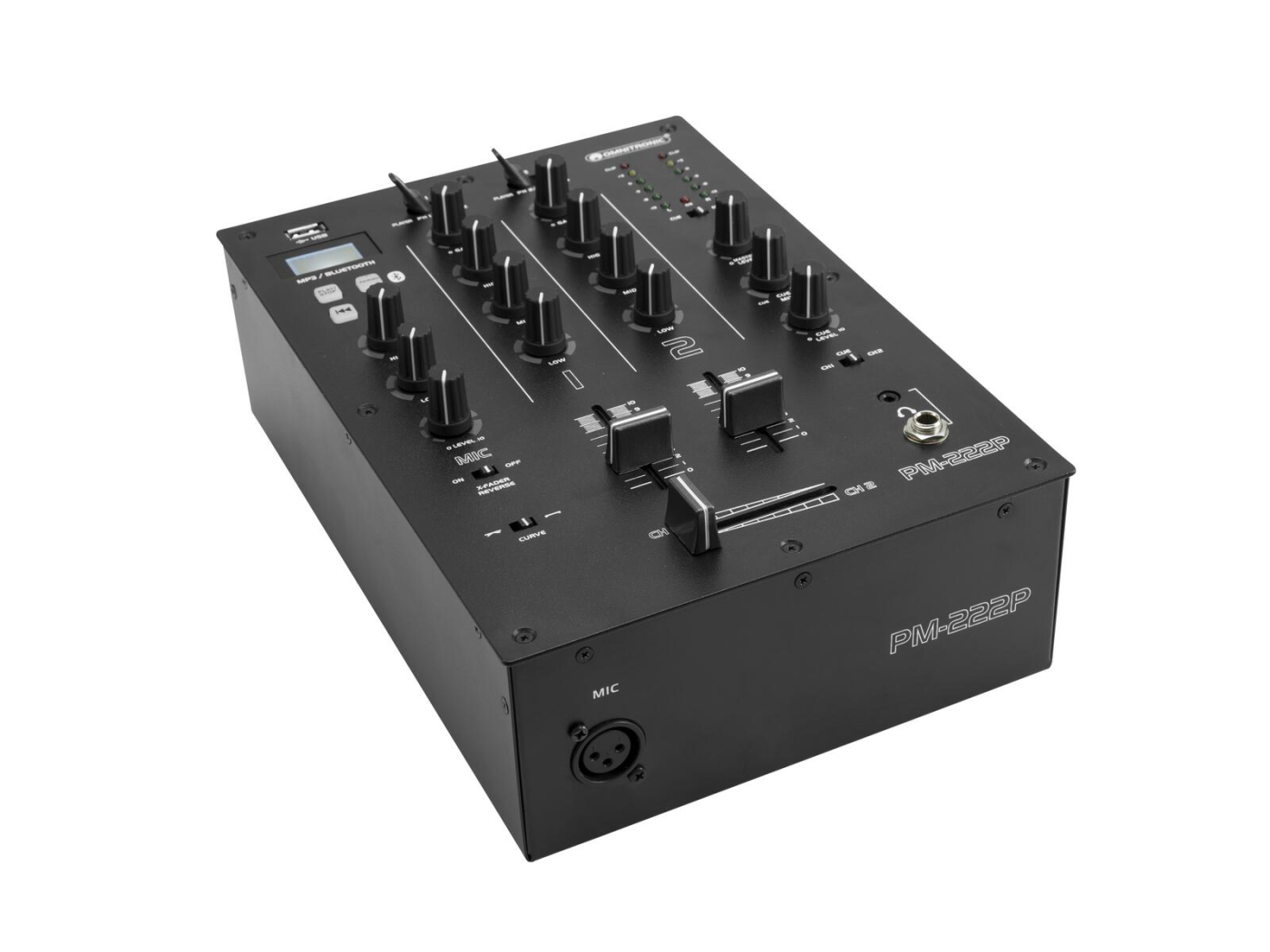

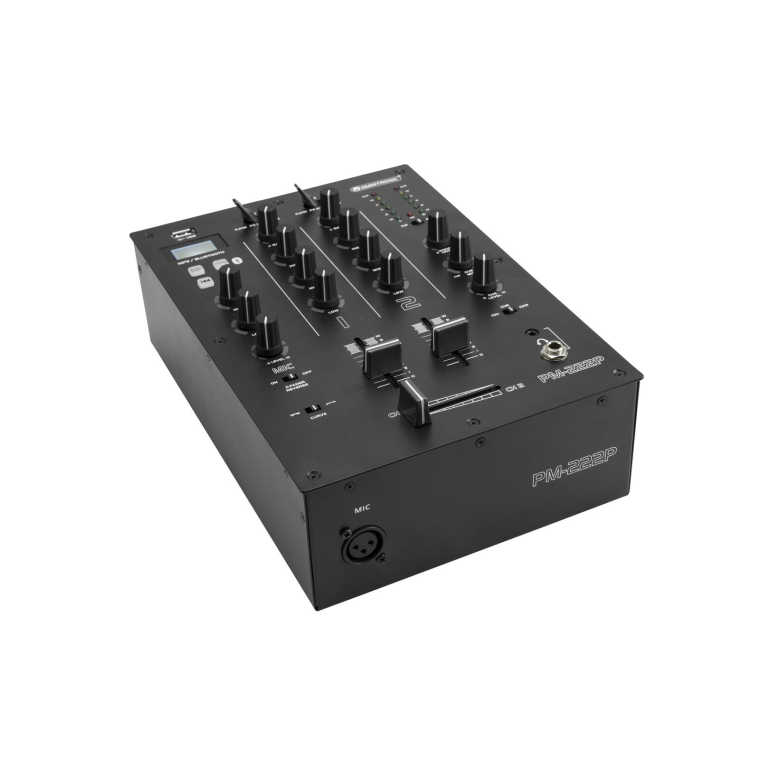

Omnitronic PM-222P 2-channel DJ Mixer with Player

€169.00 incl. VAT
Out of stock
Interested in this product?
Call us

Overview

2-channel DJ mixer with Bluetooth and MP3 player

  • 2 input channels with gain control, 3-band equalizer and channel fader
  • DJ microphone channel with level control and 2-band equalizer
  • Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
  • Crossfader with adjustable curve and reverse function
  • Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
  • 4 line and 2 phono inputs via RCA jacks
  • Additional recording output
  • Control via Bluetooth
  • LCD display
  • Desktop console housing
  • For application areas such as: Wedding/gala/events; Party room; mobile use; mobile djs / entertainer

Omnitronic PM-222P 2-Channel DJ Mixer with Bluetooth & MP3 Player – Technical Specifications

Power Supply & Consumption

  • Power Supply: 100–240 V AC, 50/60 Hz (via included 12 V DC, 1 A external power supply unit)

  • Power Consumption: 12 W

  • Protection Class: Class III

  • Power Connection: Coaxial DC power input socket

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >75 dB

  • THD: <0.05% @ 1 kHz

  • Channel Equalizer: 2-band EQ per channel (-24 dB to +12 dB @ Low / High)

  • Input Sensitivity: 3 mV (Mic), 3 mV (Phono), 150 mV (Line)

Connectivity & Media Playback

  • Integrated Media Player: Built-in MP3 player and Bluetooth receiver

  • Supported Media Storage: USB flash drives (max. 32 GB, FAT32)

  • Playback File Formats: MP3, WAV

  • Bluetooth Connectivity: Integrated Bluetooth v4.2 + EDR (operating range up to 10 m)

  • Audio Channels: 2 stereo channels (Channel 1 switchable Line/Phono/Player, Channel 2 switchable Line/Phono), 1 mono DJ mic channel

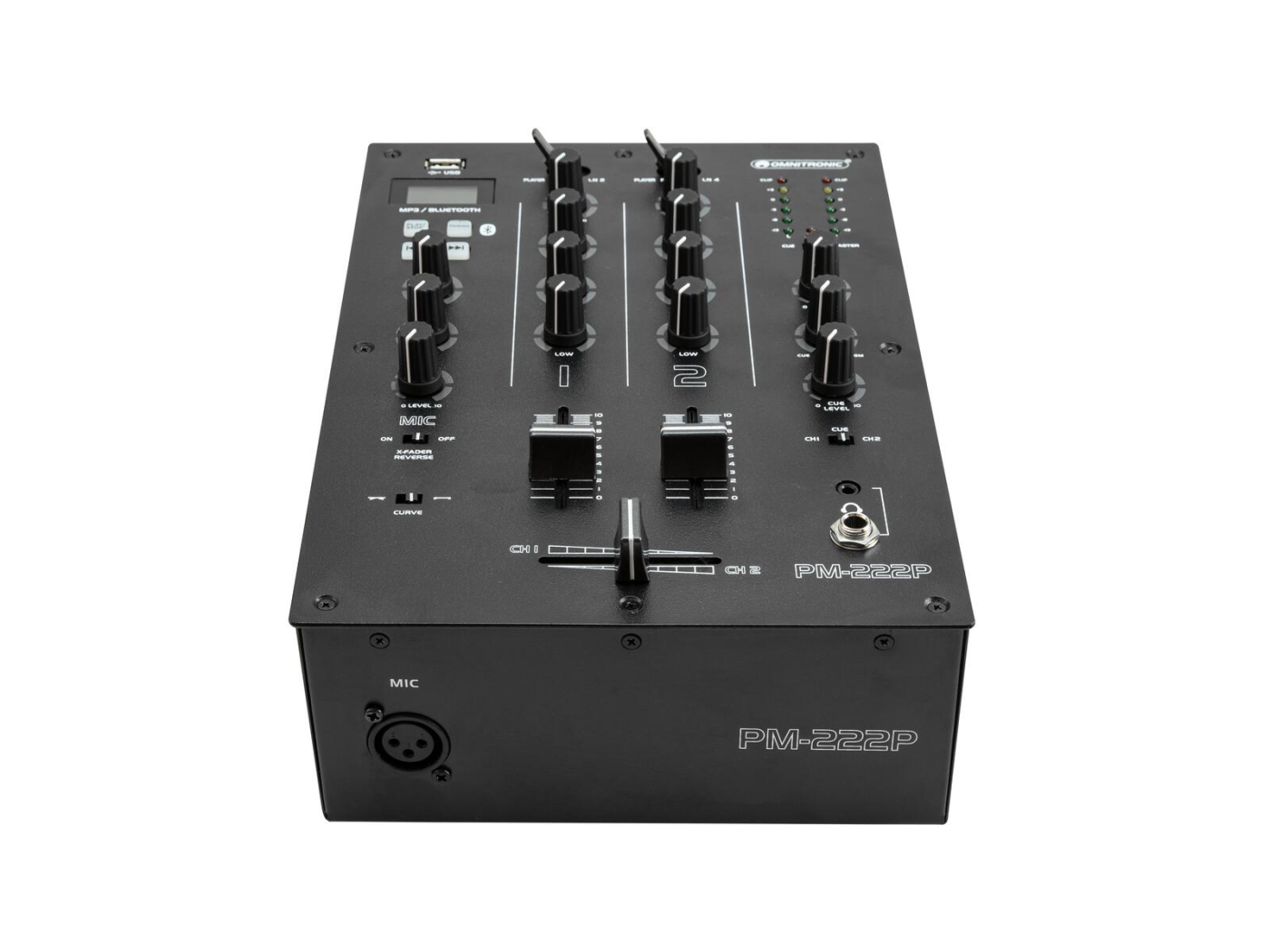

Controls & Indicators

  • Display: Built-in LED display for track status and MP3/Bluetooth navigation

  • Control Elements: Channel gain controls, 2-band EQ knobs per channel, channel faders, crossfader, Master volume knob, DJ Mic volume knob, Headphones CUE volume and CUE mix controls, Input source toggle switches

  • Indicators: Power status LED, stereo LED master output level meter

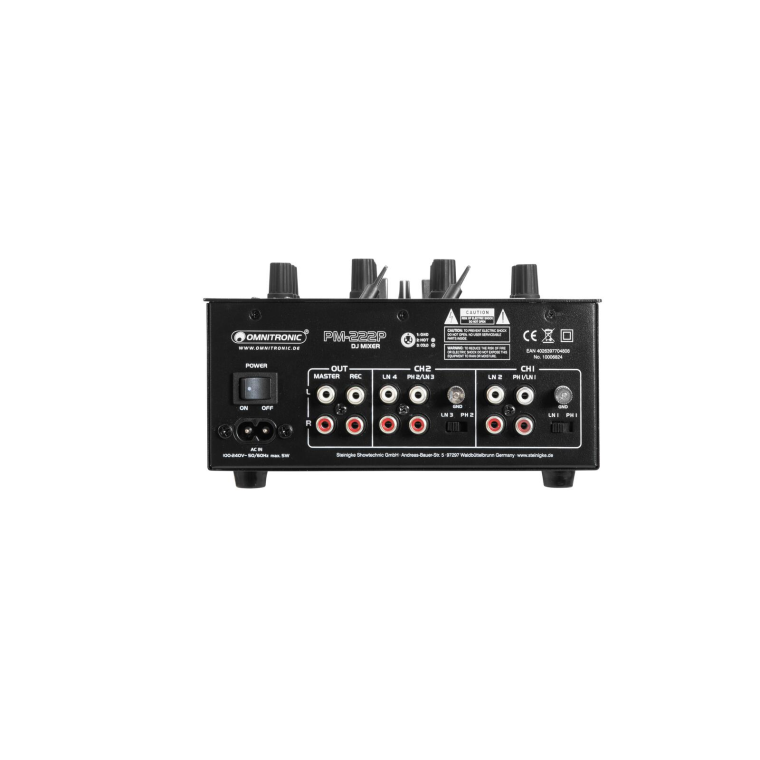

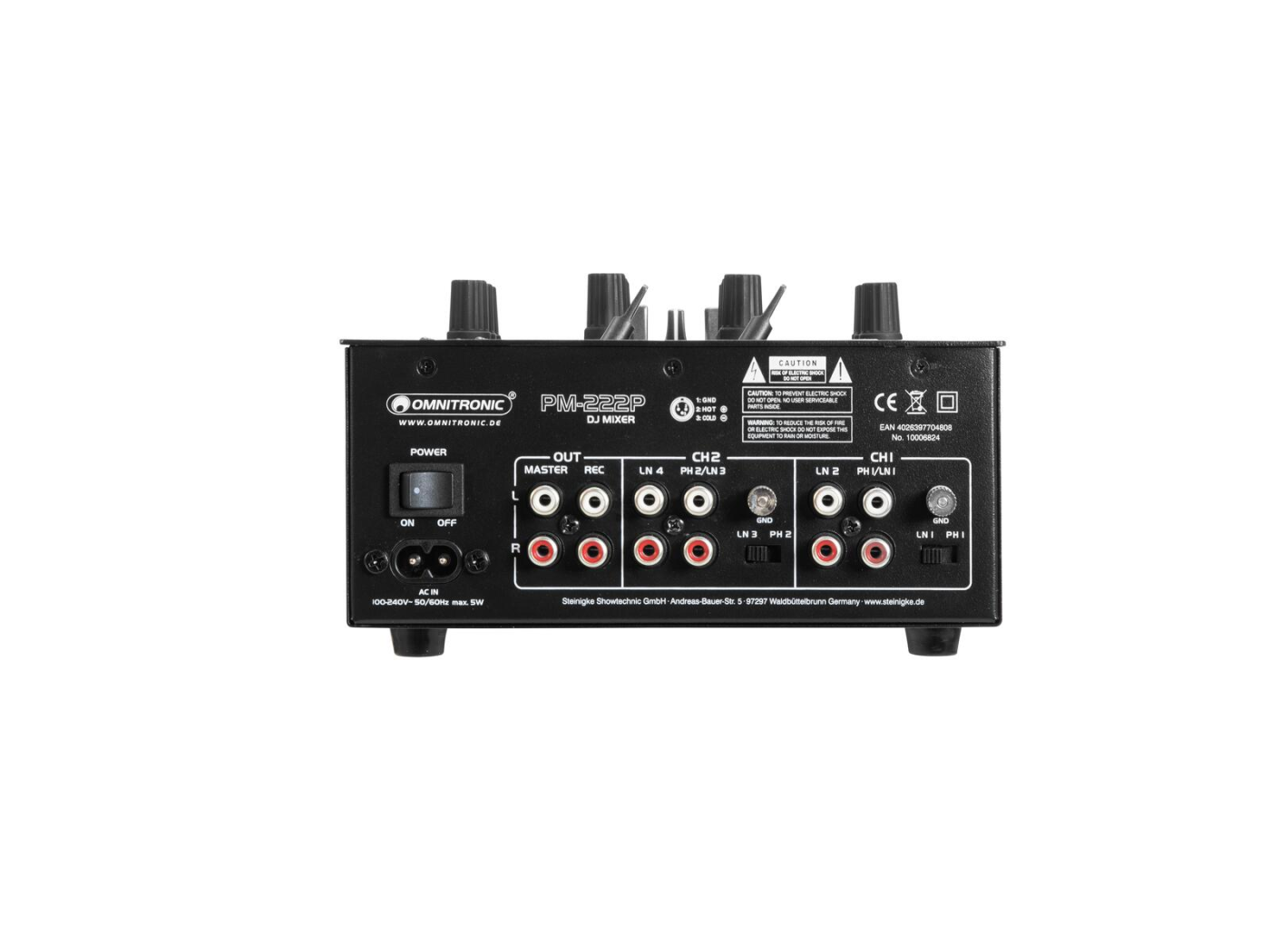

Inputs & Outputs

  • Inputs:

    • Line Inputs: 3 x Stereo RCA

    • Phono Inputs: 2 x Stereo RCA (Phono 1 & 2) with ground screw terminal

    • Microphone Input: 1 x 6.35 mm (1/4") jack (unbalanced mono)

    • Media Input: 1 x USB Type-A port

  • Outputs:

    • Master Output: 1 x Stereo RCA

    • Record Output: 1 x Stereo RCA (Rec Out)

    • Headphones Output: 1 x 6.35 mm (1/4") stereo jack (min. 32 Ω)

Physical Specifications

  • Housing Design: Compact desktop console housing (sturdy metal chassis, black finish)

  • Rack Mounting: N/A (Desktop console format)

  • Dimensions (W x D x H): 190 x 260 x 105 mm

  • Weight: 2.10 kg

Accessories Included

  • 12 V DC External Power Adapter, User Manual
