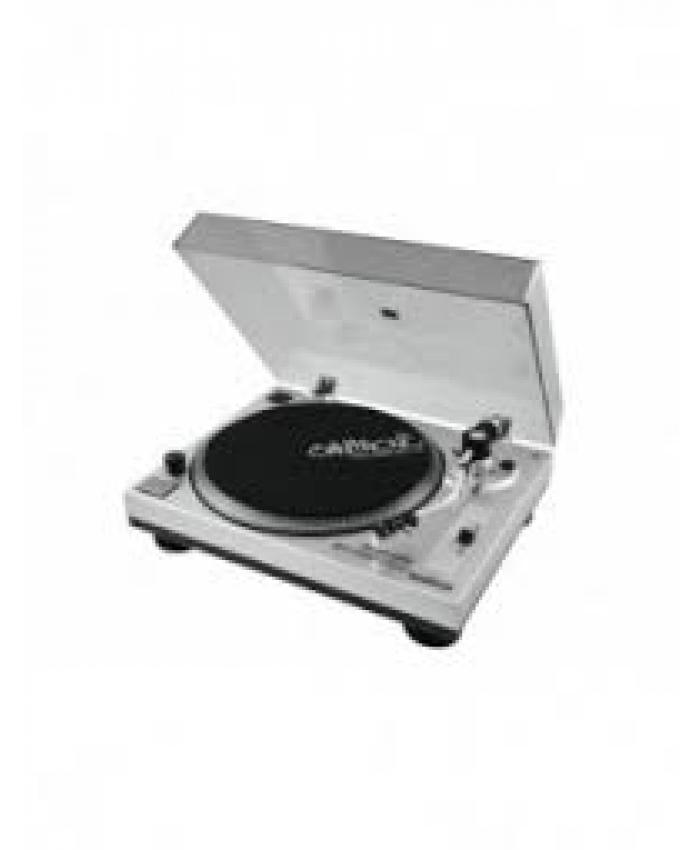

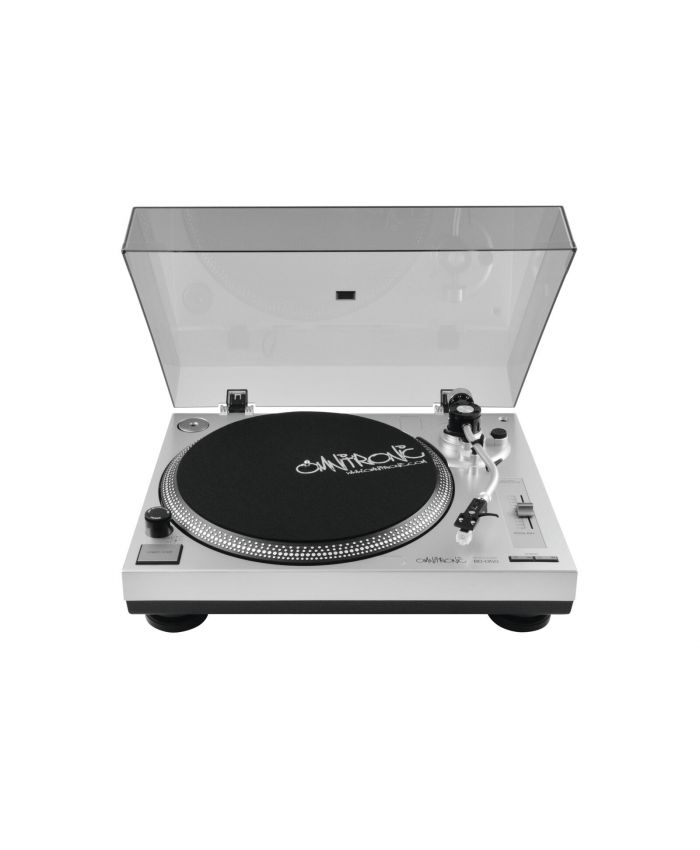

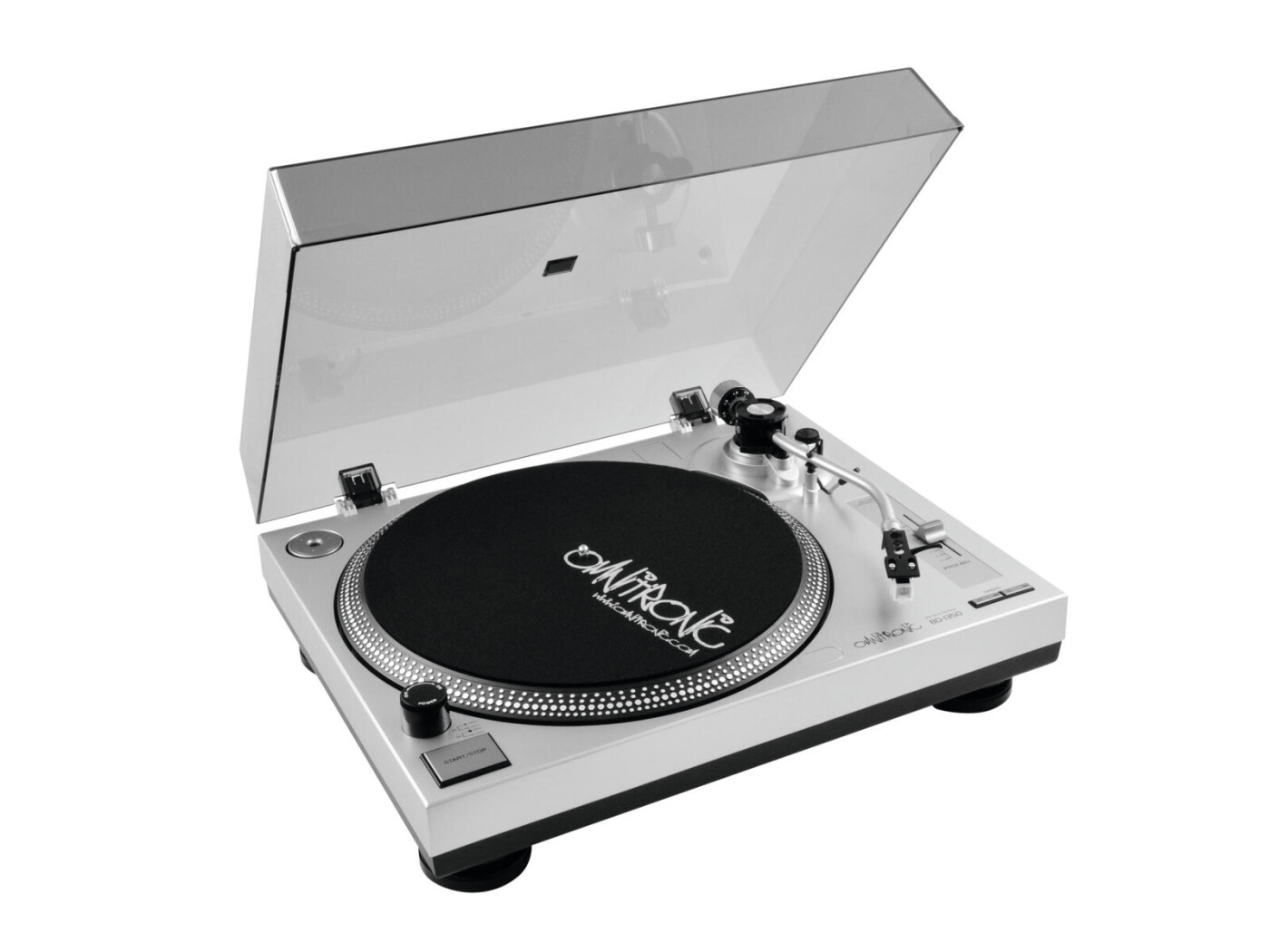

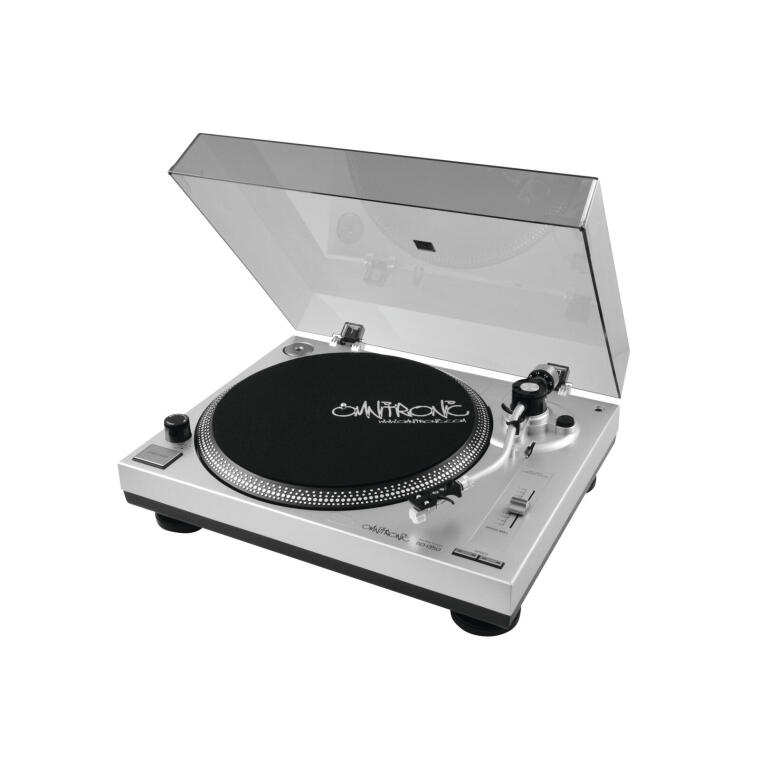

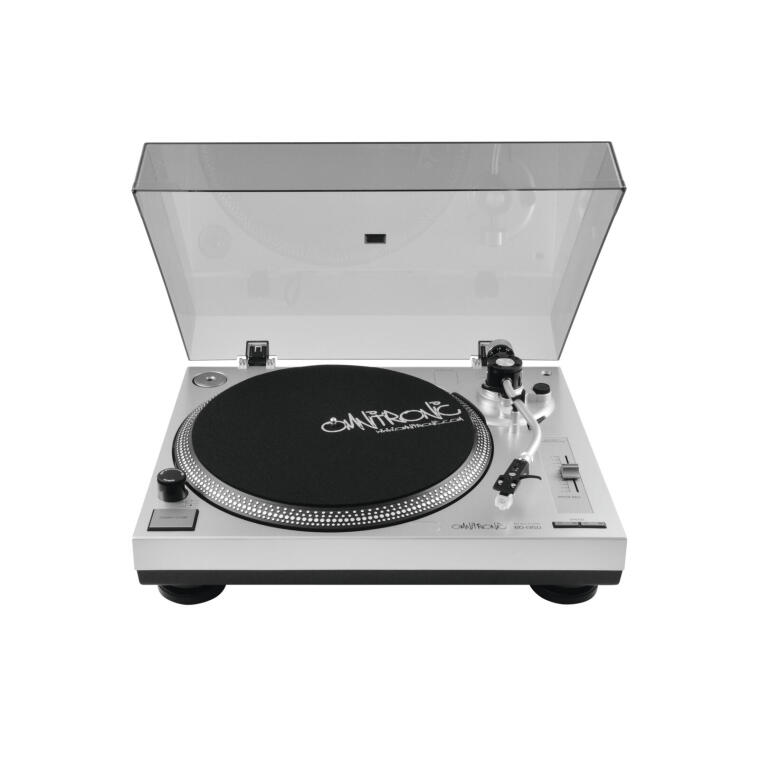

OMNITRONIC BD-1350 Turntable sil

Price on request
In stock
Interested in this product?
Call us

Overview

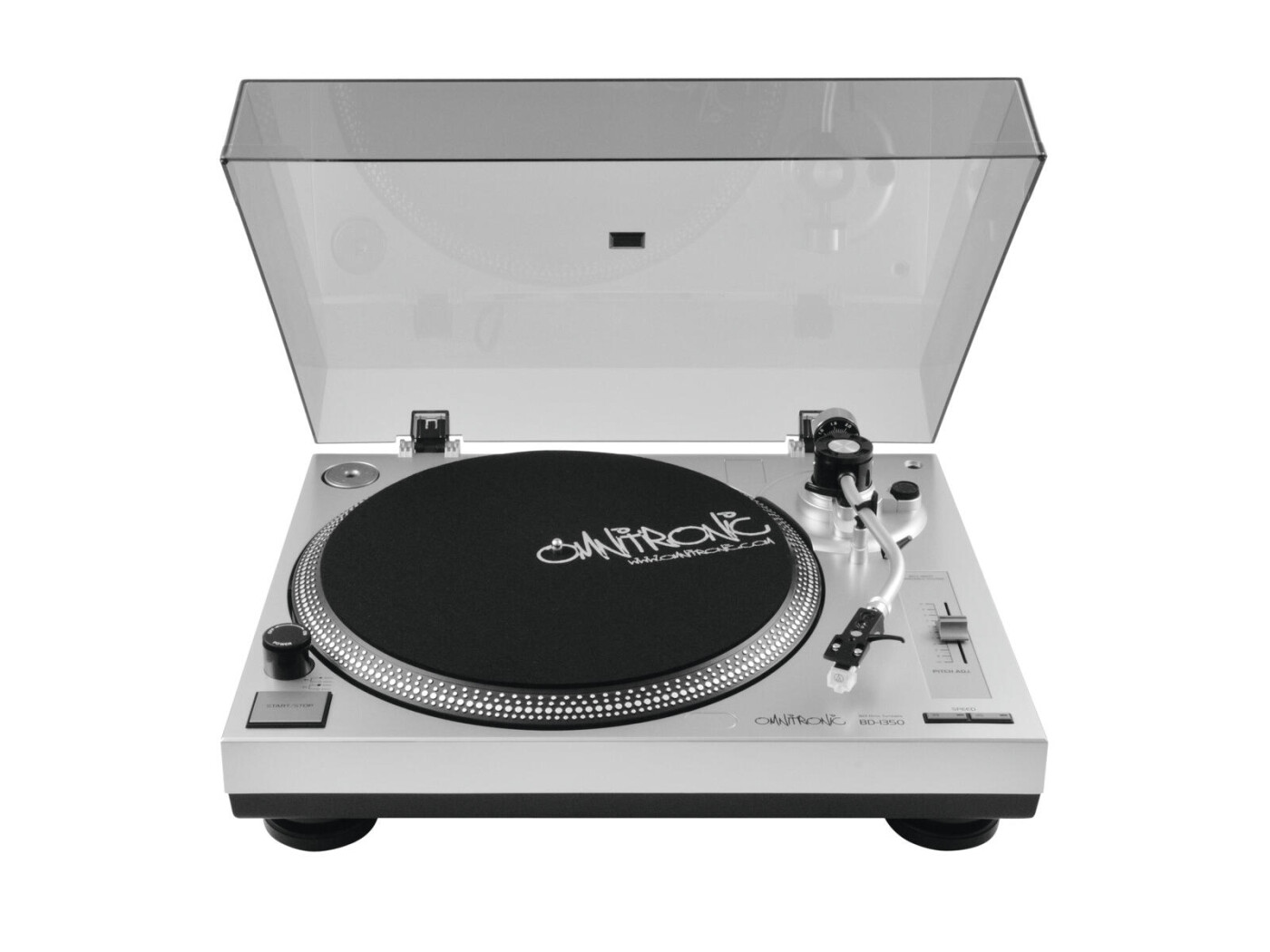

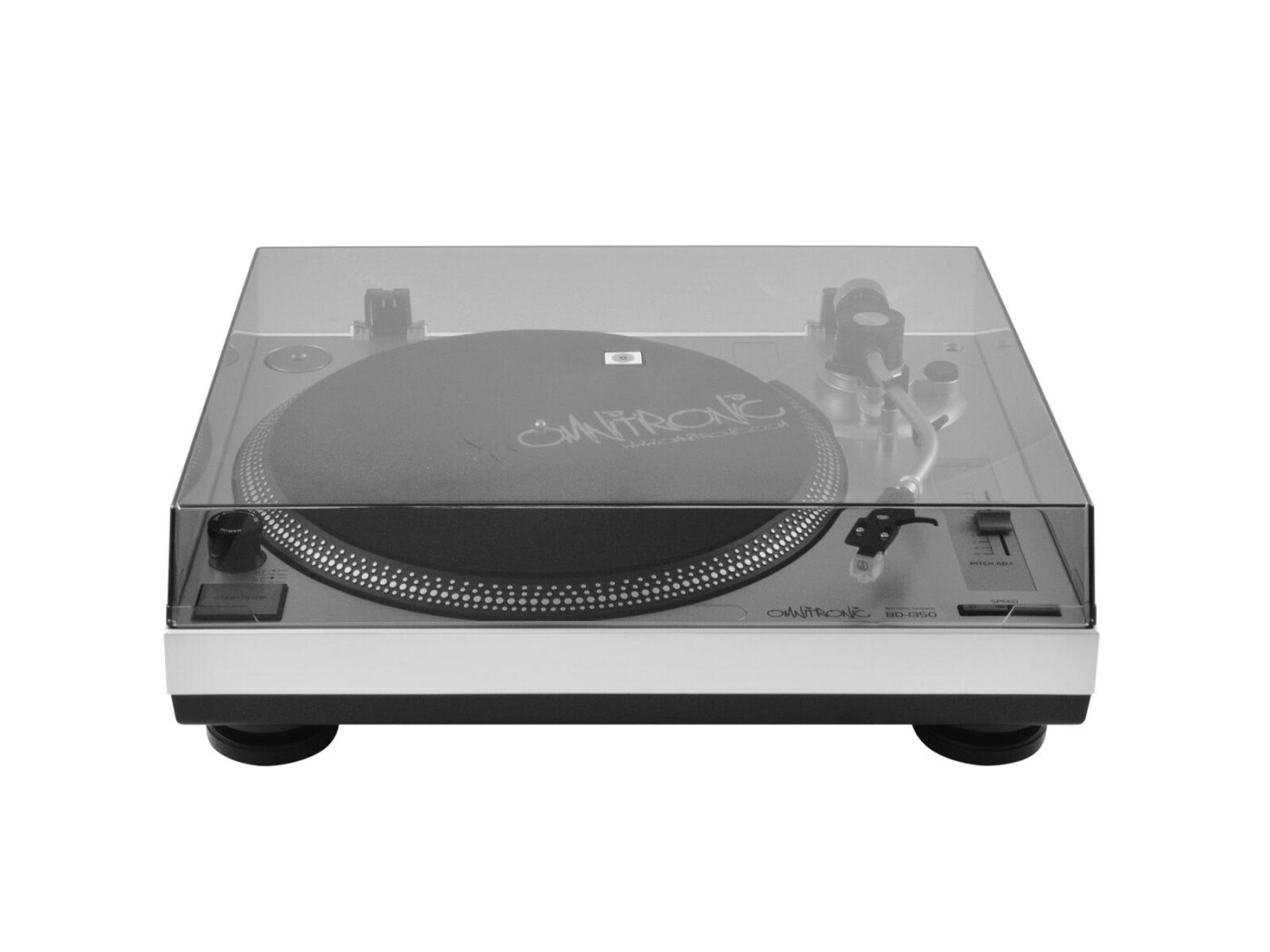

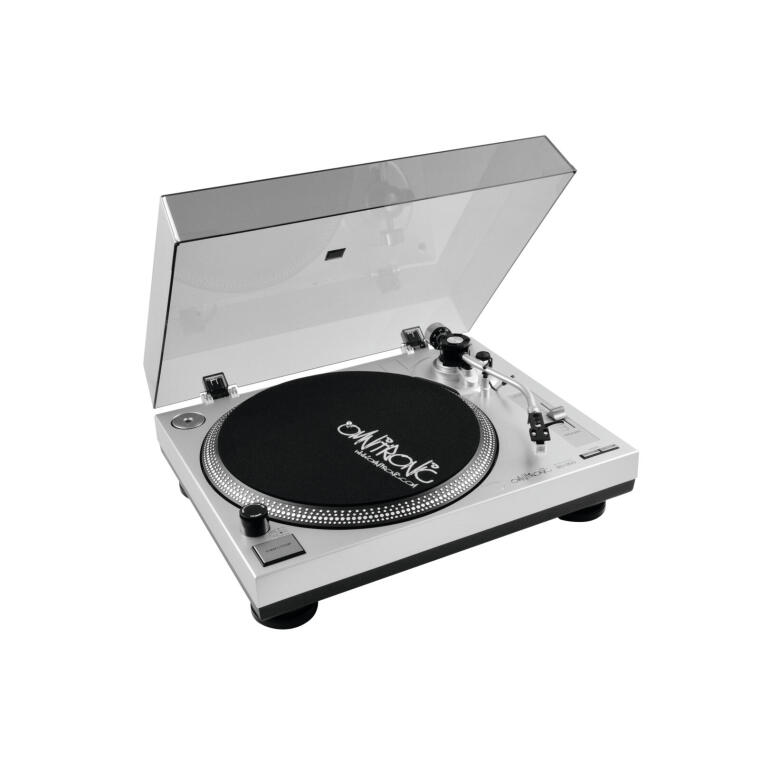

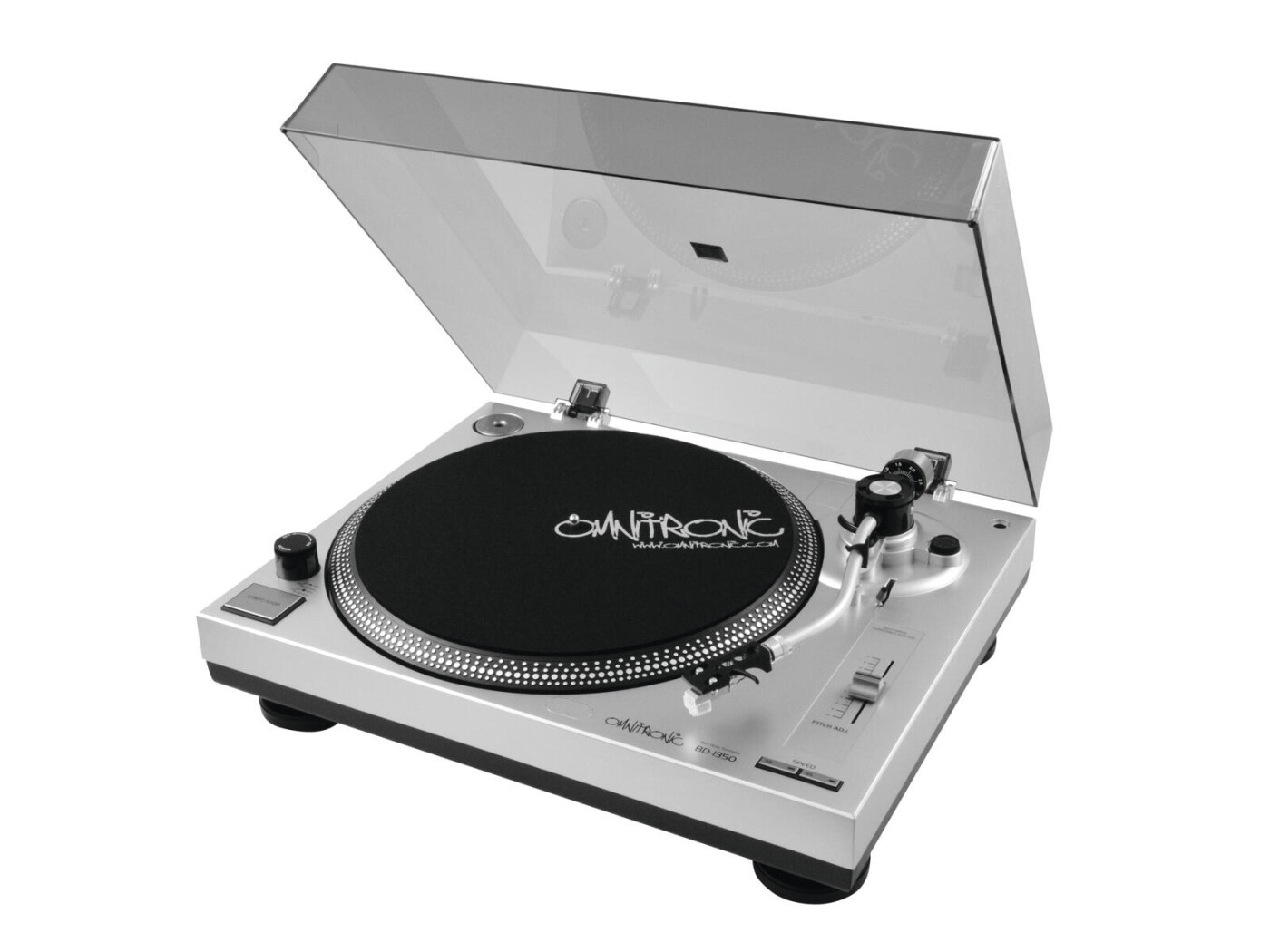

OMNITRONIC BD-1350 Turntable sil

Belt driven DJ turntable, silver

The belt-driven DJ turntable in silver by OMNITRONIC is delivered including pickup system and needle. You can set two speeds - adjustable with ± 10 %.

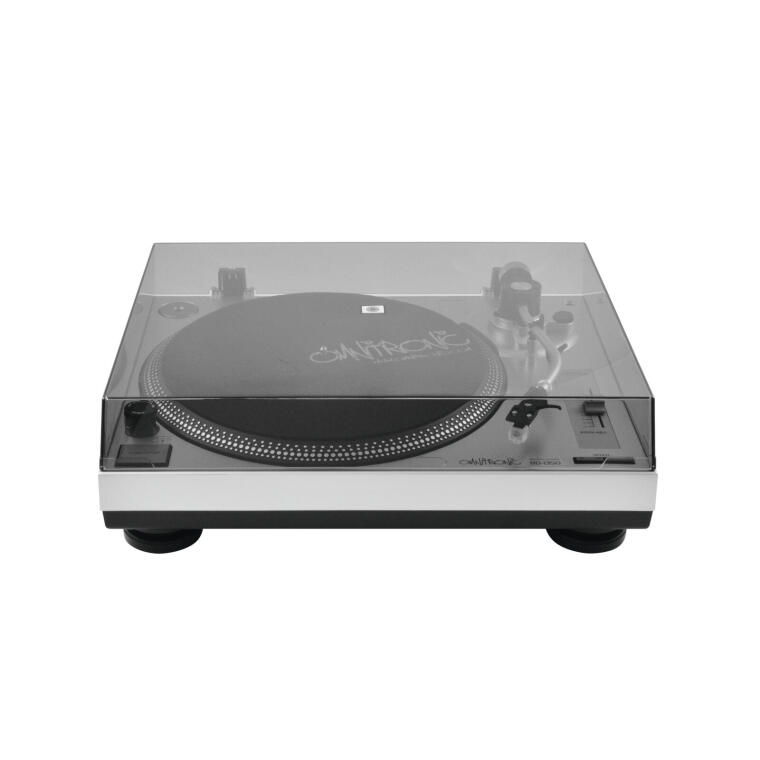

The large Start/Stop button, the adjustable anti-skating and the integrated lighting for exact speed adjustment make working with the turntable comfortable. The removable acrylic dust cover protects the BD-1320 turntable from dust and dirt.

The turntable is given the necessary stability by the shock-absorbing adjustable feet.

Belt-drive DJ turntable, silver

  • Large start/stop button
  • Strobe lamp for exact speed adjustment
  • Adjustable anti-skating
  • Shock-absorbing feet
  • Pitch range: ±10%
  • For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Omnitronic BD-1350 – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 115/230 V AC, 50/60 Hz (switchable)

  • Power Consumption: 8 W

  • Power Connection: Fixed power supply cord with Europlug (Type C)

Audio Performance & Motor

  • Drive Type: Belt drive system

  • Motor: DC motor

  • Speeds: 33 1/3 and 45 RPM (electronic speed selector buttons)

  • Start / Stop Time: <1 sec

  • Speed Change Time: <1 sec

  • Wow and Flutter: <0.25% WRMS @ 33 1/3 RPM

  • Rumble: >50 dB (DIN B)

  • Pitch Control: ±10% via smooth linear pitch fader

  • Tonearm: S-shaped manual tonearm with Cardan suspension, adjustable anti-skate, and counterweight

  • Tonearm Length: 220 mm

  • Overhang: 10 mm

  • Stylus Pressure Range: 0–4 g adjustable

  • Output Level: Phono level (1.7–3.5 mV / 1 kHz)

Connectivity & Signal Routing

  • Audio Output: Phono level signal (unbalanced analog)

  • Grounding: External ground connector wire included

Controls & Indicators

  • Control Elements: Rotary Power switch, Large Start/Stop button, 33 / 45 RPM speed selector buttons, Pitch slider (±10%), Counterweight dial, Anti-skating adjustment knob, Hydraulic cueing lever

  • Indicators: Strobe lamp for precise speed monitoring, Speed LEDs

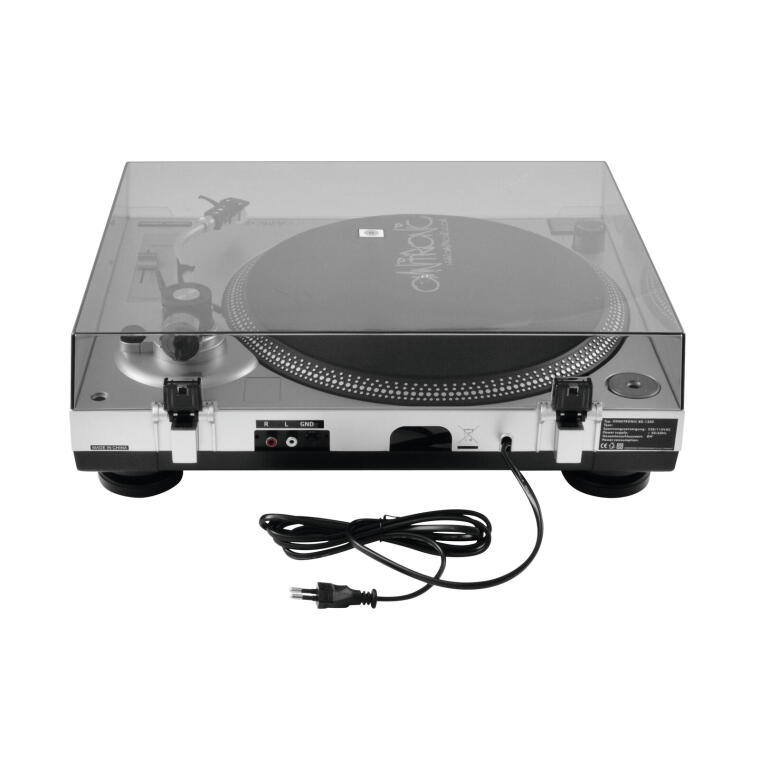

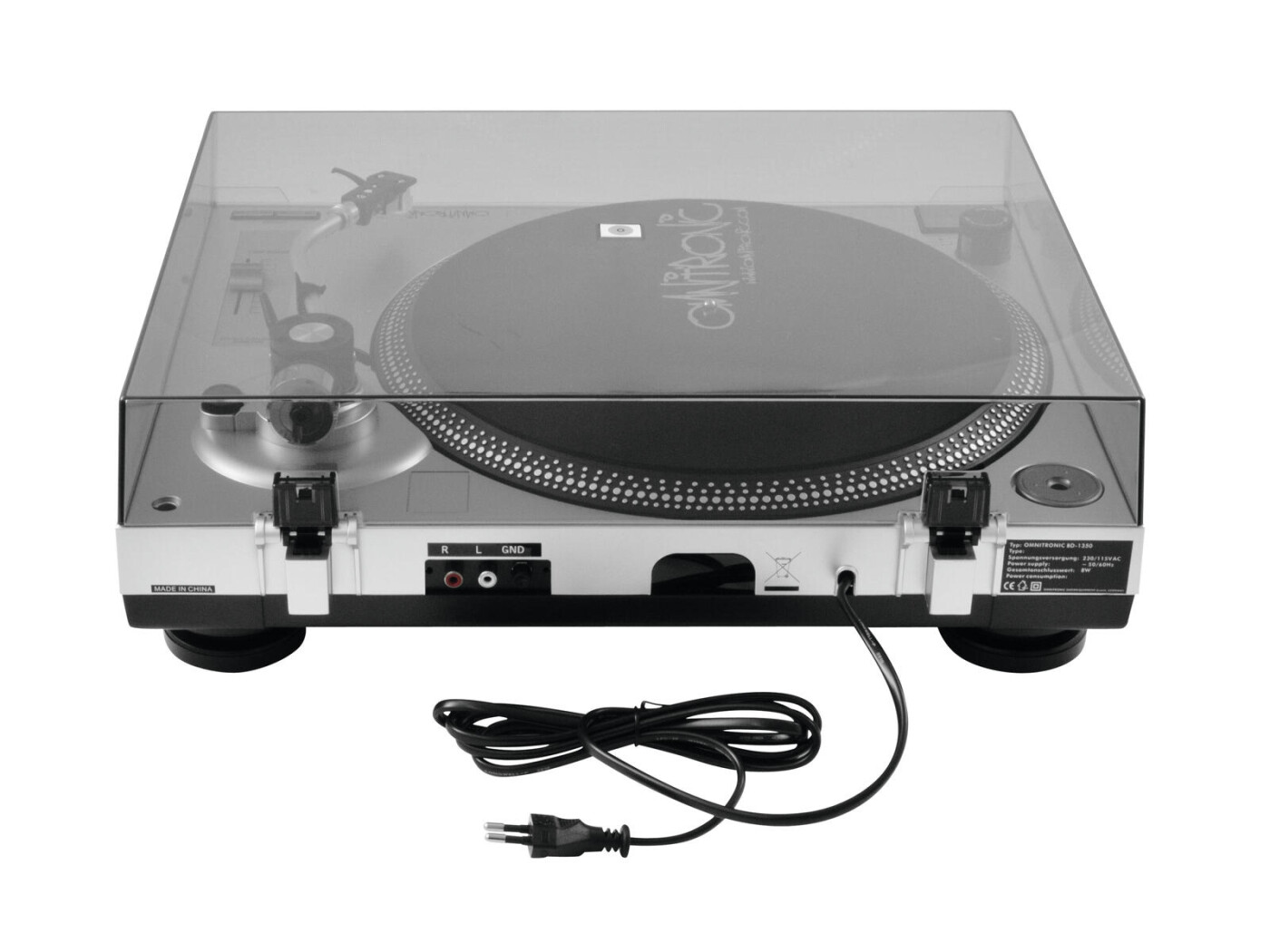

Inputs & Outputs

  • Outputs:

    • Phono Output: 1 x Stereo RCA pair (L/R) with ground wire terminal

Physical Specifications

  • Housing Design: High-impact silver plastic chassis with shock-absorbing adjustable rubber feet

  • Platter: Plastic platter (Ø 330 mm)

  • Dimensions (W x D x H): 450 x 350 x 145 mm (17.7" x 13.8" x 5.7")

  • Weight: 3.2 kg (7.05 lbs)

Accessories Included
