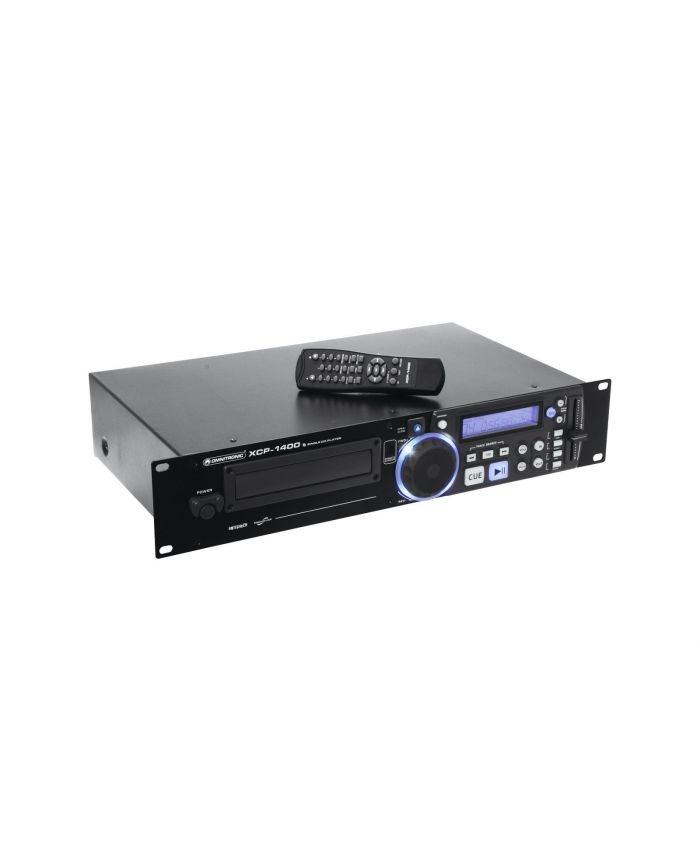

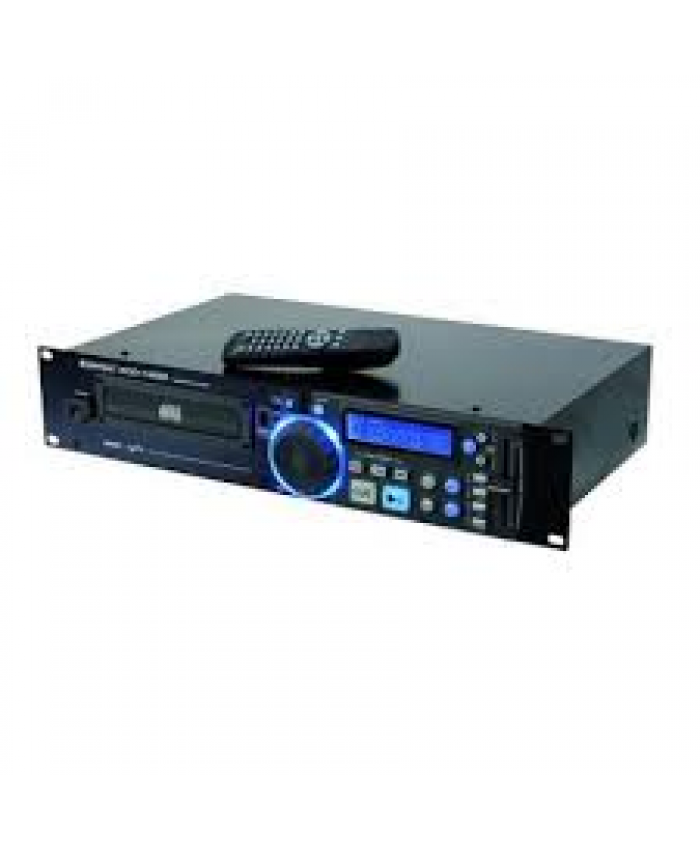

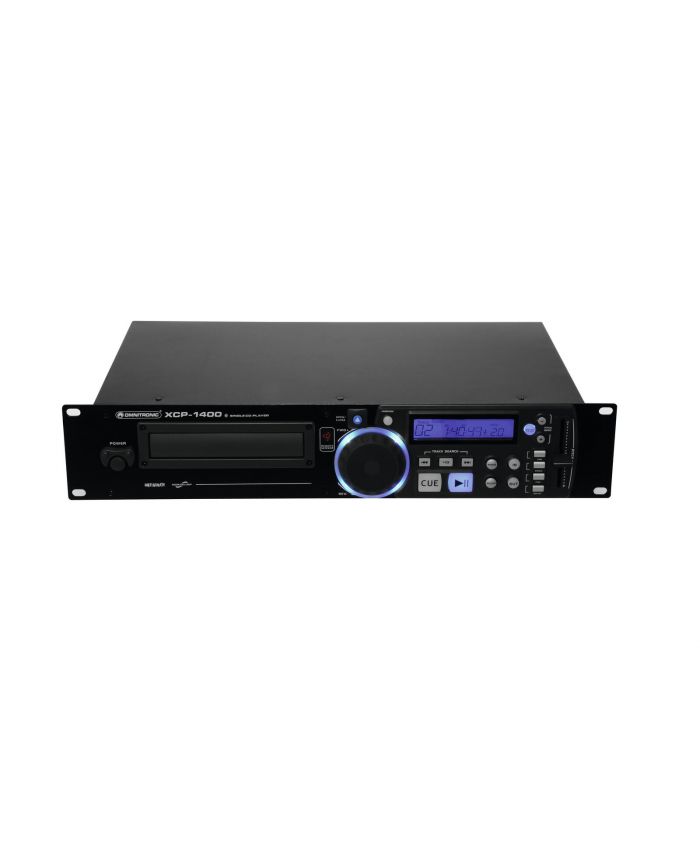

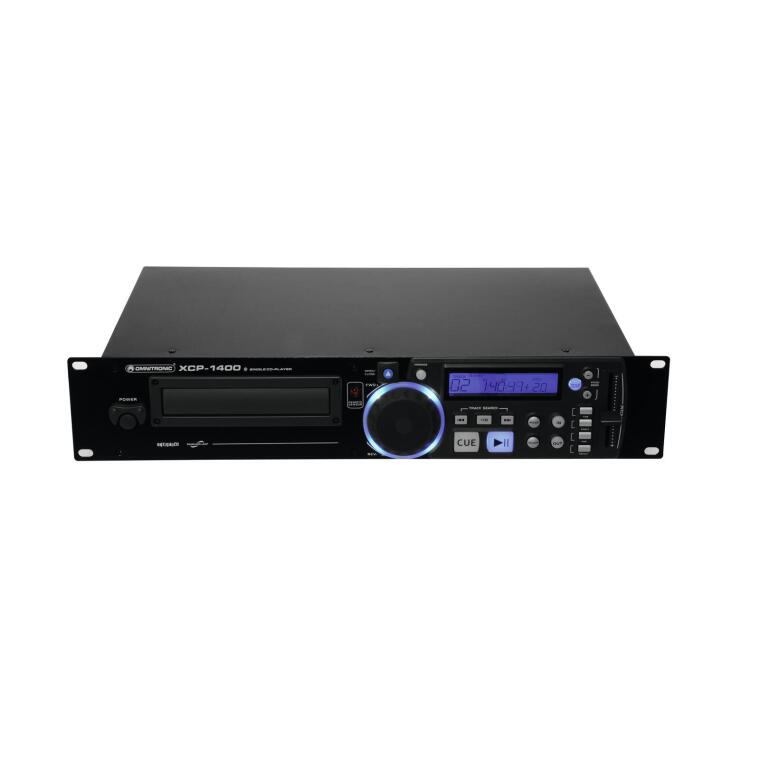

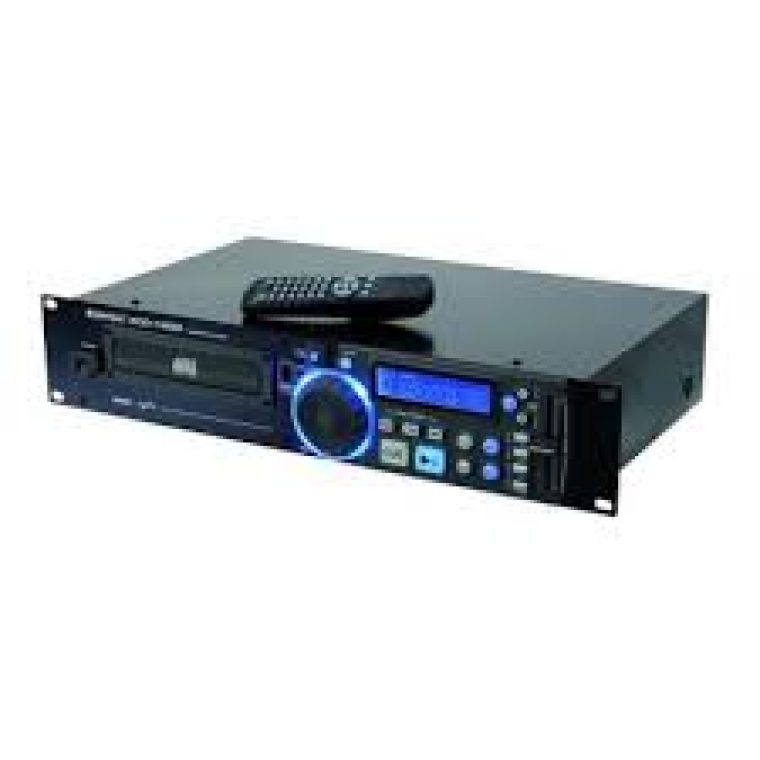

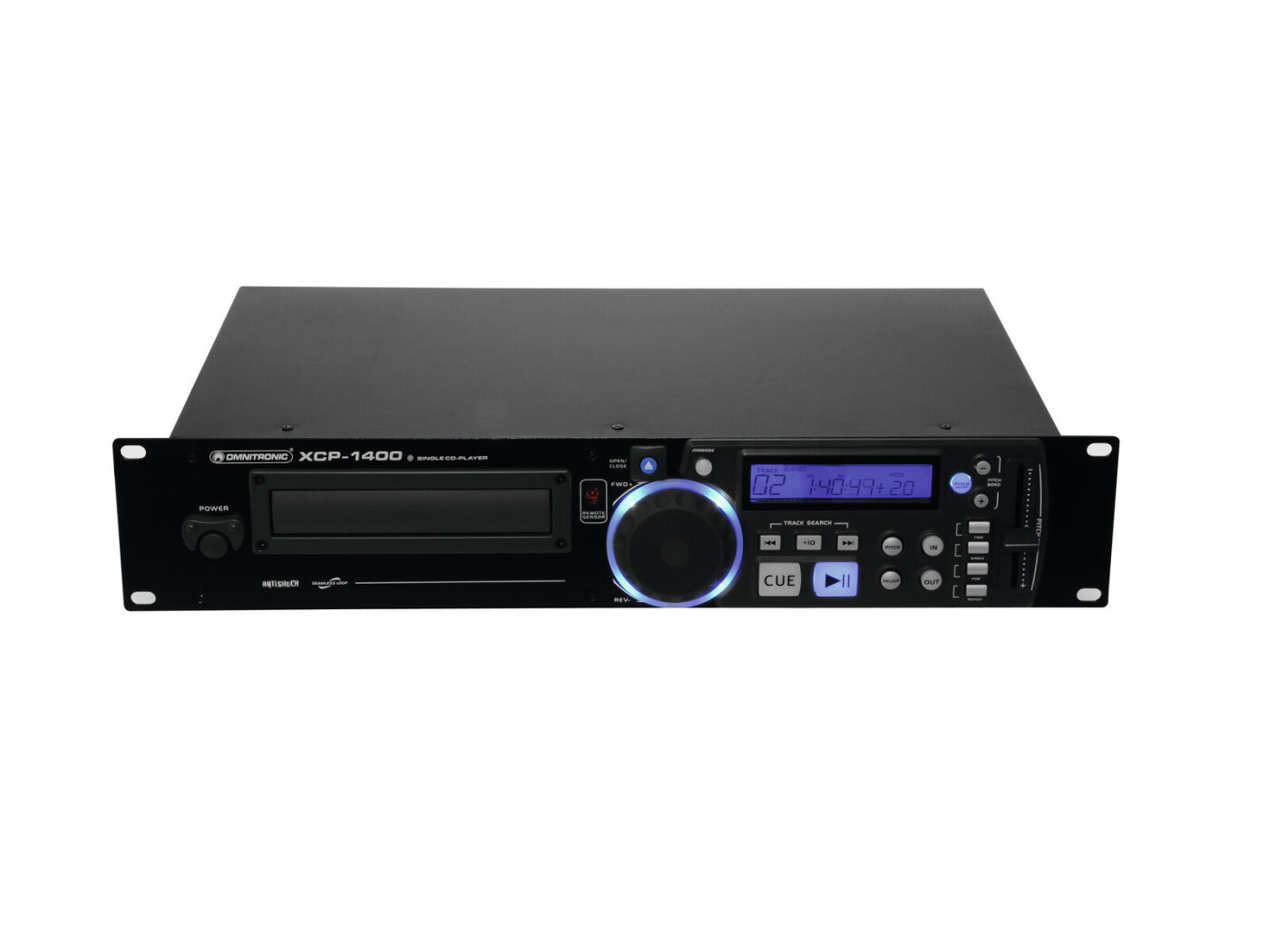

Omnitronic XCP-1400 CD Player
€215.00
incl. VAT
In stock
Interested in this product?
Overview
Omnitronic XCP-1400
Single CD player
- Easy-turning jog dial with mode selector (fast or frame search) and Pitch bend function function
- Comfortable track selection via skip buttons and +10 button
- Pitch bend function
- Cue function
- Seamless loop/reloop
- Single or continuous play
- Repeat function
- Title programming
- Bargraph display
- Pitch adjustment is displayed in %
- Rubber buttons with color illumination
- Extra-large play/pause and cue buttons with color illumination
- (19") 48.3 cm rack installation 2 U
- Control via IR remote control
- Pitch range: ±4%, ±8%, ±16%
- Firmware can be updated
- For application areas such as: Clubs/dancing school; party room; installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic XCP-1400 CD Player – Technical Specifications & Setup Guide
Power Supply & Consumption
-
Power Supply: 115/230 V AC, 50/60 Hz
-
Power Consumption: 14 W
-
Power Connection: Mains input via IEC connector (power cable included)
Audio Performance & Playback
-
Playback Formats: Audio CD, CD-R, CD-RW, MP3 CD
-
Pitch Control: ±4%, ±8%, ±16%
-
Frame Accuracy: 1/75 sec
-
Frequency Response: 20 – 20,000 Hz
-
Signal-to-Noise Ratio (S/N): >86 dB
-
Dynamic Range: >80 dB
-
Total Harmonic Distortion (THD): <0.1%
-
Channel Separation: >80 dB
-
Anti-Shock Protection: 40-second buffer memory
Connectivity & Signal Routing
-
Audio Output: Line level (analog stereo)
-
Digital Output: S/PDIF coaxial (RCA)
Controls & Features
-
Jog Dial: Search dial with Frame Search, Pitch Bend, and Scratch functions
-
Display: Blue backlit LCD display with track time, pitch, play mode, and MP3 text (ID3 tag) indicators
-
Control Elements: Large Start/Pause & Cue buttons, Pitch slider (±4/8/16%) with Pitch Bend buttons, Seamless Loop (In/Out/Reloop), Pitch Hold (Master Tempo), Track Search & Folder Select buttons
-
Play Modes: Single Track / Continuous Play, Repeat 1 / Repeat All, Programmed Playback
Inputs & Outputs
-
Analog Outputs: 1 x Stereo RCA pair (L/R)
-
Digital Outputs: 1 x Coaxial RCA
Physical Specifications
-
Housing Design: 19" Rack-mountable steel chassis (2U height)
-
Dimensions (W x D x H): 482 x 270 x 89 mm (19" x 10.6" x 3.5")
-
Weight: 3.5 kg (7.7 lbs)
Accessories Included
-
Power Cable (IEC)
-
Stereo RCA Cable
-
Operating Instructions Manual
