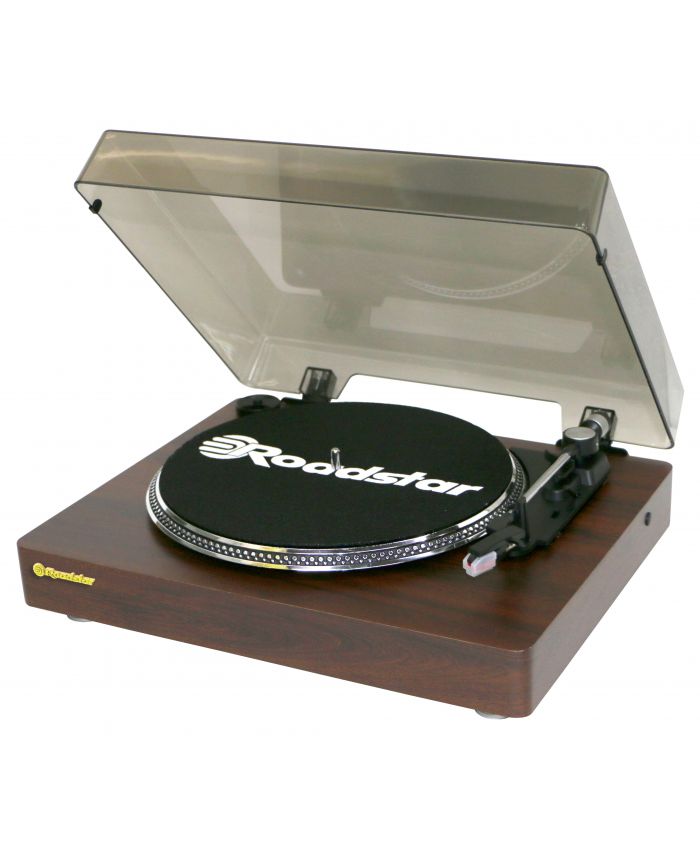

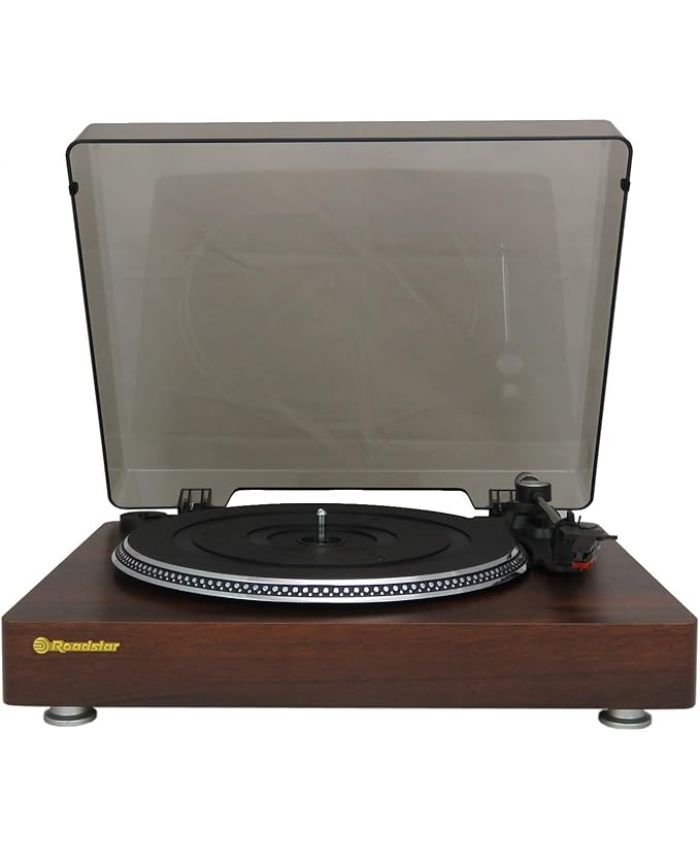

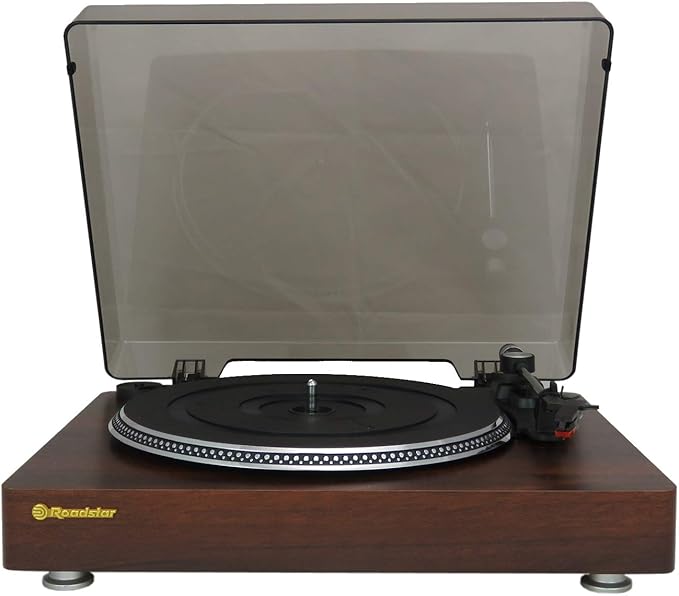

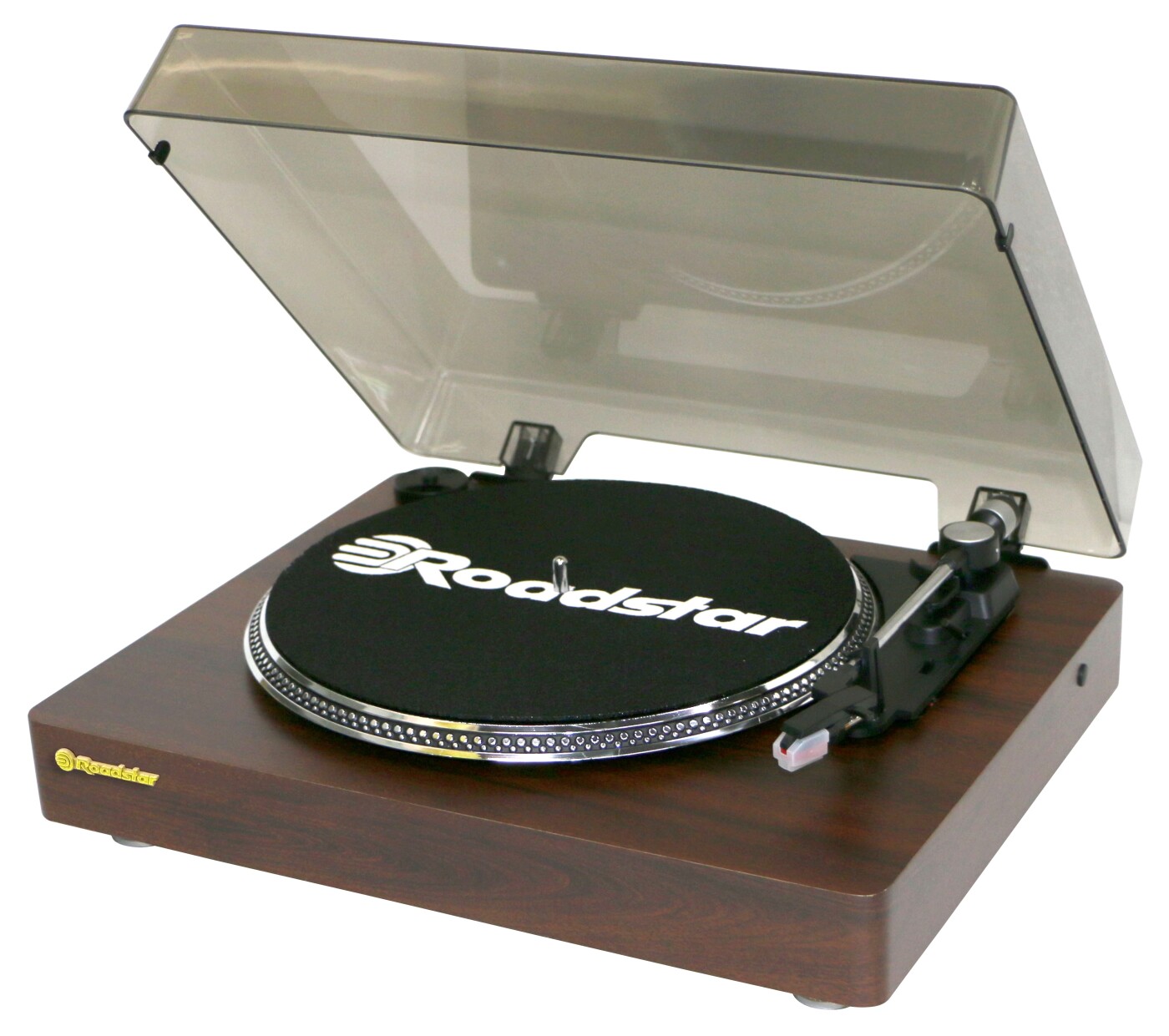

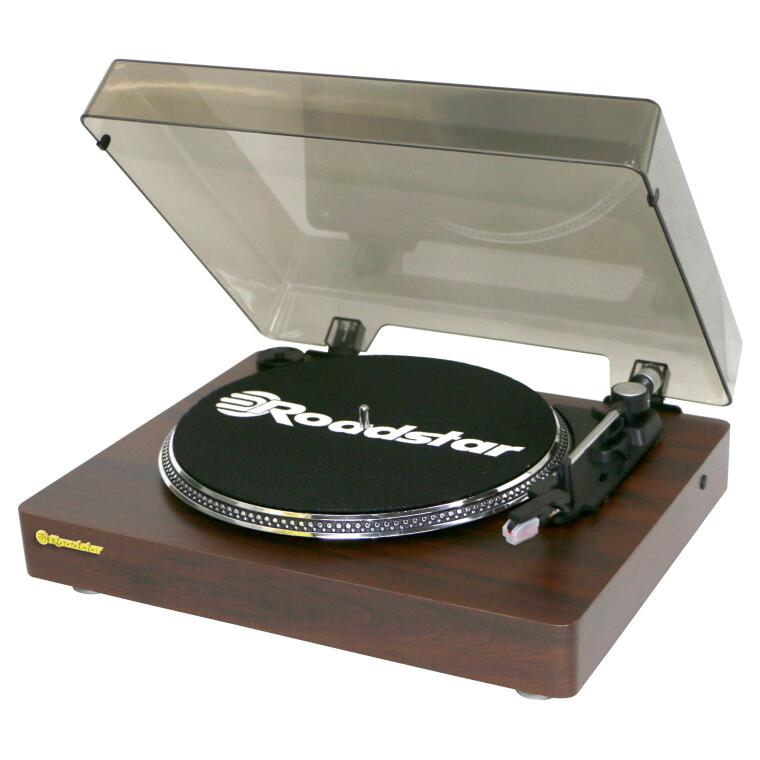

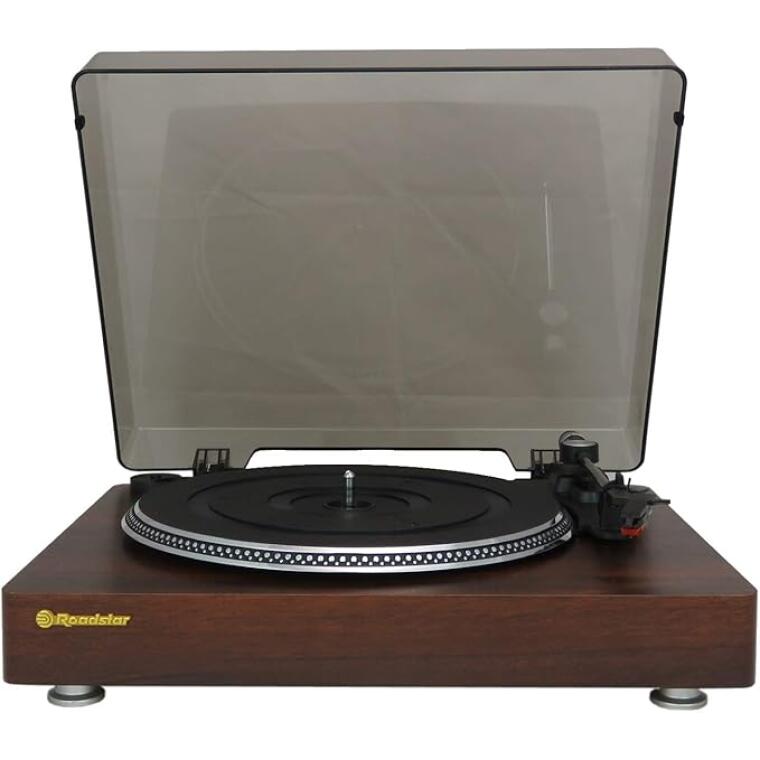

Roadstar TT-385BT-T

Roadstar TT-385BT-T – Technical Specifications & Setup Guide

Power Supply & Consumption

• Power Supply: 230 V AC, 50 Hz (via included external 12 V DC power adapter)

• Power Consumption: 5 W (0.5 W in standby)

• Power Connection: Coaxial DC power input socket with rear power switch

Audio Performance

• Drive System: Belt drive system

• Speeds: 33 1/3 and 45 RPM (rotational speed control switch)

• Tonearm: Straight manual tonearm with damped lift control and mechanical cueing

• Cartridge Type: Ceramic stereo cartridge with protective stylus cover

• Built-in Preamplifier: Integrated Phono Preamp (Line-level output)

Connectivity & Wireless

• Bluetooth Transmitter: Built-in Bluetooth v2.1 + EDR transmitter for wireless streaming to Bluetooth speakers or headphones

• Wireless Range: Up to 10 m (30 ft)

• USB Interface: USB Type-B port for PC connection (audio encoding/digitizing vinyl records via software like Audacity)

Controls & Indicators

• Control Elements:

  • Top Panel: Power/Mode selector (Phono/Bluetooth), 33/45 RPM speed selector switch, Cueing lever, Autostop ON/OFF switch

• Indicators: Bluetooth pairing LED indicator, Power status LED

Inputs & Outputs

• Outputs:

  • Line Output: 1 x Stereo RCA pair (line-level signal for connecting to external AUX/Line inputs)

  • PC Output: 1 x USB Type-B port (digital audio transmission)

Physical Specifications

• Housing Design: Compact wooden cabinet design with transparent plastic dust cover

• Dimensions (W x D x H): 310 x 280 x 115 mm (12.2" x 11.0" x 4.5")

• Weight: 1.8 kg (3.96 lbs)

Accessories Included

• External 12 V DC Power Adapter, 45 RPM Adapter (spindle adapter), USB Cable, Software CD (for PC recording), User Manual
