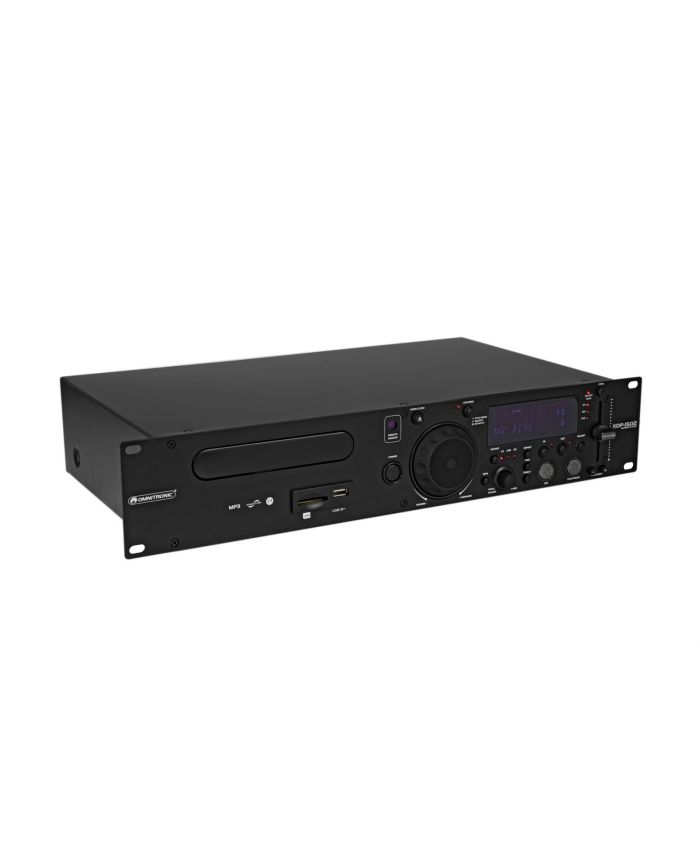

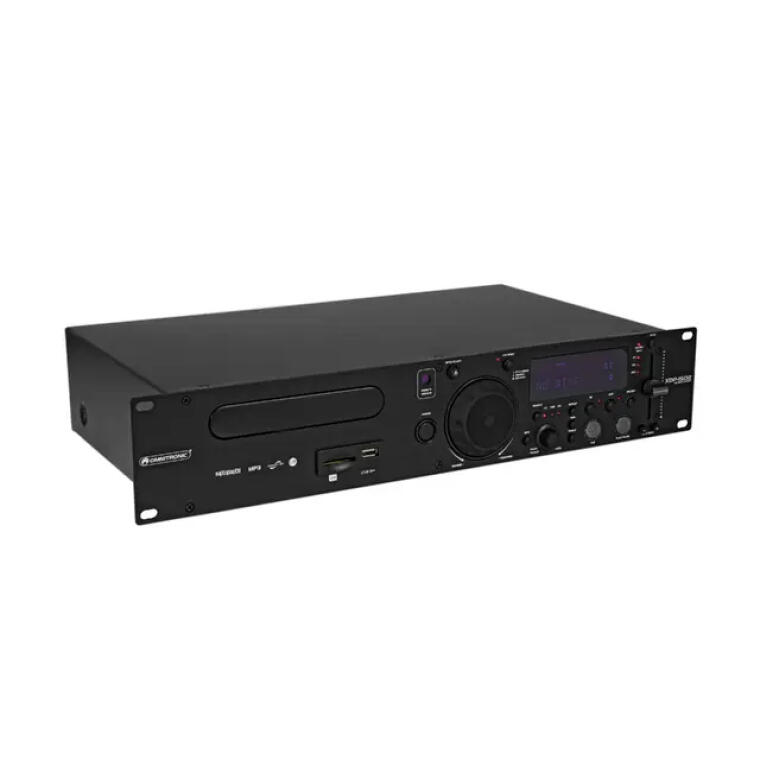

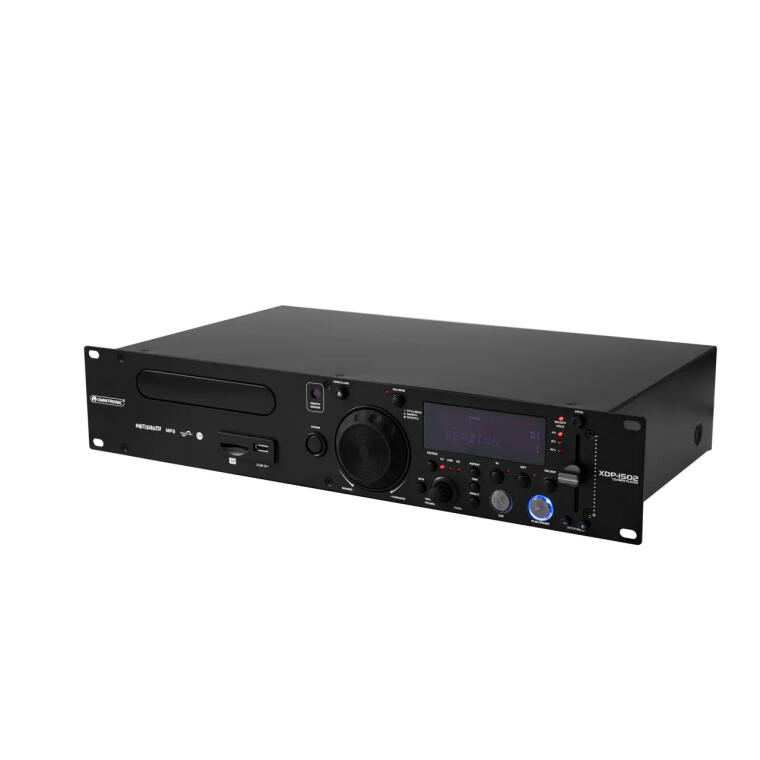

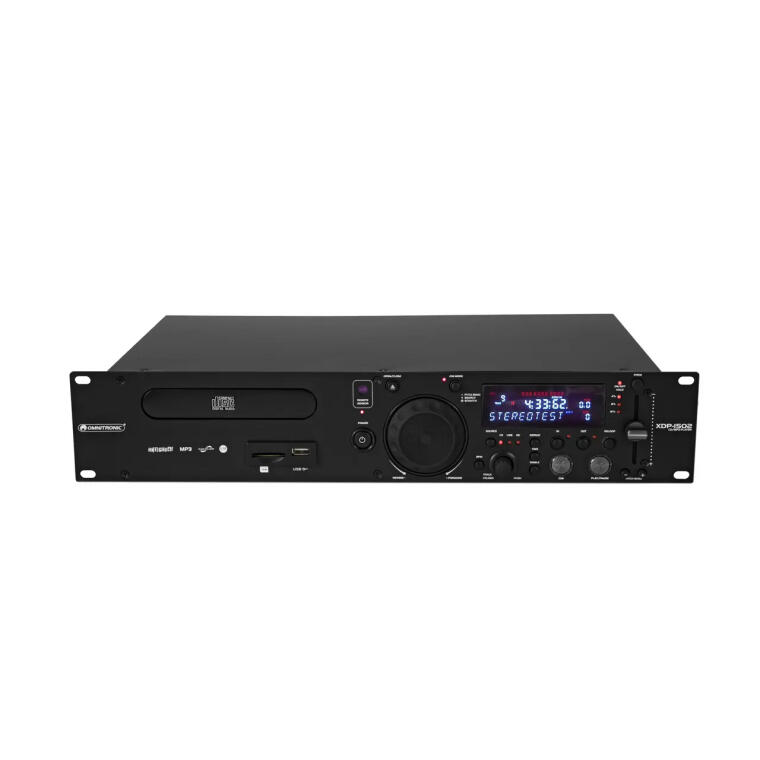

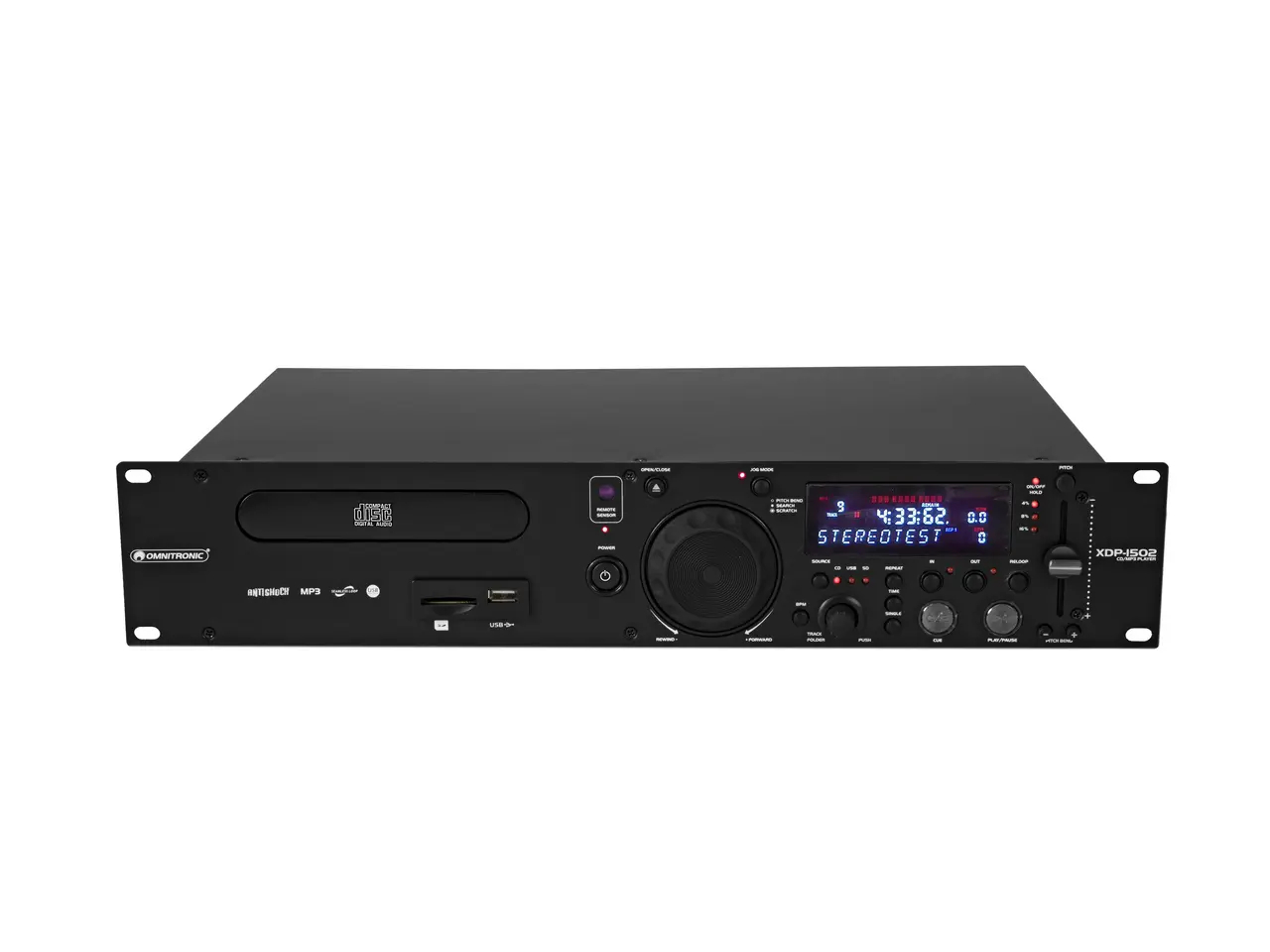

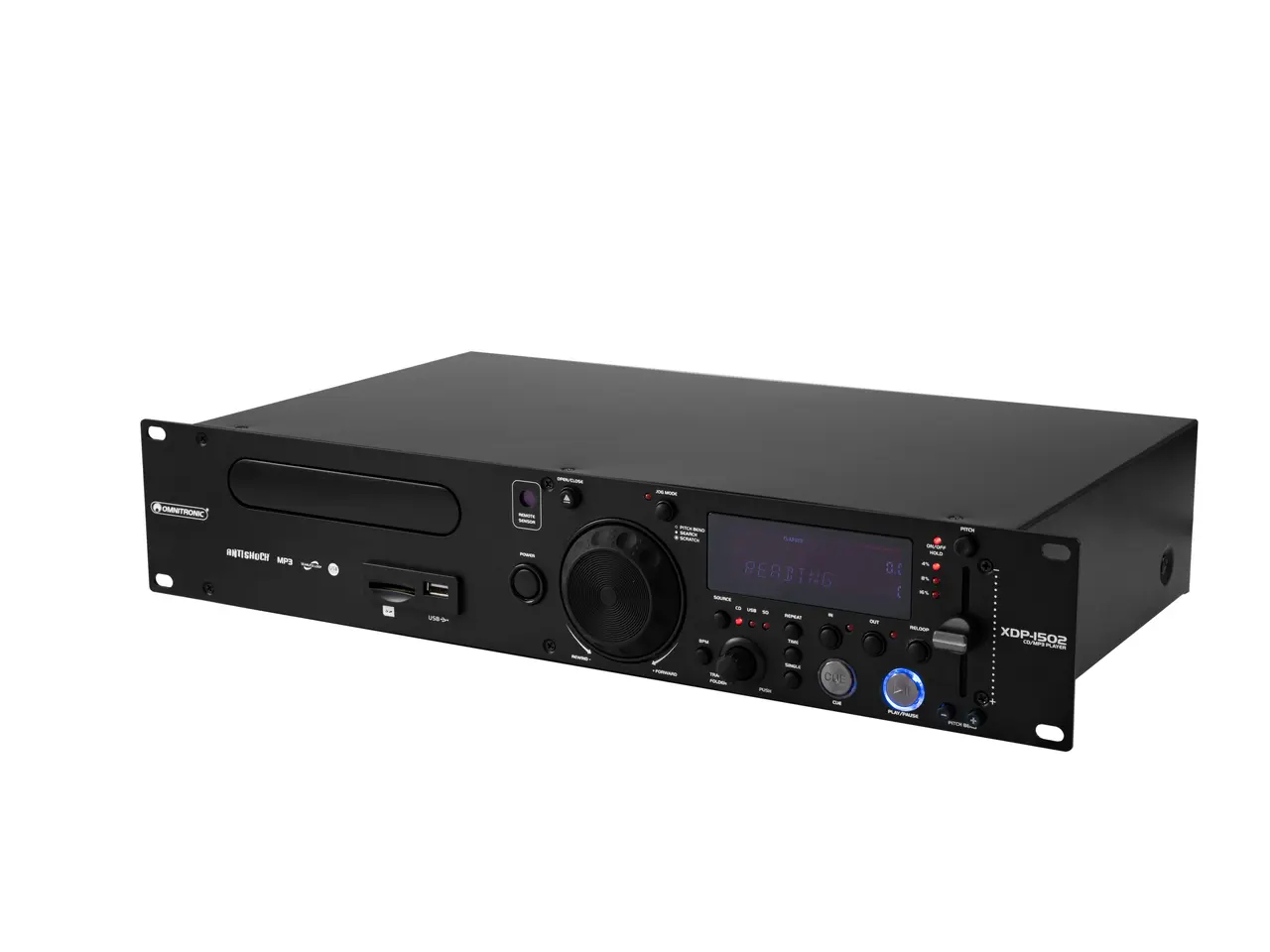

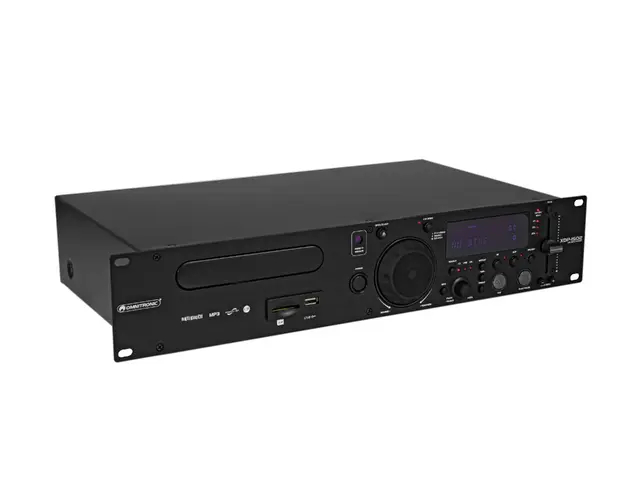

CD and MP3 player for CD, USB and SD
- CD/USB/SD player with IR remote control for DJs
- Audio CD, CD-R, CD-RW, MP3 CD
- USB 2.0 port for USB storage media
- SD(HC) card slot
- 15 seconds anti-shock protection
- Bright dot-matrix VFD display with ID3 tag support
- Easy-turning scratch jog dial with mode selector: pitch bend, scratch, fast or frame search
- Folder navigation
- Supports ID3 tags
- Pitch adjustment ±4 %, ±8 %, ±16 %
- Pitch bend via jog dial or separate buttons
- Cue function
- Seamless loop/reloop
- Manual beatcounter
- Instant start
- Single or continuous play
- Repeat function
- Title programming
- Indication of elapsed time or remain time
- Bargraph display
- Pitch adjustment is displayed in %
- Extra-large Play/Pause button and Cue buttons
- Controlling by IR remote control included
- (19") 48.3 cm rack installation 2 U

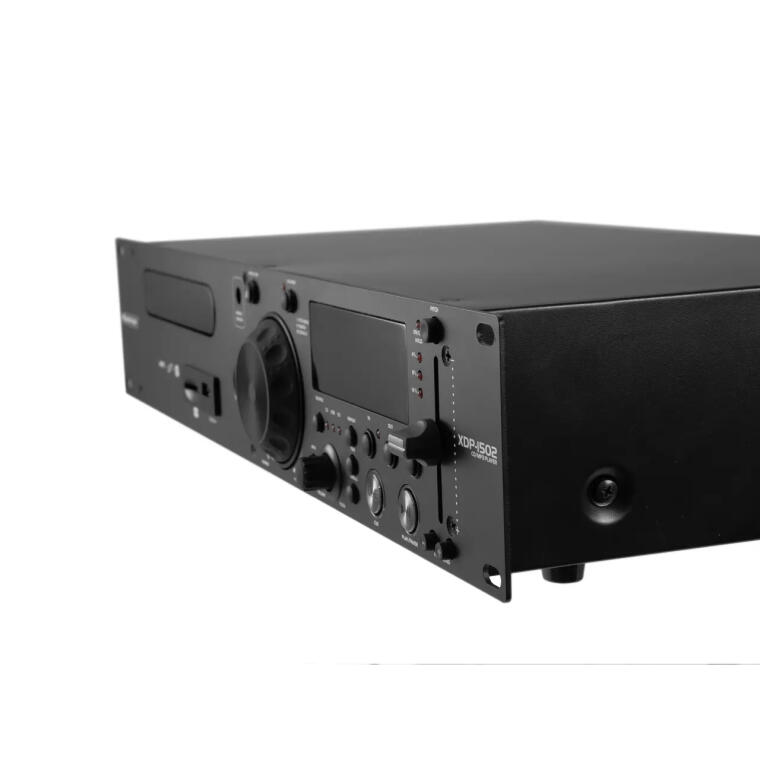

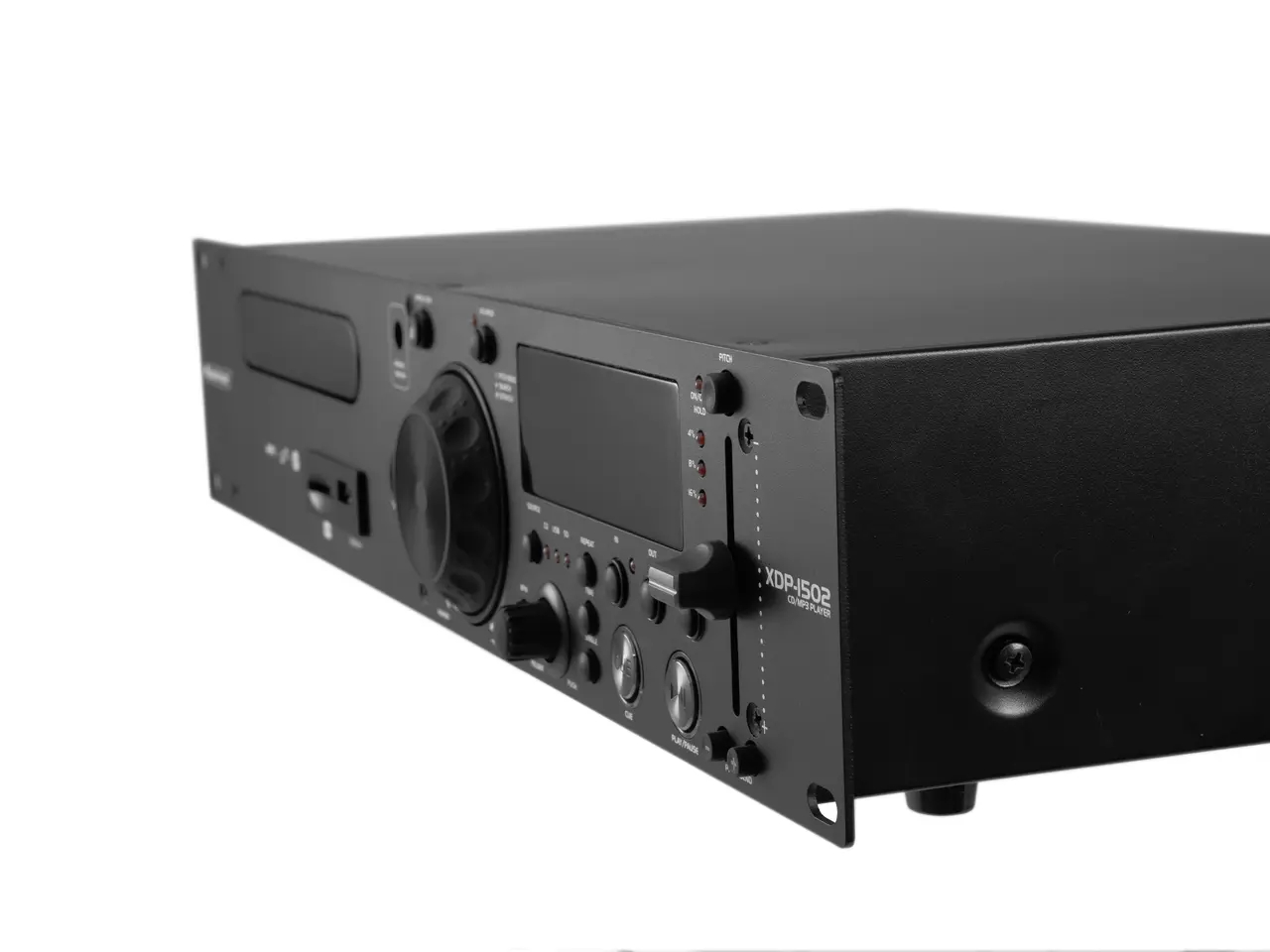

Omnitronic XDP-1502 – Technical Specifications & Setup Guide
Power Supply & Consumption
-
Power Supply: 100-240 V AC, 50/60 Hz
-
Power Consumption: 15 W
-
Power Connection: Mains input via IEC connector (power cable included)
Audio Performance & Playback
-
Playback Media & Formats: CD, CD-R, CD-RW, MP3 CD, USB storage devices, SD/SDHC cards (up to 32 GB)
-
Pitch Control: ±4%, ±8%, ±16%
-
Frame Accuracy: 1/75 sec
-
Frequency Response: 20 – 20,000 Hz
-
Signal-to-Noise Ratio (S/N): >86 dB
-
Dynamic Range: >80 dB
-
Total Harmonic Distortion (THD): <0.1%
-
Channel Separation: >80 dB
-
Anti-Shock Protection: 40-second buffer memory
Connectivity & Signal Routing
-
Audio Output: Line level (analog stereo), Balanced XLR
-
Digital Output: S/PDIF coaxial (RCA)
-
Data Interfaces: USB Type-A port, SD/SDHC card slot
Controls & Features
-
Jog Dial: Search dial with Frame Search, Pitch Bend, and Scratch functions
-
Display: Blue backlit LCD display with track time, pitch, play mode, and MP3 text (ID3 tag) indicators
-
Control Elements: Large Start/Pause & Cue buttons, Pitch slider (±4/8/16%) with Pitch Bend buttons, Seamless Loop (In/Out/Reloop), Pitch Hold (Master Tempo), Folder Navigation & Track Select knobs, IR Remote Control
-
Play Modes: Single Track / Continuous Play, Repeat 1 / Repeat All, Programmed Playback, Folder Search
Inputs & Outputs
-
Analog Outputs: 1 x Stereo RCA pair (L/R), 2 x Balanced XLR (L/R)
-
Digital Outputs: 1 x Coaxial RCA
-
Media Interfaces: 1 x USB Type-A port, 1 x SD/SDHC card slot
Physical Specifications
-
Housing Design: 19" Rack-mountable steel chassis (2U height)
-
Dimensions (W x D x H): 482 x 270 x 89 mm (19" x 10.6" x 3.5")
-
Weight: 3.4 kg (7.5 lbs)
Accessories Included
-
Power Cable (IEC)
-
Stereo RCA Cable
-
IR Remote Control Unit
-
Operating Instructions Manual
