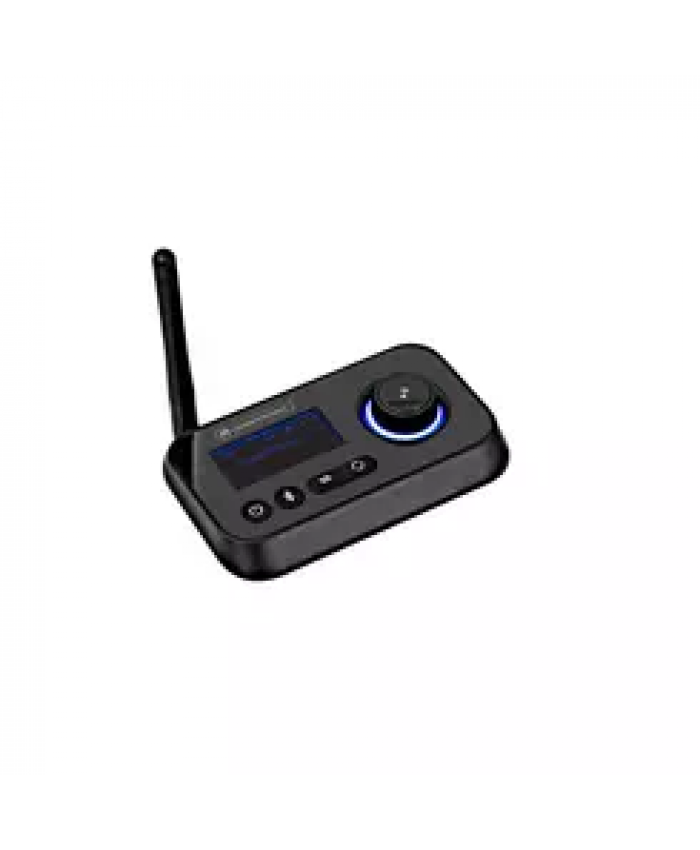

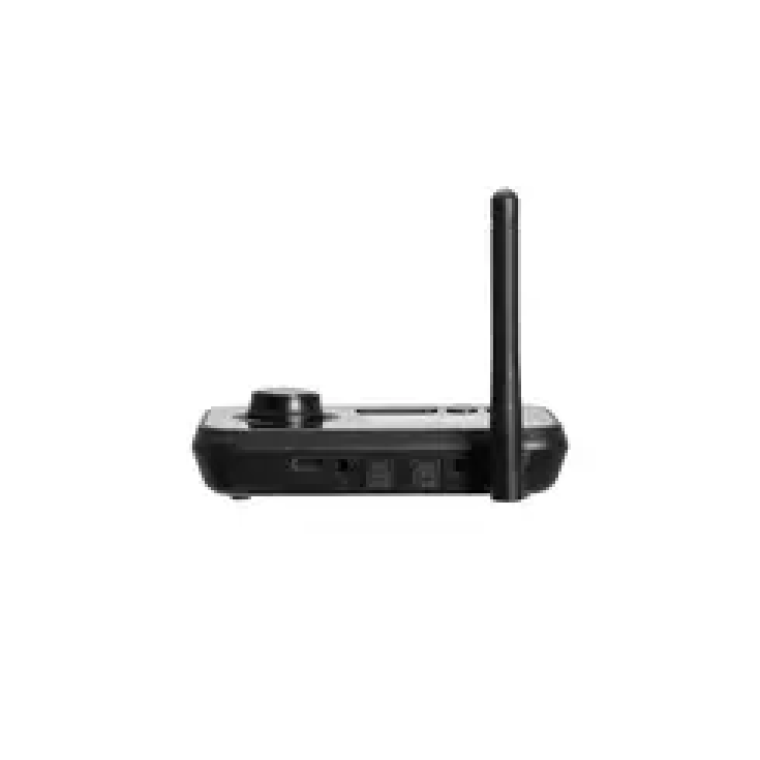

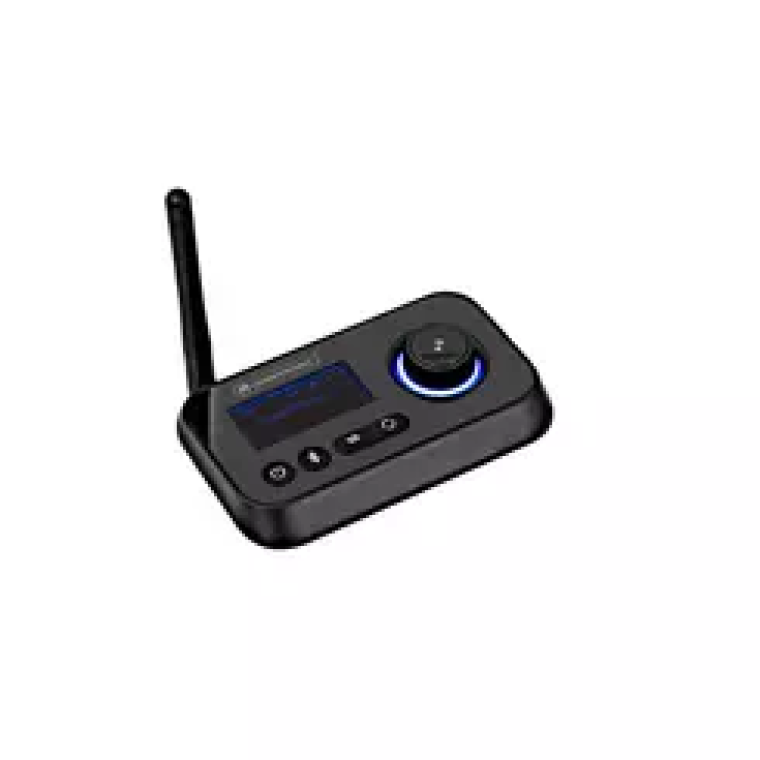

Omnitronic BDT-5.2 PRO Aptx HD Bluetooth Transceiver

€69.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

3-in-1 Bluetooth audio adapter with transmitter/receiver/bypass mode, dual link and aptX HD



  • Add Bluetooth capability to your home entertainment system
  • Dual link: stream audio to two Bluetooth devices in transmitter mode
  • Multipoint: pair two Bluetooth audio sources in receiver mode
  • Bypass mode for wired audio output
  • Flexible audio connections: works with any device with optical, RCA or AUX connector
  • Supported codecs: SBC, AAC, aptX, aptX low latency, aptX HD
  • 1.8" LC display and big rotary knob for easy operation
  • Music control in receiver mode: play/pause and volume
  • Audio input/output via 3.5 mm jack and optical Toslink jacks
  • Operating range up to 20m with line-of-sight
  • Super compact and lightweight
  • 2.4 GHz license-free worldwide
  • Control via Bluetooth
  • LCD display
  • Supports multipoint, it can be coupled with up to 2 devices simultaneously
  • Supports Duallink, the device can stream to up to 2 devices simultaneously
  • Up to 8 devices are automatically saved for automatic reconnection when switching on again
  • For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels; small rental

Omnitronic BDT-5.2 PRO AptX HD Bluetooth Transceiver – Technical Specifications & Setup Guide

Power Supply & Battery

  • Power Supply: 5 V DC, 500 mA via USB Type-C port

  • Battery Type: Built-in rechargeable Lithium-ion battery (3.7 V, 1000 mAh)

  • Battery Life: Transmit (TX) mode up to 24 hours / Receive (RX) mode up to 20 hours

  • Charging Time: Approx. 2.5 hours

Audio Performance & Wireless Specifications

  • Bluetooth Version: 5.2 (Dual-mode, Class 1)

  • Operating Distance: Up to 50 m (164 ft) line-of-sight

  • Audio Codecs: aptX, aptX HD, aptX Low Latency, AAC, SBC

  • Frequency Range: 2.402 GHz – 2.480 GHz

  • Frequency Response: 20 – 20,000 Hz

  • Signal-to-Noise Ratio (S/N): >95 dB

  • Latency: <40 ms (when using aptX Low Latency)

Connectivity & Signal Routing

  • Modes: Transmitter (TX) mode, Receiver (RX) mode, Bypass mode

  • Dual Link: Transmits to 2 Bluetooth headphones/speakers simultaneously (or receives from 2 source devices)

  • Antenna: External swivel antenna for extended range

  • Analog Audio Input/Output: 1 x 3.5 mm AUX jack (stereo input/output)

  • Digital Audio Input: 1 x Optical Toslink input (S/PDIF)

  • Digital Audio Output: 1 x Optical Toslink output (S/PDIF)

  • Charging Port: 1 x USB Type-C

Controls & Indicators

  • Display: 1.8" Color LCD display showing connection status, paired devices, audio codec, and volume levels

  • Control Elements: Multifunction dial/button, TX/RX mode selector switch, Bypass switch, Bluetooth pairing button

  • Status Indicators: On-screen indicators for Active Codec (aptX HD/aptX LL/aptX/AAC/SBC), AUX/Optical active signal, battery meter, and connected devices

Inputs & Outputs

  • Audio Inputs: 1 x 3.5 mm Aux jack, 1 x Toslink Optical (S/PDIF)

  • Audio Outputs: 1 x 3.5 mm Aux jack, 1 x Toslink Optical (S/PDIF)

  • Power Input: 1 x USB Type-C connector

Physical Specifications

  • Housing Design: Desktop enclosure with external antenna and anti-slip rubber pads

  • Dimensions (W x D x H): 132 x 100 x 28 mm (5.2" x 3.9" x 1.1") [excluding antenna]

  • Weight: 145 g (0.32 lbs)

Accessories Included

  • USB Charging Cable (Type-A to Type-C)

  • 3.5 mm to 3.5 mm Audio Cable

  • 3.5 mm to Stereo RCA Adapter Cable

  • Optical Toslink Cable

  • External Swivel Antenna

  • Operating Instructions Manual
