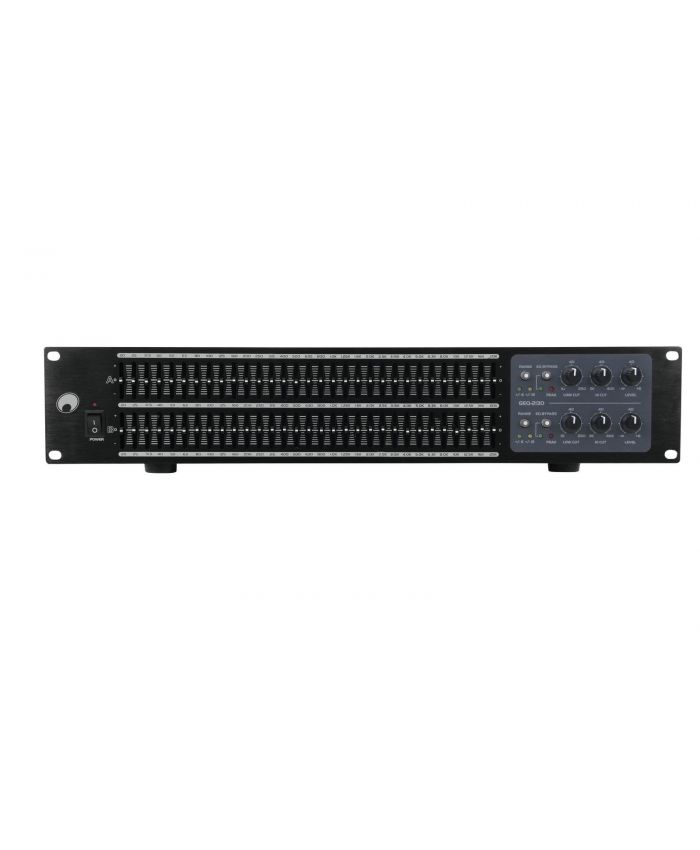

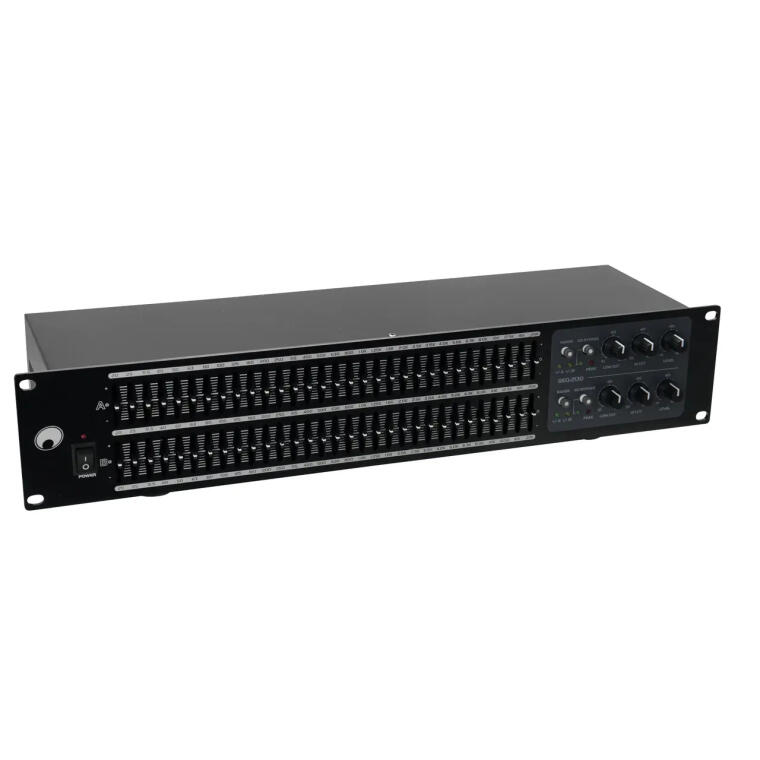

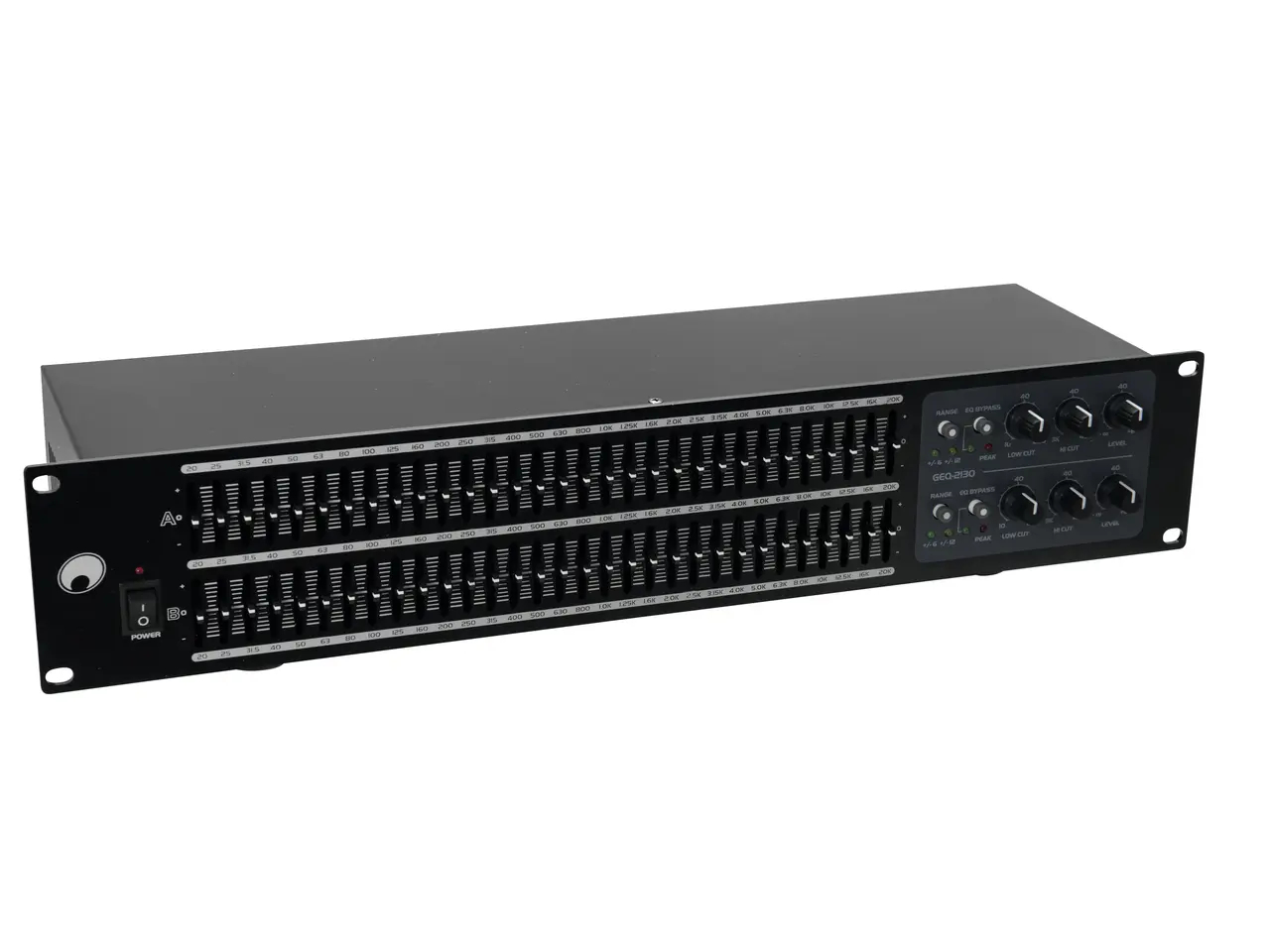

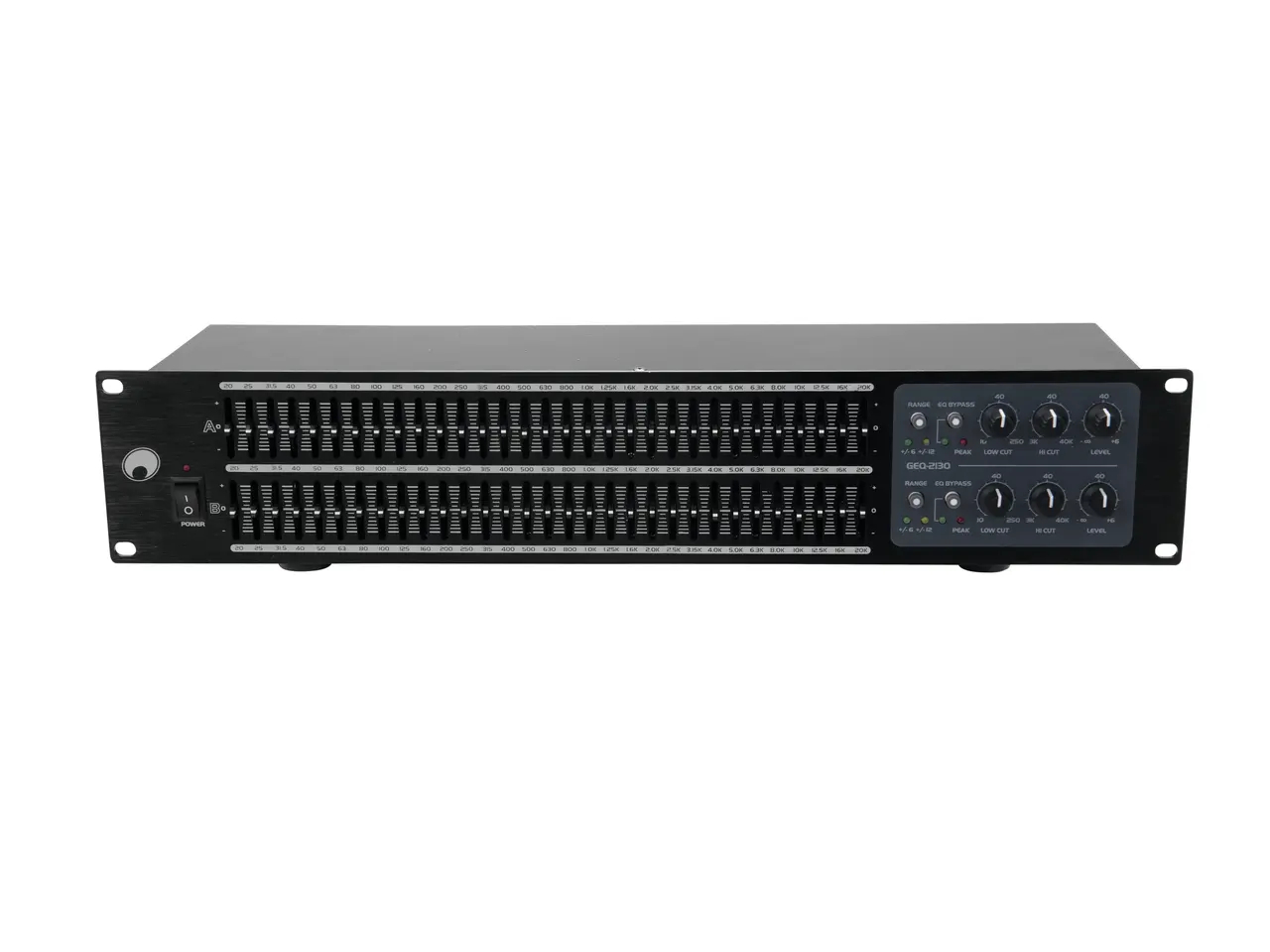

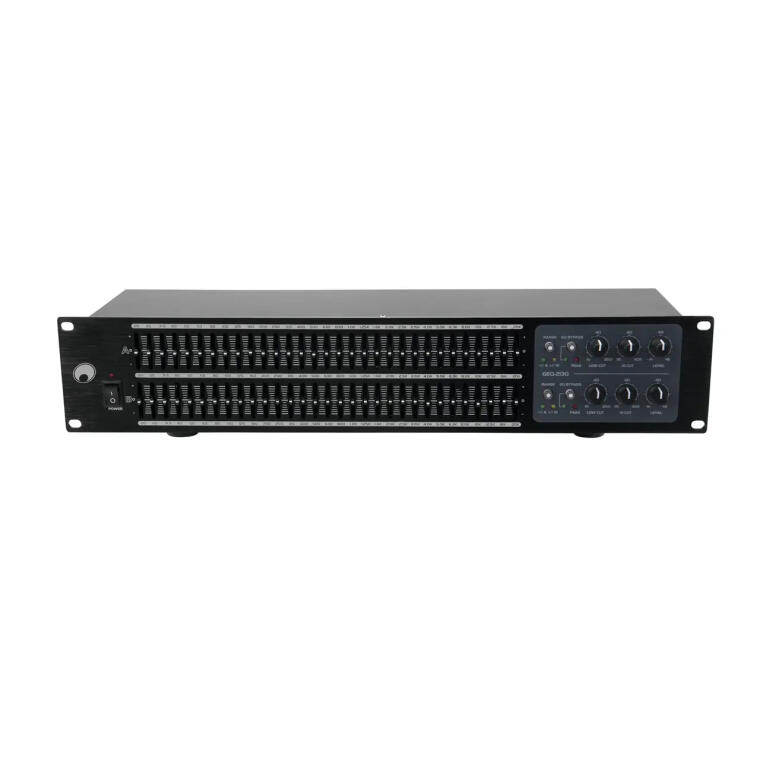

OMNITRONIC GEQ-2310 Equalizer 2x31-Band

OMNITRONIC GEQ-2310

2 x graphic equalizer 31-band

2-channel version, 2 x 31 frequency controls with 1/3 octave steps

Long sliding frequency controls with center click

EQ gain switchable ±6 dB to ±12 dB

Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable

Separate level control per channel

Bypass switch allows instant comparison of original sound with processed sound

Inputs and outputs via 6.3 mm jack sockets and XLR sockets

(19") 48.3 cm rack installation 2 U

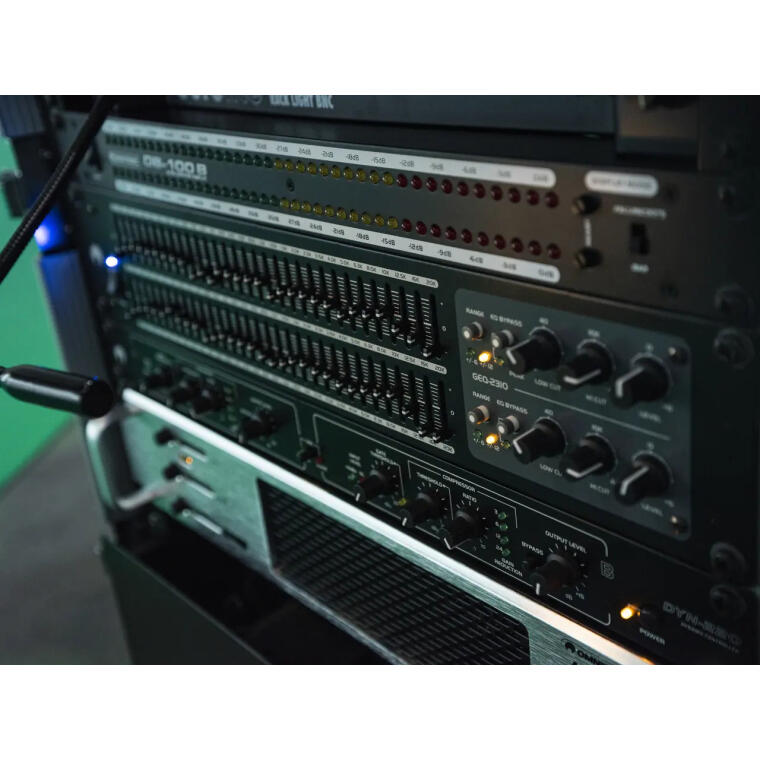

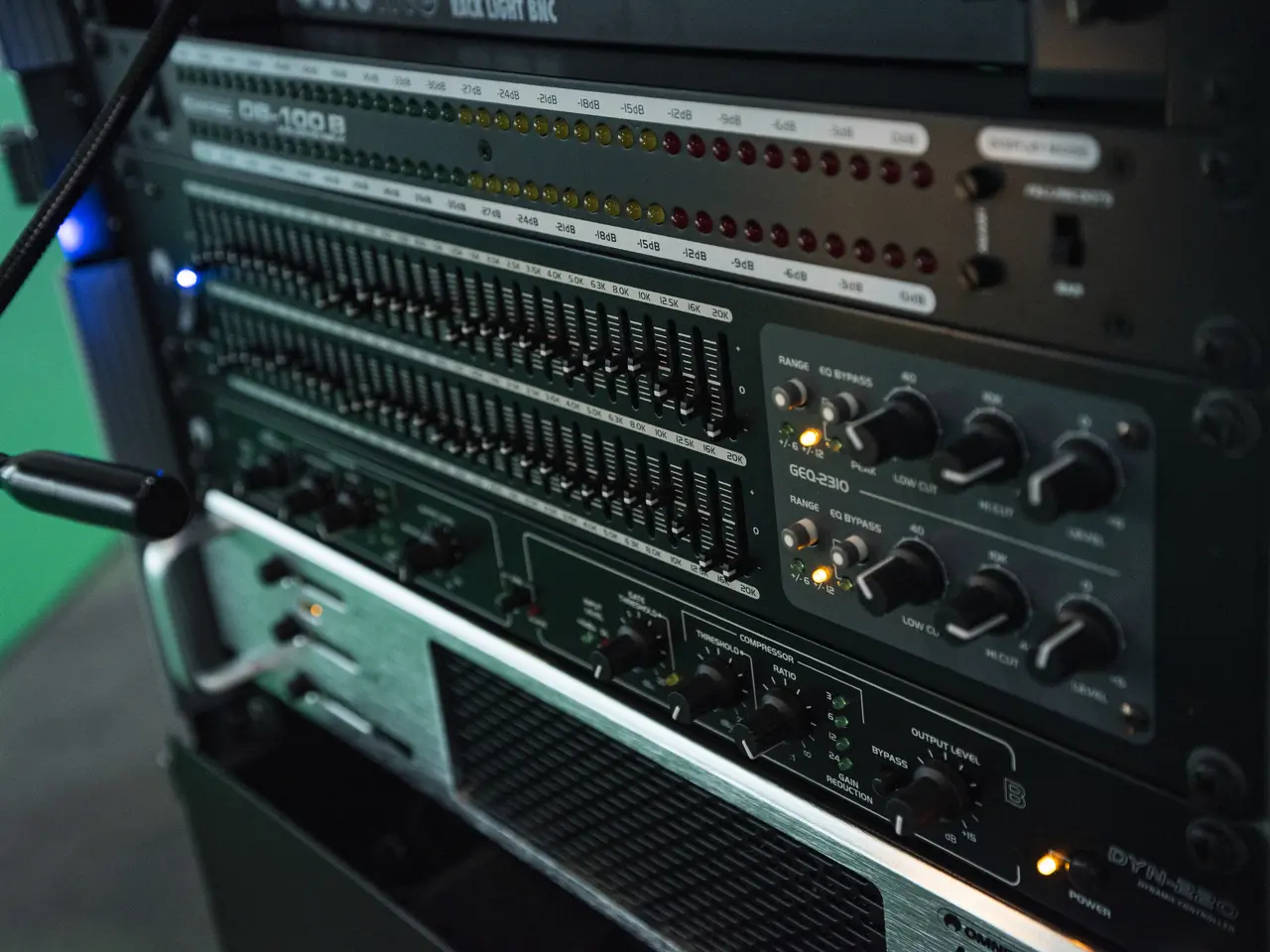

For application areas such as: Installation; clubs/dancing school; stage; homerecording and studios; band/rehearsal room

Power Supply: 230 V AC, 50 Hz
Power Consumption: 17 W
Power Connection: Mains input via IEC connector (power supply cord with safety plug included)

Equalizer: 2 x 31-band graphic equalizer (dual-channel, 1/3-octave ISO frequency steps from 20 Hz to 20 kHz)
Faders: 20 mm / 45 mm faders with center detent
Control Range: Switchable ±6 dB or ±12 dB boost/cut per band
Frequency Response: 20 – 20,000 Hz (±0.5 dB)
Signal-to-Noise Ratio (S/N): >96 dB
Total Harmonic Distortion (THD): <0.05% @ 1 kHz
High-Cut Filter: Variable 3 kHz – 40 kHz
Low-Cut Filter: Variable 10 Hz – 250 Hz
Output Gain: -∞ to +6 dB per channel
Max Input/Output Level: +24 dBu (balanced) / +18 dBu (unbalanced)
Input Impedance: 20 kΩ balanced / 15 kΩ unbalanced
Output Impedance: 300 Ω balanced / 150 Ω unbalanced

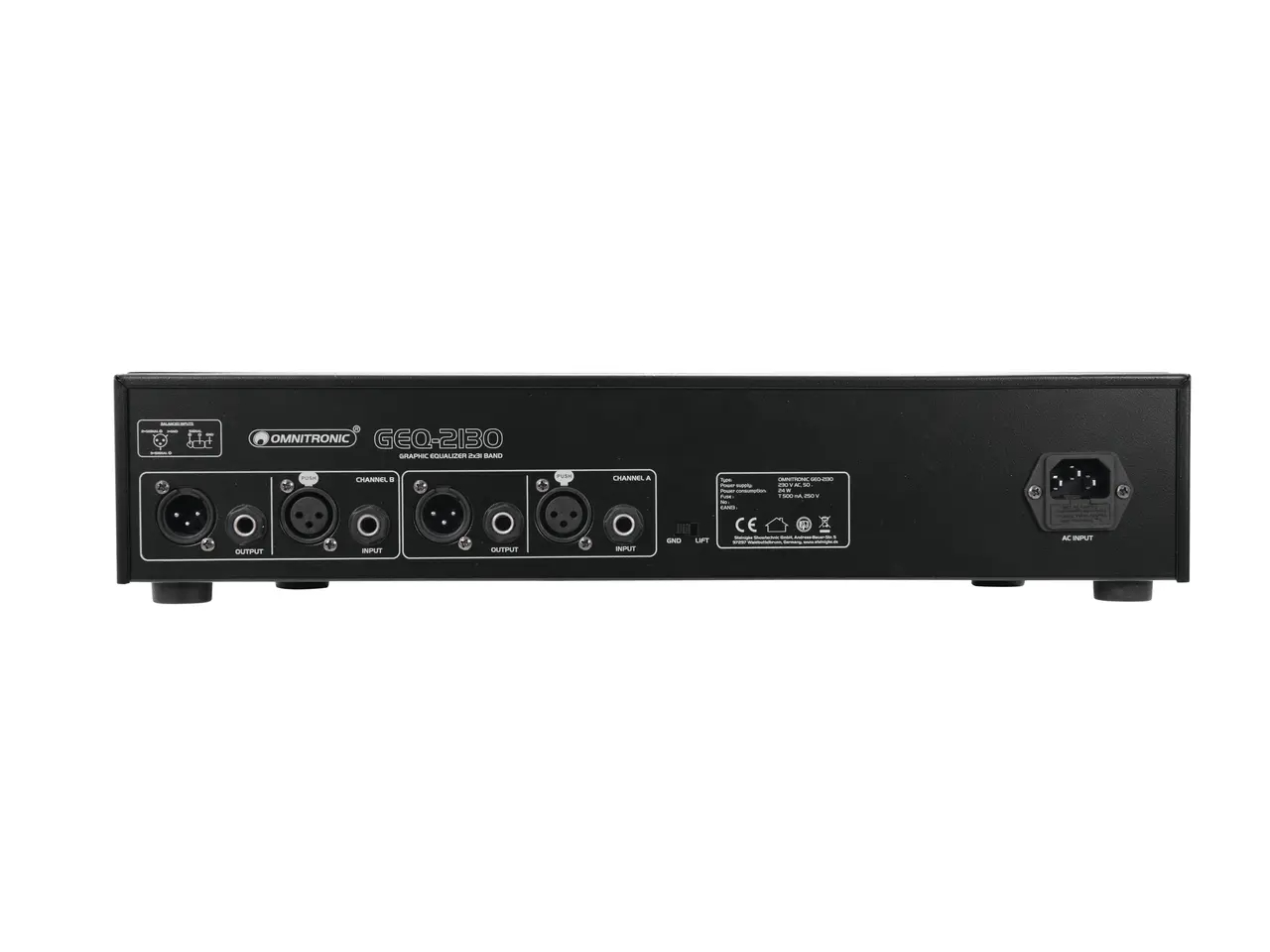

Audio Inputs: 2 x 3-pin XLR (balanced), 2 x 6.3 mm (1/4") TRS jack (balanced/unbalanced)
Audio Outputs: 2 x 3-pin XLR (balanced), 2 x 6.3 mm (1/4") TRS jack (balanced/unbalanced)

Control Elements: 2 x 31 frequency slider controls, Master Level control per channel, Low-Cut rotary dial, High-Cut rotary dial, Range selector switch (±6 dB / ±12 dB), Bypass switch, Ground Lift switch
Status Indicators: Clip LED indicator per channel, Bypass status LED, Range status LEDs
