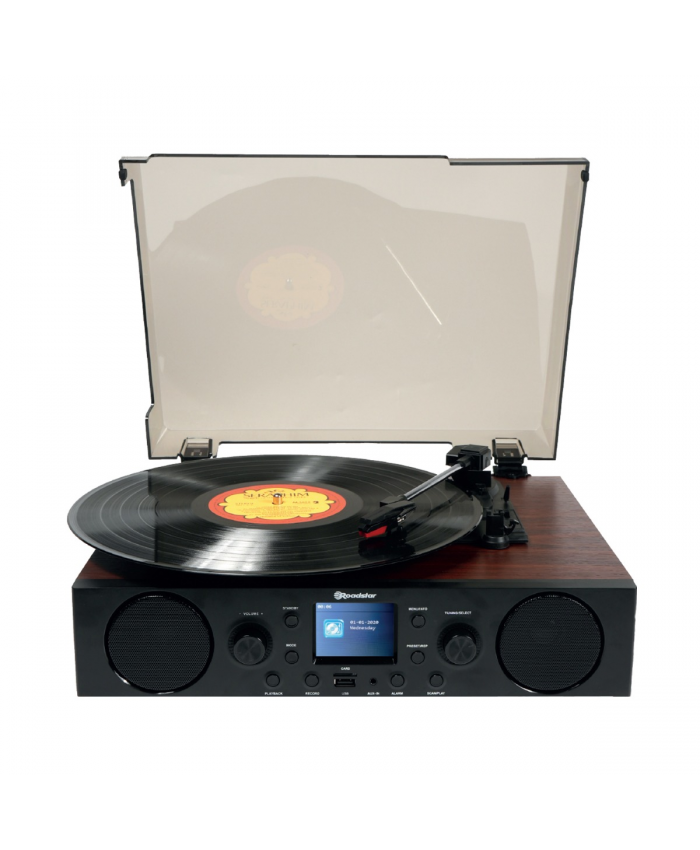

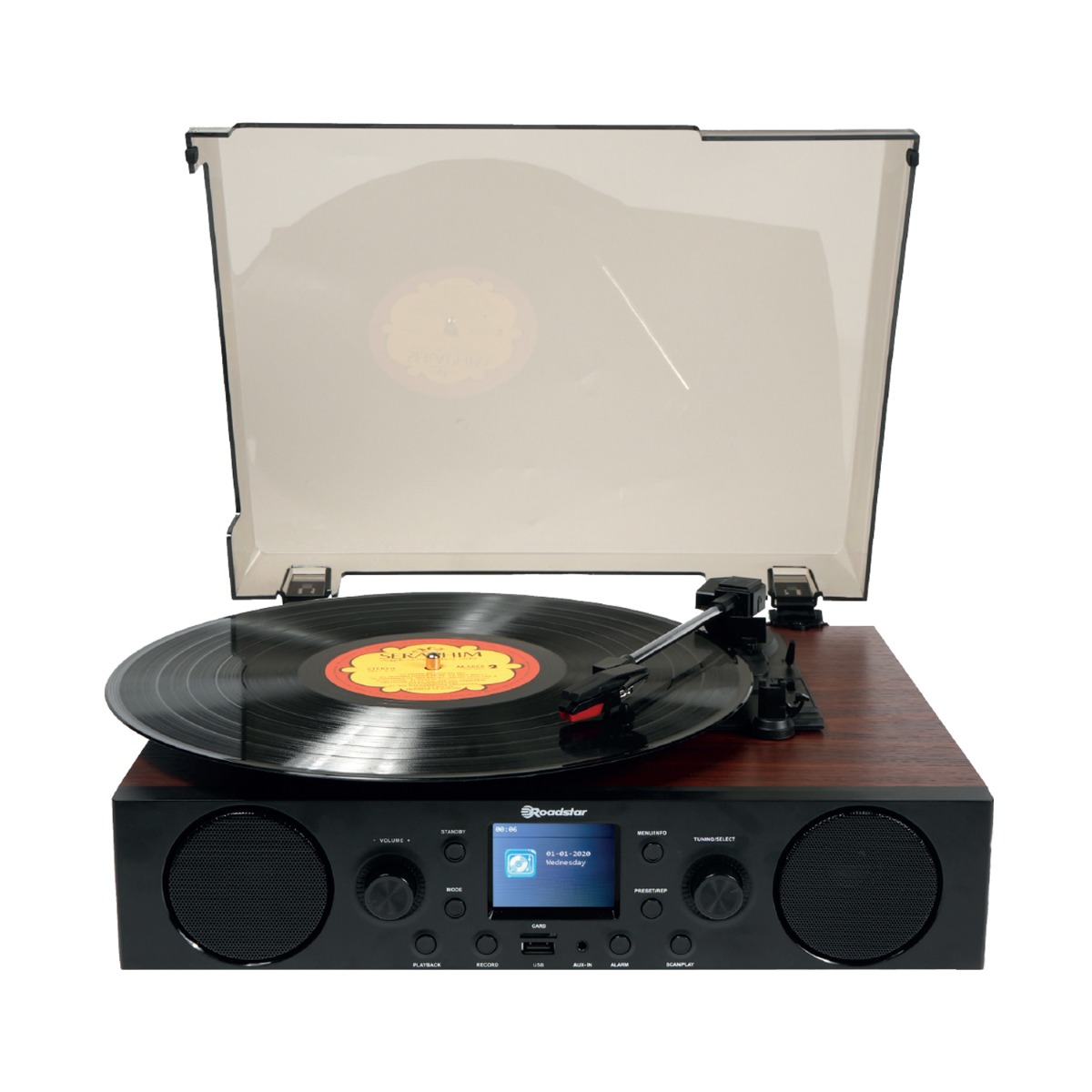

Roadstar Turntable 33/45/78 USB Playback Stereo System
Roadstar TTR-8850ED+BT – Technical Specifications & Setup Guide
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz (via internal power supply unit)
-
Power Consumption: 12 W (0.5 W in standby)
-
Power Connection: Fixed AC power cable with Europlug (Type C)
Audio Performance
-
Drive System: Belt drive system
-
Speeds: 33 1/3, 45, and 78 RPM (rotational speed control switch)
-
Tonearm: Straight manual tonearm with damped lift control and mechanical cueing
-
Cartridge Type: Ceramic stereo cartridge with protective stylus cover
-
Integrated Speakers: Built-in 2.0 stereo speaker system (2 x 1.5 W RMS / 24 W PMPO)
-
Built-in Preamplifier: Integrated Phono Preamp (Line-level output)
Connectivity & Media Playback
-
Bluetooth Receiver: Built-in Bluetooth (for wireless audio streaming from smartphones or tablets to internal speakers)
-
Digital Encoding: Direct encoding function (converts vinyl, AUX, and radio to MP3 directly onto USB storage or SD/MMC card without a PC)
-
Media Playback Formats: MP3 and WMA playback from USB flash drives and SD/MMC memory cards (up to 32 GB)
-
Tuner: FM stereo analog tuner with manual dial tuning
-
Display: Blue backlit LCD display for MP3 and track navigation
Controls & Indicators
-
Control Elements:
-
Top Panel: 33/45/78 RPM speed selector, Cueing lever, Autostop ON/OFF switch
-
Front Panel: Power ON/OFF & Master Volume dial, Function/Mode selector switch (Phono, AUX, USB/SD, Tuner, Bluetooth), Tuning control dial, MP3 navigation buttons (Record, Play/Pause, Stop, Track Skip, Delete), USB slot, SD/MMC card slot
-
Indicators: LCD display, Power/Mode status LED
Inputs & Outputs
-
Inputs:
-
Auxiliary Input: 1 x 3.5 mm TRS stereo jack (Front Aux In)
-
Media Slots: 1 x USB Type-A port, 1 x SD/MMC card slot
-
Outputs:
-
Line Output: 1 x Stereo RCA pair (L/R) for connecting to an external amplifier or active PA/Hi-Fi system
-
Headphone Output: 1 x 3.5 mm TRS stereo jack (front panel)
Physical Specifications
-
Housing Design: Vintage-style wooden cabinet with protective dust cover
-
Dimensions (W x D x H): 310 x 290 x 135 mm (12.2" x 11.4" x 5.3")
-
Weight: 2.65 kg (5.84 lbs)
Accessories Included
-
45 RPM Adapter Spindle, Remote Control, User Manual
