Omnitronic BD-1320
€219.00
incl. VAT
In stock
Interested in this product?
Overview

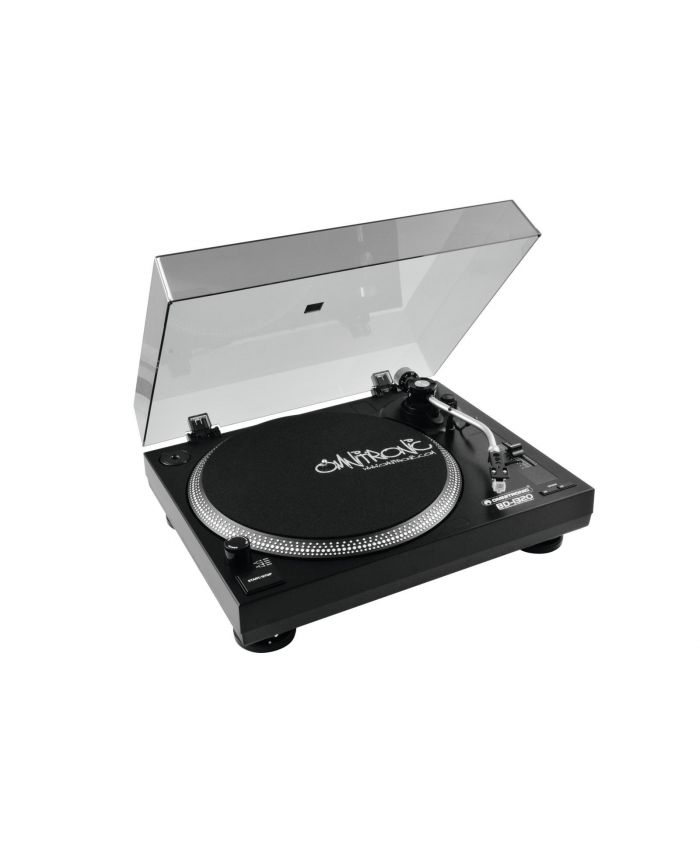

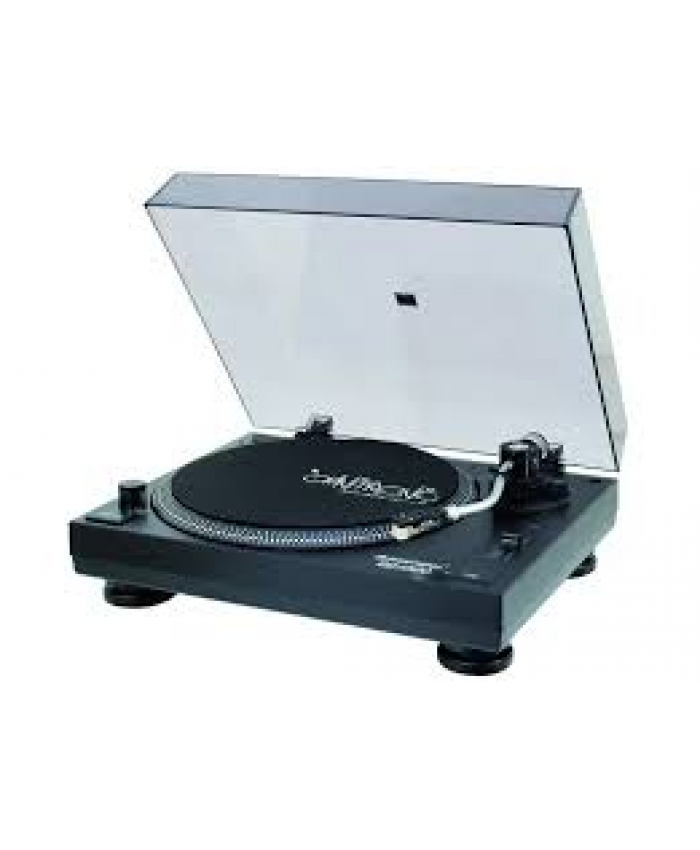

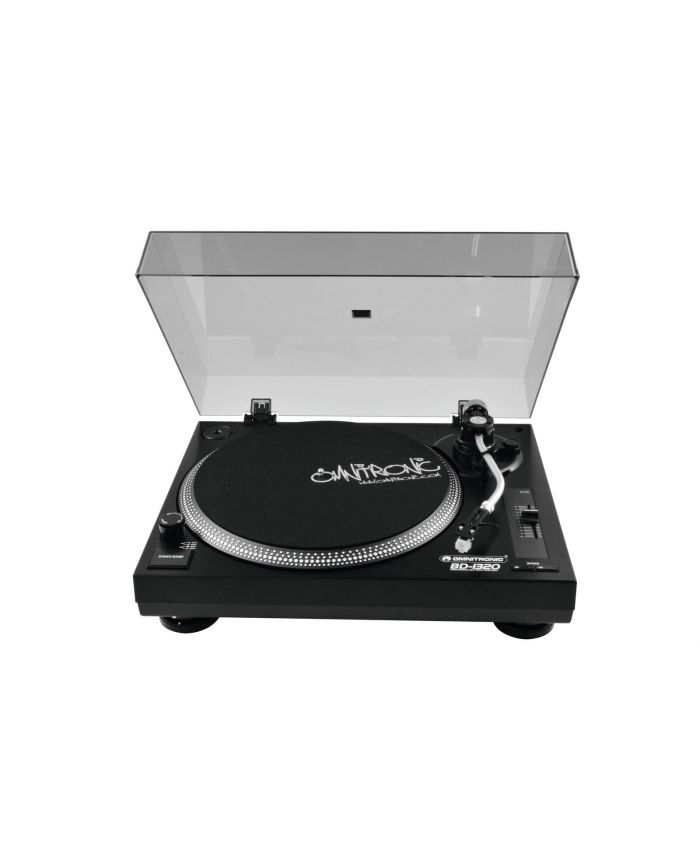

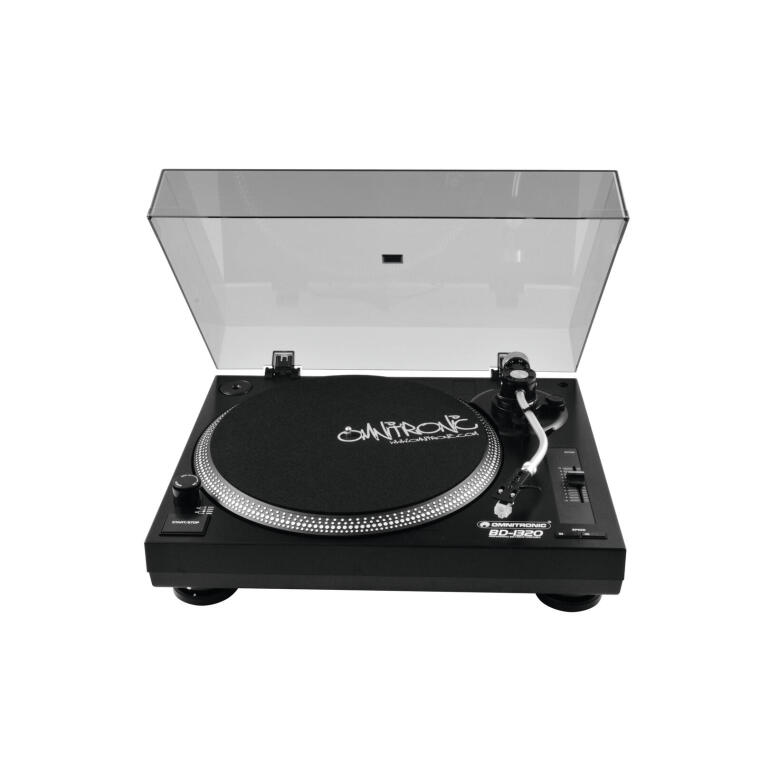

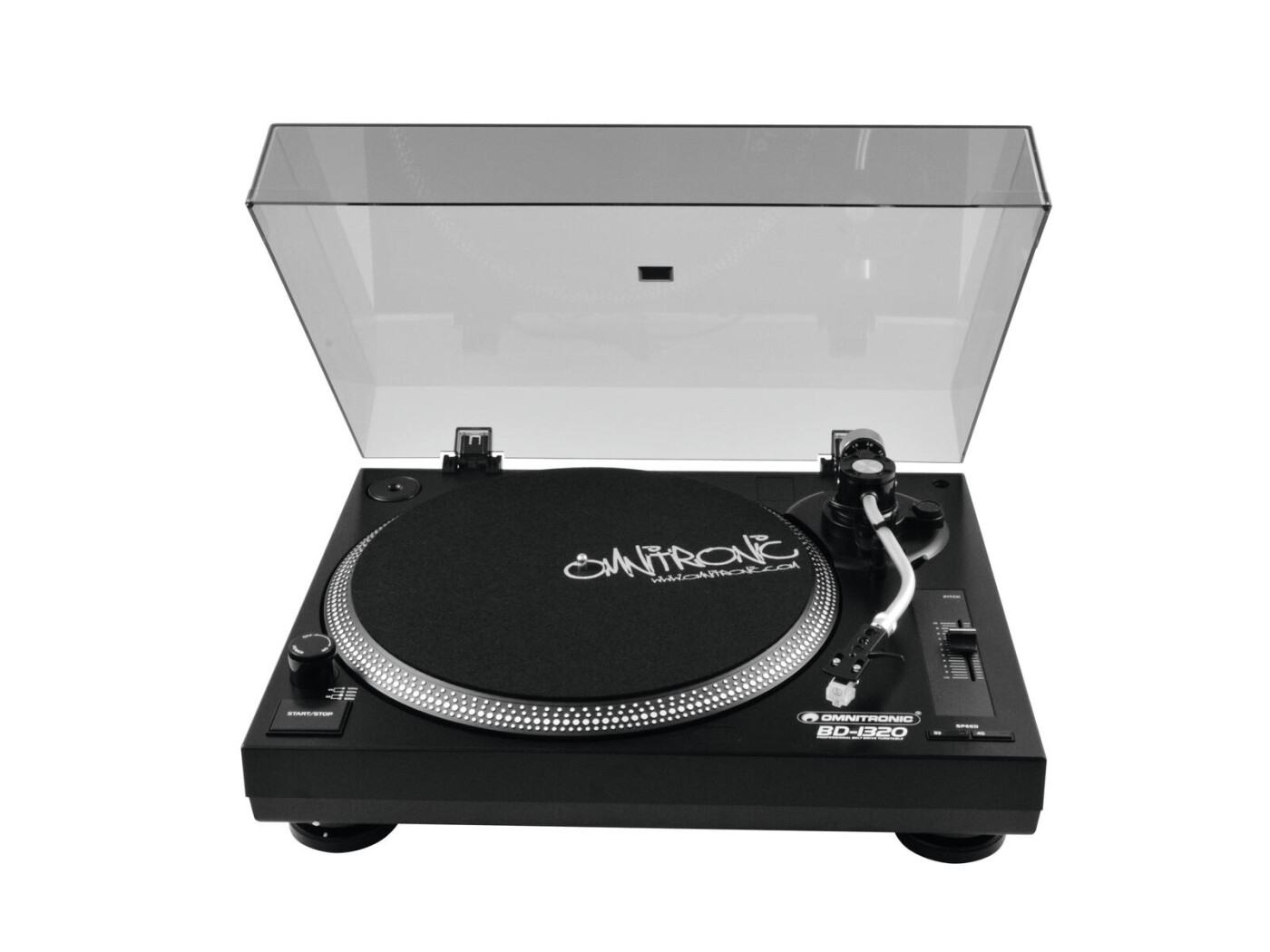

OMNITRONIC BD-1320 Turntable
Belt driven DJ turntable, black
The belt-driven DJ turntable in black by OMNITRONIC is delivered including pickup system and needle. You can set two speeds - adjustable with ± 10 %.
The large Start/Stop button, the adjustable anti-skating and the integrated lighting for exact speed adjustment make working with the turntable comfortable. The removable acrylic dust cover protects the BD-1320 turntable from dust and dirt.
The turntable is given the necessary stability by the shock-absorbing adjustable feet.
The belt-driven DJ turntable in black by OMNITRONIC is delivered including pickup system and needle. You can set two speeds - adjustable with ± 10 %.
The large Start/Stop button, the adjustable anti-skating and the integrated lighting for exact speed adjustment make working with the turntable comfortable. The removable acrylic dust cover protects the BD-1320 turntable from dust and dirt.
The turntable is given the necessary stability by the shock-absorbing adjustable feet.
Belt drive DJ turntable, black
- Large start/stop button
- Strobe lamp for exact speed adjustment
- Adjustable anti-skating
- Shock-absorbing feet
- Pitch range: ±10%
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Omnitronic BD-1320 – Technical Specifications & Setup Guide
Power Supply & Consumption
-
Power Supply: 115/230 V AC, 50/60 Hz (switchable)
-
Power Consumption: 8 W
-
Power Connection: Detachable IEC C14 power inlet with physical power switch
Audio Performance & Motor
-
Drive Type: Belt drive system
-
Motor: DC motor
-
Speeds: 33 1/3 and 45 RPM (electronic speed selector switches)
-
Starting Torque: >1.0 kg/cm
-
Start/Stop Time: <1 sec
-
Wow and Flutter: <0.25% WRMS @ 33 1/3 RPM
-
Pitch Control: ±10% via smooth linear pitch slider
-
Tonearm: S-shaped manual tonearm with adjustable anti-skate, counterweight, and hydraulic cueing lever
-
Tonearm Height: Standard fixed pitch alignment
-
Preamplifier: Internal phono preamplifier (phono/line output switchable)
Connectivity & Signal Routing
-
Audio Channels: Stereo output
-
Signal Type: Phono level / Line level (selectable via rear-panel switch)
Controls & Indicators
-
Control Elements: Power rotary switch, Start/Stop button, 33 / 45 RPM speed selector buttons, Pitch fader (±10%), Pitch reset button, Counterweight, Anti-skating adjustment knob, Cueing lever
-
Indicators: Strobe illumination target light, Speed LEDs (33/45 RPM)
Inputs & Outputs
-
Outputs:
-
Line/Phono Output: 1 x Stereo RCA pair (L/R) with ground connector lug
-
Target Light: 1 x 3.5 mm jack socket for removable target light
-
Physical Specifications
-
Housing Design: Heavy plastic housing with vibration-absorbing rubber feet
-
Dimensions (W x D x H): 450 x 350 x 145 mm (17.7" x 13.8" x 5.7")
-
Weight: 4.0 kg (8.8 lbs)
Accessories Included
-
Pick-up headshell, Omnitronic S-15 cartridge system with needle, Slipmat, Removable target light, Removable acrylic dust cover, 45 RPM Adapter Spindle, RCA audio cable with ground wire, IEC Power Cable, User Manual
