Omnitronic BDT-5.0

€59.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

3-in-1 Bluetooth audio adapter with transmitter/receiver/bypass mode and dual link

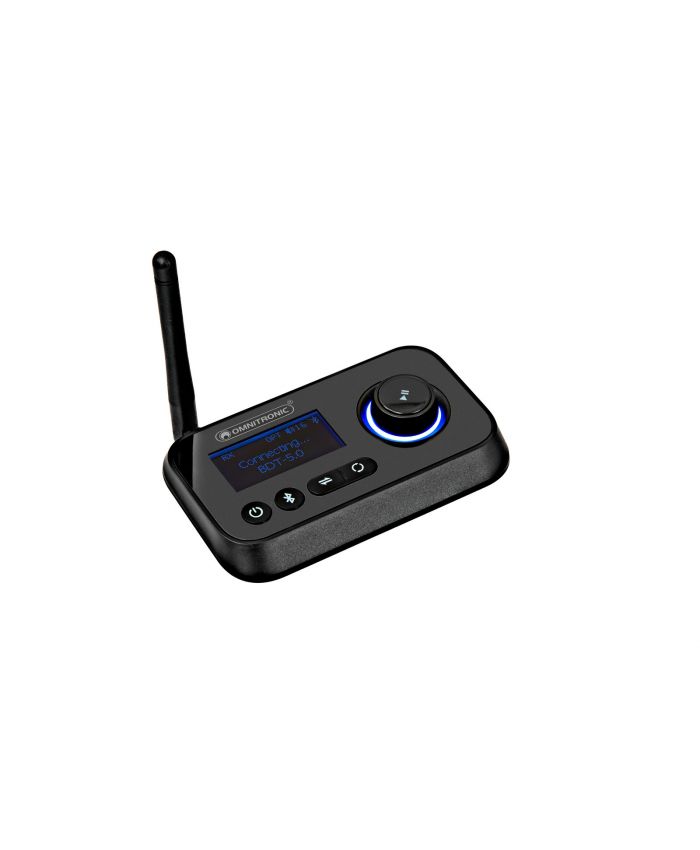

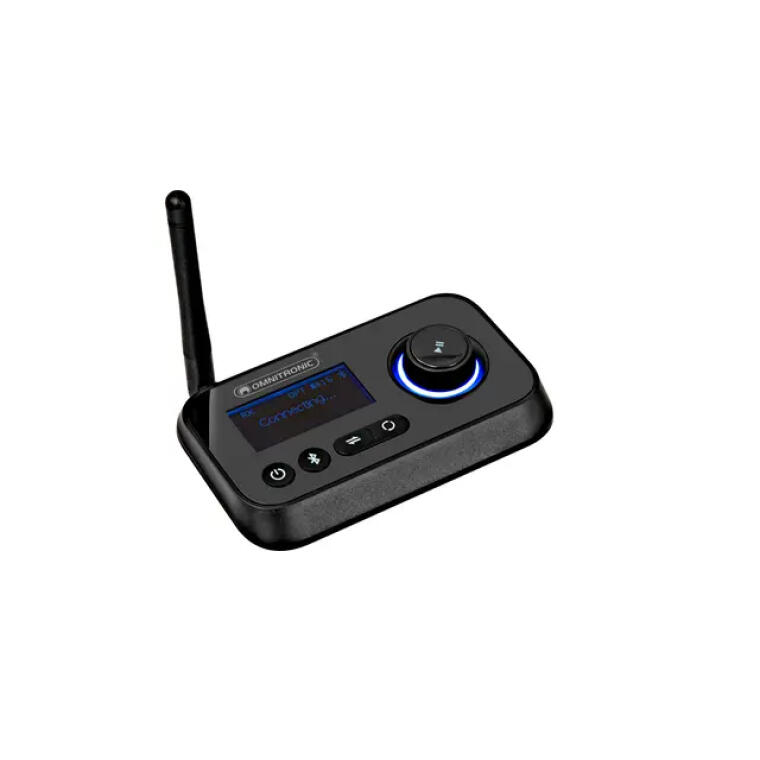

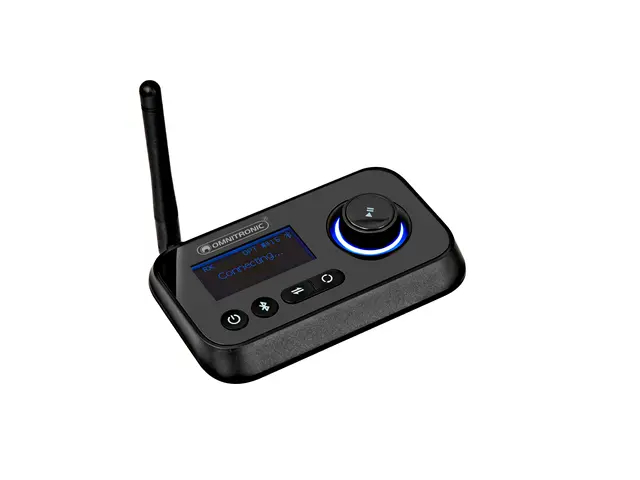

Omnitronic BDT-5.0

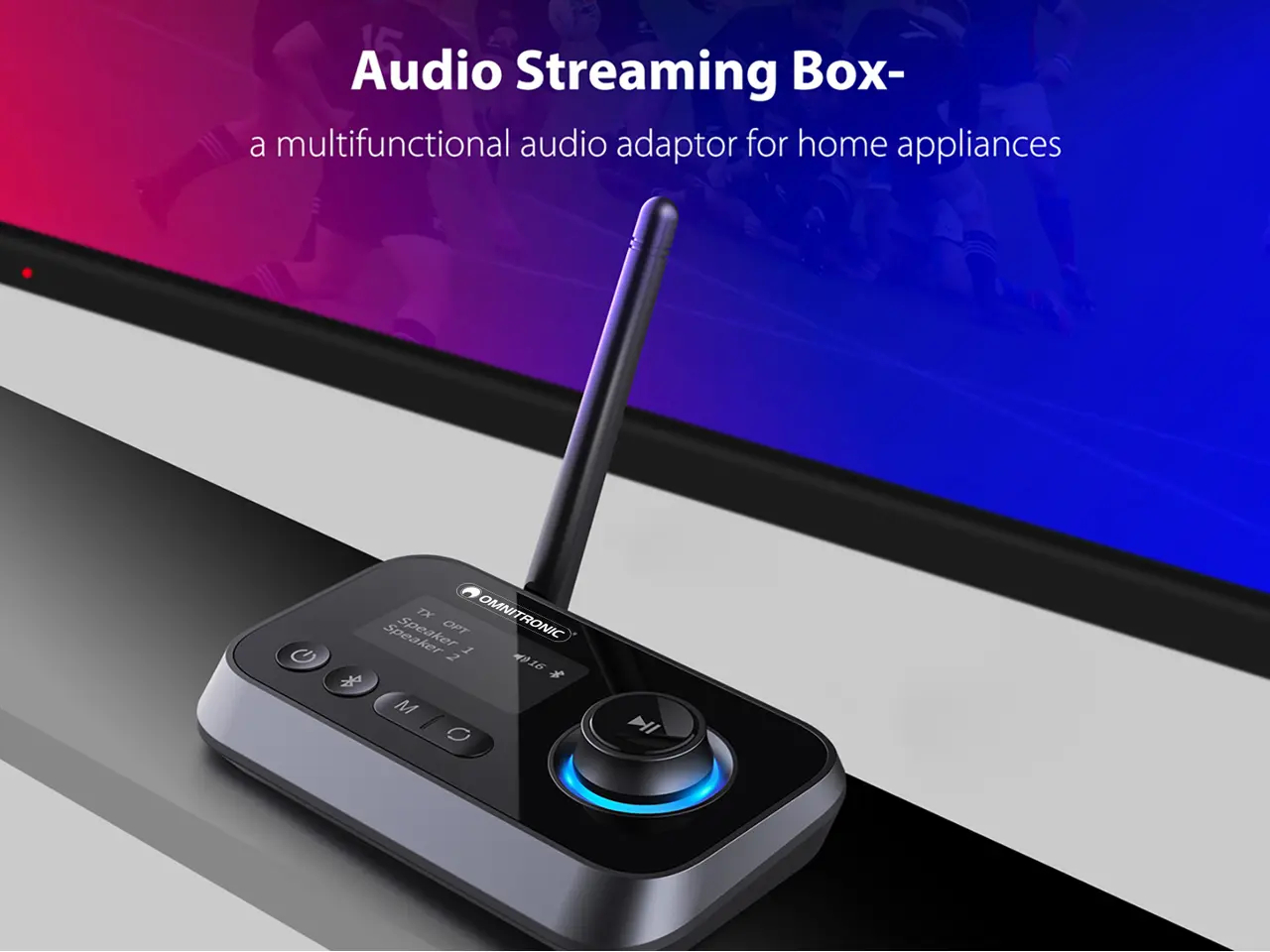

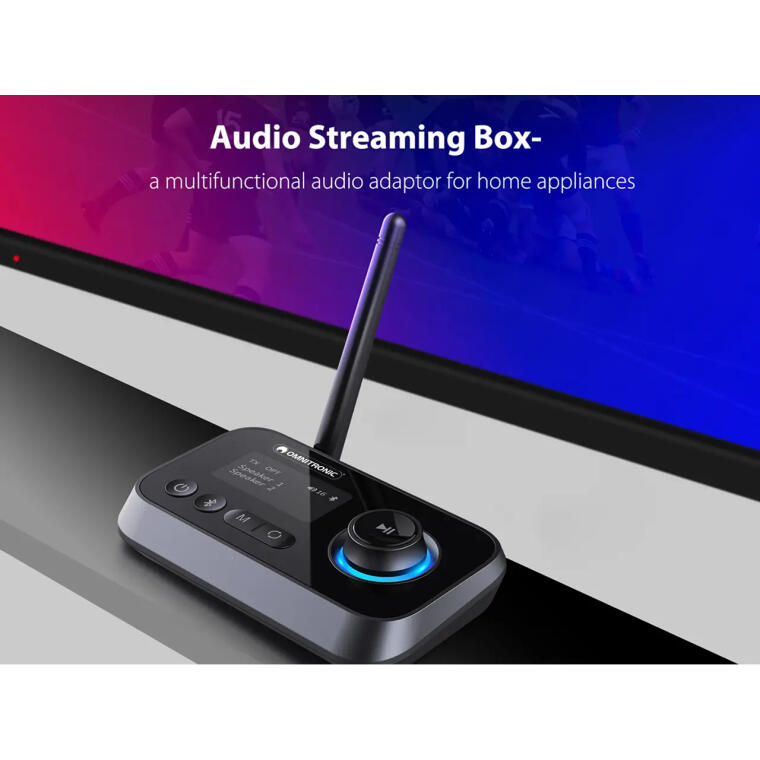

The BDT-5.0 is a compact 3-in-1 Bluetooth audio adapter that makes your home entertainment wireless. When used as a Bluetooth transmitter it can stream the sound of your TV to Bluetooth headphones or speakers. When used as a Bluetooth receiver it can be connected to your home audio system for wireless music playback from your Bluetooth-enabled smartphone. The adapter supports dual link and can pair and connect to 2 Bluetooth devices simultaneously. So you can use two headphones or speakers at the same time. The practical bypass mode allows you to use wired speakers without having to reconnect audio cables every time.

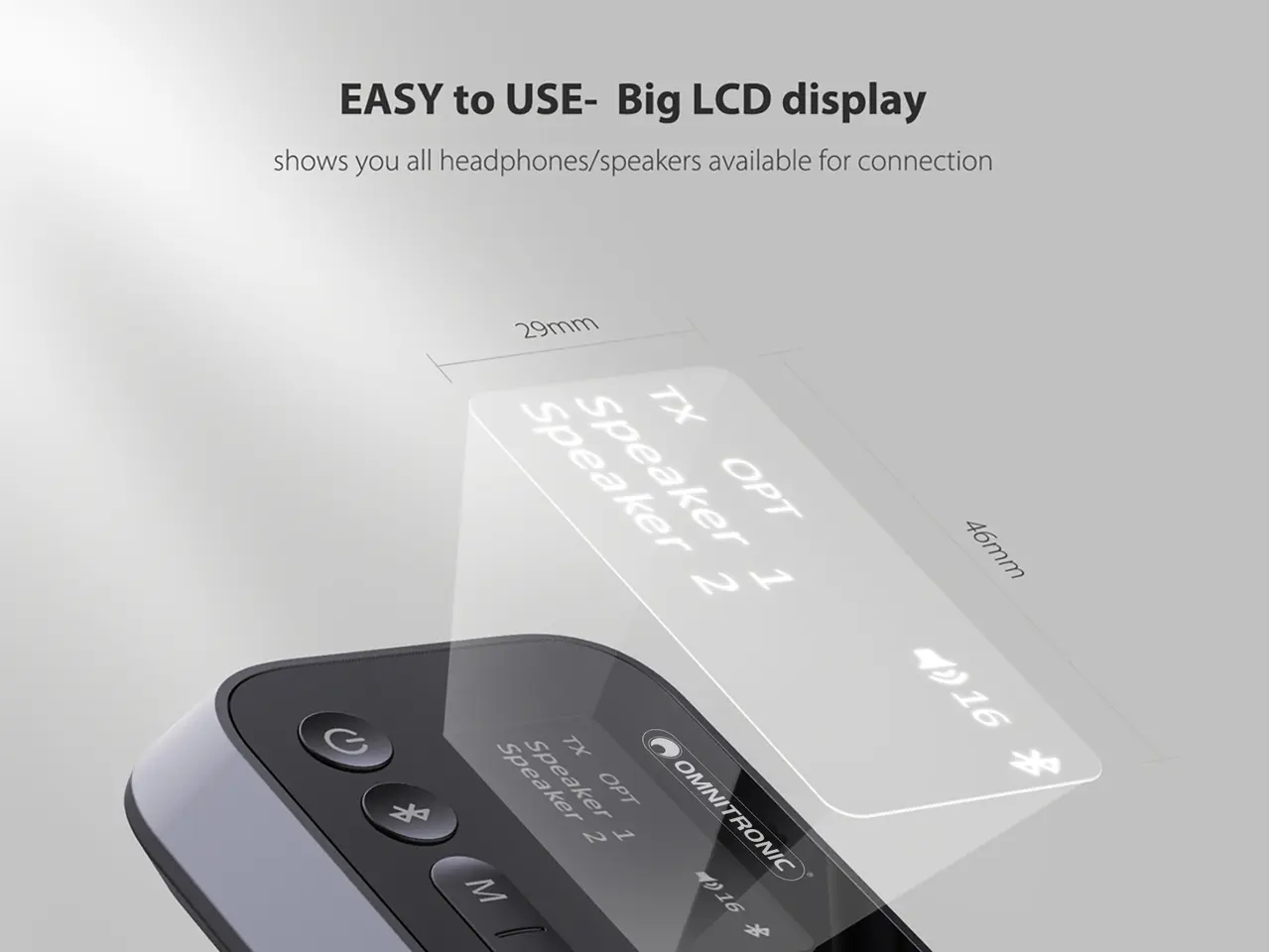

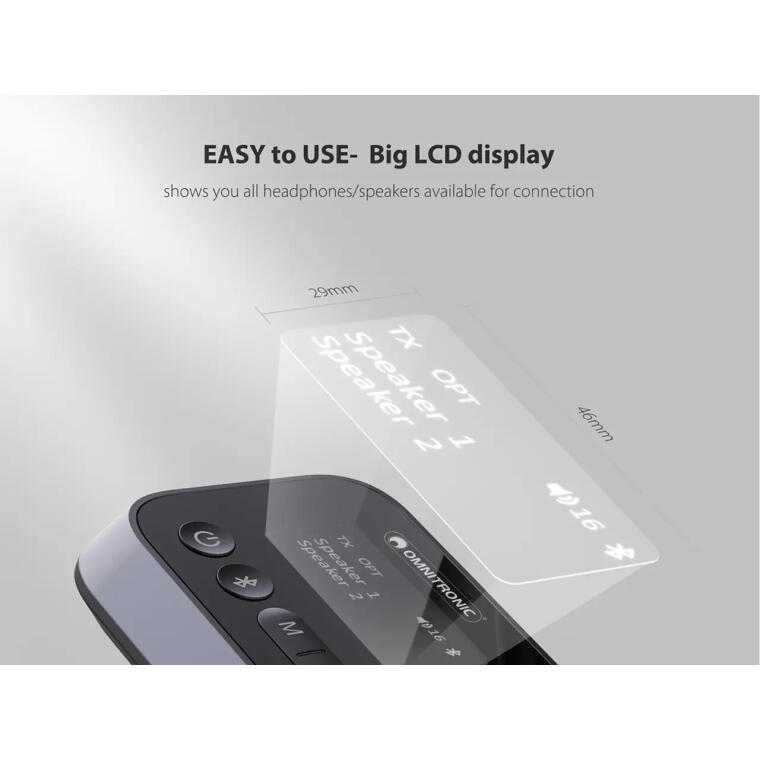

The setup is very simple. The device pairs within a few seconds. The 1.8-inch LC display clearly shows the names of your Bluetooth devices and the current operating status of the adapter. In addition, you can easily adjust the volume, switch devices and control play/pause via various buttons and the rotary dial.

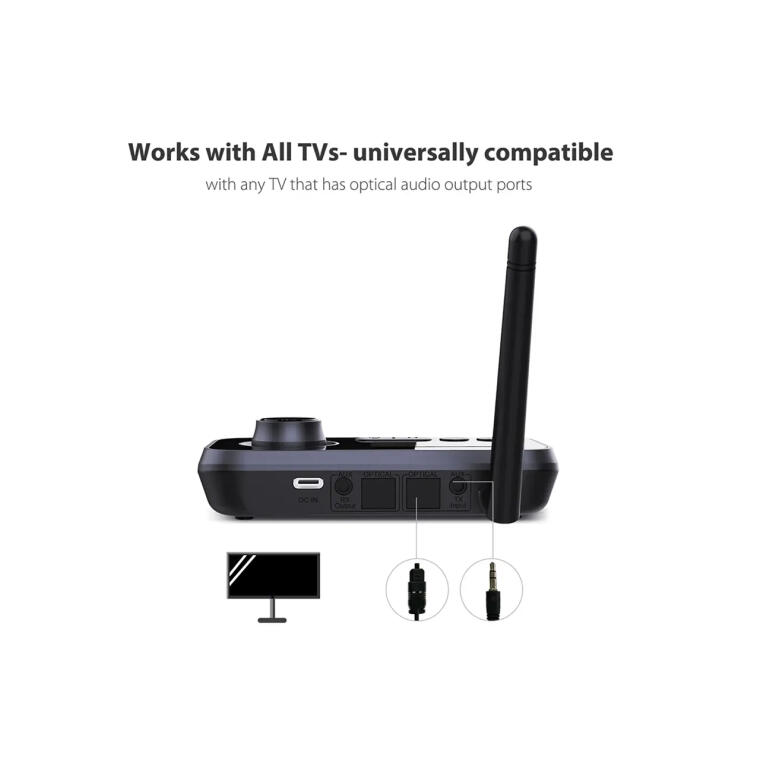

The latest Bluetooth 5.0 technology provides more stable, faster wireless connections with low power consumption. The range is up to 14 m in transmitter mode and 20-30 m in receiver mode. The BDT-5.0 supports both digital-optical Toslink and analog RCA and 3.5mm jack connections, making it compatible with most TVs, AV receivers, soundbars, stereos, headphones, smartphones, etc. All the necessary audio connection cables are included in the package. Any USB power source can be used for power supply.

Omnitronic BDT-5.0 – Technical Specifications & Setup Guide

Power Supply & Battery

  • Power Supply: 5 V DC, 500 mA via USB Type-C port

  • Battery Type: Built-in rechargeable Lithium-ion battery (3.7 V, 450 mAh)

  • Battery Life: Transmit mode up to 20 hours / Receive mode up to 20 hours

  • Charging Time: Approx. 2 hours

Audio Performance & Wireless Specifications

  • Bluetooth Version: 5.0 (Dual-mode, Class 2)

  • Operating Distance: Up to 10 m (33 ft)

  • Audio Codecs: aptX, aptX Low Latency, AAC, SBC

  • Frequency Range: 2.402 GHz – 2.480 GHz

  • Frequency Response: 20 – 20,000 Hz

  • Signal-to-Noise Ratio (S/N): >90 dB

  • Latency: <40 ms (when using aptX Low Latency)

Connectivity & Signal Routing

  • Modes: Transmitter (TX) mode, Receiver (RX) mode, Bypass mode

  • Dual Pairing: Connects up to 2 Bluetooth devices simultaneously in TX mode

  • Analog Audio Input/Output: 1 x 3.5 mm AUX jack (stereo input/output)

  • Digital Audio Input: 1 x Optical Toslink input

  • Digital Audio Output: 1 x Optical Toslink output

  • Charging Port: 1 x USB Type-C

Controls & Indicators

  • Control Elements: Power button, TX/RX mode selector switch, Bypass switch, Bluetooth pairing button

  • Status Indicators: LED status indicators for TX/RX mode, Codec active (aptX LL/aptX/AAC/SBC), AUX/Optical connection, and Battery status

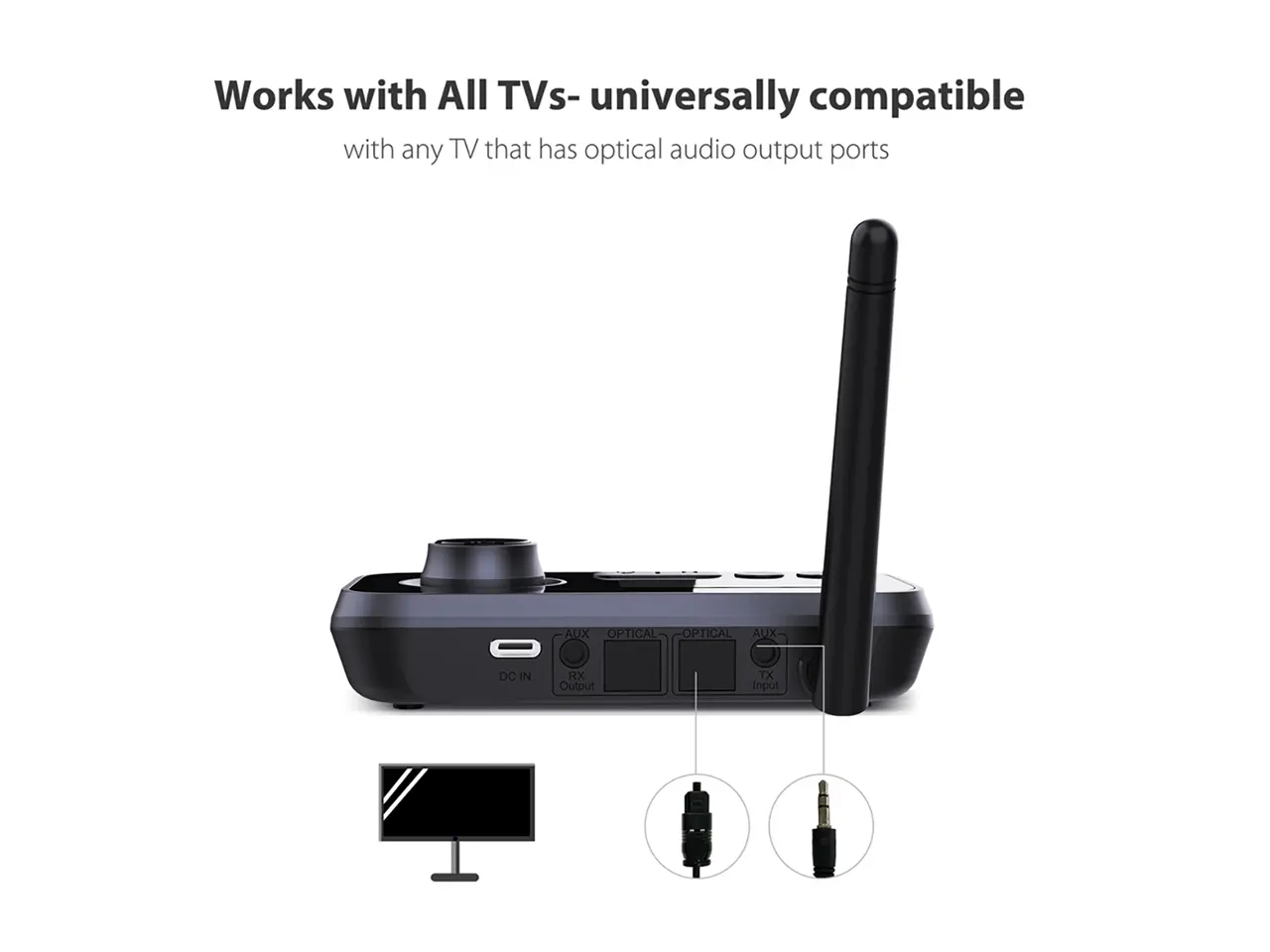

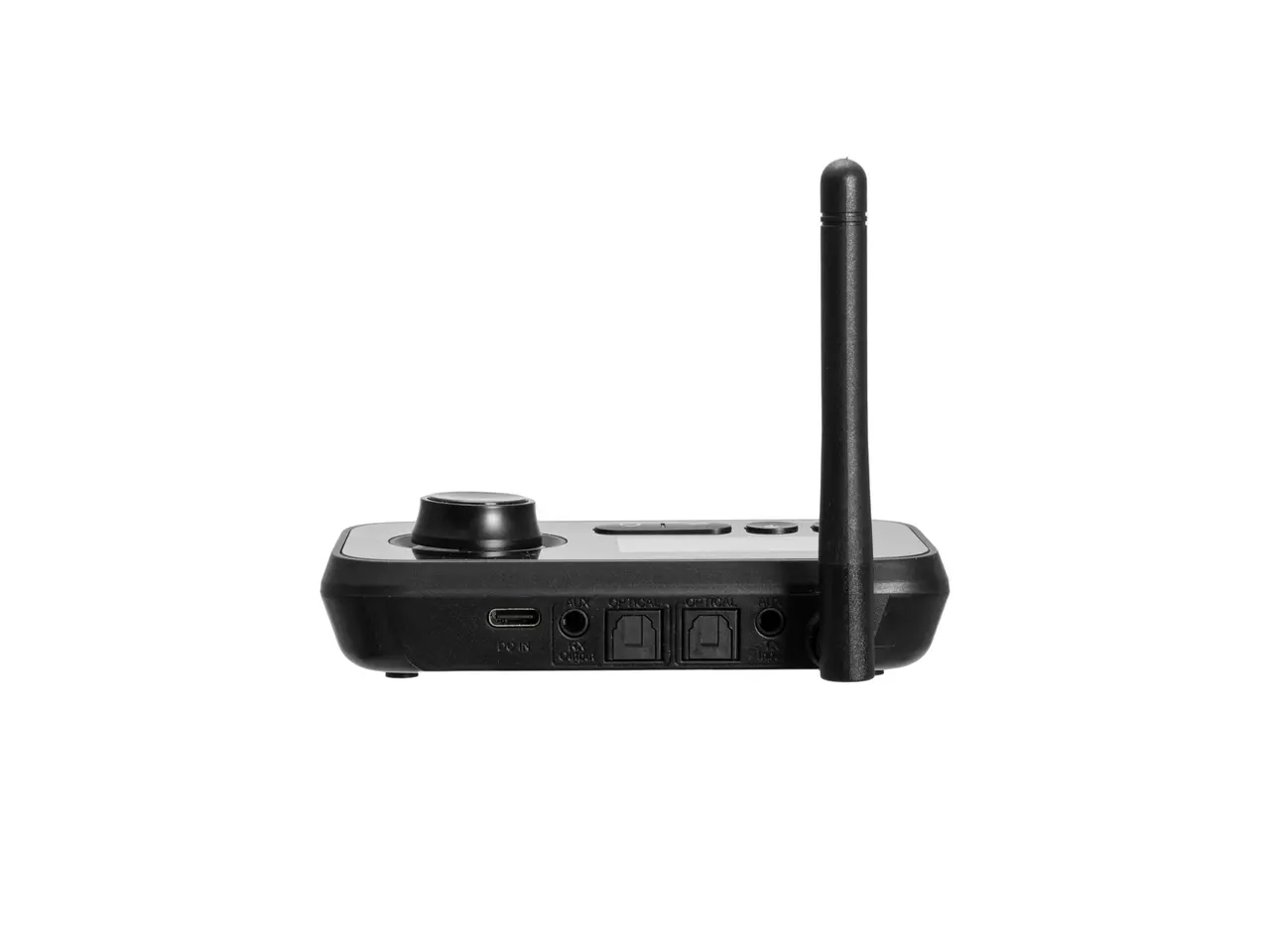

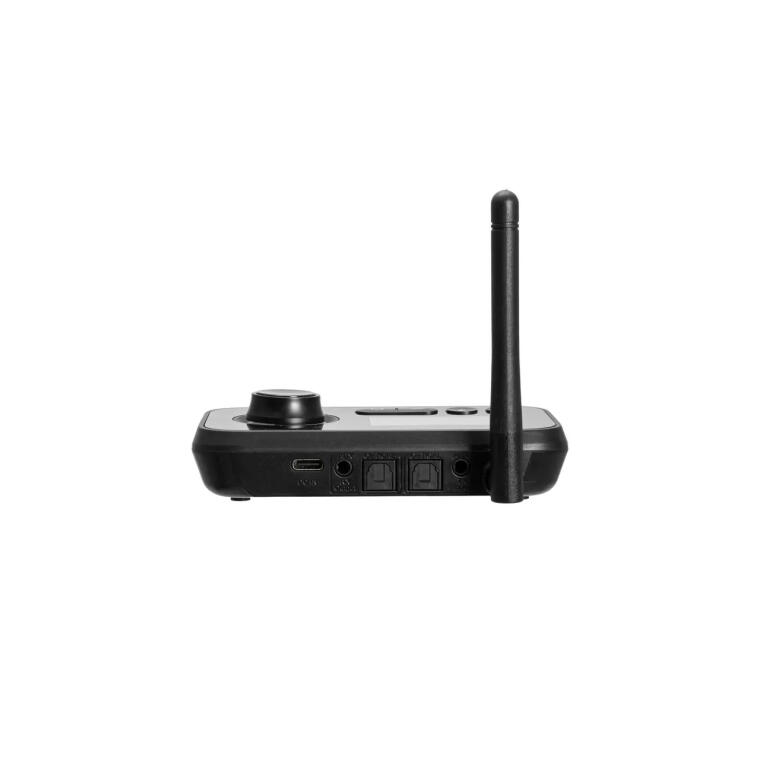

Inputs & Outputs

  • Audio Inputs: 1 x 3.5 mm Aux jack, 1 x Toslink Optical (S/PDIF)

  • Audio Outputs: 1 x 3.5 mm Aux jack, 1 x Toslink Optical (S/PDIF)

  • Power Input: 1 x USB Type-C connector

Physical Specifications

  • Housing Design: Compact desktop enclosure with rubber anti-slip base

  • Dimensions (W x D x H): 110 x 83 x 26 mm (4.3" x 3.3" x 1.0")

  • Weight: 110 g (0.24 lbs)

Accessories Included

  • USB Charging Cable (Type-A to Type-C)

  • 3.5 mm to 3.5 mm Audio Cable

  • 3.5 mm to Stereo RCA Adapter Cable

  • Optical Toslink Cable

  • Operating Instructions Manual
