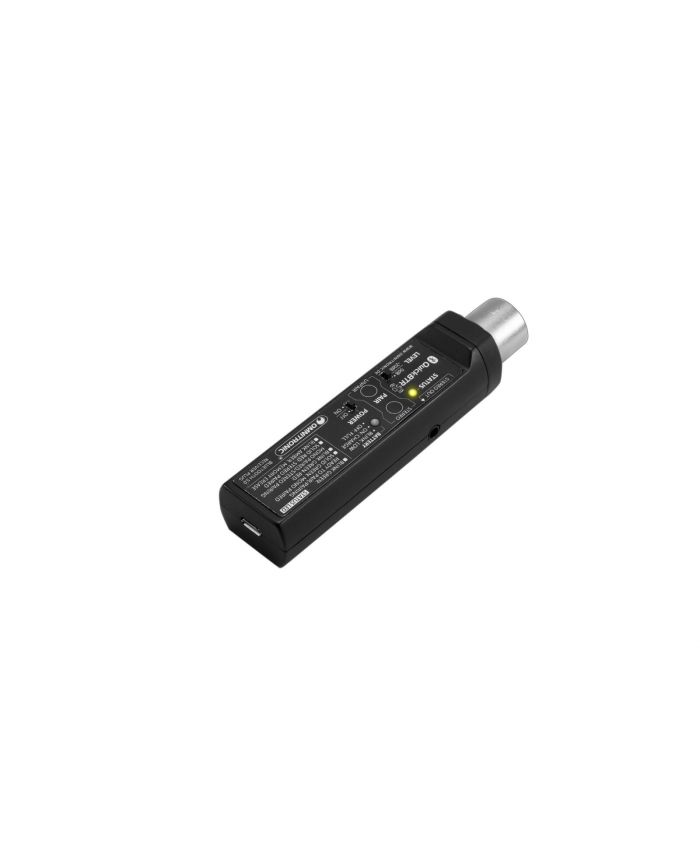

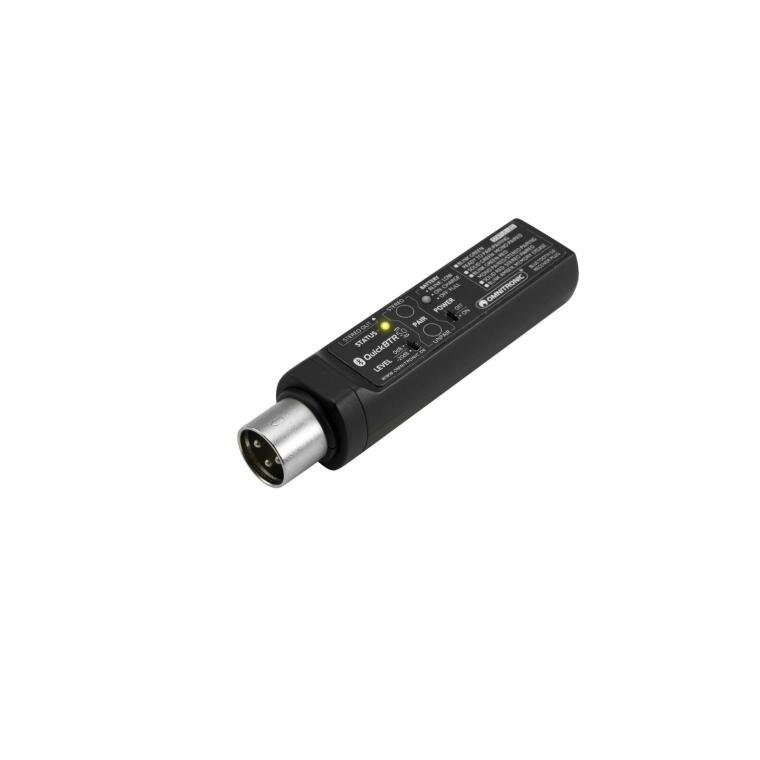

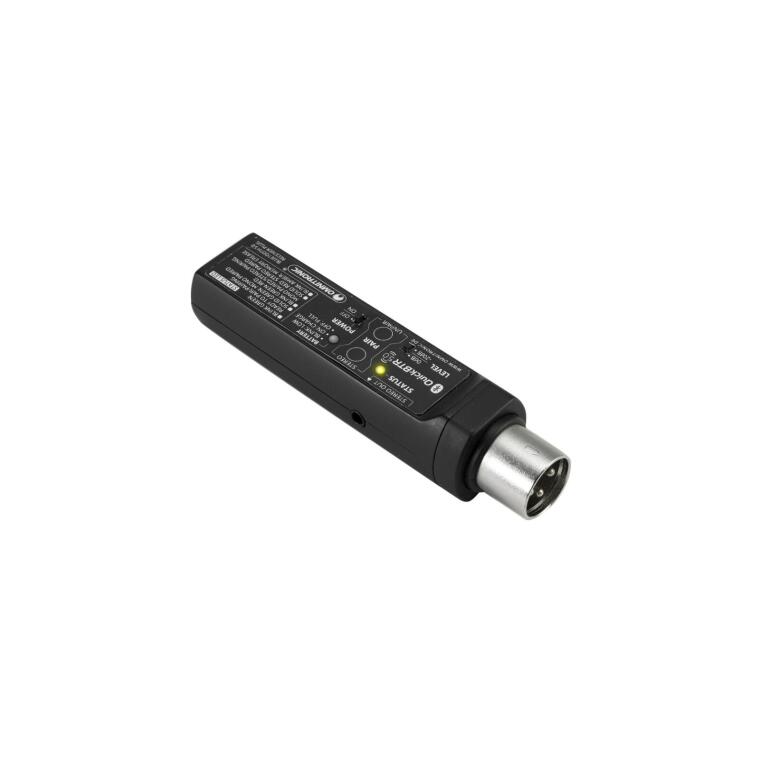

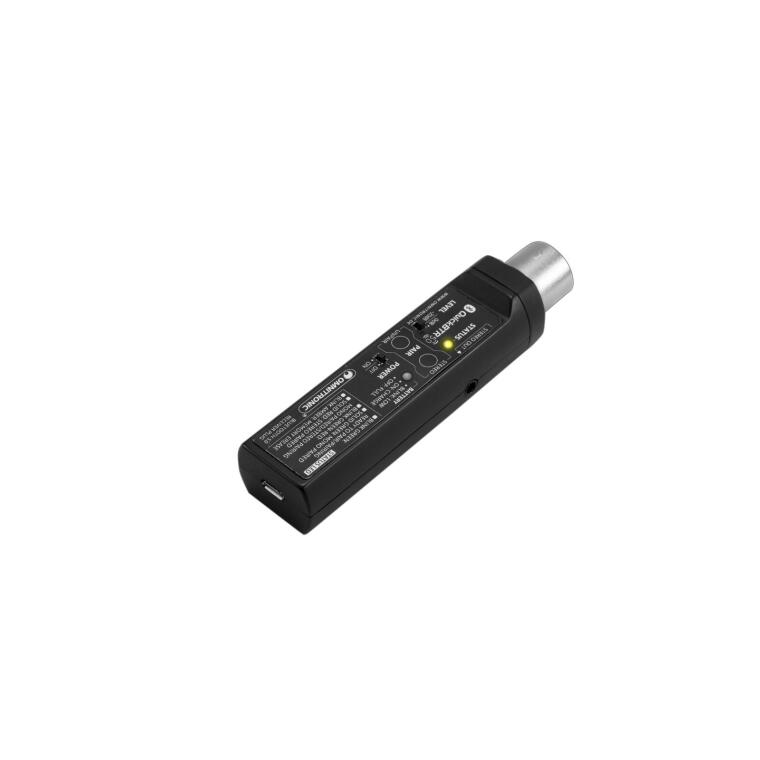

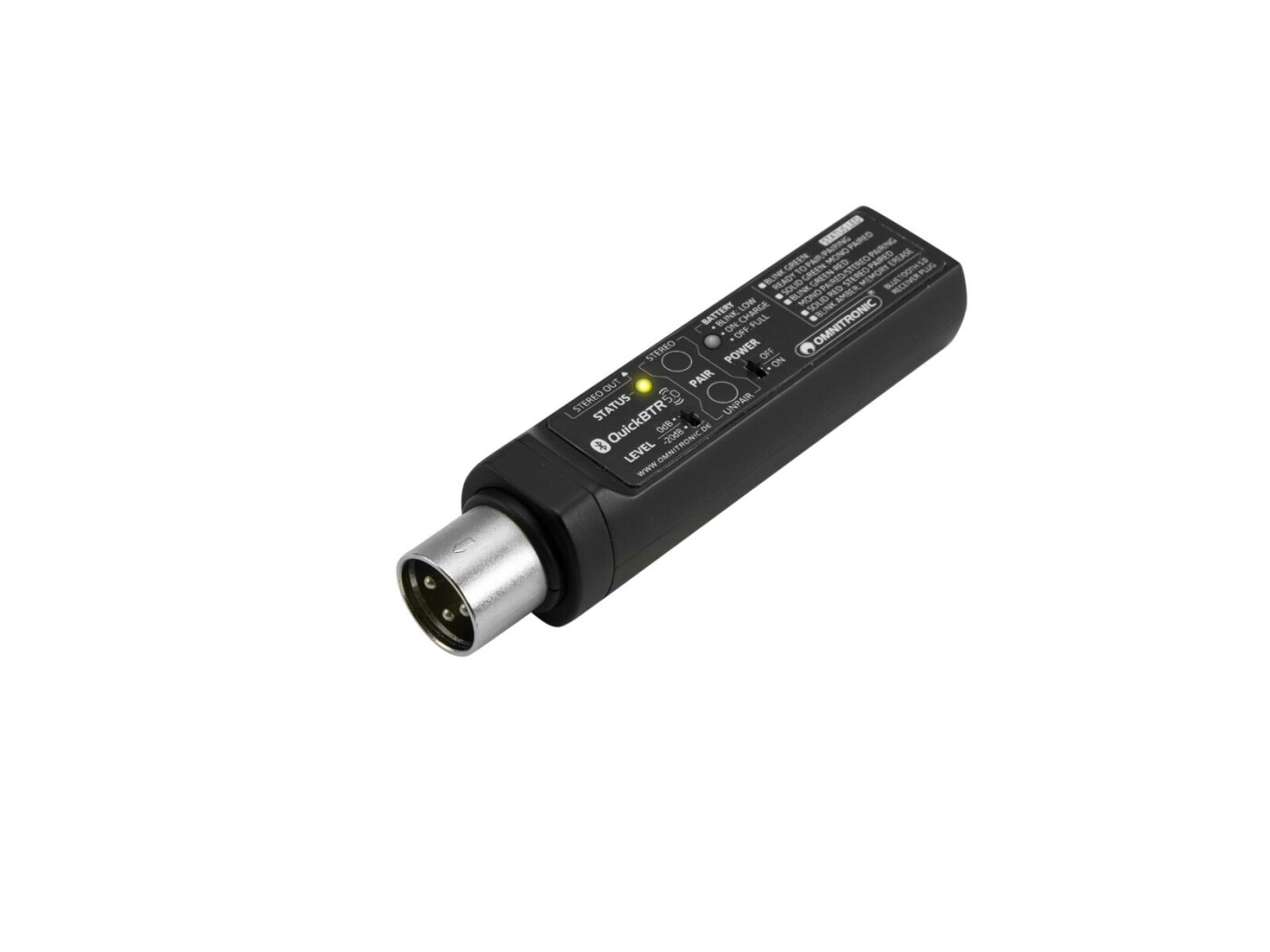

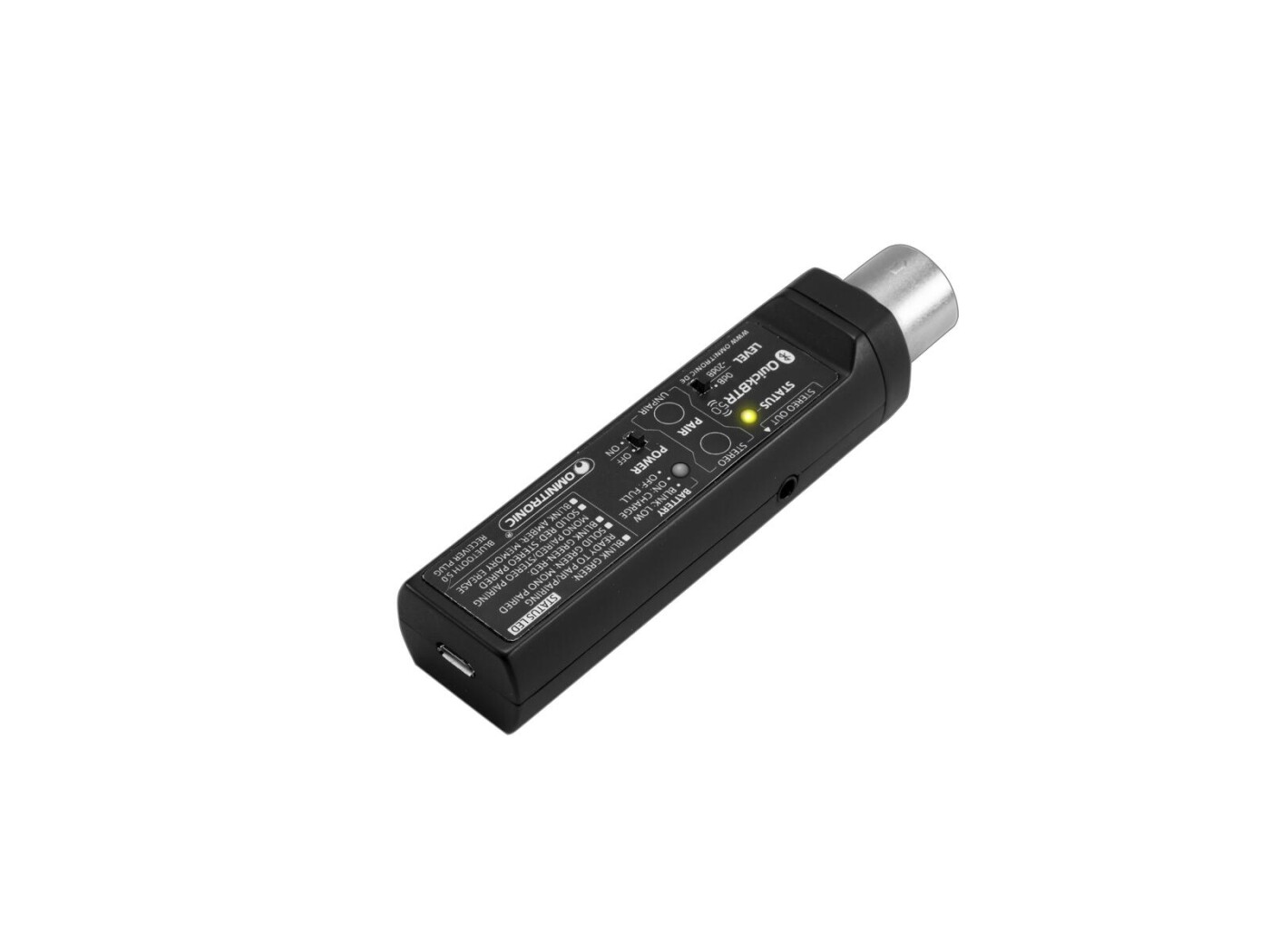

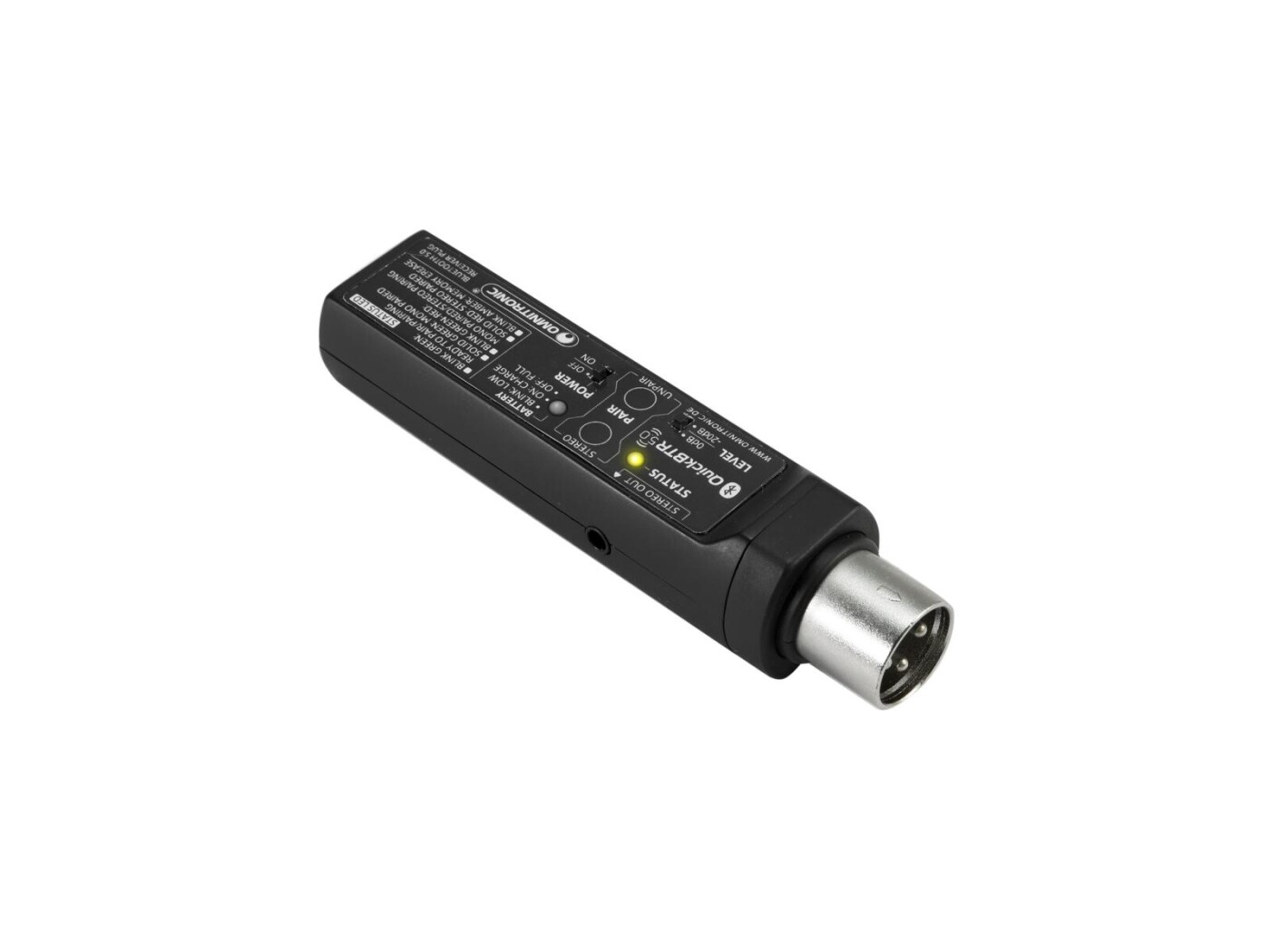

OMNITRONIC QuickBTR-5.0 XLR Aptx Bluetooth 5.0 Receiver

€49.90 incl. VAT

In stock

Interested in this product?

Call us

Overview

No. 13072197

QuickBTR-5.0 is a portable Bluetooth receiver that allows you to stream audio signals wirelessly from your Bluetooth devices to mixers or powered speakers. With QuickBTR-5.0, you can simply add Bluetooth streaming to any live sound setup. The latest Bluetooth 5.0 technology with aptX HD support ensures fast and stable wireless connections and high-quality audio. The stereo audio stream is output as a mono signal via the XLR plug or as a stereo signal via the 3.5 mm TRS jack. You can also wirelessly link two QuickBTR-5.0 together for stereo speaker setups. Setup is simple: plug QuickBTR-5.0 into the XLR input of a mixer or powered speaker, pair your Bluetooth audio device and start playing! The internal battery keeps the receiver running for over 8 hours. Charging is via any USB power source and the included micro USB cable.

Portable Bluetooth receiver with XLR output, aptX and stereo link mode

Add Bluetooth capability to any speaker or mixer
Eliminates troublesome cable runs
Stereo link mode: pair two receivers for cable-free stereo playback
Output level switchable: 0 dBu, -20 dBu
Supported codecs: AptX, aptX HD, AAC, SBC
Operating range up to 30m with line-of-sight
2.4 GHz license-free worldwide
For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels; small rental

battery pack

Cordless, flexible and versatile
Battery operation up to 8h

Omnitronic QuickBTR-5.0 – Technical Specifications & Setup Guide

Power Supply & Consumption

Power Supply: Integrated rechargeable 3.7 V Lithium-polymer battery (approx. 8–10 hours operating time) or continuous USB power
Charging Interface: Micro-USB port (5 V DC, charging cable included)
Charging Time: Approx. 2–3 hours

Audio Performance & Wireless

Bluetooth Version: Bluetooth 5.0 (aptX, aptX HD, AAC, and SBC audio codec support)
Wireless Frequency: 2.4 GHz ISM band
Wireless Range: Up to 10 m (30 ft) line-of-sight
Frequency Range: 20 – 20,000 Hz
Output Level: +4 dBu (balanced line level)

Connectivity & Signal Routing

Operating Modes: Single receiver mode (Mono XLR output) or Stereo Link mode (pairs two QuickBTR-5.0 units wirelessly for L/R stereo)
Output Connector: 1 x 3-pin XLR male (plugs directly into powered speakers, mixing consoles, or PA systems)

Controls & Indicators

Control Elements: Power / Pairing button, Stereo Link button
Indicators: Dual-color LED indicator (Power, Bluetooth pairing status, Battery/Charging level, Stereo Link connection)
