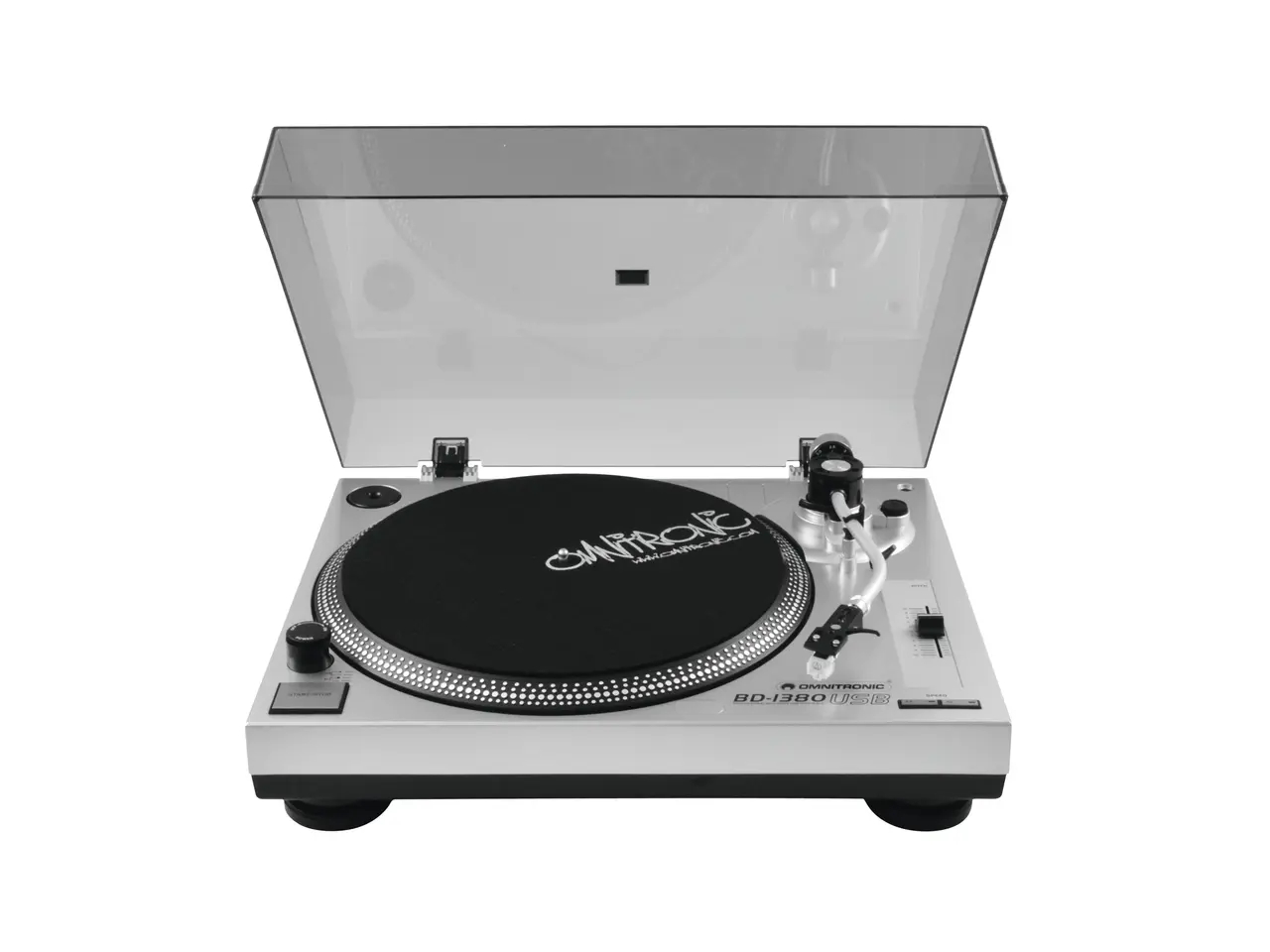

10603043c

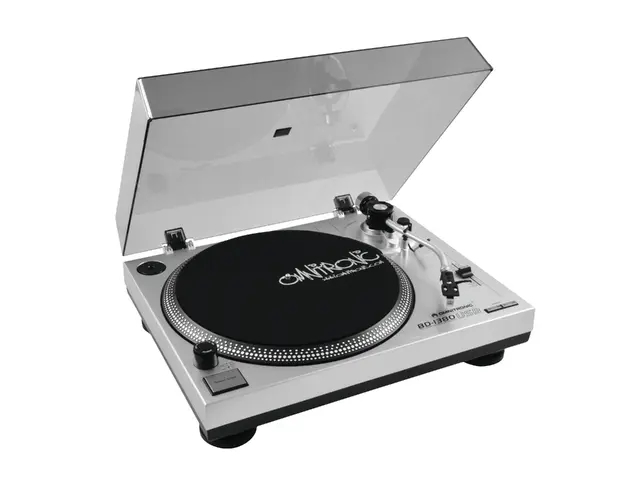

10603043a

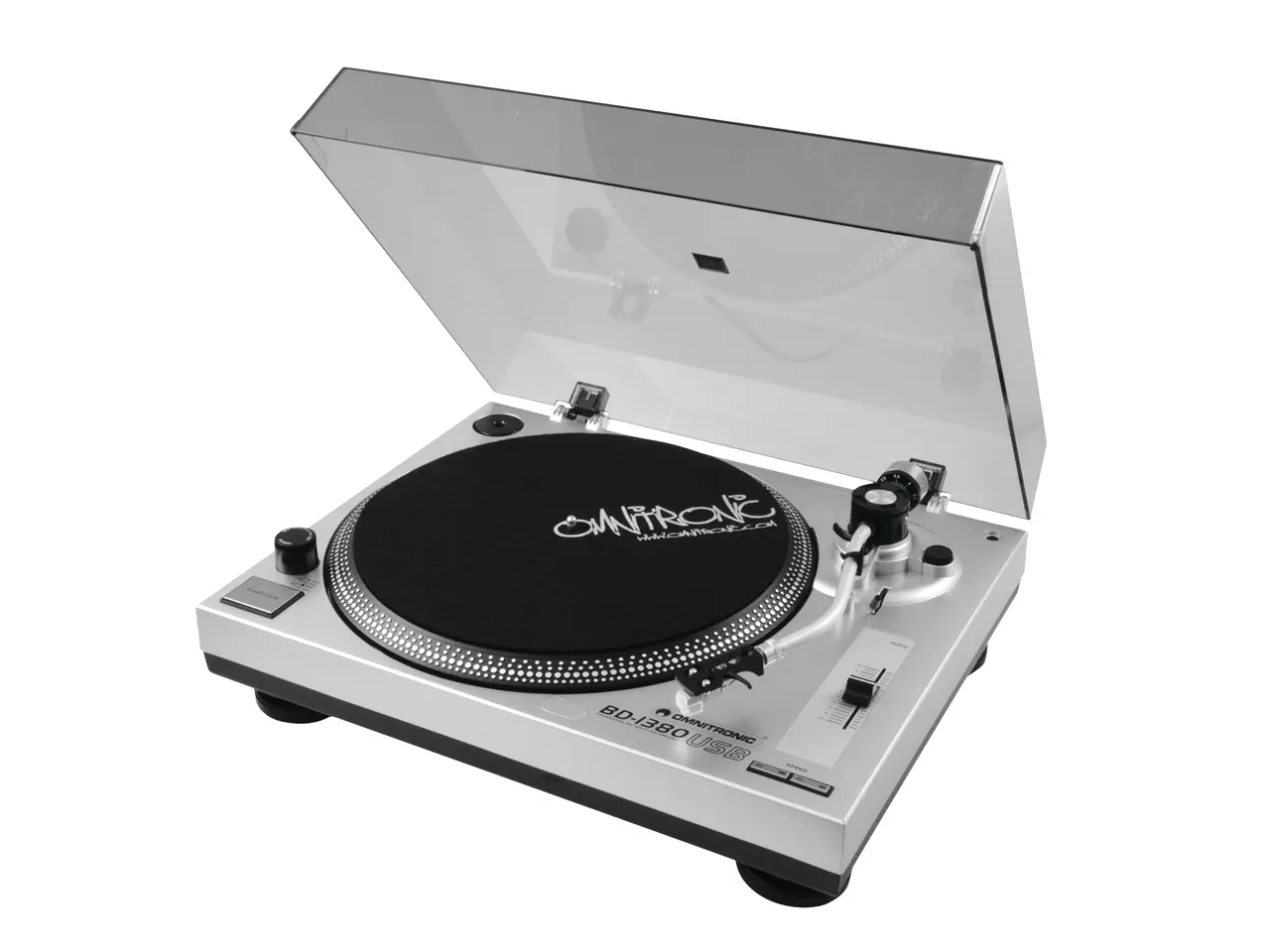

10603043b

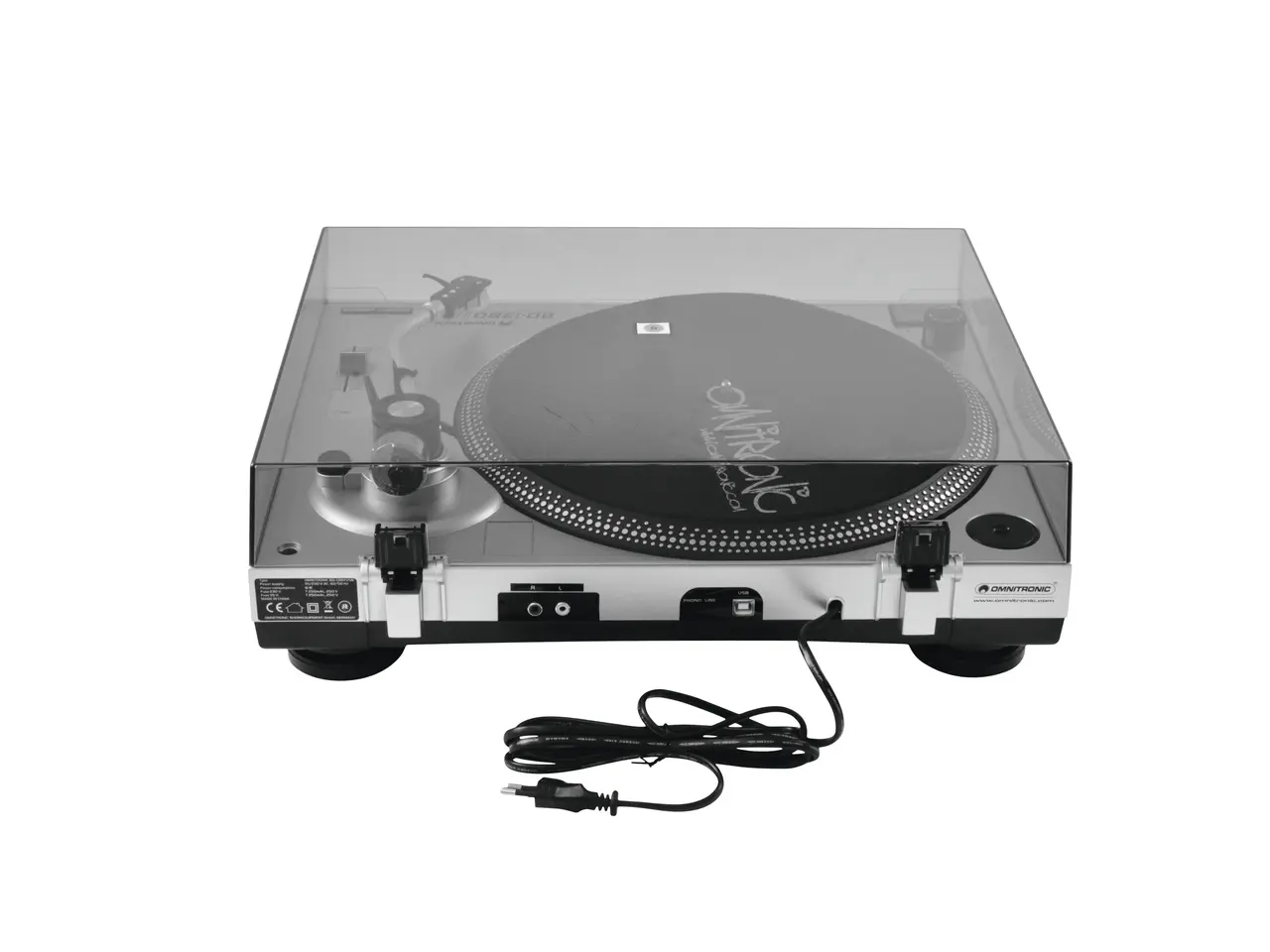

10603043e
10603043d

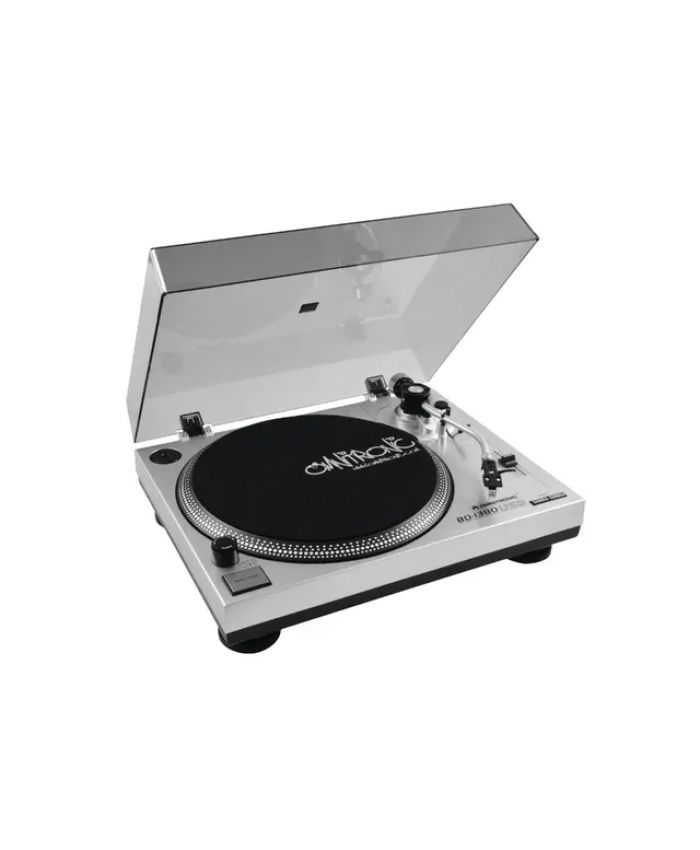

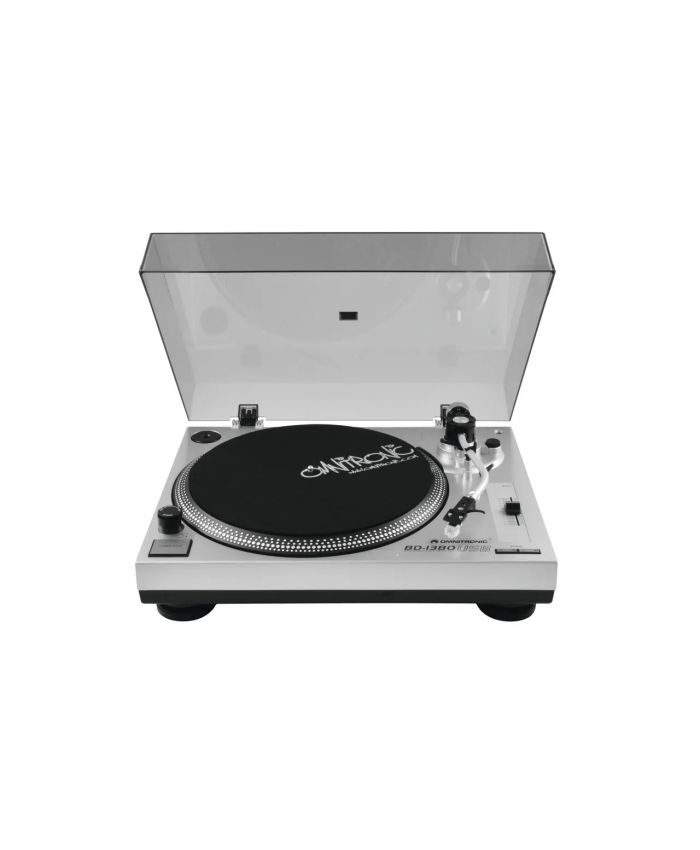

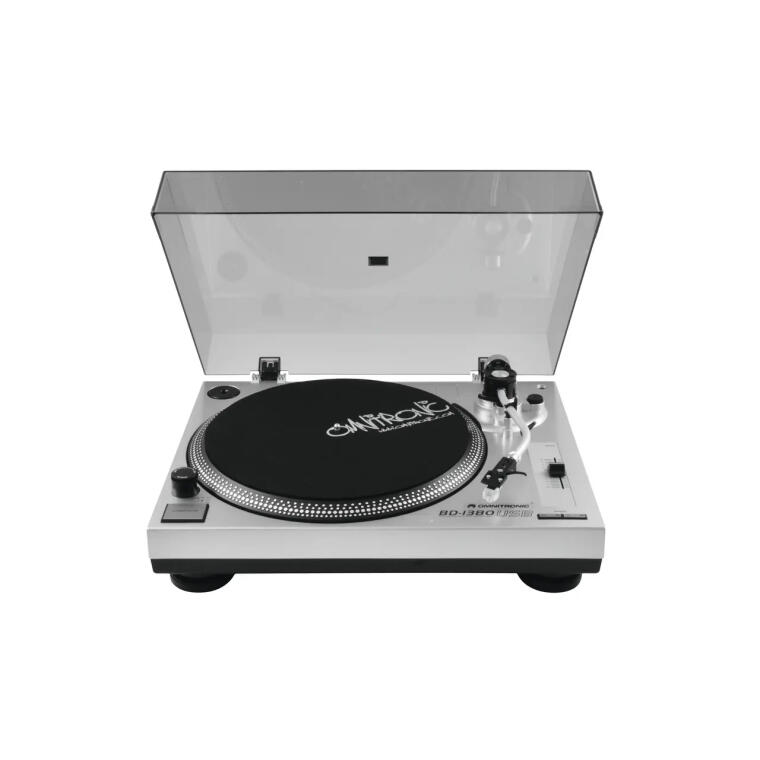

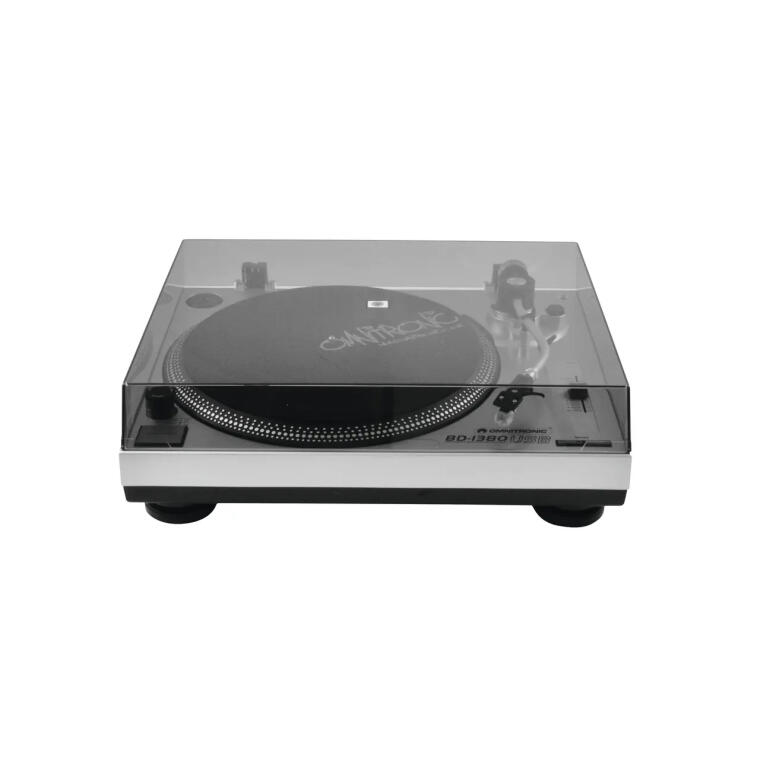

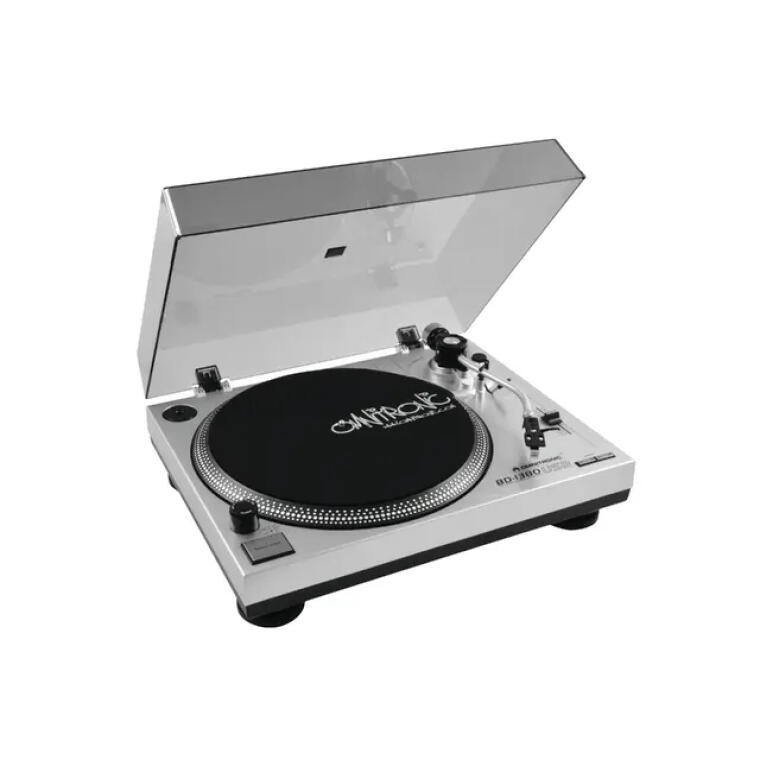

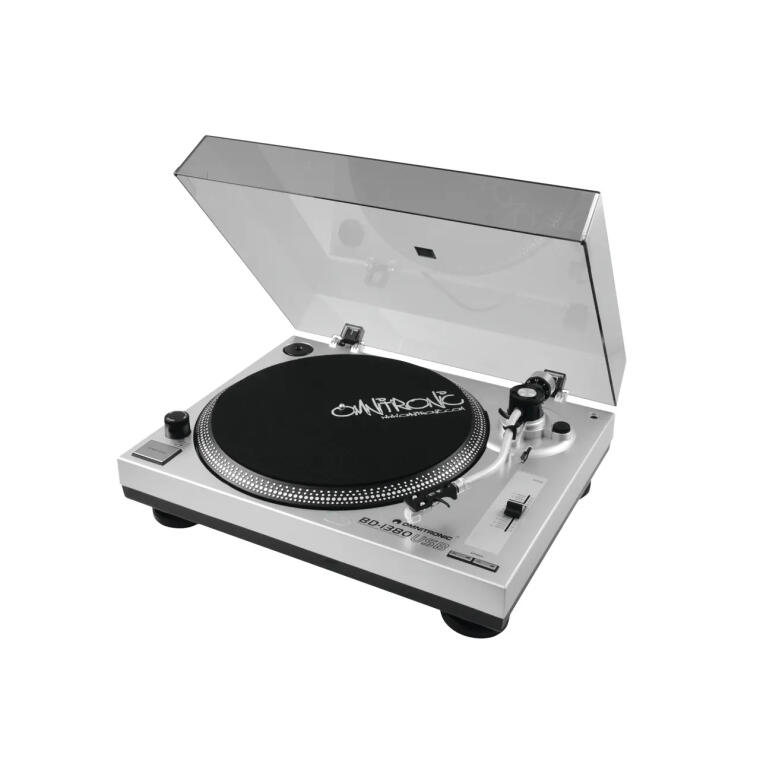

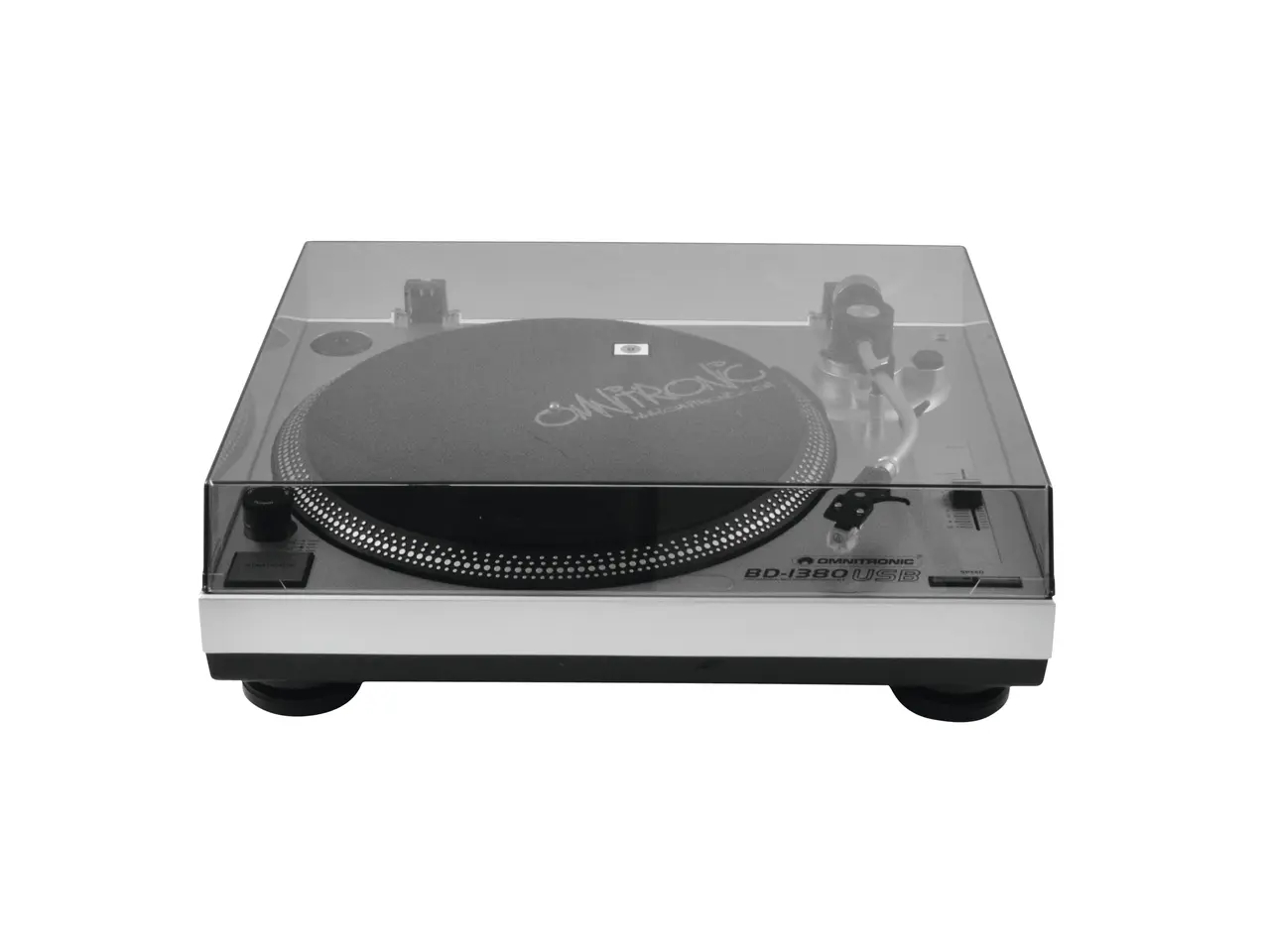

OMNITRONIC BD-1380 USB

€229.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

OMNITRONIC BD-1380 USB Turntable sil

Belt drive DJ turntable with USB interface and recording software, silver

  • Built-in USB port and phono preamplifier, for a high-quality and convenient digitization of analog vinyl records
  • Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits
  • Large start/stop button
  • Strobe lamp for exact speed adjustment
  • Adjustable anti-skating
  • Shock-absorbing feet
  • Switchable phono/line output
  • Pitch range: ±10%
  • The device can be connected via USB to the PC
  • Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.3 or better
  • For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Omnitronic BD-1380 USB – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 115/230 V AC, 50/60 Hz (switchable)

  • Power Consumption: 8 W

  • Power Connection: Fixed power supply cable with Europlug (Type C)

Audio Performance & Motor

  • Drive Type: Belt drive system

  • Motor: DC motor

  • Speeds: 33 1/3 and 45 RPM (electronic speed selector buttons)

  • Start / Stop Time: <1 sec

  • Speed Change Time: <1 sec

  • Wow and Flutter: <0.25% WRMS @ 33 1/3 RPM

  • Rumble: >50 dB (DIN B)

  • Pitch Control: ±10% via smooth linear pitch fader

  • Tonearm: S-shaped manual tonearm with Cardan suspension, adjustable anti-skate, and counterweight

  • Tonearm Length: 220 mm

  • Overhang: 10 mm

  • Stylus Pressure Range: 0–4 g adjustable

  • Preamplifier: Built-in stereo phono preamplifier (Phono/Line output switchable)

Connectivity & Digital Audio

  • USB Interface: USB Type-B port (Plug-and-Play compatibility with Windows and Mac OS X for digitizing vinyl records)

  • USB Audio Resolution: 16-bit / 44.1 kHz or 48 kHz sampling rate

  • Signal Type: Switchable Phono / Line level (analog) + USB (digital)

Controls & Indicators

  • Control Elements: Rotary Power switch, Large Start/Stop button, 33 / 45 RPM speed selector buttons, Pitch fader (±10%), Phono/Line switch (rear panel), Counterweight dial, Anti-skating adjustment knob, Hydraulic cueing lever

  • Indicators: Strobe lamp for precise speed monitoring, Speed LEDs

Inputs & Outputs

  • Outputs:

    • Analog Output: 1 x Stereo RCA pair (L/R) with ground connector terminal

    • Digital Output: 1 x USB Type-B port

Physical Specifications

  • Housing Design: Durable black plastic chassis with shock-absorbing rubber feet

  • Platter: Plastic platter (Ø 330 mm)

  • Dimensions (W x D x H): 450 x 350 x 145 mm (17.7" x 13.8" x 5.7")

  • Weight: 3.5 kg (7.72 lbs)

Accessories Included

  • Pick-up system / cartridge with needle, Head-shell, Slipmat, Removable target light, Removable acrylic dust cover, 45 RPM Adapter Spindle, Stereo RCA audio cable with ground wire, USB cable, Recording software CD, User Manual
