Nedis TURN220BN

€95.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

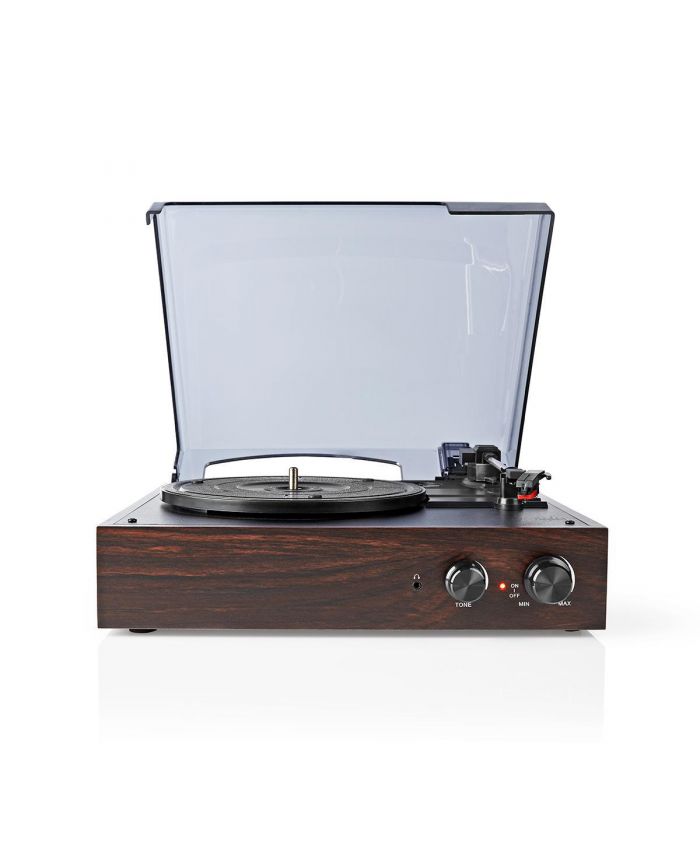

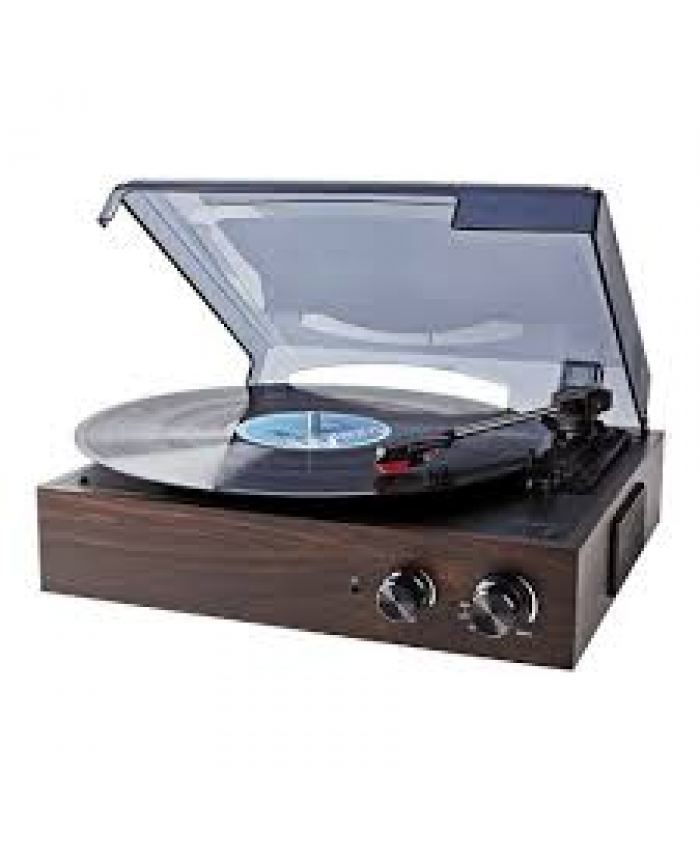

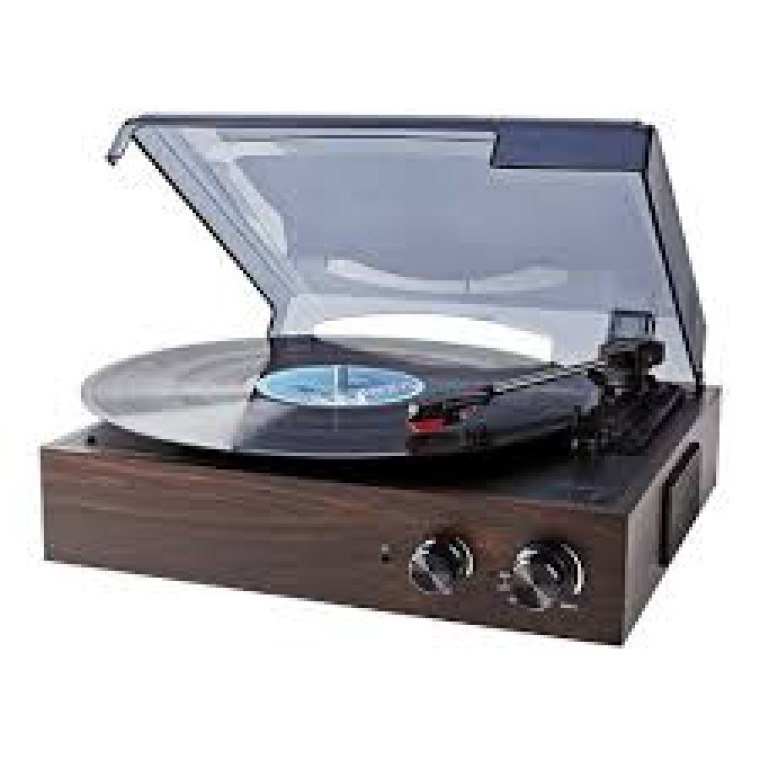

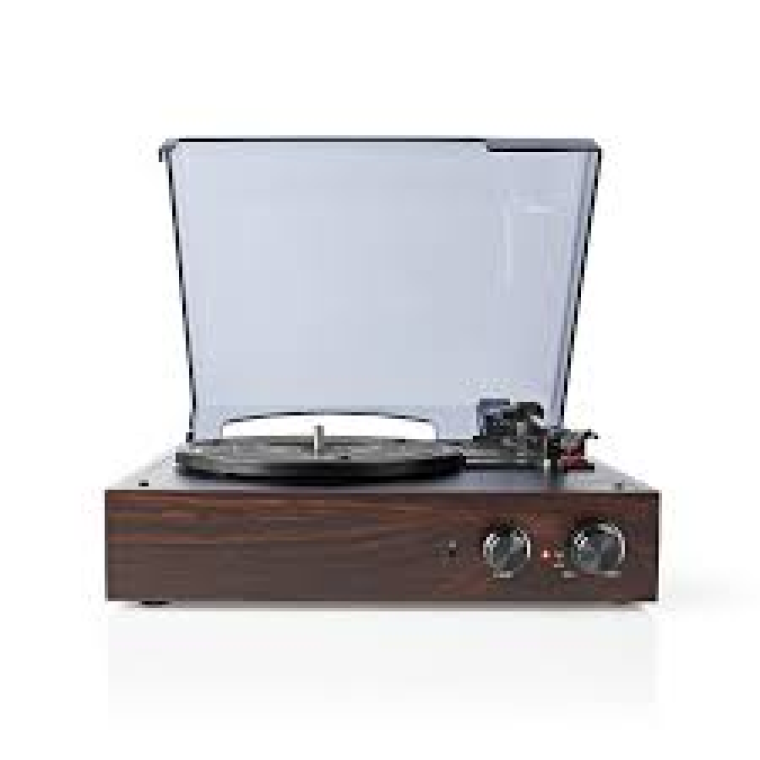

Nedis TURN220BN

This Nedis turntable allows you to listen to your vinyl collection and convert it into digital files via your computer. The built-in speakers offer a 2x 9W peak power sound output and allow you to just kick back and listen to your records with no complicated setup or hassle. Its brown finish makes it a great addition to any room and you can even connect the turntable to your home stereo system using its RCA output. The belt drive turntable can play all your vinyl records, whether they’re 33 1/3, 45, or 78 rpm.

Nedis TURN220BN – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 5.0 V DC (via external mains power adapter with Type C plug)

  • Power Connection: DC input socket (11 x 4 mm) with physical ON/OFF volume dial

  • Internal Battery: 1200 mAh Lithium-ion battery (up to 4 hours playing time)

Audio Performance

  • Drive Type: Belt drive system

  • Speeds: 33 1/3, 45, and 78 RPM (adjustable rotation speed selector)

  • Compatible Vinyl Sizes: 7", 10", and 12"

  • Frequency Response: 80 Hz – 20,000 Hz

  • Signal to Noise Ratio: 40 dB

  • Integrated Speakers: Built-in 2.0 stereo speaker system (6 W RMS / 18 W Peak power)

  • Preamplifier: Built-in stereo phono preamplifier (Line-level output)

Connectivity & Streaming

  • USB Interface: USB Type-B Female port (for PC connection to convert vinyl to MP3)

  • Bluetooth: Built-in Bluetooth receiver (for streaming music wirelessly from mobile devices to internal speakers)

Controls & Indicators

  • Control Elements: Power ON/OFF & Master Volume dial, Mode selector switch, 33/45/78 RPM speed selector switch, Auto-Stop switch (ON/OFF), Cueing lever (Tonearm lifter)

  • Indicators: Dual-color LED indicator (Power, Bluetooth pairing mode, Charging status)

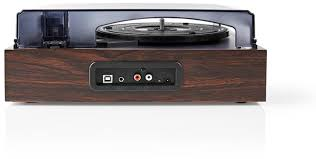

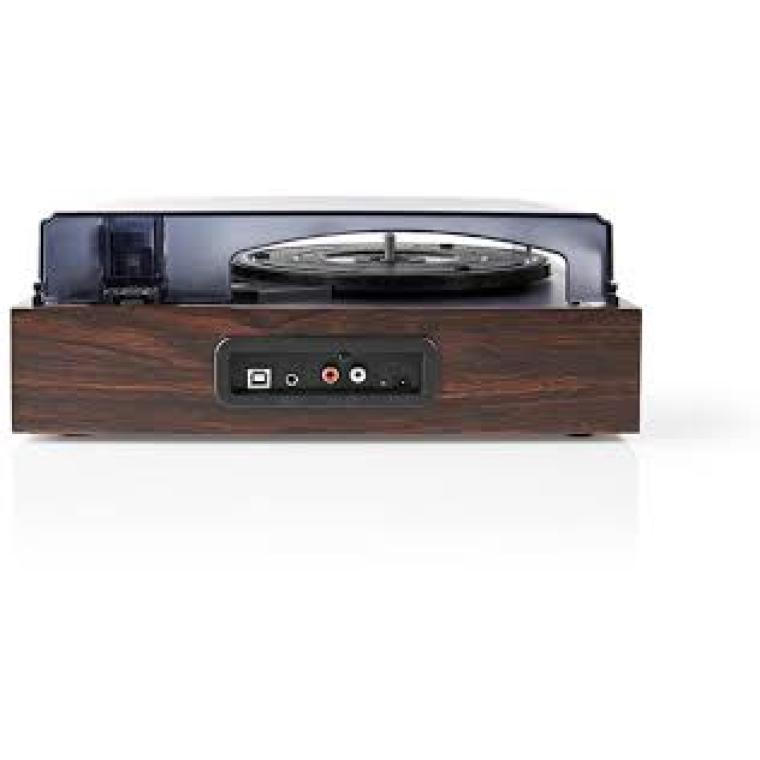

Inputs & Outputs

  • Inputs:

    • AUX Input: 1 x 3.5 mm TRS stereo jack

  • Outputs:

    • Line Output: 1 x Stereo RCA pair (L/R)

    • Headphone Output: 1 x 3.5 mm TRS stereo jack

    • PC Output: 1 x USB Type-B Female port

Physical Specifications

  • Housing Design: MDF cabinet with ABS elements (Brown finish) and transparent protective dust cover

  • Dimensions (W x D x H): 329 x 281 x 113 mm (12.9" x 11.0" x 4.4")

  • Weight: 2.7 kg (5.95 lbs)

Accessories Included

  • 5 V DC Power Adapter, USB Charging Cable, 45 RPM Adapter Spindle, Spare Stylus (Needle 6174DS), User Manual
