NJS XDJ-01

€199.00€279.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

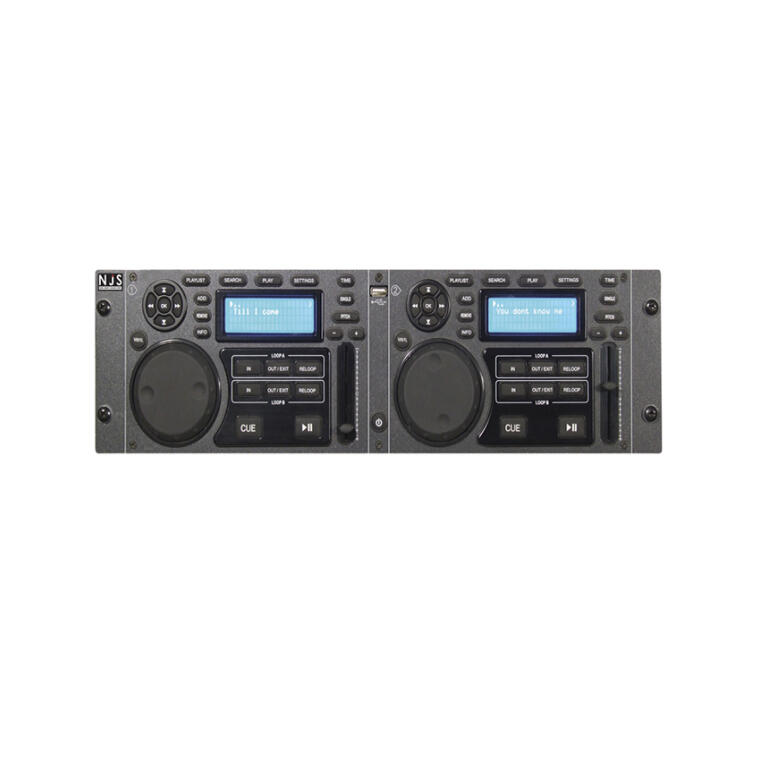

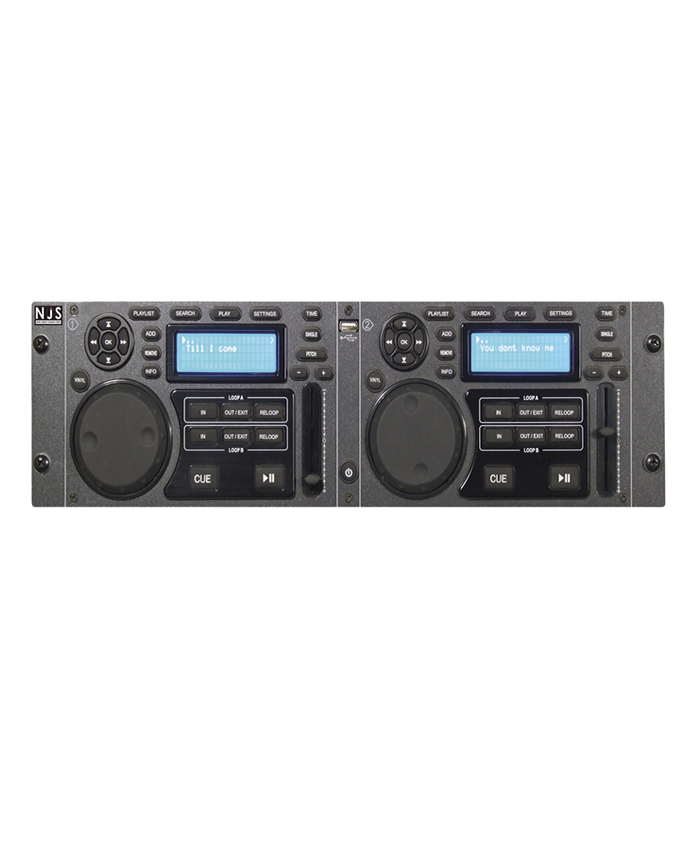

NJS XDJ-01

This controller allows DJs to cue, play, search and scratch digital files and by using the database search system, users can find any track by artist, title or genre. Plug in any USB memory flash drive, and play it right away without having to reboot the unit. With two USB ports and expandable further when using a USB hub, a USB keyboard can also be used for easy and faster navigation.

NJS XDJ-01 – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: 15 W

  • Power Connection: Fixed mains cable with Europlug / UK Plug

Audio Performance & Playback

  • Playback Media & Formats: MP3 files via USB storage devices, Audio CD, CD-R, CD-RW

  • Dynamic Range: >80 dB

  • Signal-to-Noise Ratio (S/N): >85 dB

  • Total Harmonic Distortion (THD): <0.1%

  • Channel Separation: >80 dB

  • Pitch Control: ±8%, ±16%

  • Anti-Shock Buffer: Anti-shock RAM memory built-in

Connectivity & Signal Routing

  • Audio Output: Line level stereo signal

  • Data Interface: USB Type-A port (for USB flash drives and external hard drives)

Controls & Features

  • Jog Wheel: Multi-function search dial for Pitch Bend, Fast Search, and Frame Cueing

  • Display: Blue LCD screen with track number, time mode (Elapsed/Remain), pitch percentage, and MP3 text navigation

  • Control Elements: Large Start/Pause & Cue buttons, Pitch Fader, Pitch Bend buttons (+/-), Seamless Loop (In/Out/Reloop), Track Select knob / Skip buttons, Folder Nav button

  • Play Modes: Single / Continuous playback modes

Inputs & Outputs

  • Analog Outputs: 1 x Stereo RCA pair (L/R)

  • Media Interface: 1 x USB Type-A port

Physical Specifications

  • Housing Design: 19" Rack-mountable steel chassis (1U / 2U compact design)

  • Dimensions (W x D x H): 482 x 89 x 97 mm (19" x 3.5" x 3.8")

  • Weight: 1.8 kg (3.96 lbs)

Accessories Included

  • Stereo RCA Cable

  • Power Cable

  • Operating Manual
